SAE J527 Standard Zinc Plated Low Carbon Steel Bundy Tube Automotive Brake Tube Brake Systems

Product Name

Zinc plated double wall tube

Standard

SAEJ527/Ford Standard/GM Standard /Jingda Standard

Out Diameter

4.76mm~12mm

Wall Thickness

0.7mm, 1.0mm

Length

Cut to length, coil tube

Tensile Strength

≥290Mpa

Yield Strength

≥180Mpa

Elongation

≥25%

HR30T

≤68

Inside Surface Cleanliness

≤0.16G/m2

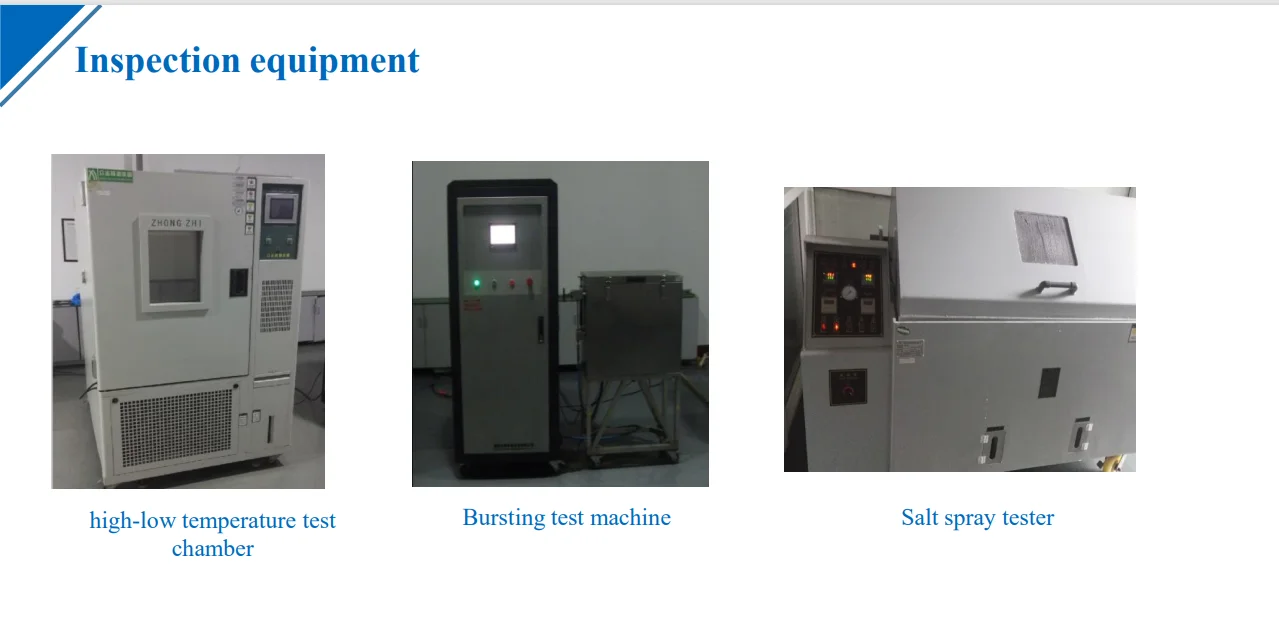

Corrosion Resistance

3000 hours without red rust after salt spray test

Material

Low Carbon Steel/BHG2/HG2

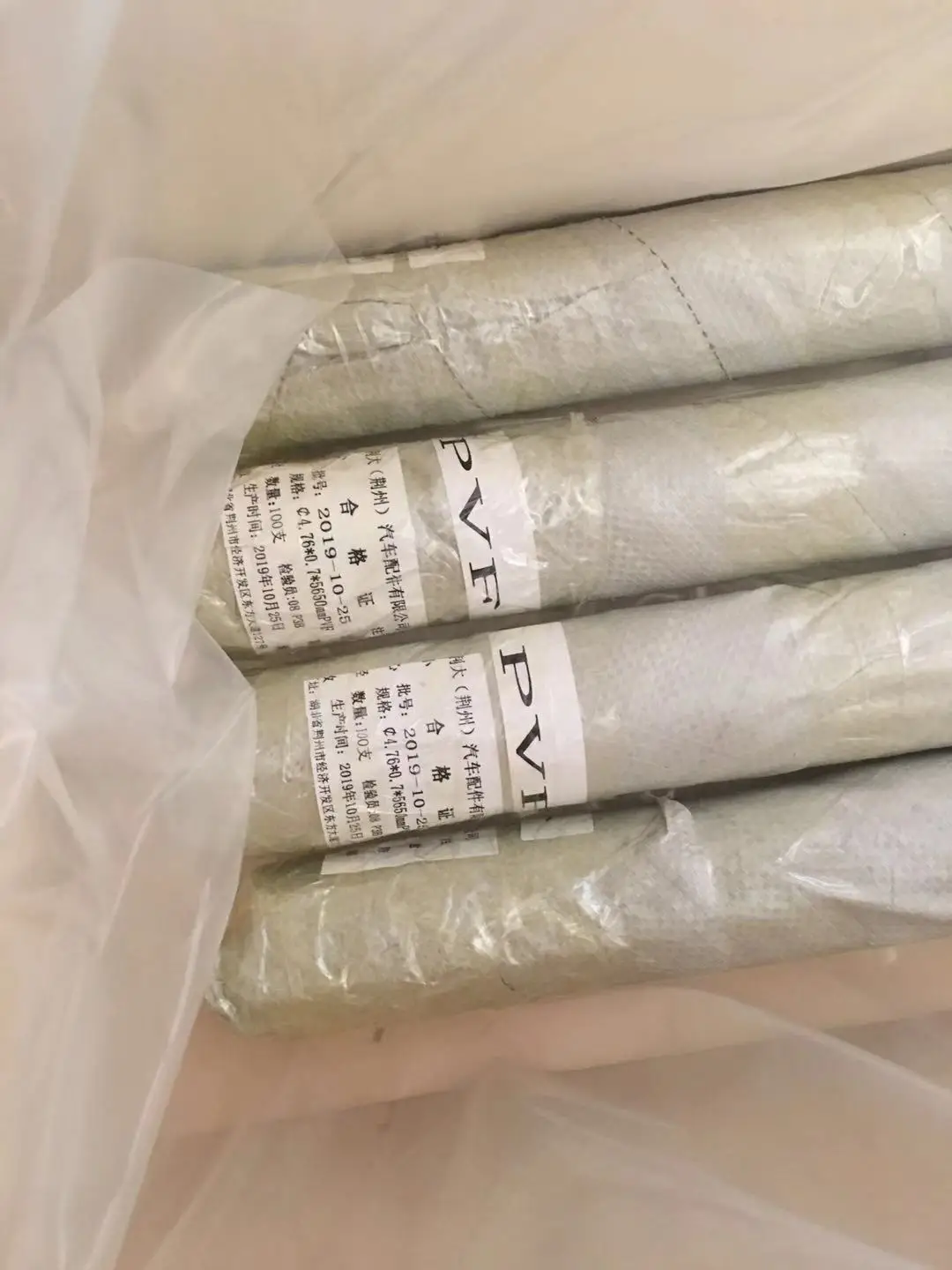

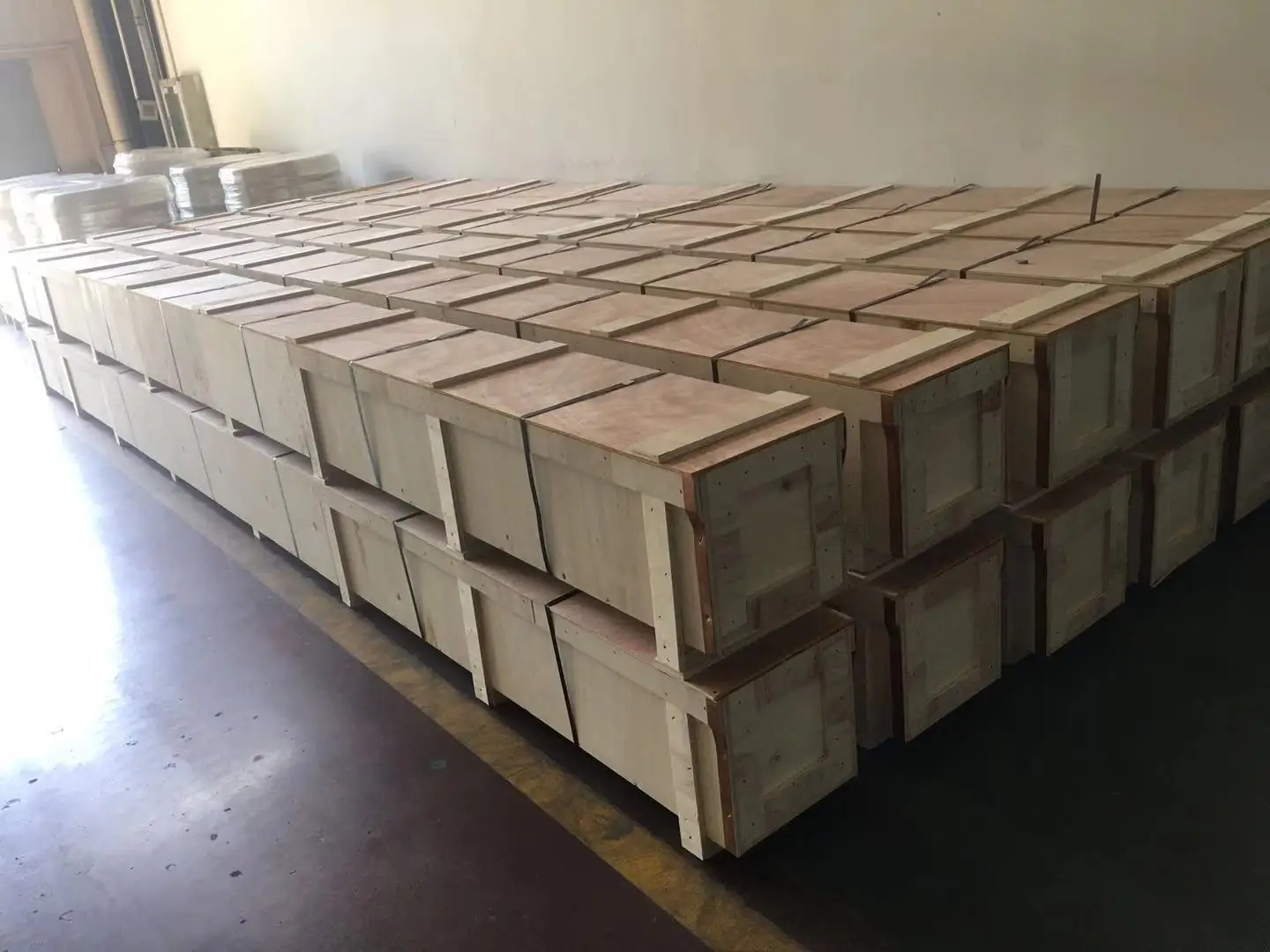

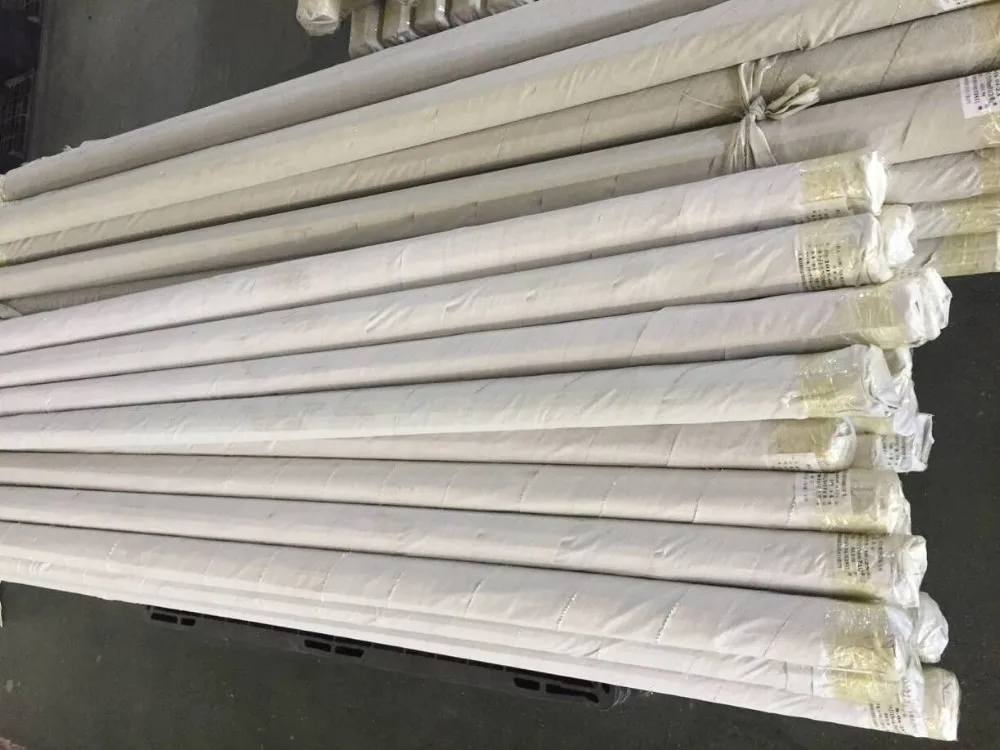

Packing

Coils or Bundles, then in pallets or wooden boxes

MOQ

1 Metric tons, sometimes can be negotiated by two parties

Payment terms

T/T

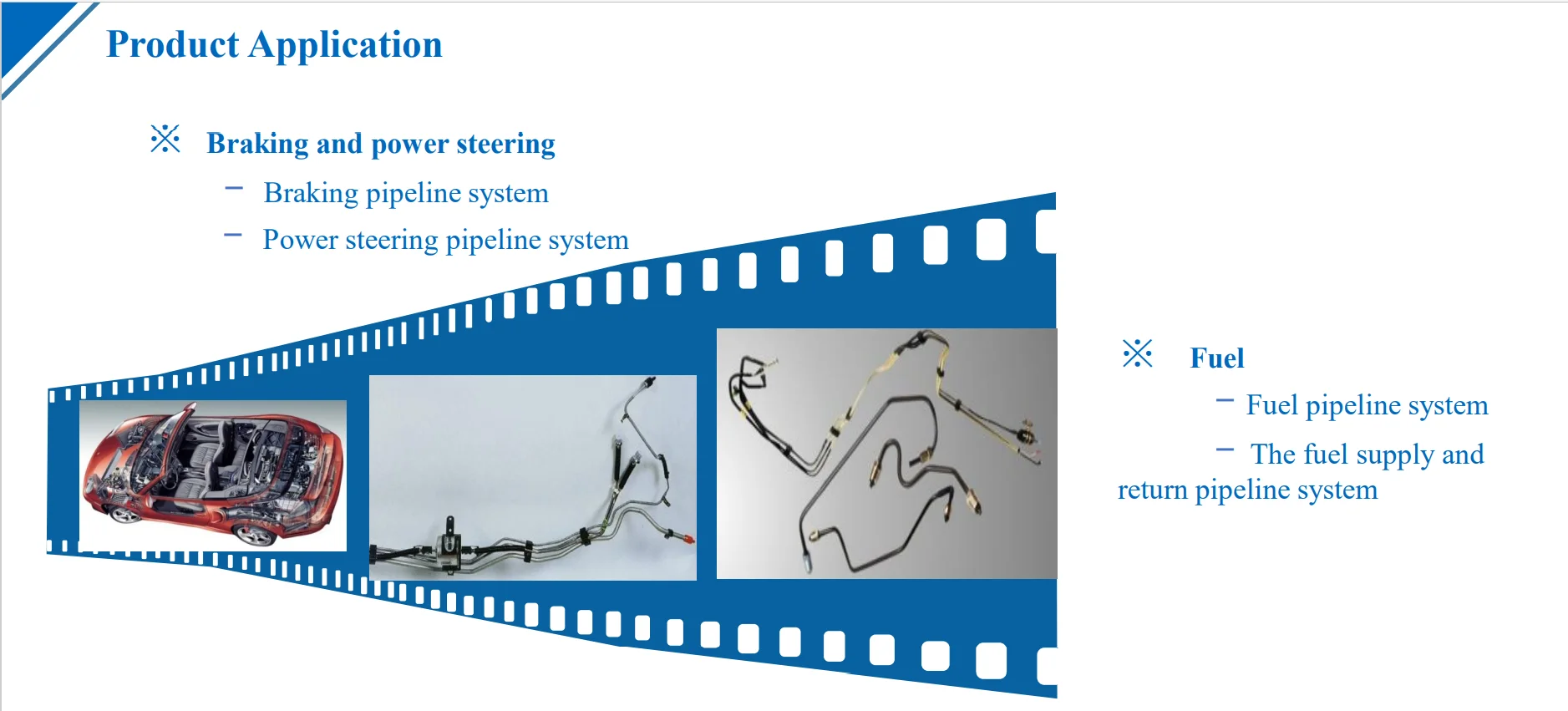

Application

For automobile industry
