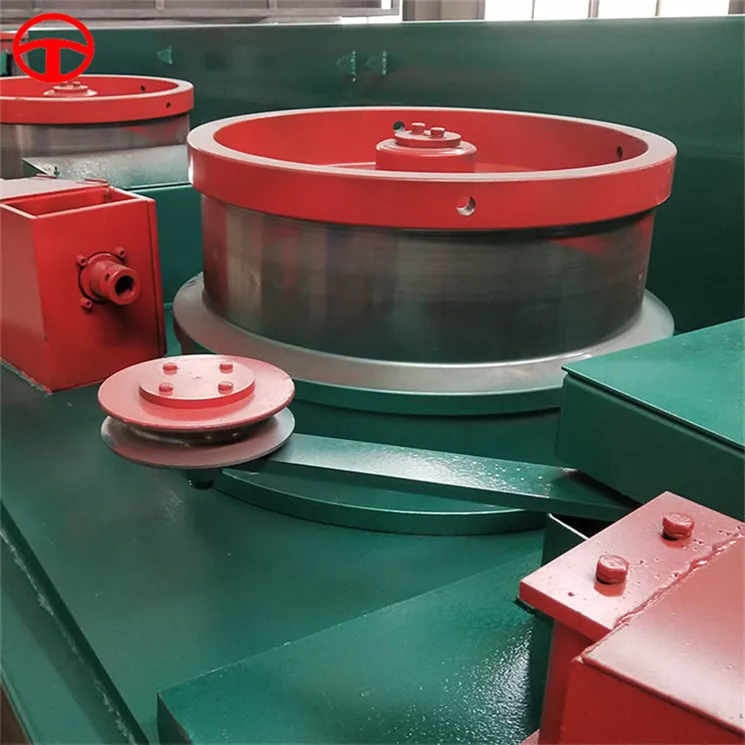

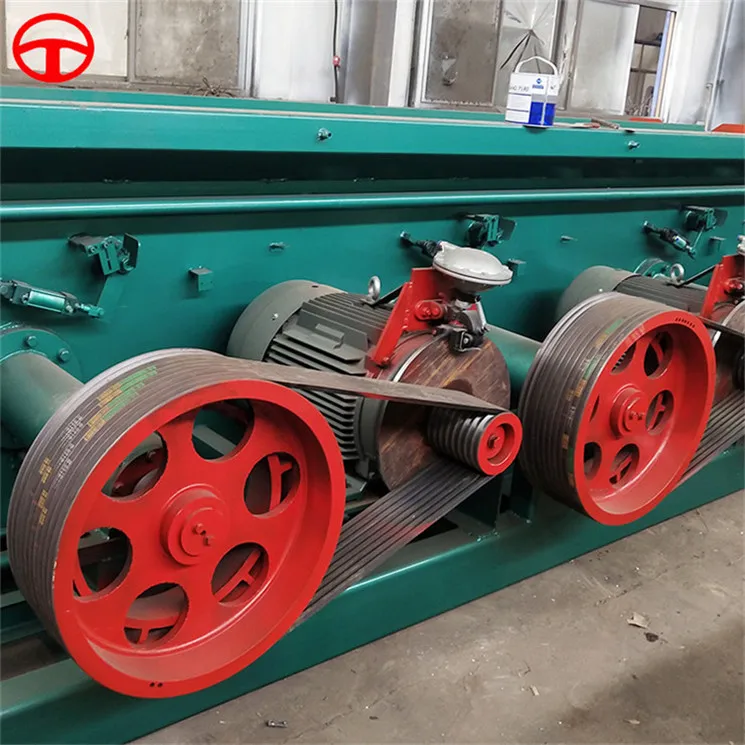

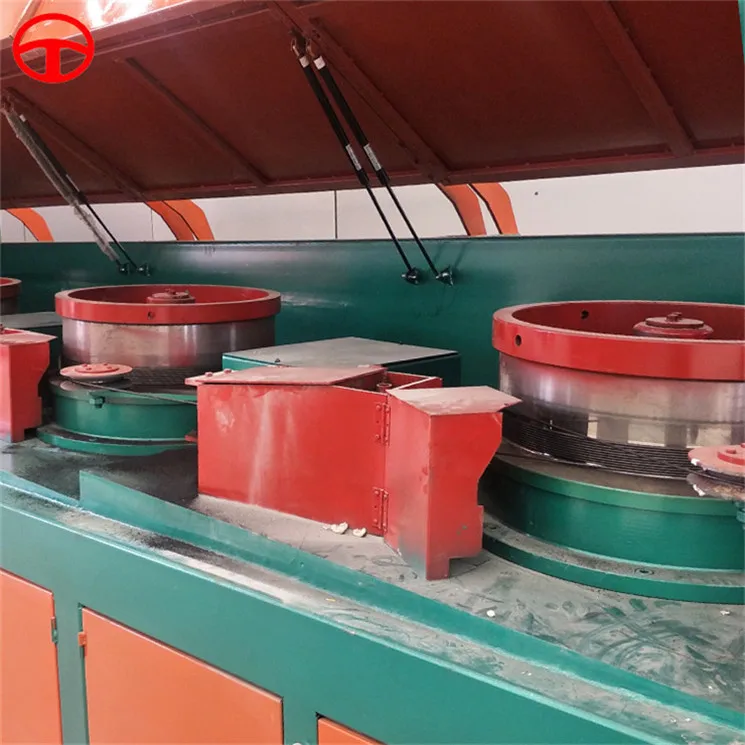

High speed straight type steel wire drawing machine equipment manufacturers
- Category: >>>
- Supplier: Hebei Oulite Import & Export Trading Co. Ltd.
Share on (1600205404396):
Product Overview
Description

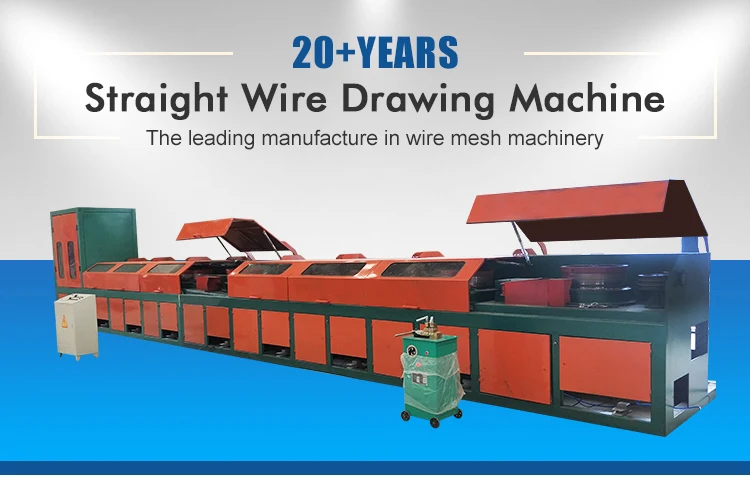

Straight wire drawing machine is a common metal wire processing equipment, straight wire drawing machine, can be high, medium and low carbon steel wire, stainless steel wire, copper wire, alloy copper wire, aluminum alloy wire, etc., for elongation processing.
Specification
Model | LZ400 | LZ550 | LZ700 | |
Inlet Wire Dia. | mm | 3.2 | 6.5 | 8 |
Outlet Wire Dia. | mm | 0.8 | 2.0 | 5.4 |
Number of drawing capstan | 8 | 9 | 4 | |
Single Power | kw | 11 | 22 | 22 |
Max speed | m/s | 12 | 12 | 10 |
Dia.of capstan | mm | 400 | 550 | 700 |
Drive mode | Deduction gear | Deduction gear | Deduction gear | |
Operation | Touch screen | Touch screen | Touch screen |

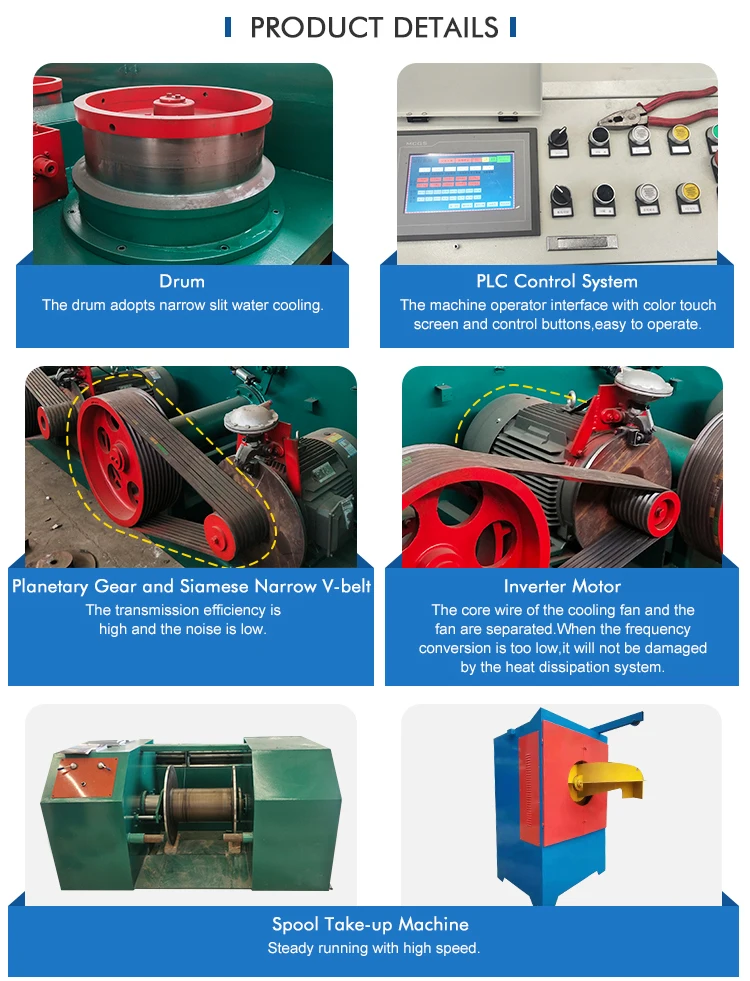

Details Images
Precautions:
Equipment should be inspected monthly (closed for 4 hours) for thorough maintenance and overhaul.1.daily maintenance:
1) Keep the outside of the equipment clean and check that the air supply lines and quick connectors are good.
2) Lubrication of the upper and lower bearing housings and the lifting screw (oil gun refueling).
3) Check the belt and its tension (if the tension is too loose, adjust to the appropriate level).
Finished products
The wire drawing machine pulls the wire into different wire numbers. The welded wire mesh widely used in industrial, agricultural, aquaculture, construction, transportation, mining and other fields is welded with high-quality low-carbon wire and then cold-plated (plated), surface plating and plasticizing treatment such as hot-dip plating and PVC coating, the metal mesh surface is smooth, the mesh is uniform, the solder joint is firm, and it has the characteristics of stability, corrosion resistance and corrosion resistance. Stainless steel welded wire mesh is made of high-quality stainless steel wire; for example, machine protective cover, animal husbandry fence, flower fence, window guard, channel fence, poultry cage and home office food basket, paper basket and decorative items, etc. More acid-resistant, alkali-resistant, welded, and beautiful.

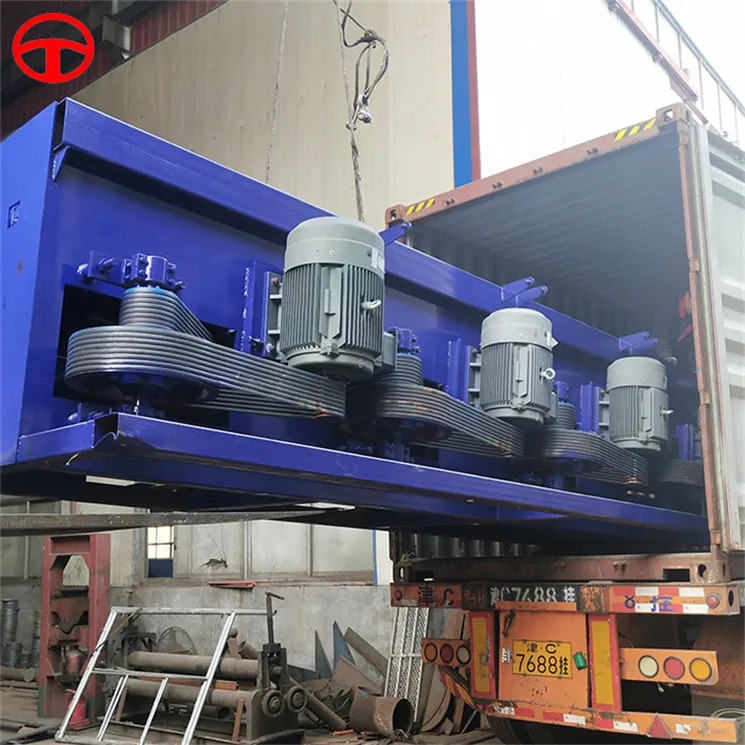

Packaging & Shipping
Company Profile
Hebei OLT wire mesh machine company with 55 employees,9000 square meters workshop,more than 30 yesrs experience in metal wire mesh fence.All these help us to be the leading manufacture in Metal wire Mesh and wire mesh mahcinery fied,Dealers from all over country are welcome to visit and purchase .
FAQ
Q:What is your payment terms?
A:T/T,L/C,West Union,Cash etc.
Q: Can you ship to my country?
A: Yes,no problem.We will book a fast ship for you.
Please let me know your destination port and I will check sea freight for you.
Q:How long is your delivery time?
A:The finish time is about 20-60 days according to different products and machines.
Q:I want more machines, how can I get latest catalogue for reference?
A:You can contact us by Trade Manager,Whatsapp,Wechat or by email,We will give you our latest catalogue according to your information.
Q:How can you guarantee the quality and the warrenty?
A:The products quality control by informing material inspection,100% in-production check and random check after packaging.The warrenty of barbed wire fencing machine is one year for main frame.The spareparts and technical solution provided timely machine failure.
A:T/T,L/C,West Union,Cash etc.
Q: Can you ship to my country?
A: Yes,no problem.We will book a fast ship for you.
Please let me know your destination port and I will check sea freight for you.
Q:How long is your delivery time?
A:The finish time is about 20-60 days according to different products and machines.
Q:I want more machines, how can I get latest catalogue for reference?
A:You can contact us by Trade Manager,Whatsapp,Wechat or by email,We will give you our latest catalogue according to your information.
Q:How can you guarantee the quality and the warrenty?
A:The products quality control by informing material inspection,100% in-production check and random check after packaging.The warrenty of barbed wire fencing machine is one year for main frame.The spareparts and technical solution provided timely machine failure.
