Product Overview
Description
Products Description
Wingoil Portable Pressure Test System is a kind of pressure test equipment which can meet the requirements of water, oil, chemical media and other different media injection. The pumps, valves and pipelines are made of stainless steel, which can withstand the harsh working conditions of high temperature and high pressure.The equipment uses compressed air as the power source, with low energy consumption and high safety.This set of equipment carries out relevant pressure tests on various pressure vessels, pipelines, valves, etc.it is suitable for chemical industry,construction,water heating,petroleum,coal,smelting,shipbuilding and other industries. The equipment has the characteristics of compact structure, small shape, cart structure and convenient movement.
Features:
>Low pressure compressed air as the power source for pressurization,convenient,safe and environmentally friendly

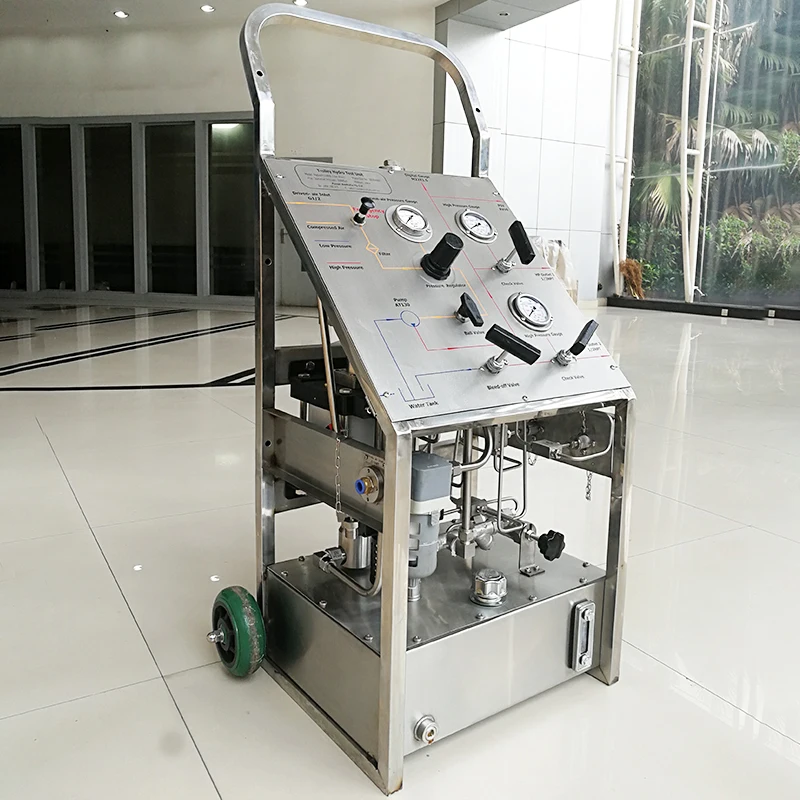

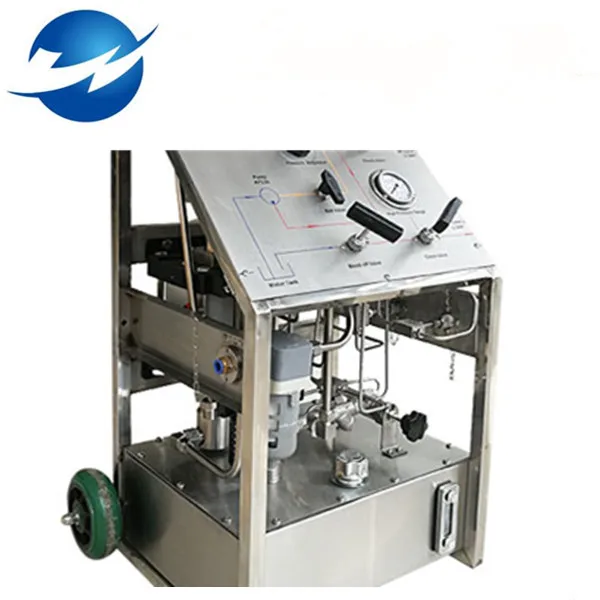

>Trolley type structure is adopted for the equipment,with light weight and easy transportation and movement.The bottom is equipped with casters,which can move freely on the flat surface.When the caster is not needed,it can be removed
>Function of pressure self-locking,under the condition of setting the driving air pressure,the output pressure is constant,but there is no impulse,pressure maintaining and no energy consumption

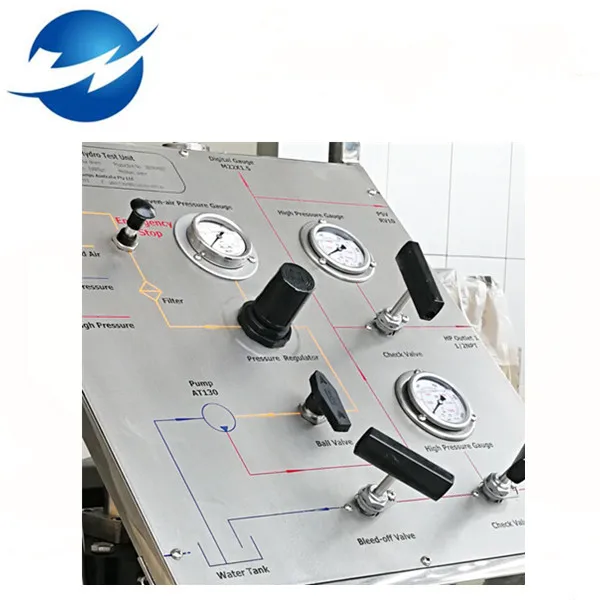

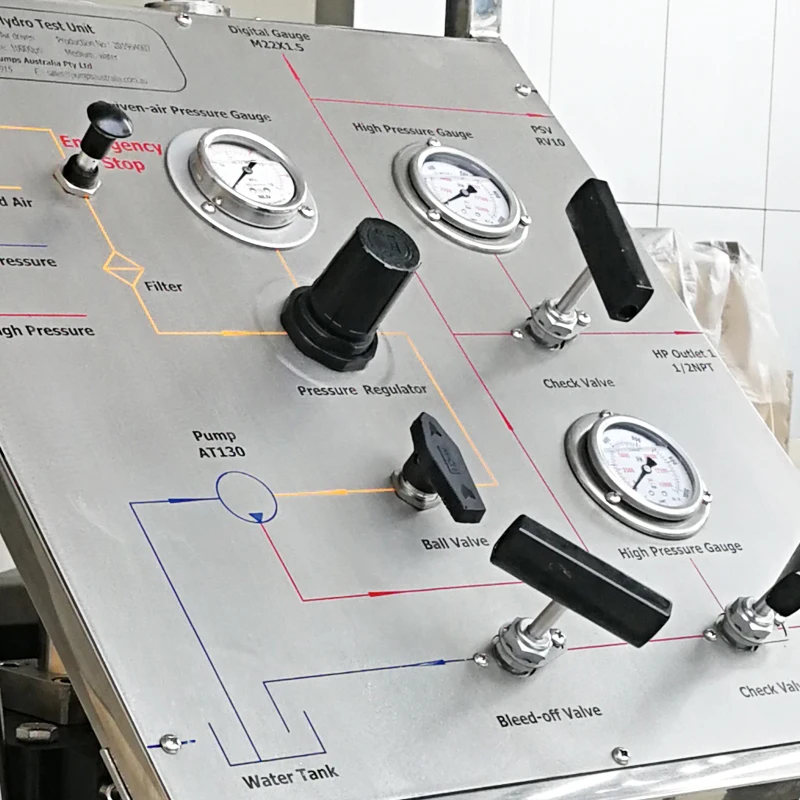

>Provided with double scale shockproof pressure gauge display
>Designed with emergency stop valve,which can be pressed to work quickly in case of emergency
>Function of safety protection.When the high pressure reaches the set pressure,the system will release the pressure automatically
>Characteristics of compact structure, small shape,cart structure and convenient movement
>Trolley type structure is adopted for the equipment,with light weight and easy transportation and movement.The bottom is equipped with casters,which can move freely on the flat surface.When the caster is not needed,it can be removed
>Function of pressure self-locking,under the condition of setting the driving air pressure,the output pressure is constant,but there is no impulse,pressure maintaining and no energy consumption
>Provided with double scale shockproof pressure gauge display
>Designed with emergency stop valve,which can be pressed to work quickly in case of emergency
>Function of safety protection.When the high pressure reaches the set pressure,the system will release the pressure automatically
>Characteristics of compact structure, small shape,cart structure and convenient movement
Connections:
>Driven-air inlet: 1/2″NPT(F)
>High-pressure outlet 1: 1/2″NPT(F)
>High-pressure outlet 2: 1/2″NPT(F)
>Safety valve : 3/8″NPT(F)
>Driven-air inlet: 1/2″NPT(F)
>High-pressure outlet 1: 1/2″NPT(F)
>High-pressure outlet 2: 1/2″NPT(F)
>Safety valve : 3/8″NPT(F)
Air pressure（bar） | 0 | 0.77 | 1.54 | 2.30 | 3.07 | 3.85 | 4.62 | 5.38 |
Hydraulic pressure（bar） | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
Output flow（L/min） | 2.77 | 2.08 | 1.62 | 1.39 | 1.15 | 0.92 | 0.81 | 0.69 |
FAQ
If you can't find suitable model for your application by above information, we can service you after knowing blow basic technicalparameters:
1. What is your present gas pressure? ( )bar
2. The pressurized gas is oxygen,nitrogen or any other?
3. How about the Max.outlet gas pressure you want to reach? ( )bar
4. What is the driven air pressure (of your air compressor) you can offer? ( )bar
5. how about the required flow rate? ( )L/min
