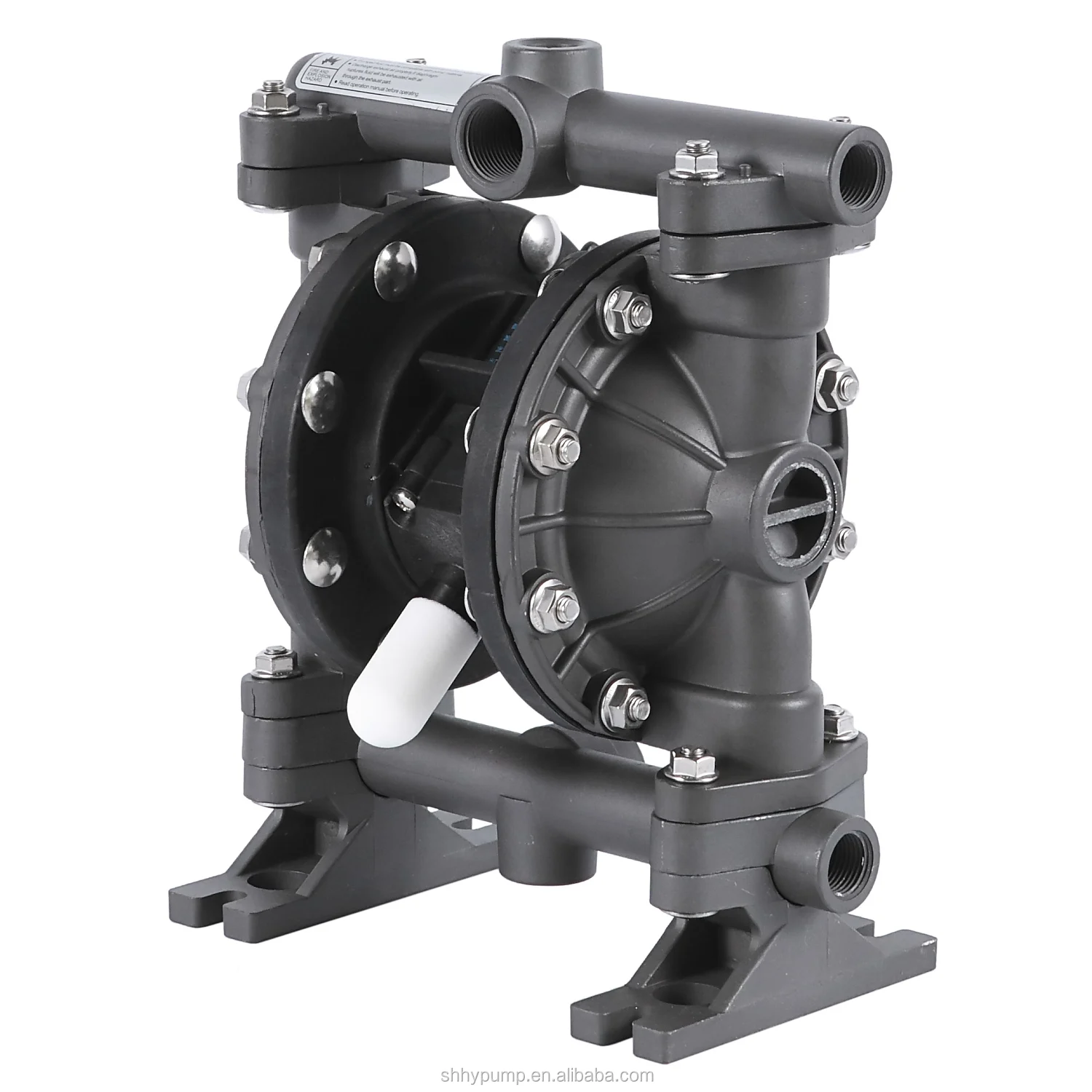

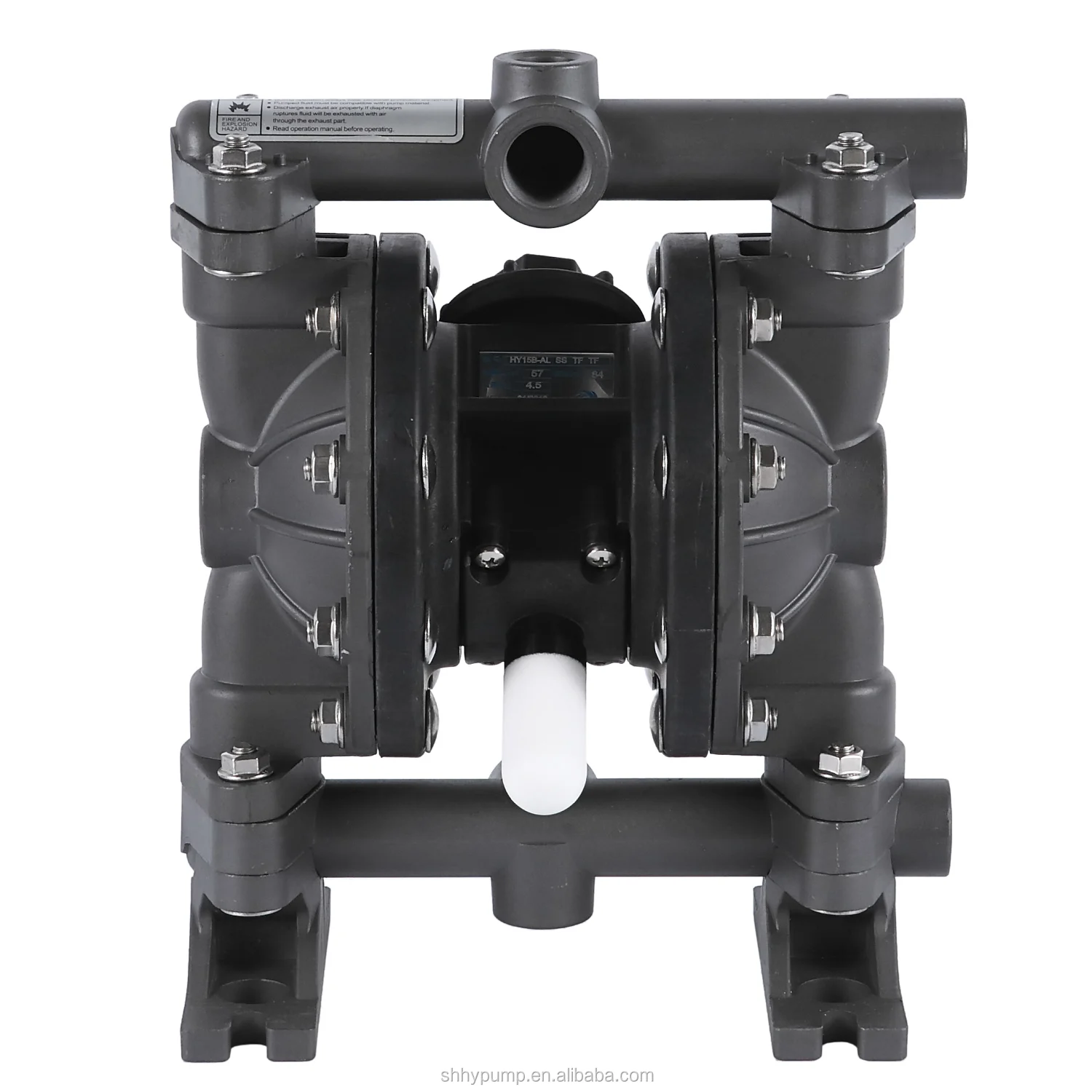

1 Inch Aluminum Alloy Pneumatic Diaphragm Pump Bomba De Diafragma For Water Transfer

Product Overview

Description

1 Inch Aluminum Alloy Pneumatic Diaphragm Pump Micro Diaphragm Pump For Water Transfer

1.Iding capability,self suction,no comples control.
2.Bolt joint design provides even sealing pressure for optimal performance.
3.Diversity of material,no rotating parts,applicable to various erosive situatons.
4.Diaphragm,ball and ball seat adopt imported materials with longer service life.
5.Modular air valve for stall-free,low pulsation operation,providing smooth and rapid changeover.
6.The delivery lift and flow can pass the pneumatic valve open to realize the stepless adiustment.



HY Air-Operated Diaphragm Pump Application



Mud Treatment "Water" is by means of physical, chemical, biological, and removal of a number of production, Life of harmful substances do not need to process .Diaphragm pump also play an important role in environmental protection ,mud treatment industry protecting the diaphragm pump in the waste water treatment industry transport all kinds of waste water ,lime syrup,soft sediments, sewage and chemical waste water .

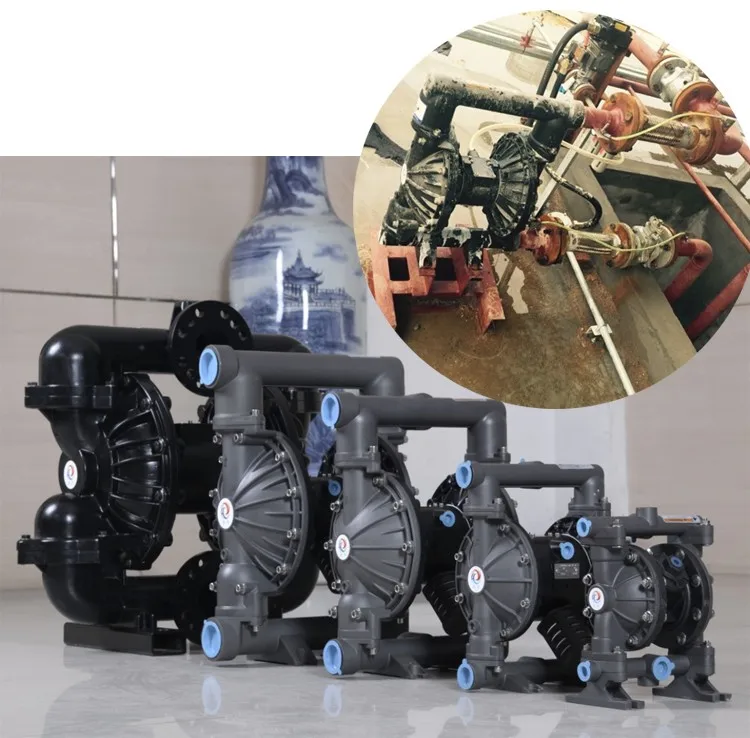

HY Air-Operated Diaphragm Pump Installation



HaoYang AODD pumps are suitable for an endless variety of applications . Our pumps can be deployed in fixed
installations within a process flowsystem, or used as portable or mobile units that can be transported to where it is to be

used.



Pump, self-priming HY AODD pumps are dry self-priming. Depending on the pump specification a suction lift of up to 8 m	Pump with positive suction Depending on the pump type, the suction side inlet pressure may need to be limited to a max. pressure
Pump, submerged HY AODD pumps can be totally submerged in the pumped medium. The exhaust outlet must remain above the fluid level.	Pump for drums HY AODD pumps can be directly mounted on drums or containers.





HY Air-Operated Diaphragm Pumps Selection

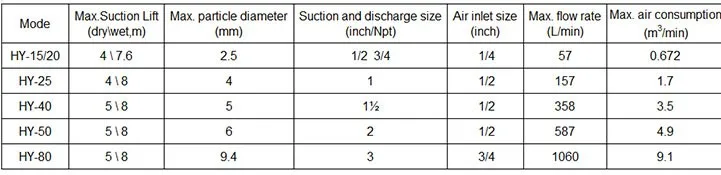

Technical parameters





Performance curve





Model sheet



HY Company information



Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.designed and manufactured for over 10 years in
Shanghai,China. HaoYang Air-Operated Double Diaphragm (AODD) pumps have earned industry recognition for
premium quality and innovative design.  And we supply accessories and components suitable for most AODD pump
installations.To ensure suitability for a variety of media, wetted parts are available in numerous optional materials.
Focus on customer satisfaction is supported with quality and reliability, validated by CE certifications.We specify only
the most durable materials that are dependable and long-lasting. When we combine the highest-quality products with
topnotch customer care, we get outstanding value.





  1. Q: Are you a factory or trading company?



      A: We are a factory.



  2. Q: What're your payments ?



      A: T/T,Western Union,L/C etc.



  3. Q: What about the package ?



      A: Standard export plywood case or carton.



  4. Q: How long is the warranty ?



      A: According to international standards, products in standard operation is 1 year,except wearable parts.



  5. Q: The use of products have?



      A: The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.



          The pump can suck the paint, pigment, glue and adhesive etc.



          The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.



          The pump can suck various toxin and flammable or volatility liquid etc.



          The pump can suck various strong acid, alkali and corrosive liquid etc.



  6. Q: How product quality and service?



      A: Our pump have CE certificate, quality assured, can accept OEM,  provide various personalized needs.
