Wireless AP POE Camera PD Module IEEE802.3af Standard 40 58V to 12V ModeA or ModeB POE Module
Wireless AP POE Camera PD Module IEEE802.3af Standard 40-58V to 12V ModeA or ModeB POE Module
Wireless AP POE Camera PD Module IEEE802.3af Standard 40-58V to 12V ModeA or ModeB POE Module
Wireless AP POE Camera PD Module IEEE802.3af Standard 40-58V to 12V ModeA or ModeB POE Module
Wireless AP POE Camera PD Module IEEE802.3af Standard 40-58V to 12V ModeA or ModeB POE Module

Wireless AP POE Camera PD Module IEEE802.3af Standard 40 58V to 12V ModeA or ModeB POE Module

Share on (1600205655554):


Price:$0.50 - $1.50

Quantity:


Product Overview

Description



Products Description


Model Nember
P3811 v3.1
POE strandard
IEEE 802.3 af
Size
38*38*15
Warranty
1 year
POE/IN
40-58V
DC/OUT
12V/1.2A
Transmission rate
100M
Temperature operation
-20℃-40℃


The 381 series module is designed for network HD cameras with a powered module that meets the IEEE 802.3af Ethernet power supply standard. Compatible with all IEEE 802.3 series standard power supply equipment and non-standard power supply equipment with the same range of supply voltage.It has the functions of automatic identification of electricity, automatic protection of short circuit, automatic disconnection of overflow, etc. Widely used in network-powered high-definition cameras, wireless AP, wireless phones, access to talk, advertising players and other POE products.


Special Function
* Support IEEE 802.3 series protocol and non-standard 48V is powered
* Supports 1236 and 4578 eight-core simultaneous power
* Automatic identification of electrical
* Short-circuit automatic protection
* Overflow automatic disconnect


Parameter
Min
Typical values
Max
Unit
Input voltage
40
52
58
V
Output voltage
11.5
12
12.6
V
Output current
1
1.2
1.3
A
Output power

14
14
W
Conversion efficiency

82

%

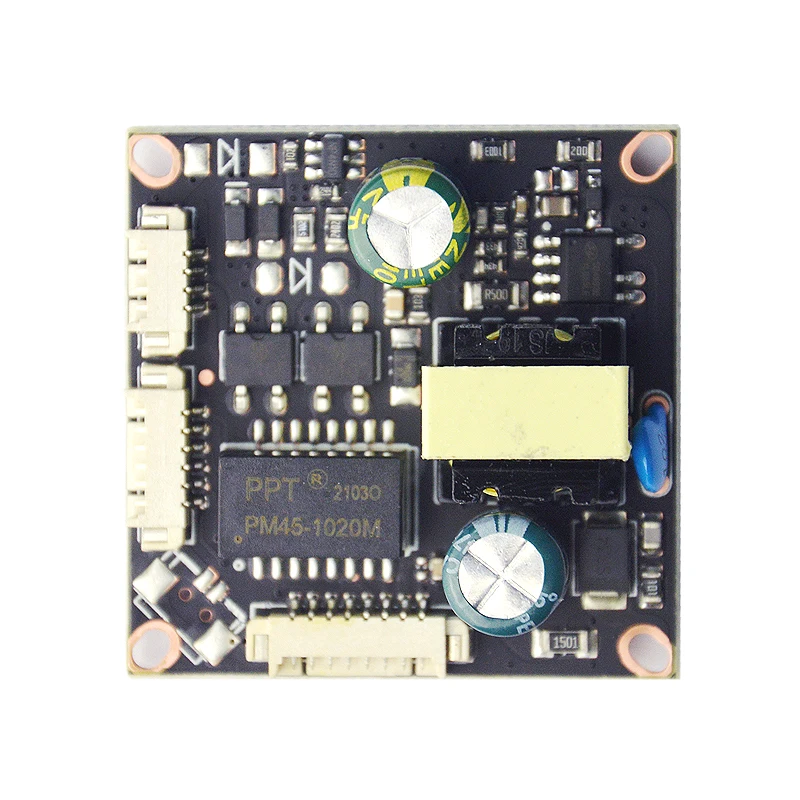

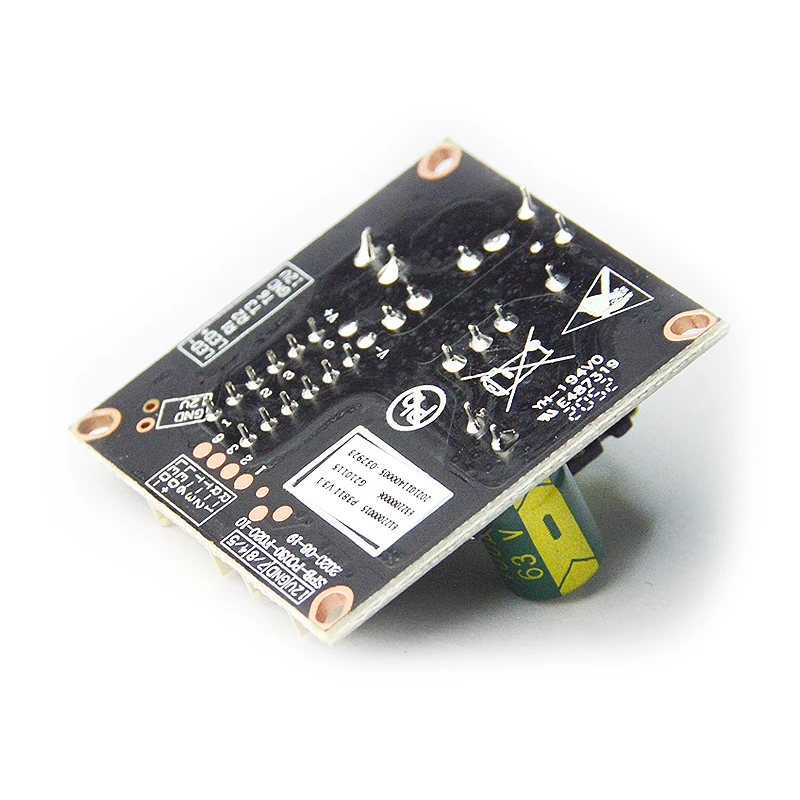

Details Images

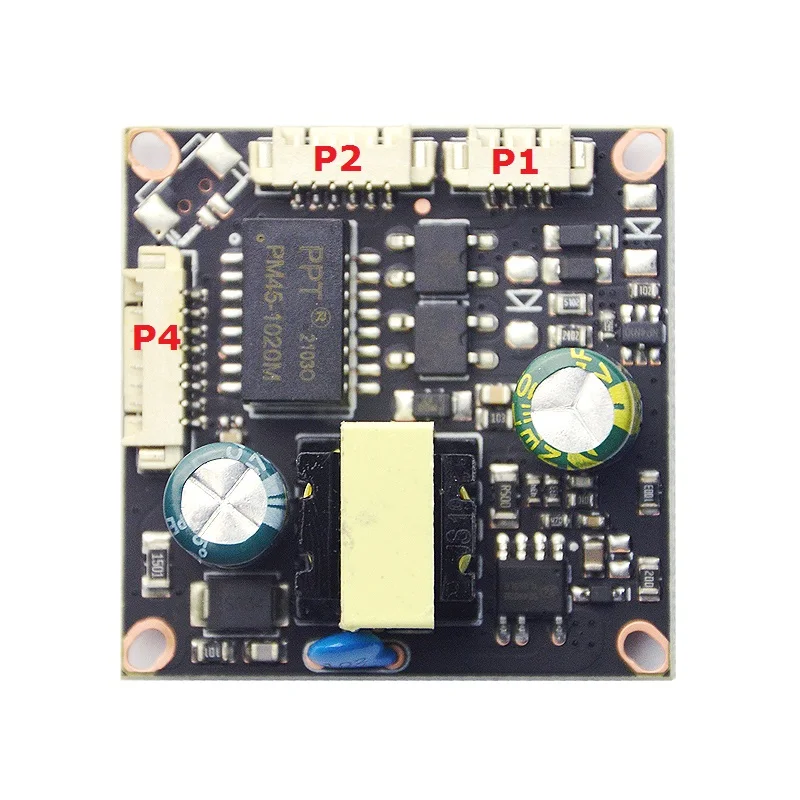

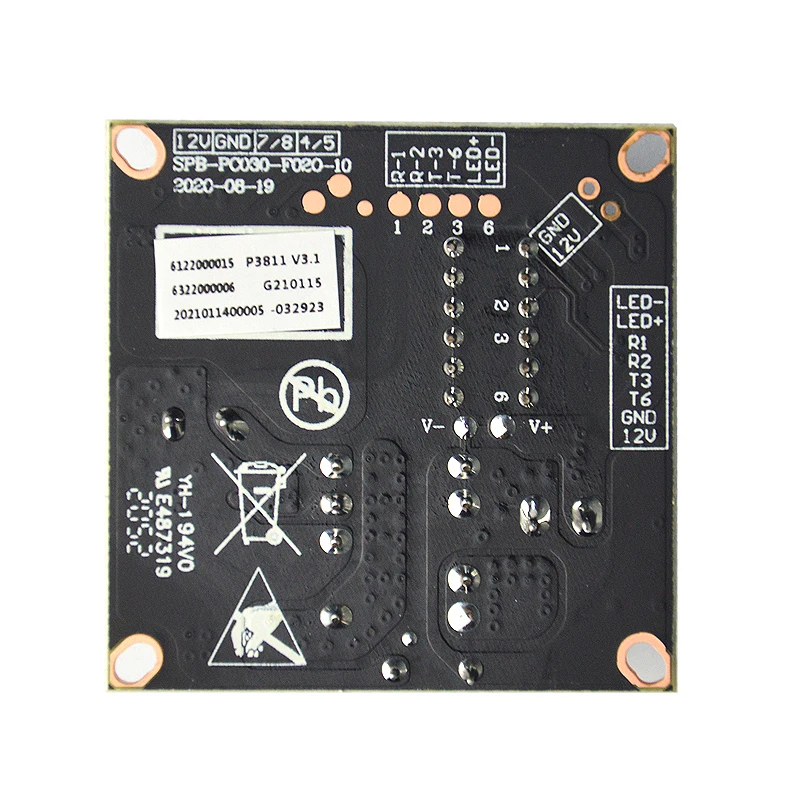

NO
P1: DC power in/out
P2: Data input/output and LED light
P4: Data output/input and LED light
1
12V
R-1
LED+
2
GND
R-2
LED-
3
7/8
T-3
R-1
4
4/5
T-6
R-2
5
LED+
T-3
6
LED-
T-6
7
GND
8
12V

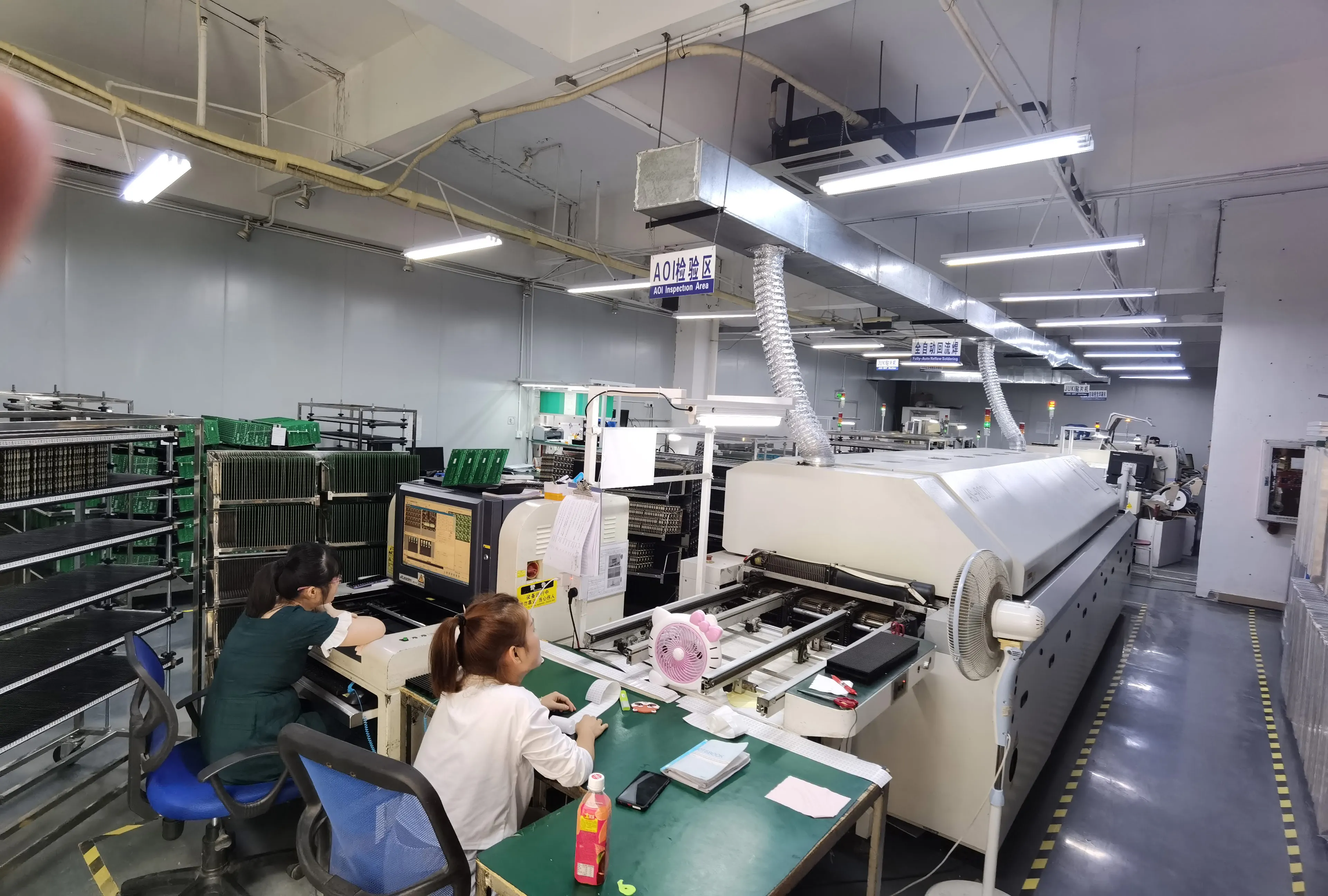

Company Introduction
