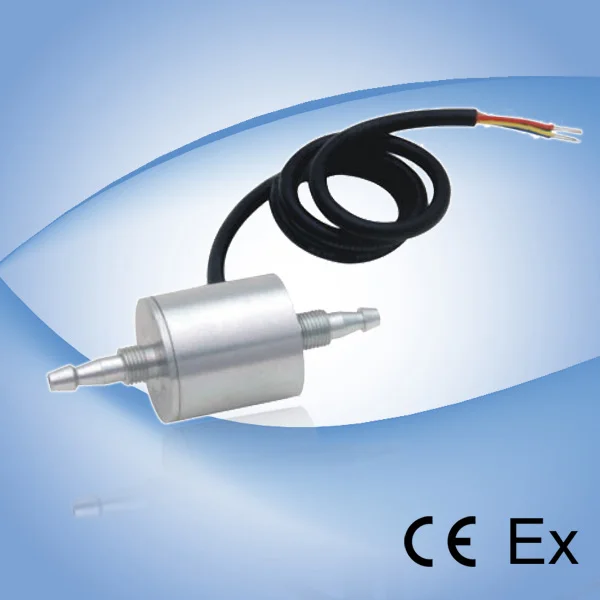

Micro Differential Pressure transmitter for gas and liquid
- Category: >>>
- Supplier: Hanzhong Quan Yuan Electronic Co. Ltd.
Share on (1600205676409):
Product Overview
Description
Description:
Feature:
Measuring differential pressure and micro differential pressure.
Small in size, light in weight, easy to install
mV signal output scheme: DC100±20 mV
Have the characteristics of high precision, good stability, long working life and high reliability.
Suitable for measuring gases, liquids and dry gases.

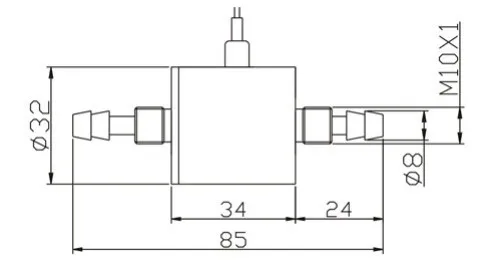

Dimensions: (unit: mm)
Differential Pressure range | KPa | 0~10~2500 |
Staic Pressure range | MPa | 0~3.5 |
Measuring media | Gases or liquids which are compatible to 316L Stainless steel | |
Pressure type |
Differential(D) | |
Overload capacity | %FS | 200 |
Safe overload | %FS | 150 |
Long stability |
±0.3%FS/year(Standard);±0.5%FS/year(Max)
| |
Power Supply | mA | 1.5
|
Temperature coefficient of ZERO | %FS/10ºC | ≤0.0 |
Temperature coefficient of SPAN | %FS/10ºC | ±0.03 |
Insulation resistance | Ohm | >500 @ 100Vdc |
Compensated temp. | ℃ | 0~70
|
Operating Temperature | ℃ | -10~80
|
Pressure connection | M12×1 diameter 8 gas mouth or user,s choose | |
Material | Housing Material | Aluminum alloy |
Material of diaphragm | 316L Stainless steel | |
Environment protection | IP | 65 |
Electrical connection | Directly lead | |
Output signal | mV signal(4 wires) | DC100±20mV |
Application:
Widely used in petroleum,chemical industry,metallurgy,electric power,textile,environmental protection ect.
