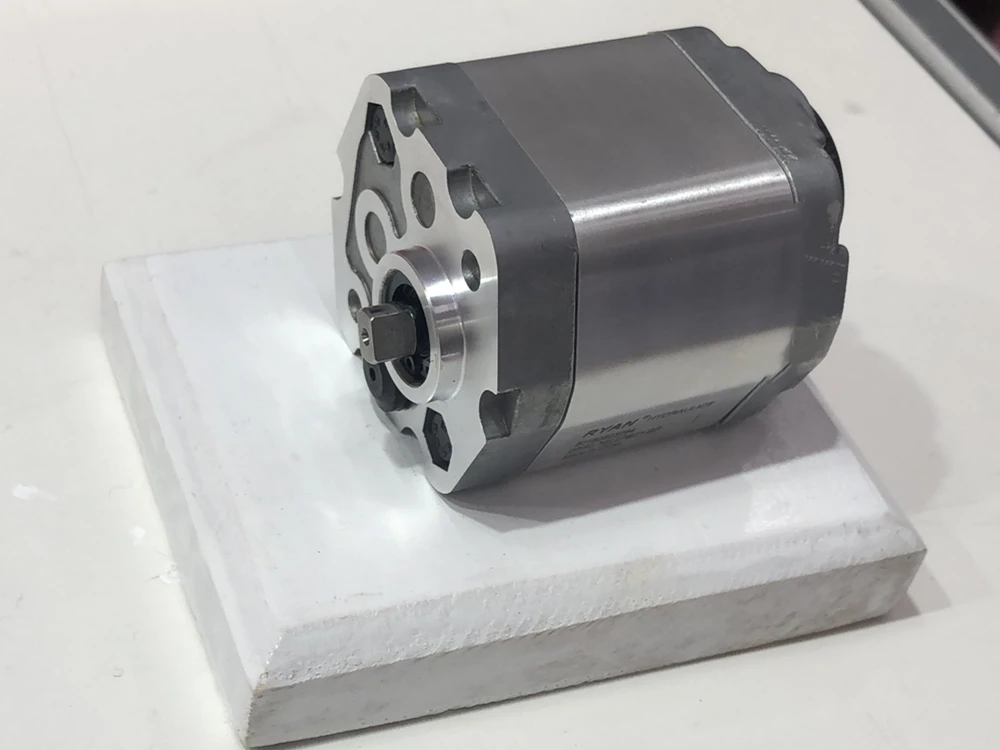

RYANCapable Manufacturer Excavator Hydraulic Gear Pump
- Category: >>>
- Supplier: Shanghai Ryan Fluid Power Company Ltd.
Share on (1600205689306):
Product Overview
Description
Product Description
Product Application
External gear pump from Ryan Hydraulics have floating bushing feature with automatic axial clearance compensation.
The bushings are made with special abrasion resistant material providing improved service life.Precisely machined gears ensure our units provide excellent low noise characteristics.Our cold extrusion motor bodies can endure pressures above 30Mpa. High strength cast iron front and rear covers also enhance our reliability.Our units are widely used in the industrial mobile marine and aerospace industries.
Series 0PF, it mainly used in mini hydraulic system because of small volume. It could also be used in track lubricating system because of low displacement.

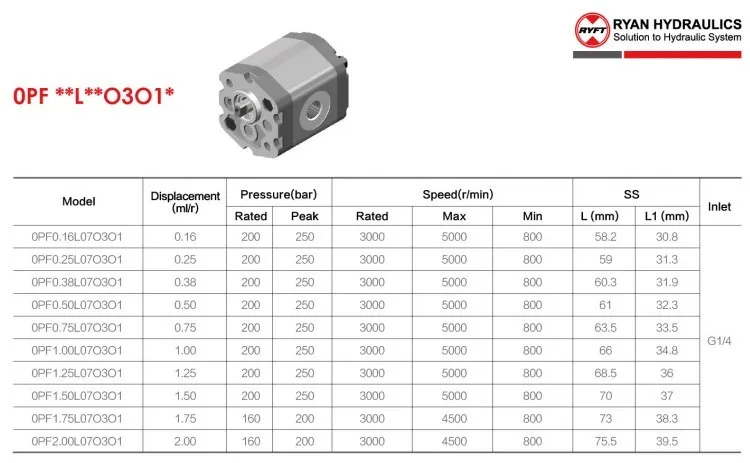

Specification for Hydraulic Gear Pump | ||||||
Model | Displacement (mr/r) | PressureRated | Peak | Speed Rated | Max | Min | L(mm) | L1(mm) | Inlet |
0PF0.16L07O3O1 | 0.16 | 200 | 250 | 3000 | 5000 | 800 | 58.2 | 30.8 | G1/4 |
0PF0.25L07O3O1 | 0.25 | 200 | 250 | 3000 | 5000 | 800 | 59 | 31.3 | |
0PF0.38L07O3O1 | 0.38 | 200 | 250 | 3000 | 5000 | 800 | 60.3 | 31.9 | |
0PF0.50L07O3O1 | 0.5 | 200 | 250 | 3000 | 5000 | 800 | 61 | 32.3 | |
0PF0.75L07O3O1 | 0.75 | 200 | 250 | 3000 | 5000 | 800 | 63.5 | 33.5 | |
0PF1.00L07O3O1 | 1.00 | 200 | 250 | 3000 | 5000 | 800 | 66 | 34.8 | |
0PF1.25L07O3O1 | 1.25 | 200 | 250 | 3000 | 5000 | 800 | 68.5 | 36 | |
0PF1.50L07O3O1 | 1.5 | 200 | 250 | 3000 | 5000 | 800 | 70 | 37 | |
0PF1.75L07O3O1 | 1.75 | 160 | 250 | 3000 | 4500 | 800 | 73 | 38.3 | |
0PF2.00L07O3O1 | 2.00 | 160 | 250 | 3000 | 4500 | 800 | 75.5 | 39.5 |
Technology
hydraulic gear pump hydraulic pump gear pump hydraulic motor hydraulic power unit electric hydraulic pump piston pump hydraulic oil pump hydraulic piston pump small hydraulic pump hydraulic hand pump hydraulic pump hydraulic piston vane pump pump hydraulic vane pump 12 volt hydraulic pump gear oil pump hydraulic gear motor hydraulic gear pump manufacturers hydraulic parts external gear pump pump hydraulic pump system hydraulic pump motor hydraulic pumps high pressure hydraulic pump oil gear pump hydraulic water pump hydraulic pumps for sale air hydraulic pump hydraulic pump unit pump electric over hydraulic pump internal gear pump

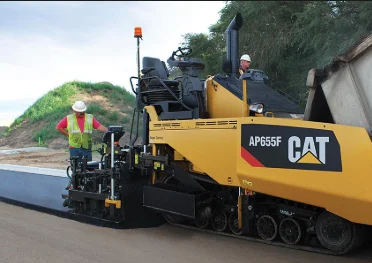

Application

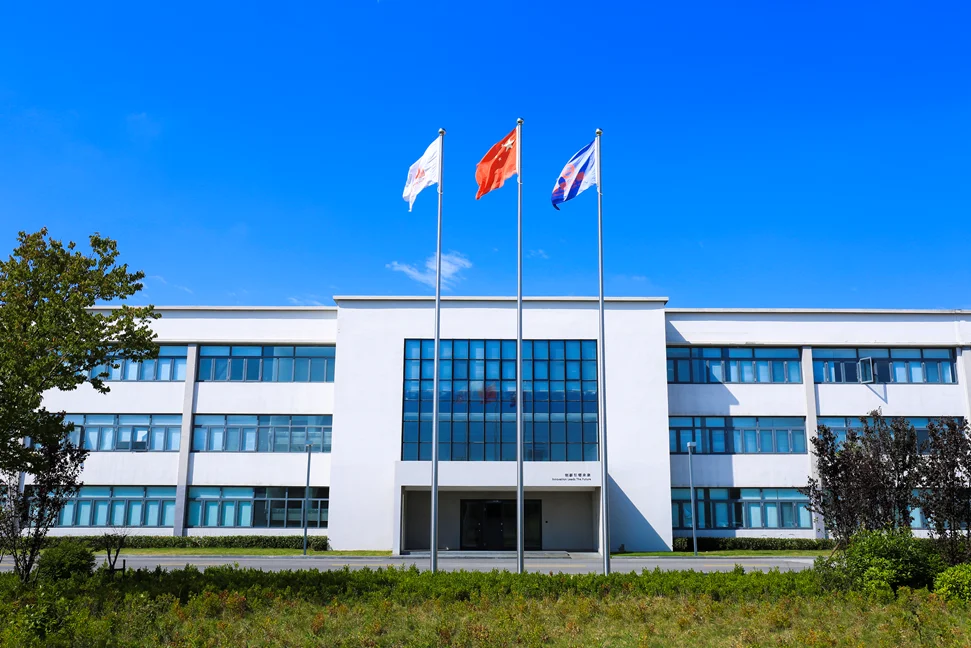

Company Information
Facatory Workshop
Research and development center
Germany iTEM 400 Thermal Deburring
DMG Demaggi Machining Center
German CNC Machining
CNC machining center
dust-free workshop
Automatic paint line

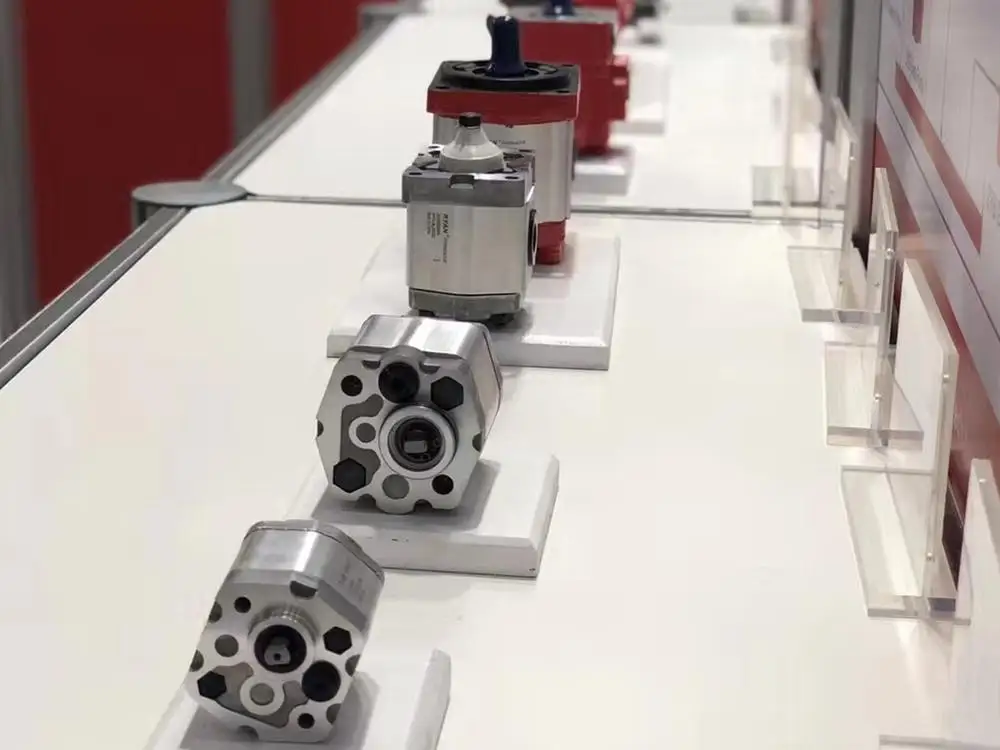

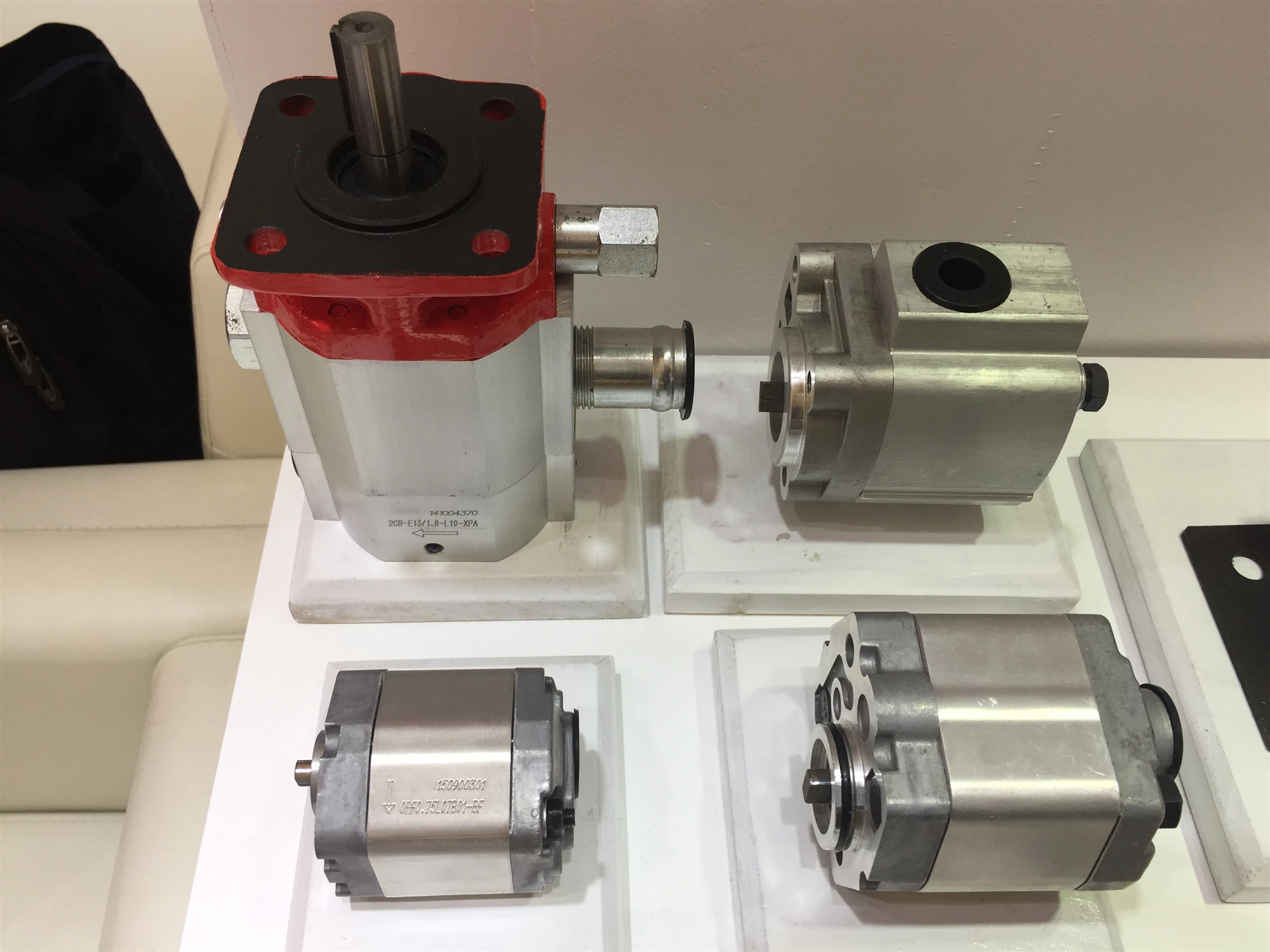

Exhibition
Certifications
