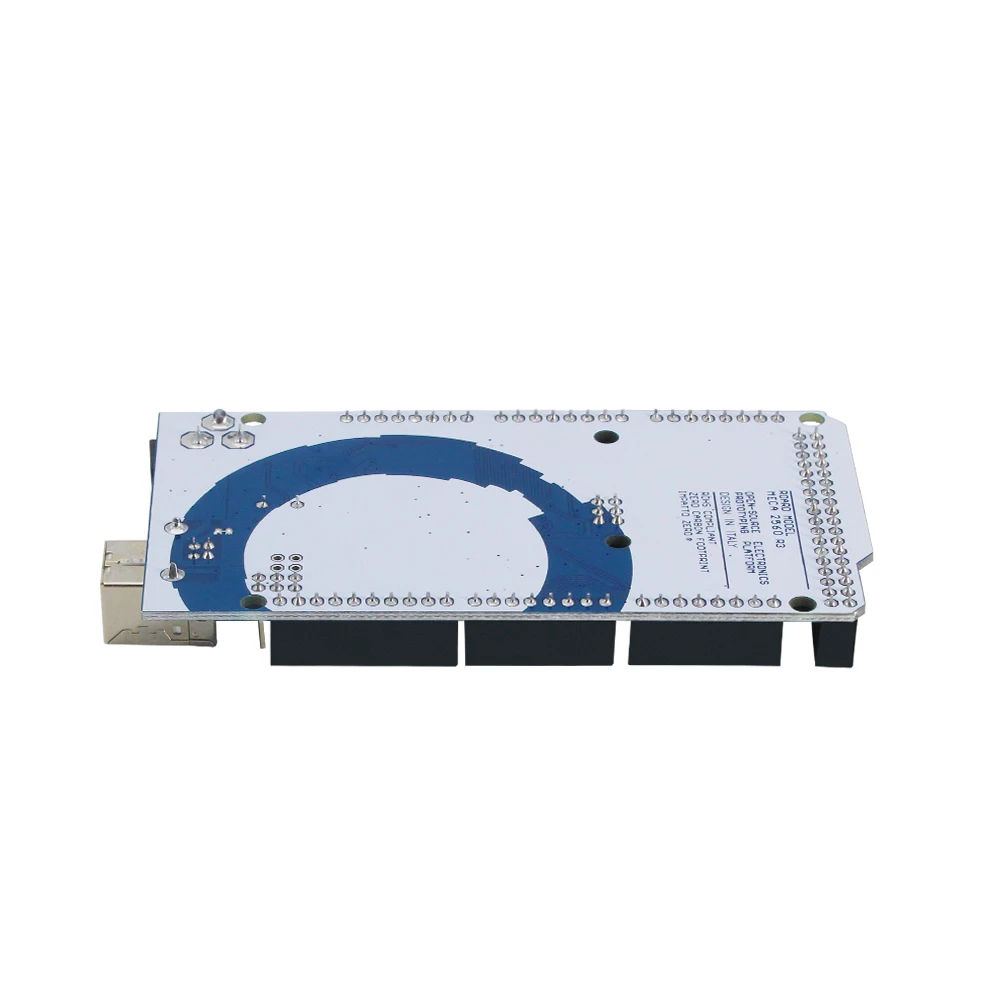

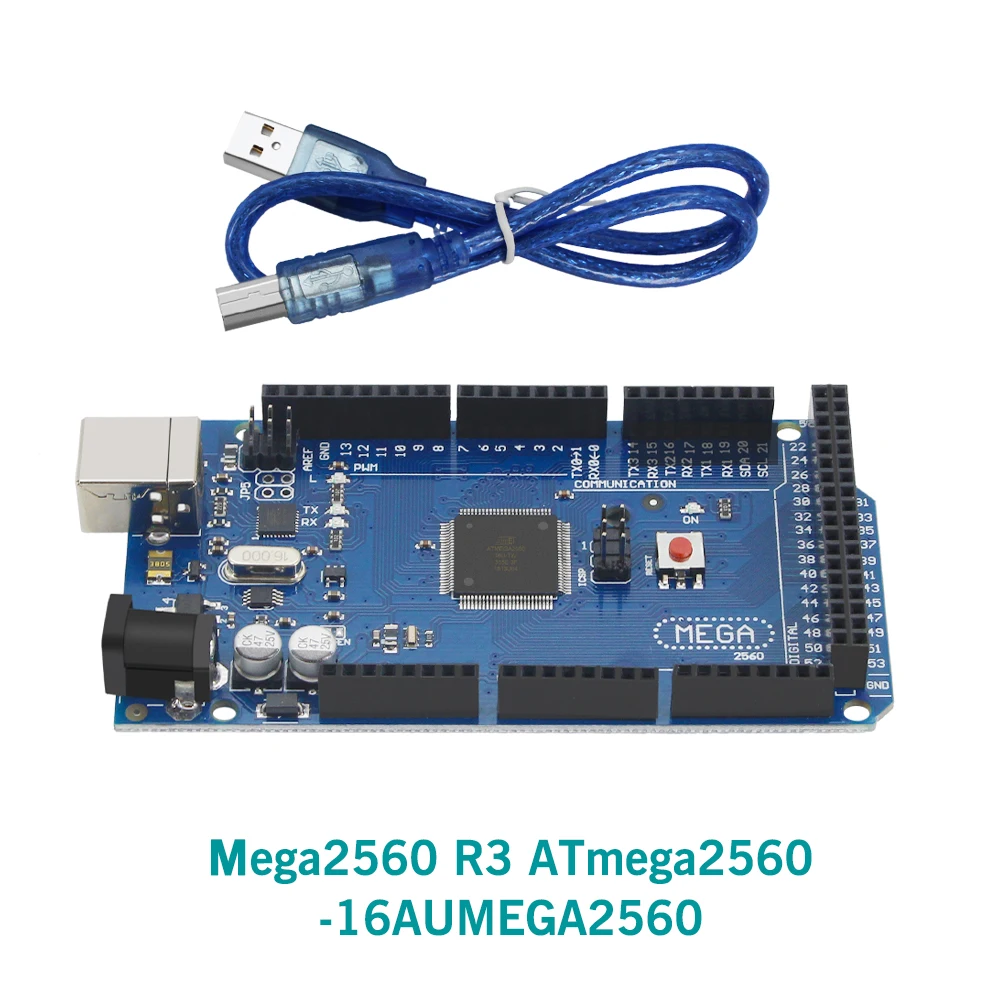

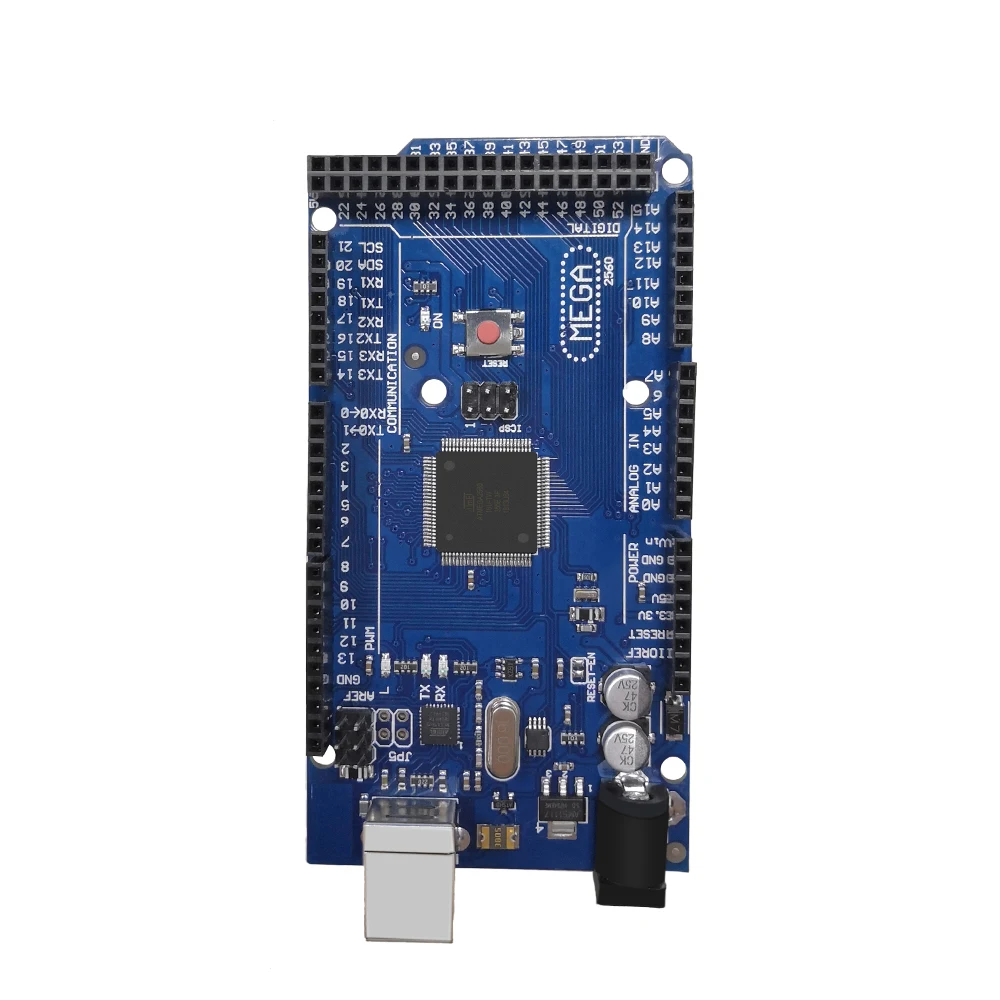

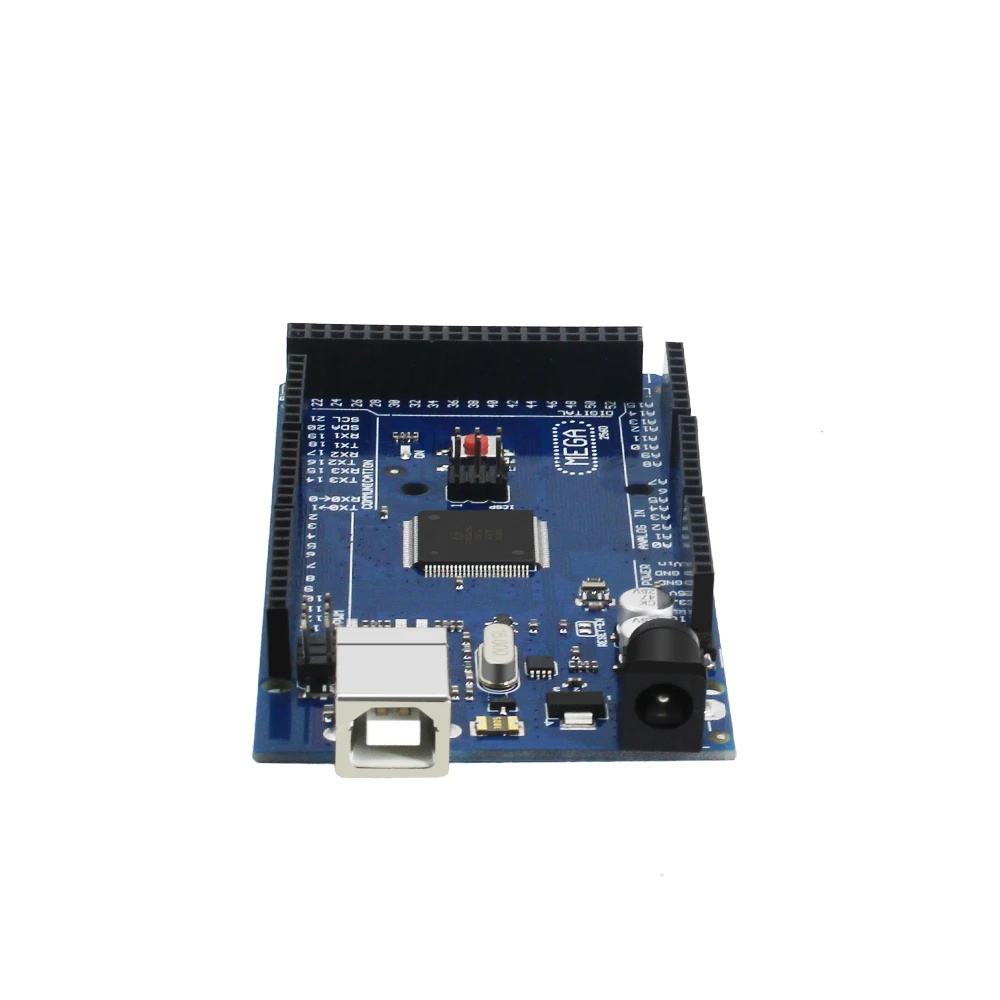

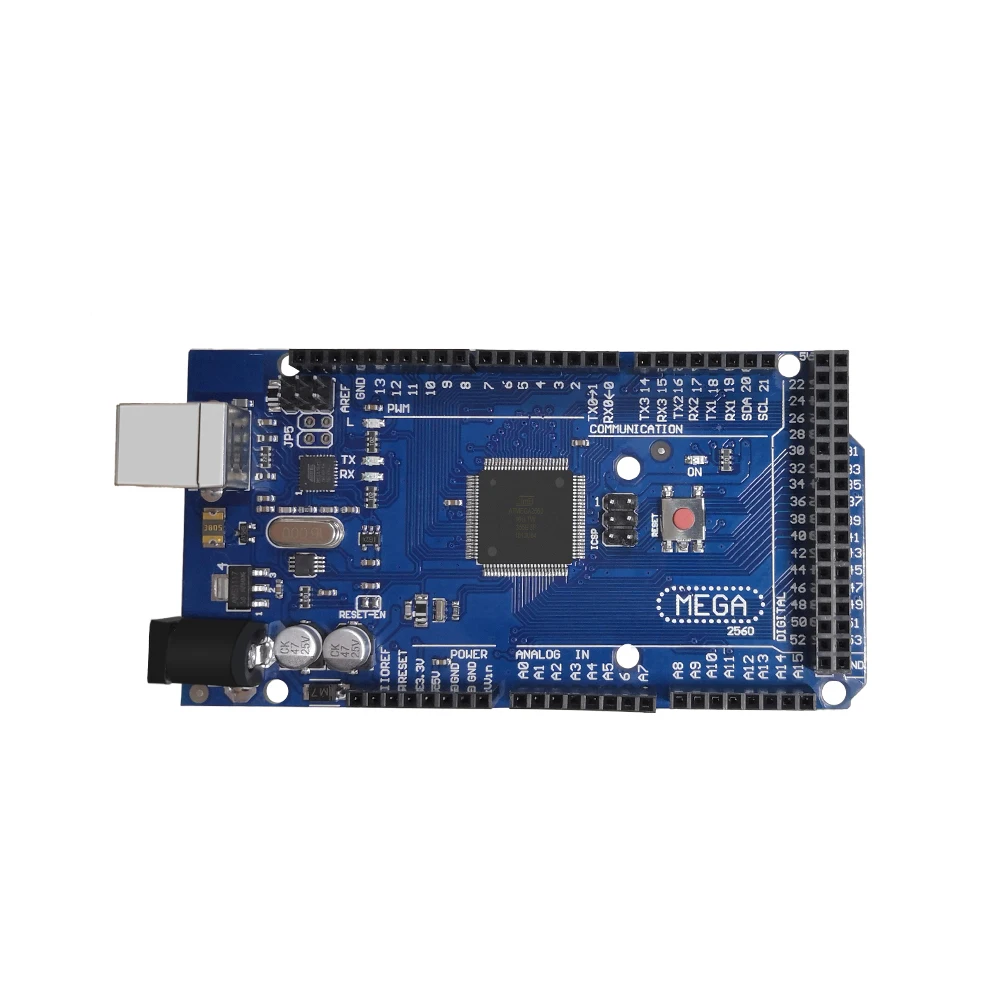

High Quality Factory Mega 2560 R3 Development Board Atmega16u2 Mega 2560 For Arduinos
- Category: Development Boards and Kits >>>
- Supplier: Shenzhen Zhiyi Technology Co. Ltd.
Share on (1600205758607):
Product Overview
Description
Products Description
Description:
1.This is the new MEGA2560 R3. In addition to all the features of the previous board, the MEGA now uses an ATMega16U2 instead of the ATMega8U2 chip.
This allows for faster transfer speeds and more memory. No drivers are needed for Linux or (an inf file is needed for Windows and is included in the for IDE), and the ability to display Uno as a keyboard, mouse, joystick, etc.
2.The MEGA2560 R3 also adds SDA and SCL pins alongside the AREF. Also, there are two new pins near the reset pin. One is the IOREF which allows the shields to adapt to the voltage provided from the plate.
The other is not connected and is reserved for future purposes. The MEGA2560 R3 works with all existing shields but can be retrofitted to newer shields that use these additional pins.
New features:
1.Pinout: added SDA and SCL pins that are near the AREF pin and two other new pins placed near the reset pin, the IOREF that allows the shields to adapt to the voltage provided from the board. In the future, the shields will be compatible with both the board that the AVR uses, which operates on 5V. The second is a pin that is not connected, which is reserved for future.
2.Stronger reset circuit.
3.Atmega16U2 replace 8U2.
1.This is the new MEGA2560 R3. In addition to all the features of the previous board, the MEGA now uses an ATMega16U2 instead of the ATMega8U2 chip.
This allows for faster transfer speeds and more memory. No drivers are needed for Linux or (an inf file is needed for Windows and is included in the for IDE), and the ability to display Uno as a keyboard, mouse, joystick, etc.
2.The MEGA2560 R3 also adds SDA and SCL pins alongside the AREF. Also, there are two new pins near the reset pin. One is the IOREF which allows the shields to adapt to the voltage provided from the plate.
The other is not connected and is reserved for future purposes. The MEGA2560 R3 works with all existing shields but can be retrofitted to newer shields that use these additional pins.
New features:
1.Pinout: added SDA and SCL pins that are near the AREF pin and two other new pins placed near the reset pin, the IOREF that allows the shields to adapt to the voltage provided from the board. In the future, the shields will be compatible with both the board that the AVR uses, which operates on 5V. The second is a pin that is not connected, which is reserved for future.
2.Stronger reset circuit.
3.Atmega16U2 replace 8U2.
Product Paramenters
Input Voltage (recommended) | 7-12V | ||||
Digital IO pins | 54 (of which 15 provide PWM output) | ||||
Analog input pins | 16DC | ||||
DC Current per I/O Pin | 40mA | ||||
SRAM | 8KB | ||||
Clock Speed | 16 MHz | ||||
Operating voltage(logic level) | 5V | ||||
Details Images
