5 аппарат не привязан к оператору сотовой связи сим карты n71 RM500Q AE 5g модем openwrt сетевой маршрутизатор США Версия

Product Overview

Description

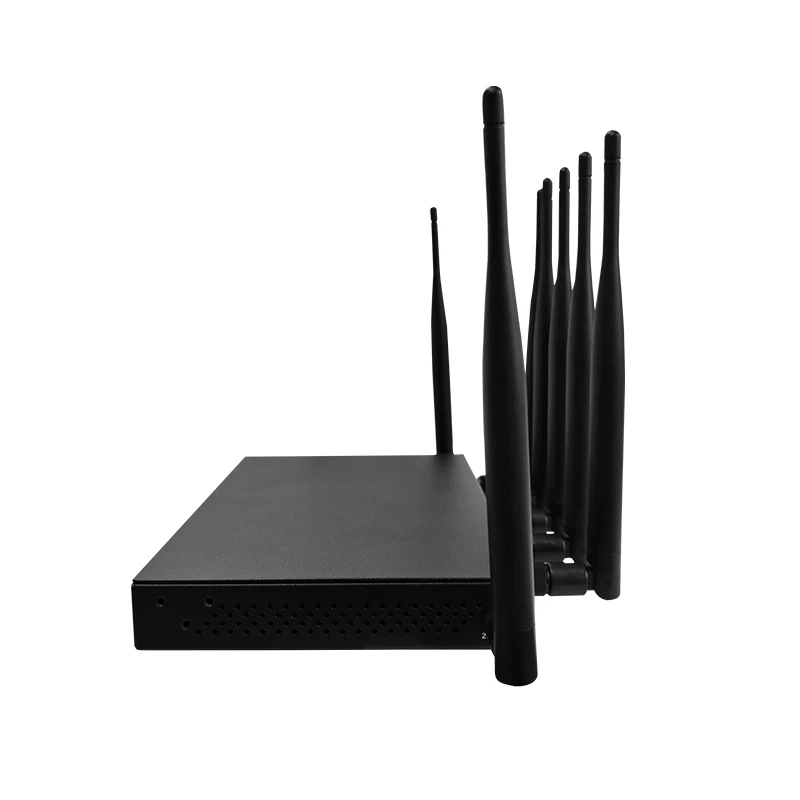

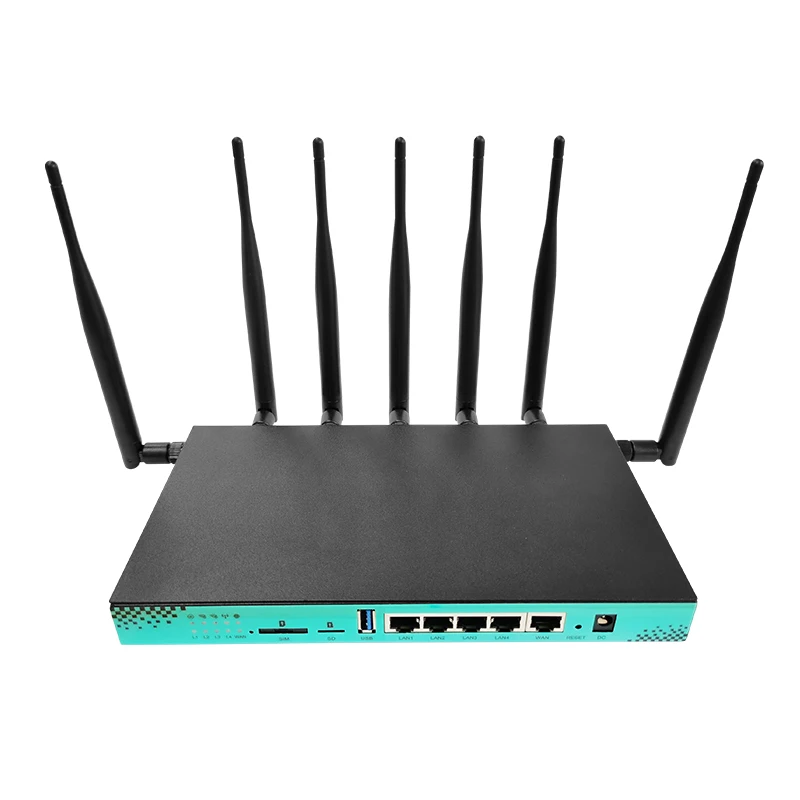

5g LTE sim card n71 RM500Q-AE 5g modem OpenWrt network router USA version

Feature:

• Support 802.11ac / 802.11a / 802.11n / 802.11g / 802.11b network protocol, the max transmission rate could be 1200Mbps(2.4G 300Mbps+ 5G 867Mbps)


• 5* 10/100/1000Mbps Auto MDI/MDIX LAN/WAN Gigabit ports


• 1 USB 3.0 data interface


• 1 Micro TF Card Slot


• Built-in USB3.0 MINI-PCIE interface to install 4G modules to support 3G & 4G functions. And also built-in USB3.0 M.2 interface to install 5G module to support3G& 4G&5G function. But can only choose one of two to install inside of router.


• Support 11AC,dual-band 2.4&5.8G.

 Description

• wg1608 5G router requires a modem for cellular internet.  See below for different modem options.  While the WG1608 V04 5G is equipped with dual modem slots, only a single M.2 or Mini PCI-E modem may be used at any one time. The SIM card tray on the front of the router uses a Standard sized SIM card, and a SIM Card Adapter Kit may be required when using a Nano or Micro-sized SIM card.


•


  Wireless (Wi-Fi) Overview:




  Dual-band wireless rate, up to 1200Mbps




  The WiFi supports IEEE 802.11n/g/b/ac/a protocols with a maximum wireless rate of 1200 Mbps.
  It is equipped with Two (2) removable 5dBi high gain Dual-Band Wi-Fi antennas for better coverage and performance in large areas.




  5.8G WiFi band with MU-MIMO support




  2.4G Chipset: MT7603EN




  5.8G Chipset: MT7613AEN





•


  MODEM OPTIONS:




  Sierra Wireless M.2 modems:




  Sierra Wireless CAT12 EM7565




  Sierra Wireless CAT12 EM7511 (support AT&T FirstNet Band 14)




  The most popular Quectel M.2 modems Hot sale in the USA:




  Quectel CAT12 EM12-G (2×2 MIMO)




  Quectel CAT16 EM160R-GL (4×4 MIMO).









  The Most popular Quectel 5g modem:




  Quectel RM500Q-AE




  Quectel RM502Q-AE




SOFTWARE/FIRMWARE OVERVIEW:

Original SDK, OpenWRT, eCos, LEDE/ROOter Compatible

Factory Installed version: OpenWRT Chaos Calmer 15.05.1 (mtk-apsoc-demo)

ROOter firmware version builds: Rooter / Goldenorb Router Firmware

OEM Services

• Printing customer's logo


• Use customer's label


• Flash customer's firmware


• and so on. if you have more requirements,please feel free to contact us.

EM160-GL /EM12-G/RM500Q-GL/RM500Q-AE Modem optional, please contact us for more detail
