Chinese sliding gate and motor operated sliding gate with 10 years warranty motor

Product Overview

Description

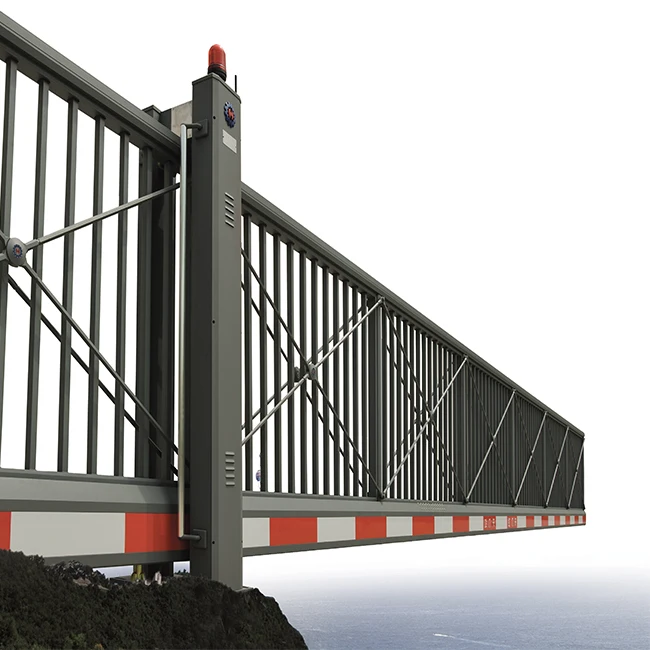

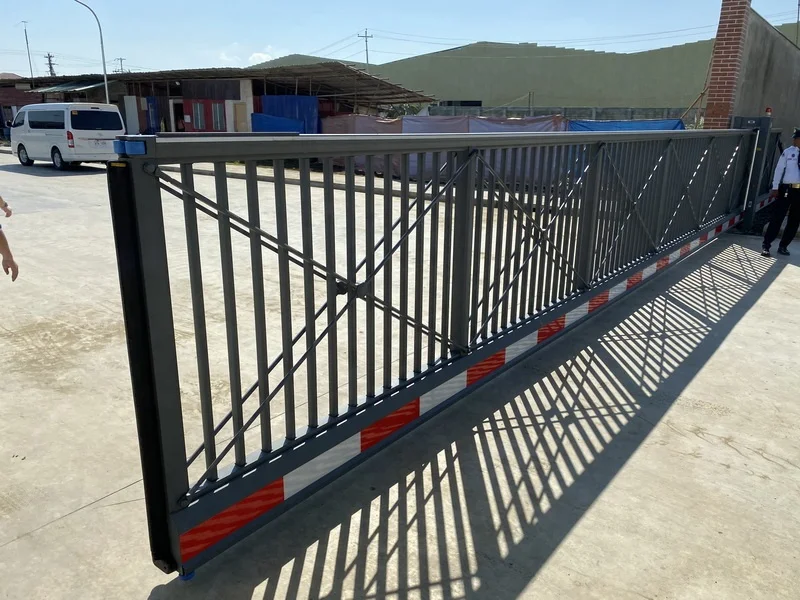

 Automatic cantilever gate, sliding gate, entrace gate, warehouse gate, school gate





Features:

1. The gate is made of high quality imported aluminum material with compact structure.

2. The gate can be disassemble and pack in groups, convenient for transportation and easy to install on site.

3. The gate does not need any wheels and rails, it makes suspension movement. It generate less noise compare to wheel and rail gates.

4. The gate come with caution lamp, it will rotate during gate in operation mode, to increase safety awareness.

5.The gate also equip with anti-collision function, when there is obstacle detected from 12m 15m distance during closing mode, the gate will automatically retrieve and stop for 2 seconds.

6. The gate also equip with anti-bumping function, when the pressure sensor is activated, it will transmit a signal to the master control board through solar wireless transmission module.

7. The gate also equip with anti-climb alarm system, when there is obstacle on top of the gates, the alarm system will turn on siren.

8. In case of power failure, the gate come with a unique key to unlock the clutch in order to manually open/close the gate.

9. Running speed of the gate: 20m-25m per minute.

Drawings





Material Specification



Decription	Material	Hardness (HW)	Specification (mm)
Main Slide Bar	6005-T5	10-15	200*130*d3-7
Upper Beam	6003-T5	10-13	97*49*d2-3
Main Frame	6003-T5	10-13	80*63*d2.0
Upright Post	6003-T5	10-13	31*25*d1.0
Control Box	6003-T5	10-13	230*130*d3.5
Gate Fence	6003-T5	10-13	22*22*d1.5
Cross Beam	6003-T5	10-13	45*30*d1.0



Technical Specification



Operation Voltage	220V± 10%, 50Hz-60Hz
Operation Temperature	-25º C to +70º C
Environment Humidity	< 90%
Operation Speed	23m/min
Motor Voltage Rating	220V
Motor Power Rating	60W
Motor RPM	1500r/min
IP Rating	IP65
Insulation Grade	E
Speed Reduction Ratio	15: 01
Remote Distance	50m (empty space)

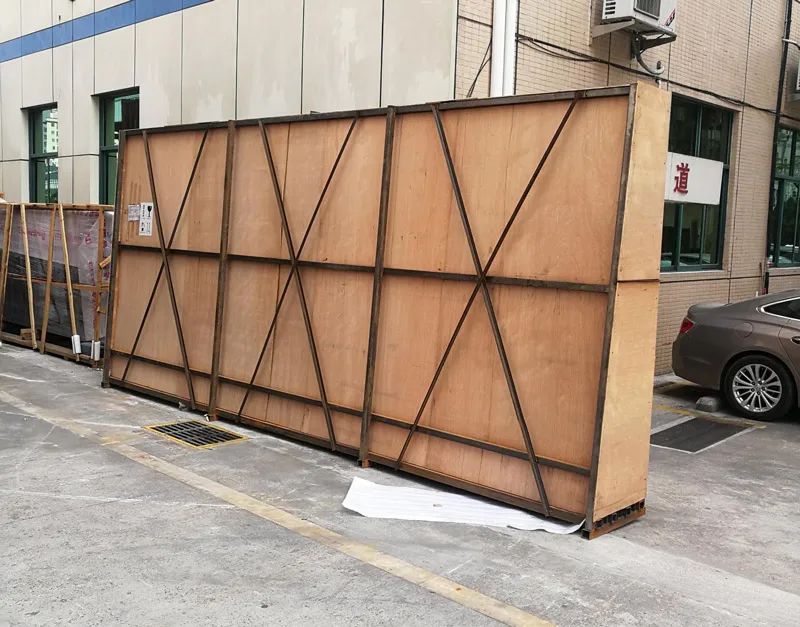

Package

Iron frame plus plywood ( avoid damage of transportation)

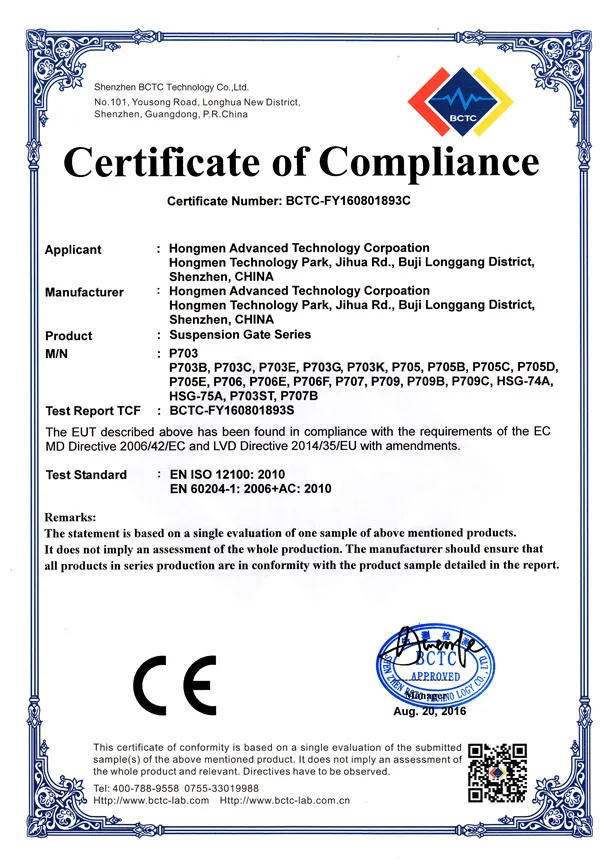

 CE certification

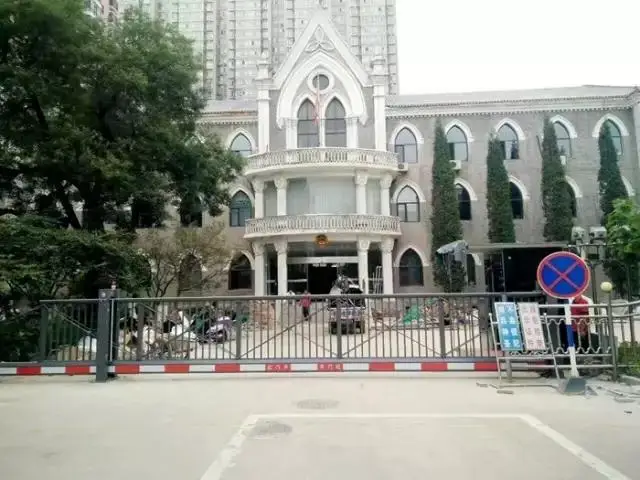

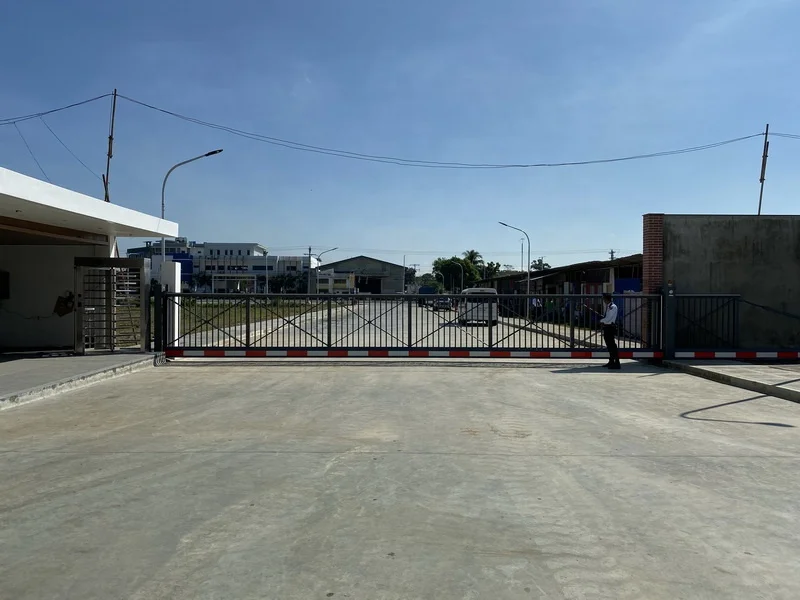

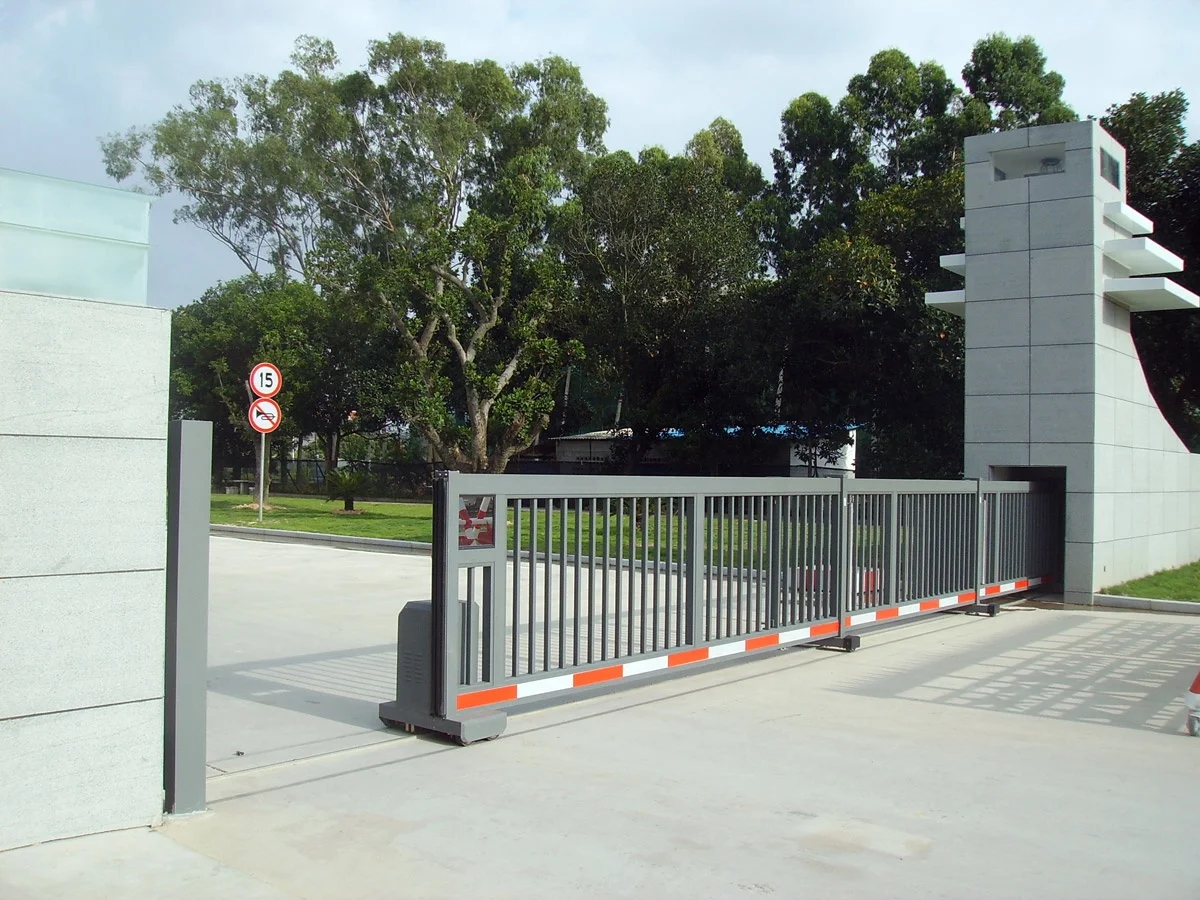

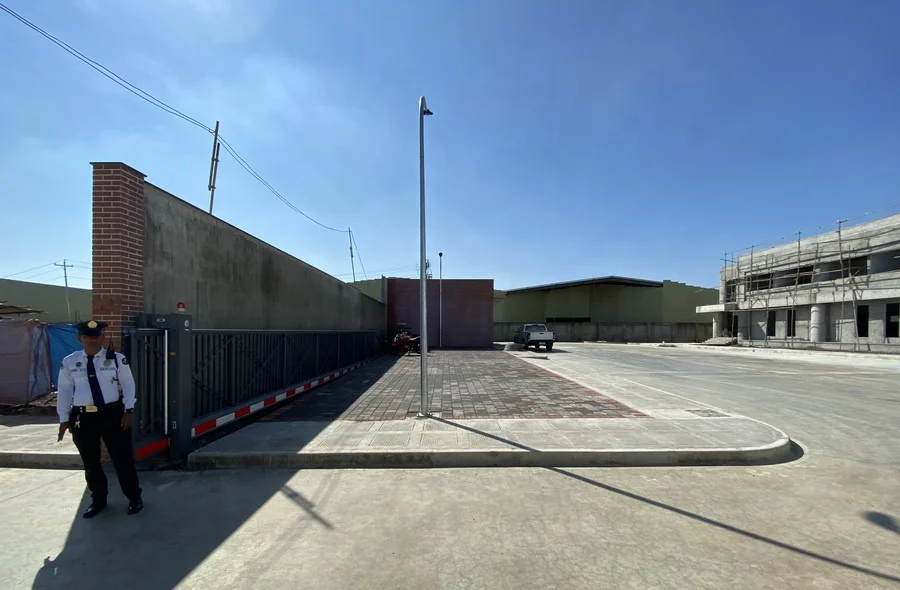

Project Reference

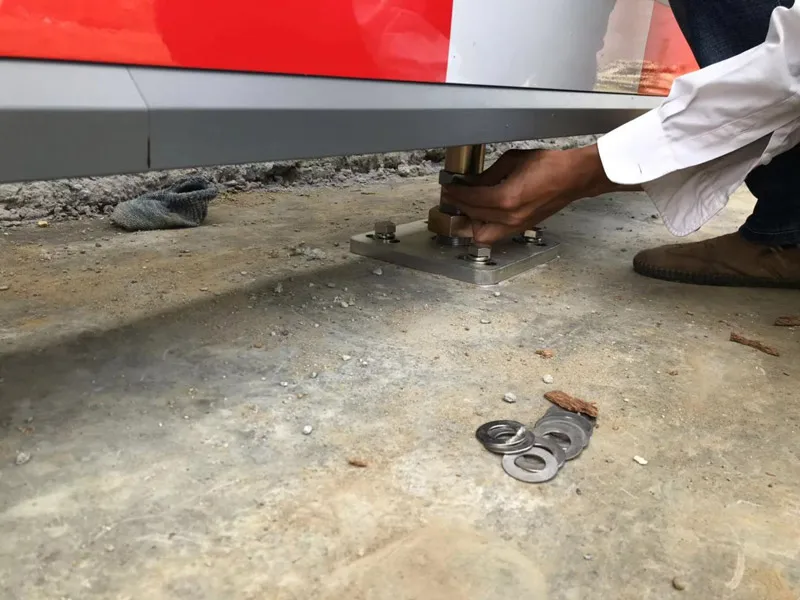

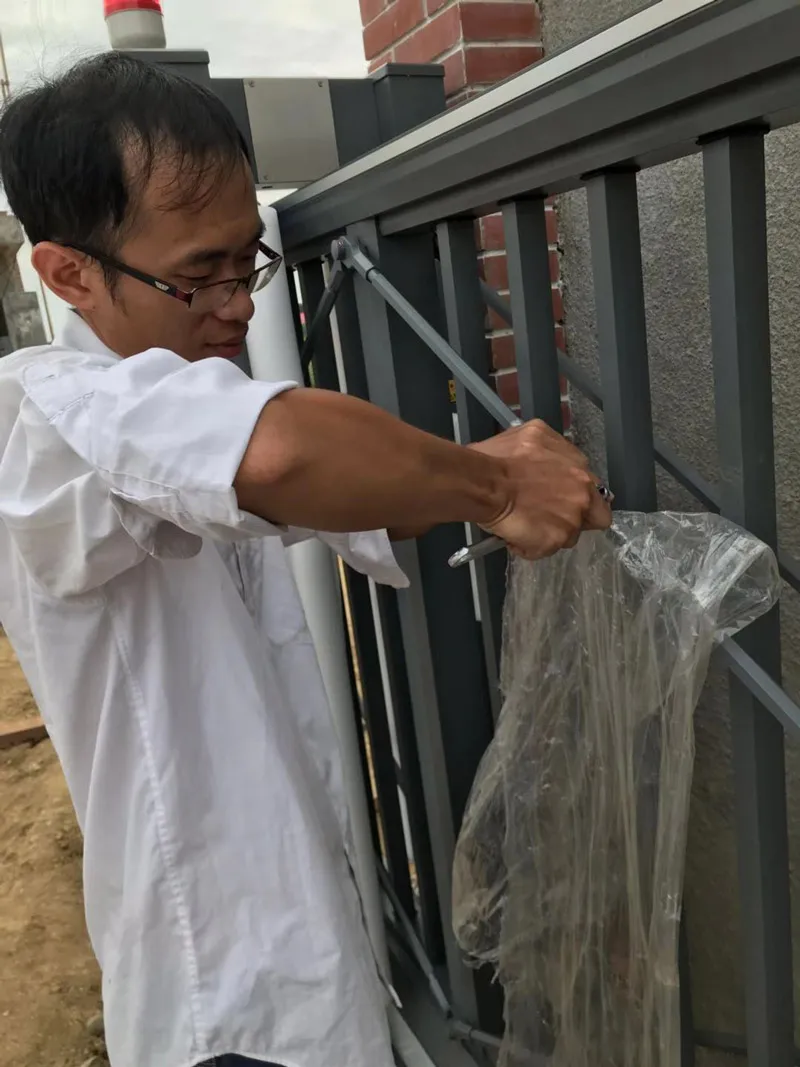

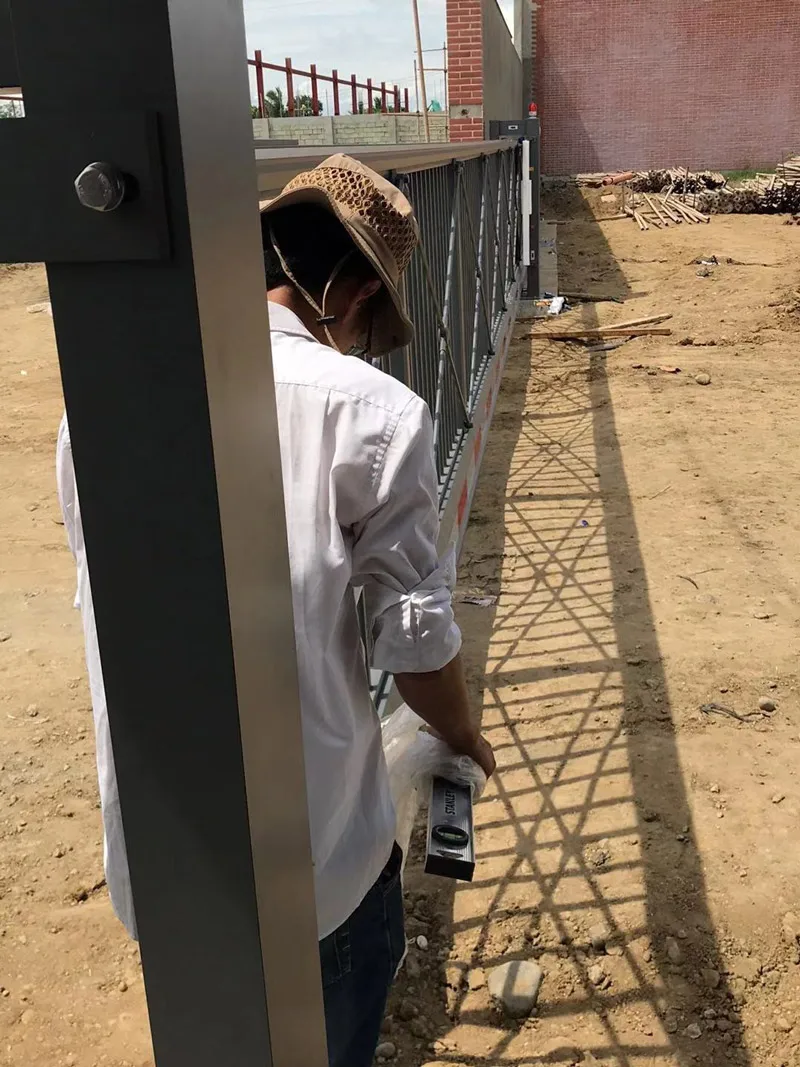

The guide of installation
