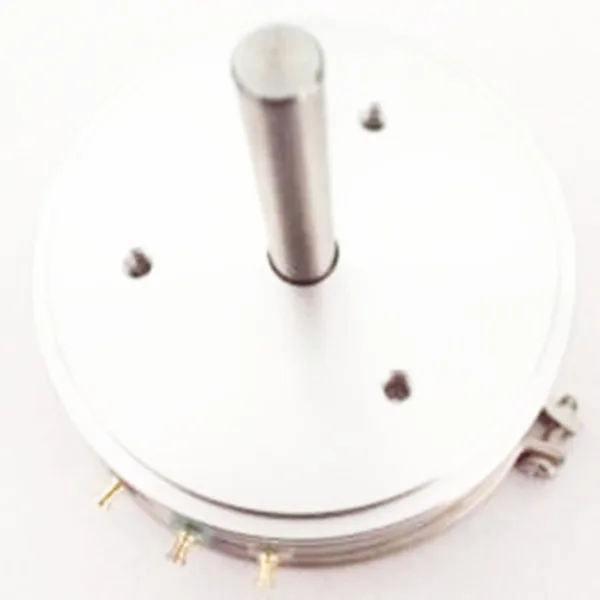

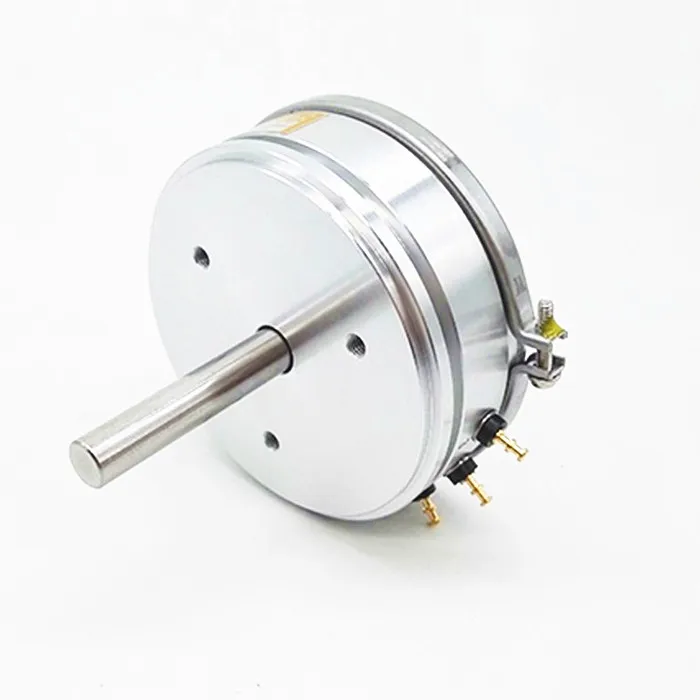

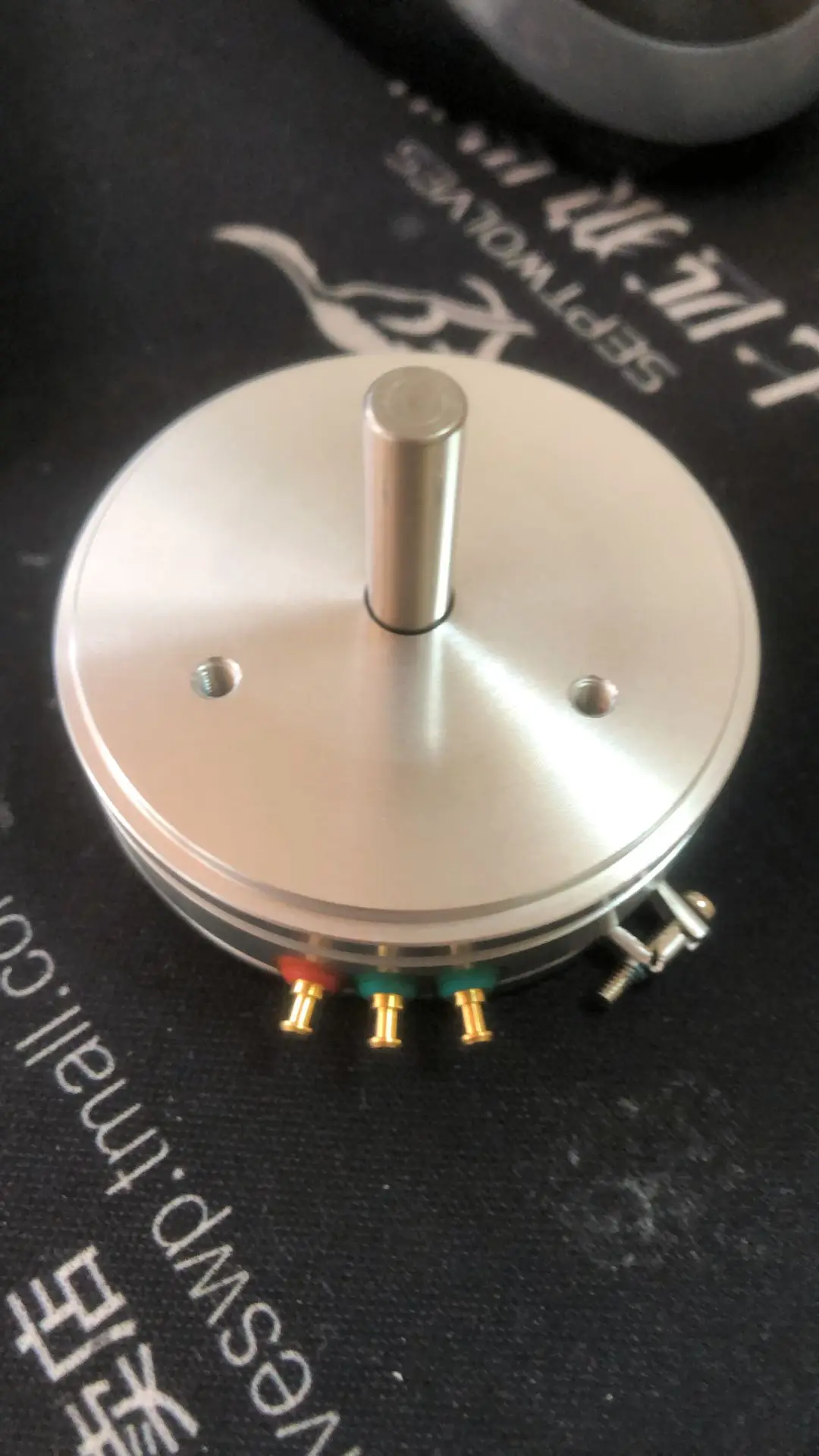

High precision 1k 2k 5k 10k single turn wirewound potentiometer for copal
- Category: Potentiometers >>>
- Supplier: Tong,Yue,Xin,Commercial,And,Trading,Co.,Ltd.,(Chengdu)
Share on:
Product Overview
Description
High precision 1k 2k 5k 10k single turn wirewound potentiometer for copal
Parameters:
| Resistance tolerance | ±5 |
| Effective electrical angle | 335°±1.5 |
| Mechanical angle | 360° continous |
| Power rating(at 40°c ) W | 1.5W |
| Dielectric strength Vrms | 1000 1min |
| Insulation resistance MΩ minimum | 1000(at DC500V) |
Rotational torque mN.m(gf.cm) Maximum | 0.69(7) |
| Peack noise ΩMaximum | 10(4 min-1) |
| Temp.coefficient of resistance ppm/°c | ±50 |
| Operating temp. range °c | -55~85 |
| Maximum rotational speed min-1 | 200 |
| Net Weight g | Approx.73 |
| Connecting accuracy | ±1° Based on No.1 terminal |
| Protection grade | IP40 |
Outline Dimensions:
Factory:
Main item you may interested:

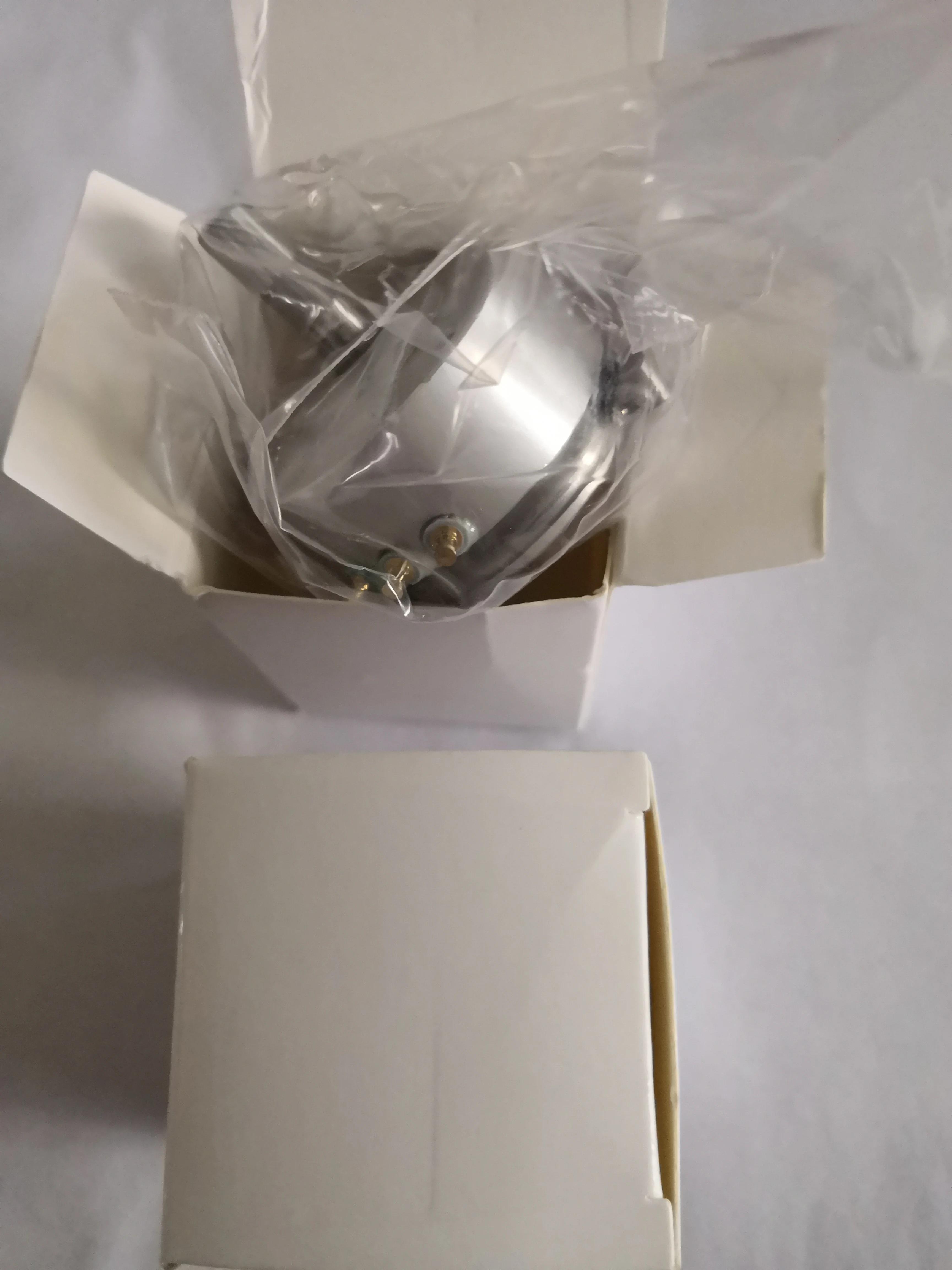

Packing:
Contact:
Atten:Daisy
skype:Gina.zhou12
Whats app:86-18010662198
Wechat:XMZ150312
