Heat Insulation PVB (SGP) IO glass protect interlayer film Wechat: Nano20090905

Brief Introduction

PVB heat insulation film, produced with nano heat insulation medium, not only has the sound insulation and explosion-proof function, but also has the permanent heat insulation function.

Product Parameter

Thickness: 0.38mm, 0.76mm, 1.14mm.

Width: 800mm-3100mm;

Length: 100m, 200m, 400m, etc.

 Color: Light blue, transparent.

Customers can order according to the parameters you need.

Product Feature

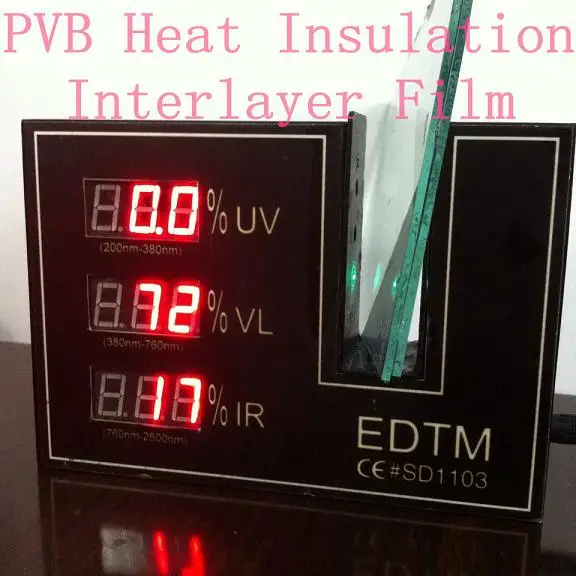

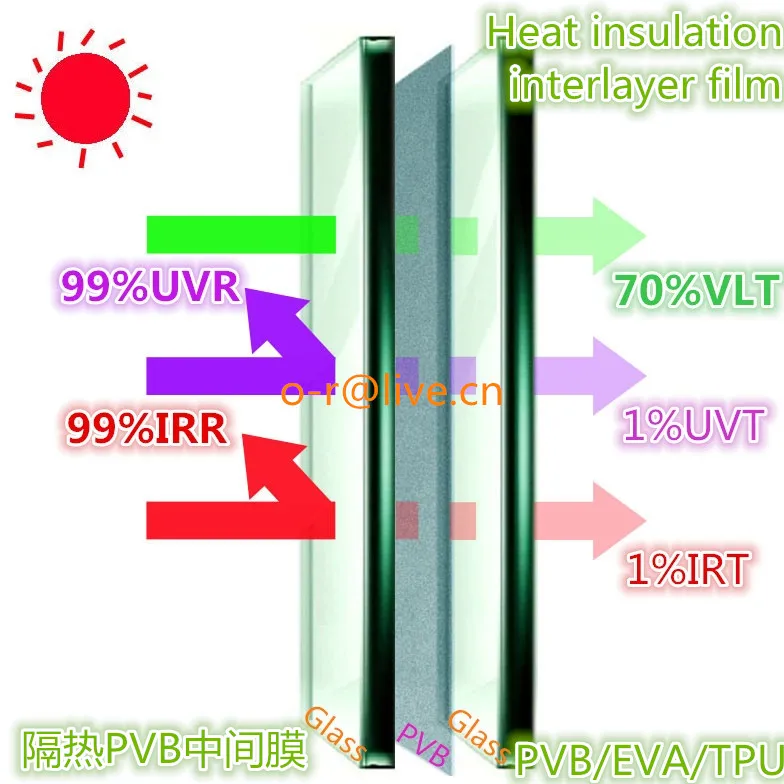

1. Infrared ray blocking: 85%-99%, permanent heat insulation function;

2. Ultraviolet blocking: 100%, sunscreen, avoid aging of interior decoration or furniture;

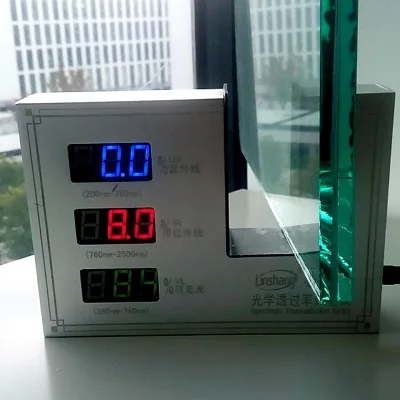

3. Visible light transmission: 75%-90%, fully meets the visuality requirement of automobile front windshield and architectural glass;

4. Signal rejected: 0%(Phone, GPS…);

5. Safe, explosion-proof, sound insulation, prevent penetration;

6. Lowest cost, highest performance, permanent heat insulation, farewell to all kinds of solar films and security films.

Application Field

Car window, architectural glass, some special function of interlayer materials, etc.

Application Method

Just use the film as the original PVB laminated parameters and process.

Package and Storage

Packing: vacuumized with aluminum foil with PE membrane isolation, placed in wooden cases or cartons.

Storage: protected from light in a dry place, at room temperature, keeps about 2 years.

If the package is opened, keeps it in a clean place: 18℃~23℃, relative humidity 20%-25%, and use it up as soon as possible.
