XCMG Concrete Machinery HB39K Hot Sale 39m Truck mounted Concrete Boom Pump Truck
- Category: Concrete Pumps >>>
- Supplier: XCMG,E-Commerce,Inc.
Share on:
Product Overview
Description
Product Description
XCMG Concrete Machinery HB39K Hot Sale 39m Truck-mounted Concrete Boom Pump Truck
XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
Performance advantages:
* Large diameter (230 mm) Φ, large displacement (108 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Product Paramenters
Description | Unit | Parameter value | ||
Outline dimension | mm | 10955×2500×3800 | ||
Overall weight | kg | 26500 | ||
Chassis | Model | ZZ5307N4647C | ||
Max. speed | km/h | 90 | ||
Max. grade-ability | % | 40 | ||
Wheelbase | mm | 4600+1350 | ||
Tire | 11.00R22.5 | |||
Engine | Model | WD615.96 | ||
Max. power | kW | 279 | ||
Max. torque | N·m/(r/min) | 1590/1100~1600 | ||
Displacement | L | 9.276 | ||
Emission standard | Eruo III | |||
Pumping system | Theoretical output | m³/h | 130 | |
Concrete pumping pressure | MPa | 8 | ||
Theoretical pumping times | Time/min | 24~27 | ||
Delivery cylinder diameter ×stroke | mm | φ230×2000 | ||
Max. diameter of pumping concrete | mm | 40 | ||
Filling height | mm | 1580 | ||
Concrete slump range | cm | 8~23 | ||
Placing boom | Reach height | m | 39.1 | |
Reach depth | m | 26.8 | ||
Slewingradius | m | 35.1 | ||
Slewing angle | ° | ±270 | ||
Unfolding angle of the 1st section | ° | 90 | ||
Unfolding angle of the 2nd section | ° | 180 | ||
Unfolding angle of the 3rd section | ° | 180 | ||
Unfolding angle of the 4th section | ° | 235 | ||
Unfolding angle of the 5th section | ° | 210 | ||

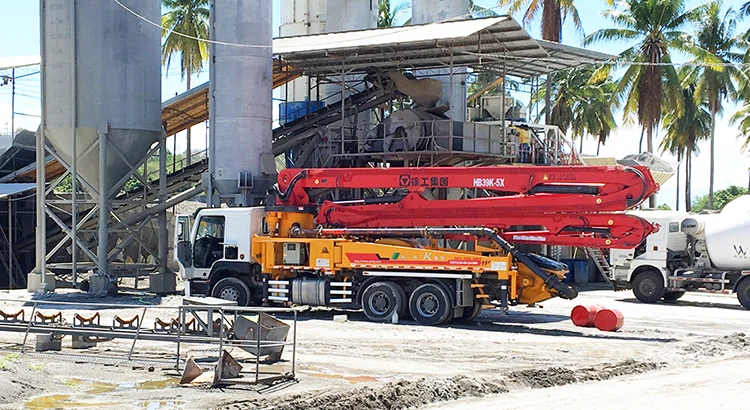

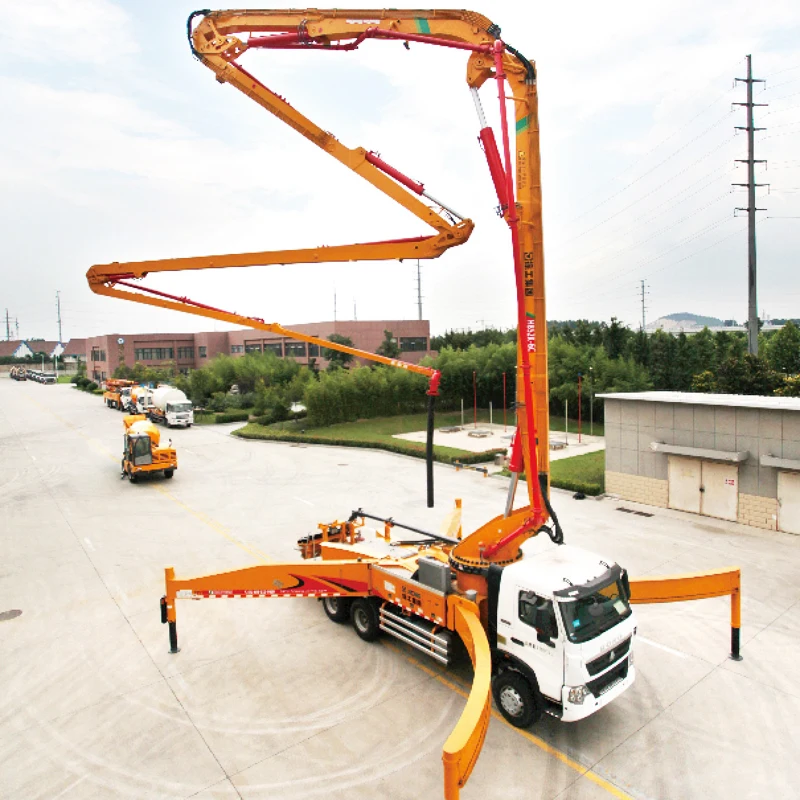

Product Show
Related Products To Choose
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
A: The MOQ is 1 pcs.
