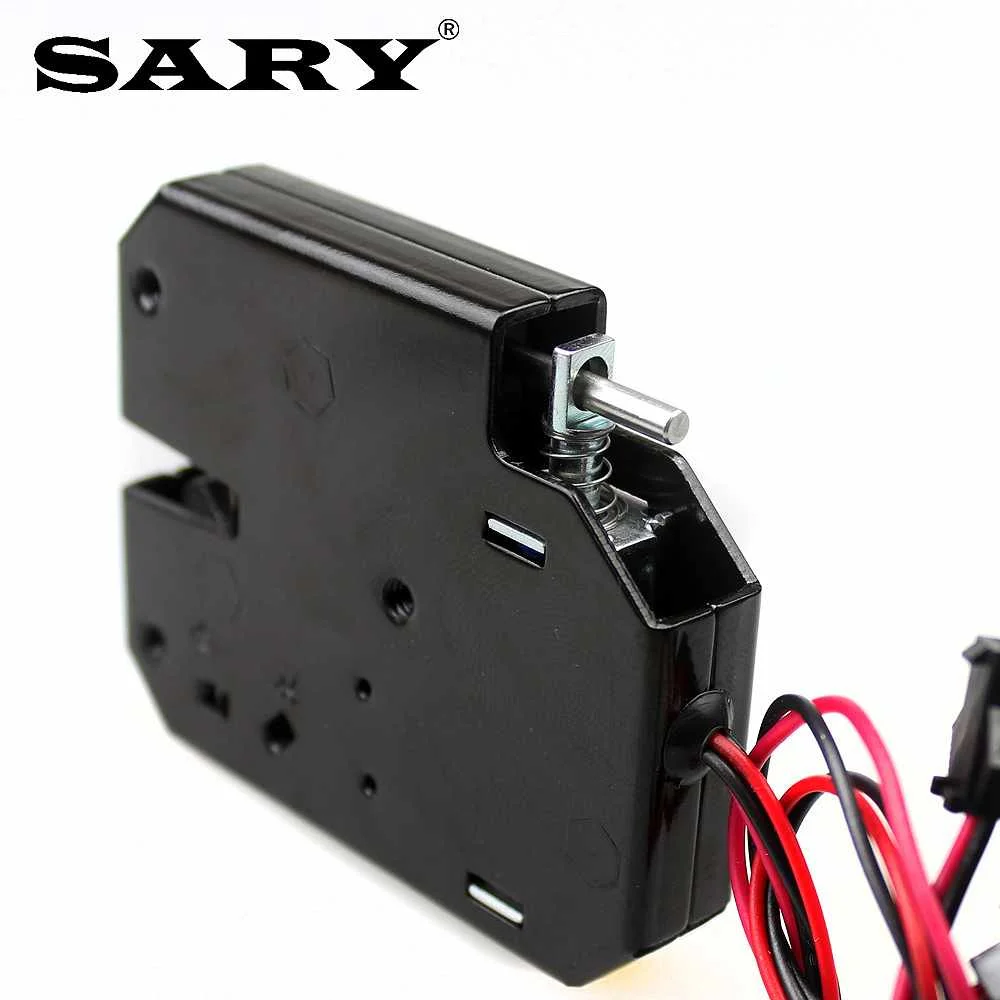

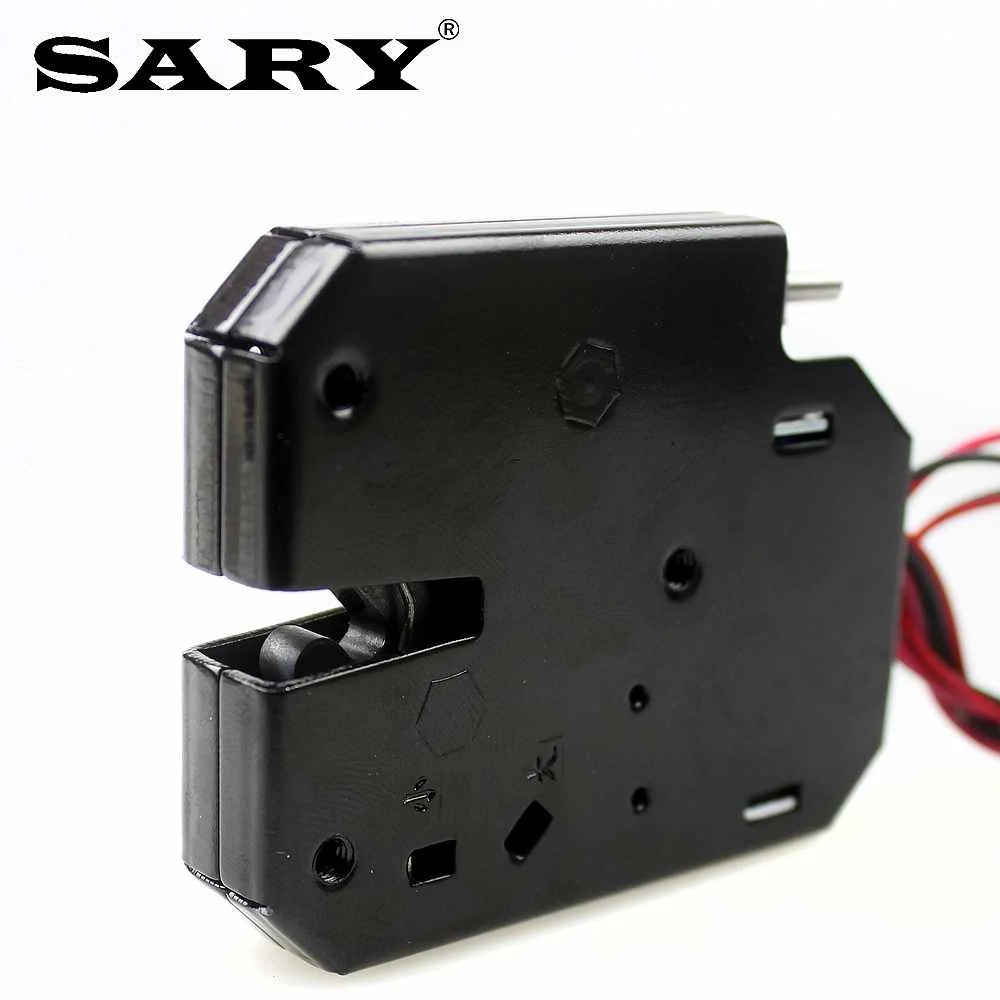

XG07C Small mailbox lock DC5V12V24V supermarket locker door lock unmanned vending machine control lock
- Category: >>>
- Supplier: Guangzhou Sary Electronics Co. Ltd.
Share on (1600207187396):
Product Overview
Description
Product Information
Description:
The electric lock applicable for delivery locks, refrigerated cabinet, mail or newspaper box, self-service lock, book counter,changing clothes cabinet etc. Adopted steel plate for shell and carbon steel for inner material. Strong and safe to use.
Features:
1.The electric lock is mainly adopted carbon steel for inner material. Strong and safe to use.
2.Security: latch hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying.
Compact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position.
3.Self Elastic Design: Elasticity adjustable, suitable for weight 0.5~4kg door.
4.Application: Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Book Counter, Changing Clothes Cabinet etc.

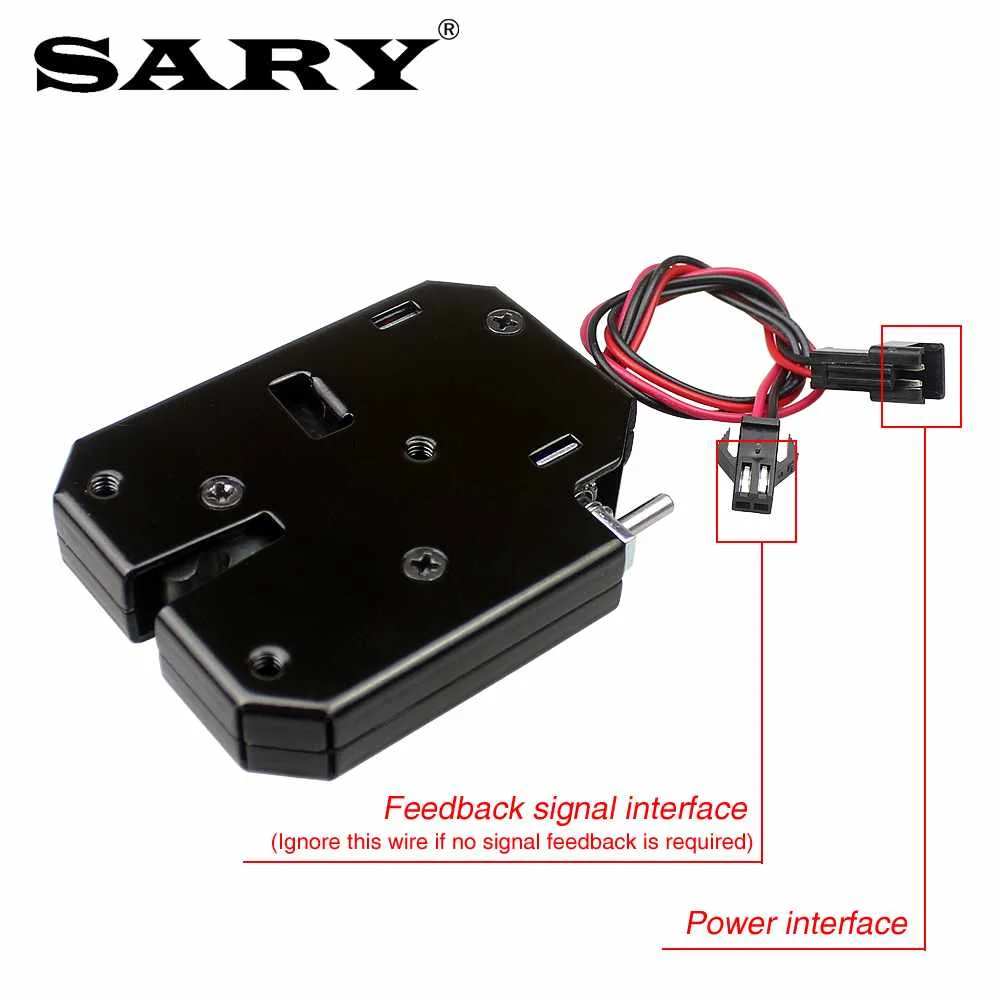

Feedback signal line description: this is a short circuit signal switch. It is disconnected when unlocked and connected when locked
Specifications:
Condition: 100% Brand New
Main Material: Carbon Steel
Surface Treatment: Plated Electrophoretic Paint (neutral frog experiment over 500hours)
Work Mode: Independent type (Power off and close the door-Locked; Power on-Unlocked)
Electrical Parameters: DC5V/1.5A , DC12V/2A , DC24V/1A
Mechanical Life: In Designing Load Condition, about 500 000 times
Electromagnet Life: In Rated Working Condition, more than 1 000 000 times
Strength of Lock Hook: 150kg force (no permanent deformation)
Ambient Temperature: -60℃~70℃
Size: Approx. 5.7 x 7.2 x 1.4cm / 2.24 x 2.83 x 0.55inch
Package Weight: 164g
Requirements for use:
The power-on unlocking time of the electromagnetic lock needs to be controlled within 1-3 seconds, and it is not possible to maintain the power-on unlock state for a long time, otherwise the internal components will be damaged
Package Included:

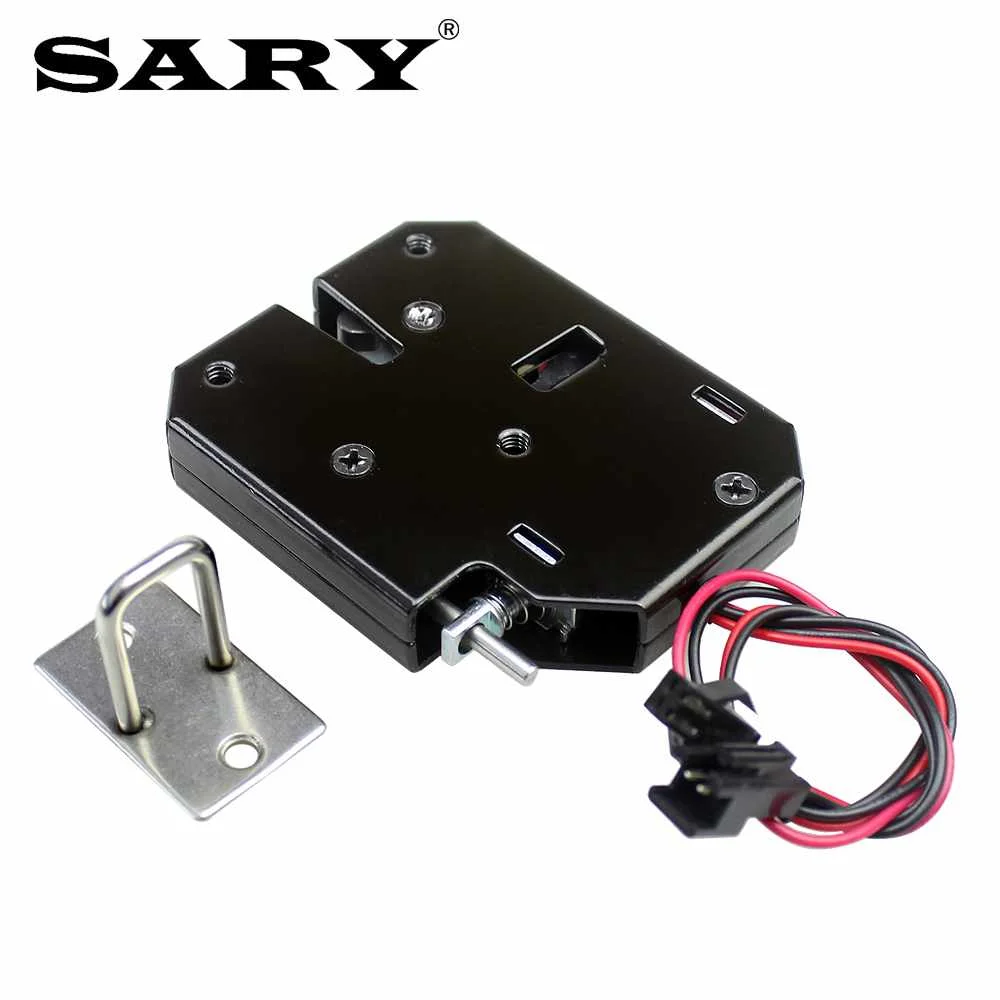

1 x Electric Lock (With detection switch)
The electric lock applicable for delivery locks, refrigerated cabinet, mail or newspaper box, self-service lock, book counter,changing clothes cabinet etc. Adopted steel plate for shell and carbon steel for inner material. Strong and safe to use.
Features:
1.The electric lock is mainly adopted carbon steel for inner material. Strong and safe to use.
2.Security: latch hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying.
Compact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position.
3.Self Elastic Design: Elasticity adjustable, suitable for weight 0.5~4kg door.
4.Application: Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Book Counter, Changing Clothes Cabinet etc.
Feedback signal line description: this is a short circuit signal switch. It is disconnected when unlocked and connected when locked
Specifications:
Condition: 100% Brand New
Main Material: Carbon Steel
Surface Treatment: Plated Electrophoretic Paint (neutral frog experiment over 500hours)
Work Mode: Independent type (Power off and close the door-Locked; Power on-Unlocked)
Electrical Parameters: DC5V/1.5A , DC12V/2A , DC24V/1A
Mechanical Life: In Designing Load Condition, about 500 000 times
Electromagnet Life: In Rated Working Condition, more than 1 000 000 times
Strength of Lock Hook: 150kg force (no permanent deformation)
Ambient Temperature: -60℃~70℃
Size: Approx. 5.7 x 7.2 x 1.4cm / 2.24 x 2.83 x 0.55inch
Package Weight: 164g
Requirements for use:
The power-on unlocking time of the electromagnetic lock needs to be controlled within 1-3 seconds, and it is not possible to maintain the power-on unlock state for a long time, otherwise the internal components will be damaged
Package Included:
1 x Electric Lock (With detection switch)
