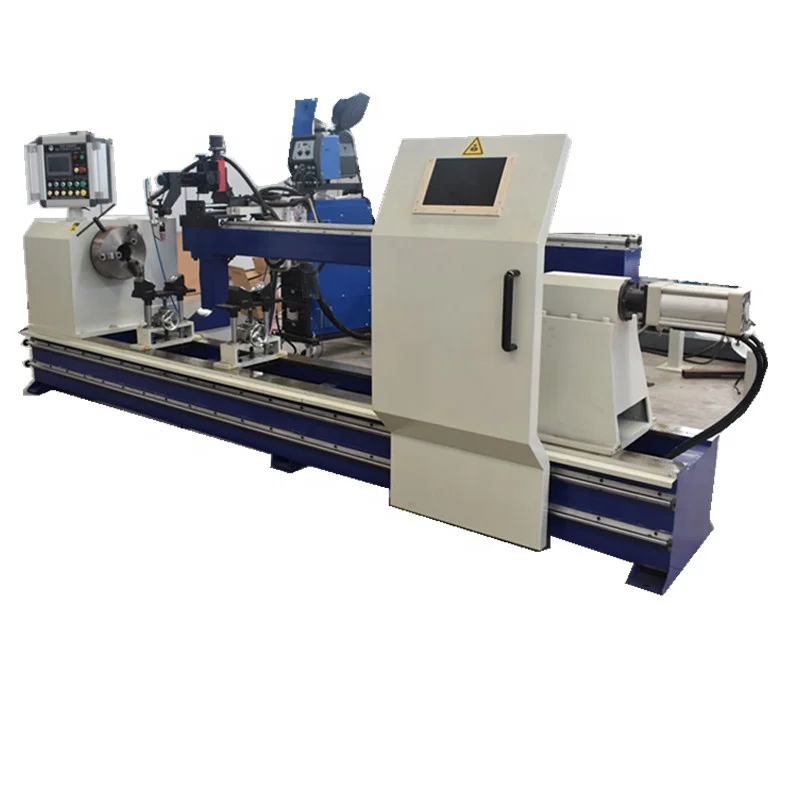

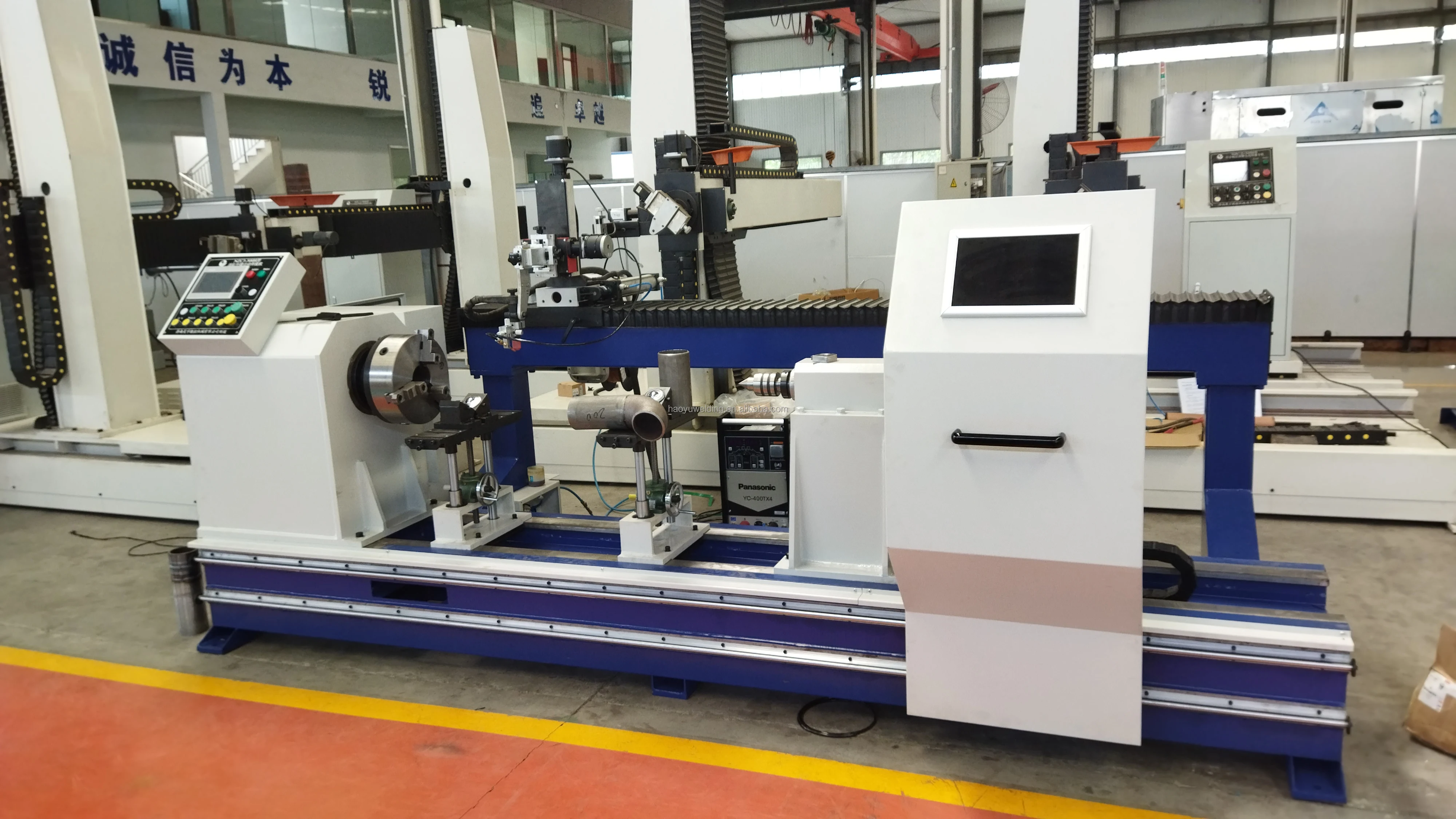

CNC Control Pipe Cylinder TIG overlay welding machine Surface Hardfacing Cladding Welding Machine

CNC Control Pipe Cylinder TIG overlay welding machine Surface Hardfacing Cladding Welding Machine

Welcome to subscribe my YOUTUBE to see more work video of our TIG overlay welding machine

I.Application and features

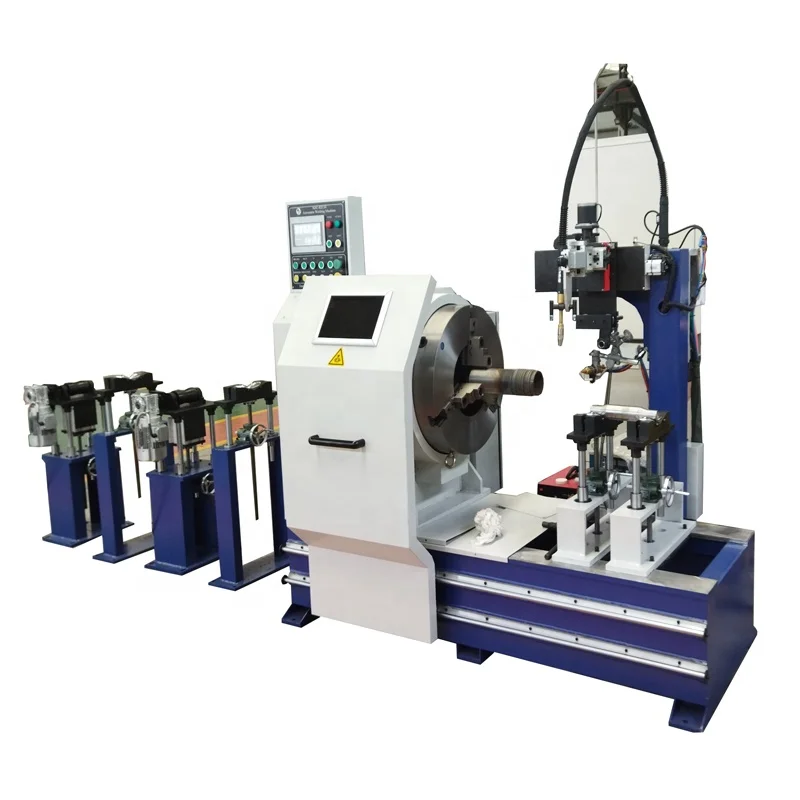

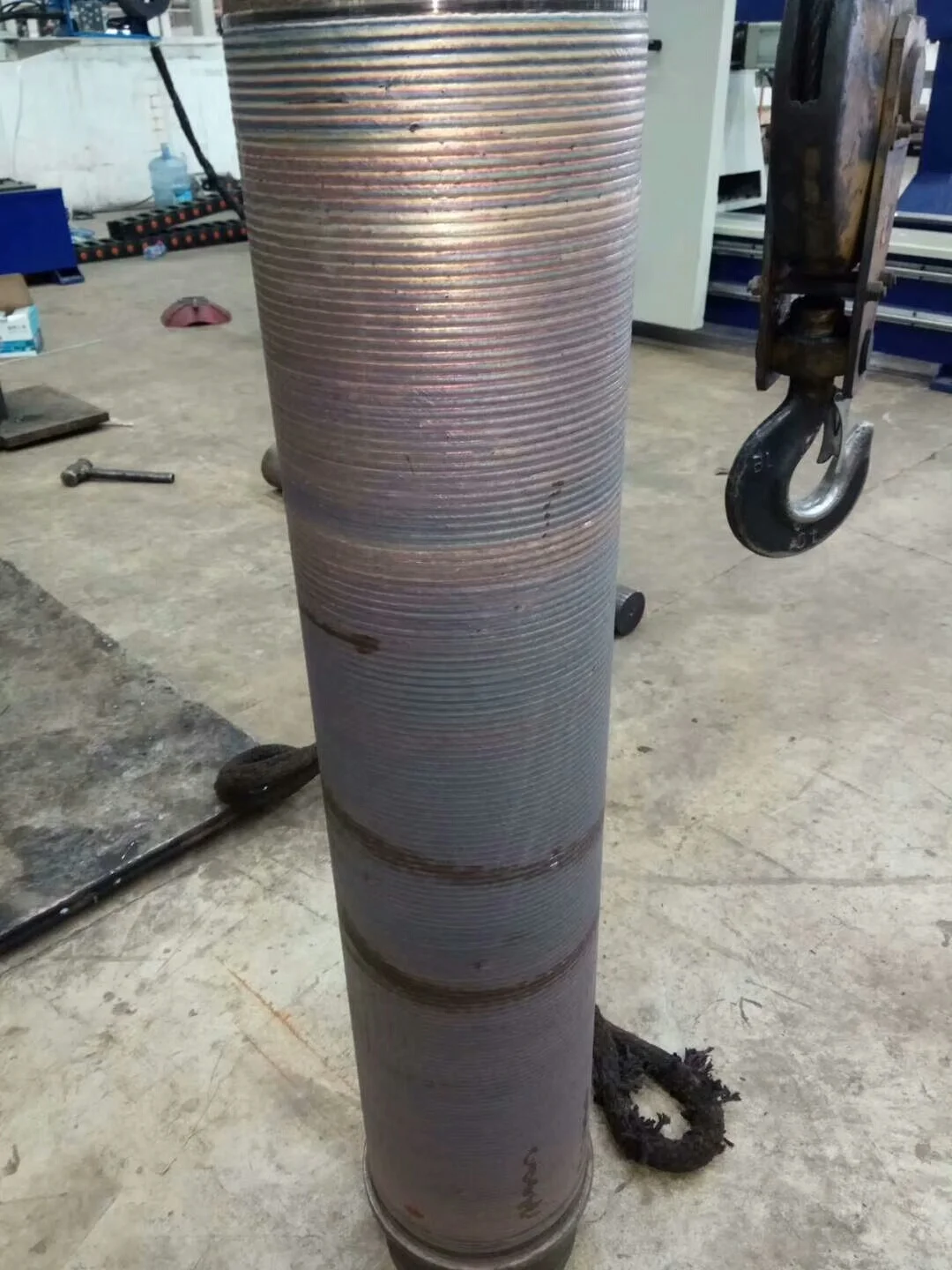

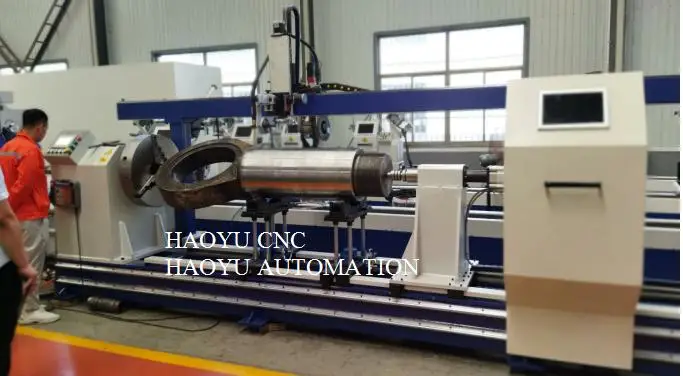

Automatic TIG Overlay welding the surface of pipe cylinder roller appearance, depth of fusion and width of fusion meet the welding requirement, easy to clamp.

2.Welding torch moves forward-backward along with axis ,can adjust up and down ,forward and backward for different size workpiece. Workpiece is rotating,the welding position is horizontal.

3.Workpiece rotation is driven by power head, end face positioning, rotary welding.

4.Machine has high voltage and slow wire feeding function, which guarantees reliable arc igniting. It also has low welding voltage and low current for filling crater.

5.It adopts push type wire feeding mode to guarantee the stability of wire feeding.

6.Using 4 axis CNC and PLC to control the whole operation. The rotation speed of workpiece is adjusted by A/C inverter, stepless adjustment, to improve the reliability of equipment.

7.The welding mode and welding specification can be preset, saved and recalled. Via touch man-machine interface, the parameter modification and status switch can be conveniently reached.

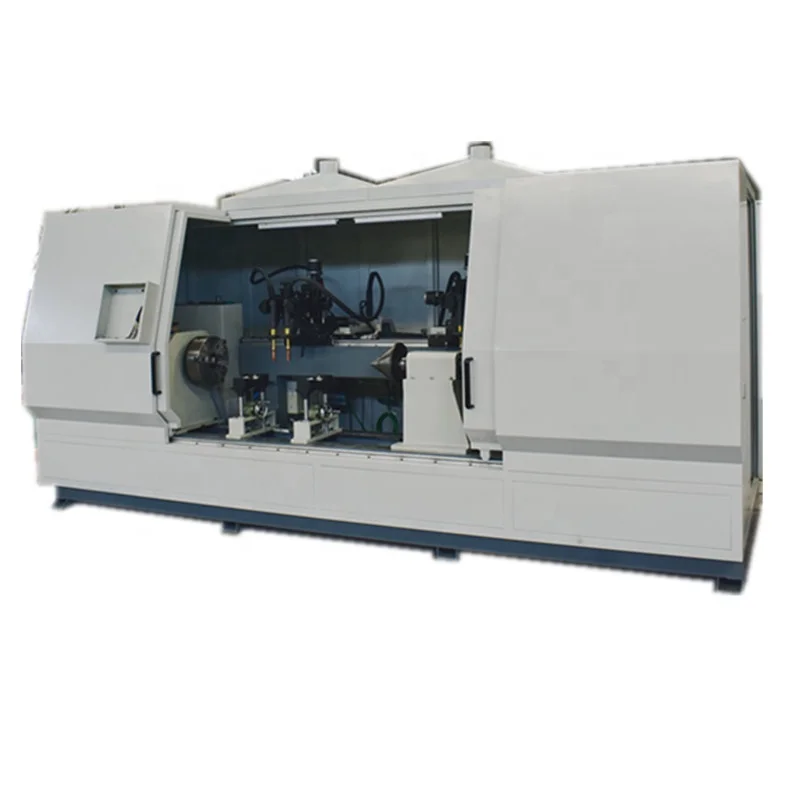

II.Equipment Composition

It consists of the machine body, rotation axis box, fixtures, conductive mechanism, welding torch clamping&adjustment mechanism, cross mechanism, electrical control system, welding power source and pneumatic system

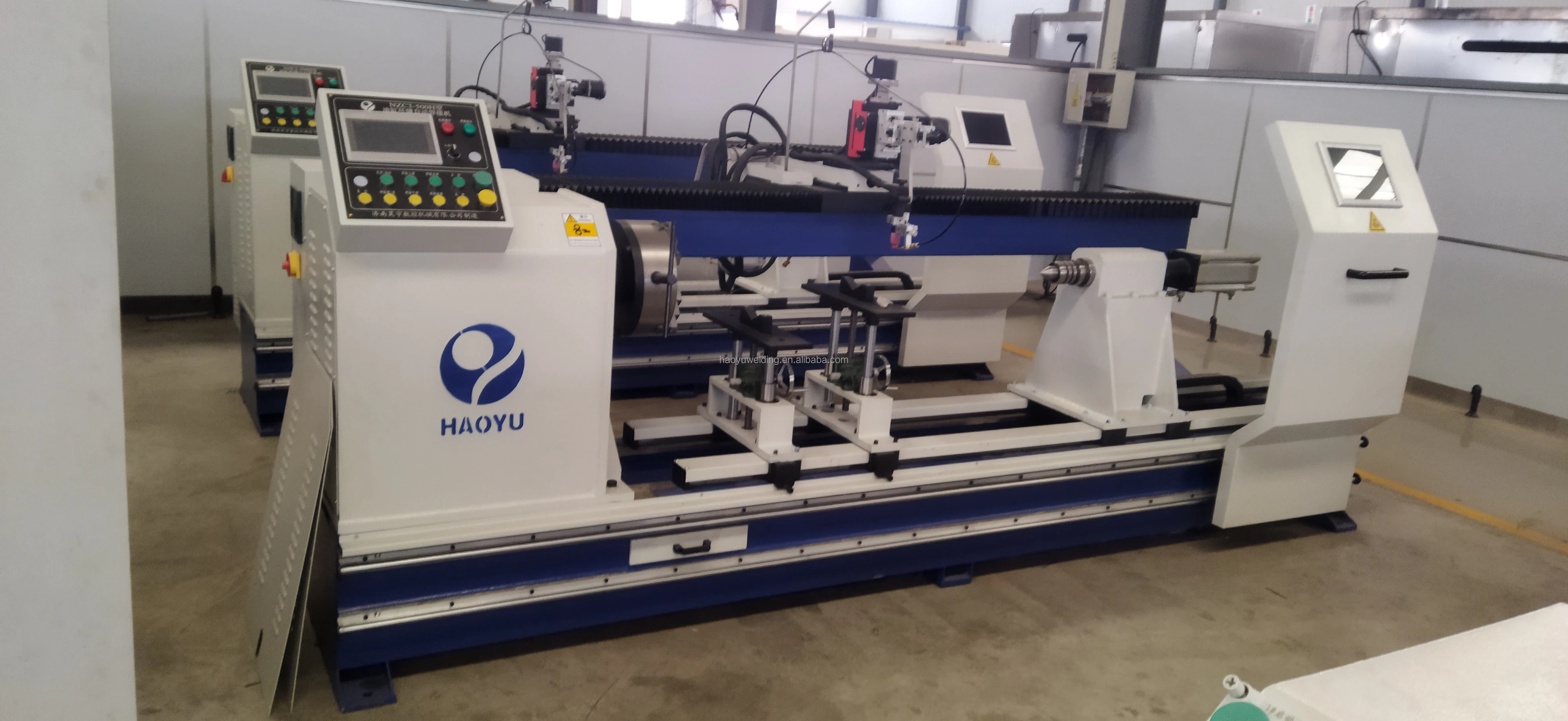

1. Machine body

It adopts welded body. Machine base is welded by square tube and steel plate. It will choose annealing heat treatment after welding. Column and boom, rotation axis box and end face positioning mechanism are installed in machine base.

2.Welding Torch Clamping&Adjustment Forward-Backward Mechanism

The welding torch is moved forward-backward, driven by the servo motor,  to realize the switch between preparation and welding station. The welding torch adopts push wire type to ensure stable wire feeding. The welding torch can be adjusted up and down, left and right and angled turn. The fine adjustment of the welding torch adopts motor-driven up and down fine adjustment mode and screw adjustment, accurate adjustment, high positioning accuracy, and can be tightened after adjustment.

3.Column and Boom Mechanism

It is composed of stand column and moving boom. The rail is installed on the column and is decelerated by the worm and gear, it is driven by the screw to move up and down. Moving boom is guided by rail, the motor is slowed down by worm and gear, than transmitted by rack pinion, to reach the forward and backward movement of boom. Wire feeder is mounted in the upper end of boom, it moves along with boom, to guarantee the stability of wire feeding.

4. Welding current, welding voltage and welding speed use D/A control, they can be preset. 80 sets welding parameters can be stored and recalled separately.

5.Integrated control panel box. Control button, touch screen, welding specification are in a concentrated panel, easy to operate.

Configuration list

Jinan Haoyu Automation system Co., Ltd (another name is Jinan Haoyu CNC Machinery Co., Ltd) is a high-tech private company located in Jinan City ,Shandong province. We have been a professional manufacturer in the field of welding automation over 17 years.

Our products mainly include automatic welding machine, robot welding station, automatic pipe cutting machine, automatic material handling equipment, automatic assembling machine,these machines are widely used in the areas of automobile,construction machinery, railway vehicle, electric power, shipbuilding, pressure container, petrochemical, house appliances and military industry, etc.

We established a long-term cooperative relationship with more than 60 countries and regions, such as Canada,Italy,Australia,United States,India,south America.Our welding machines are recognized by customers with quality and excellent service.the company have obtained CE and ISO certification .

With strong R&D staffs and Strict QC&QA team,so can design and produce as customers' requirements.Our sales team provide perfect support from Pre-sale and after-sale, in-sale.Technology Improvement and perfect products are the eternal pursuit of the company.

Welcome to Visit and cooperate with us !

 We have always been committed with the service idea of customer-centric, supply Installation, adjustment, training and maintenance in pre-sales and after-sales service.

1. Pre-sales Service

Before signing contract, customers can get production plan, technical consultant and equipment suggestion and etc.

2. Training service

2.1.Customers can get free technical training in China factory. Mainly training are operate the machine to weld,Basic daily cleaning and maintenance for the machine,Solutions for common hardware problems,online training is ok.2.2.When Sellers send engineer to Buyer's place for Installation, Commissioning and training in Buyer's place, Buyer should afford the Labour cost of engineers(100.00 USD per person per day),undertake all the relative expenses,like Transportation expenses, accommodation expenses and so on

3.Pre-shipment inspection system:

3.1 According to the customer‘s shipping details, we will check the products size, weight, spare parts, protective film and other information one by one for each part of goods. If there are any doubtful goods before delivery, quality inspectors will open the package in time and inspect the goods through professional testing equipment to ensure the accuracy of delivery.

3.2.The outer packaging of each goods will also be checked, such as whether the packing is damaged, whether the wooden pallet is fumigated, whether the exported goods are packed with steel strips,etc. To ensure that the goods are not damaged during loading and unloading.

4 .Afer sale service system

4.1 After our customer having received goods, if there are problems caused by the transportation of materials, we would let the customer take photos before unloading, give feedback to the freight forwarder, and make insurance compensation.

4.2. After customers received the goods, if there some quality problems ,production problems. If it is confirmed that there are indeed quality problems.Our QA and QC managers and relevant responsible department will give the reasonable compensation content based on the business contract .

5.Warranty :uausally is one year for main part(PLC,HMI,Gearbox) ,also can be 2~5years as customers requirement,We provide Lifelong technology support.

6. My whatsapp/wechat is 0086 15854187090,weclome to inquiry or ask for technology support any time !

 Question 1 :How to customized a automatic welding machine for your workpiece ?

Answer: Please tell us below information ,then we can design for your workpiece:

1.1  the material of your workpiece, it is better to give us the Workpiece real picture .

1.2 ,the length ,width,thickness of your workpiece or send the drawing of workpiece ,if there are different size workpiece ,tell us the range (Min and max )

Question 2: What is the core components of automatic welding machine ?

Answer : based on different Automatic welding machine,there are mainly including PLC ,CNC control system,inverter ,servo motor with driver ,welding power source,.welding torch ,robotic .pneumatic control system.

Question 3: What is the brand of the core components in the automatic welding machine

Answer :All core components are famous china brand or international brand ,such as :Welding power source ,we usually use OTC and Panasonic brand.if you need Lincoln welding power source or Miller Lincoln welding power source is ok ,we also can use it on our welding machine .

For PLC : We usually use Omron and Siemens PLC, Customers can specify the brand

For robot :We usually use OTC ,YASUKAWA ,ABB or kuka ,or Customers can specify the brand.
