jfmixer carmixer 2.6 CBM mobile self loading concrete mixer truck self loading concrete mixer trucks

China TOP Brand YUCHAI Diesel Engine

270 Degrees Drum slewing for discharge

2x250L Rear water tank & electric water pump

Panoramic monitor

600L Shovel

MODEL CMT2600R SELF LOADING CONCRETE MIXER TRUCK (2.6 CBM)

Product Introduction

Model CMT2600R Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features automatic calculating the proportion of mixing materials, the concrete output ability is 10.4 cube meters per hour. The large size wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 25 km/hour, and the min. turning radius is 5.3 meters only.

CMT2600R is equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc. The mixing drum can rotate hydraulically through 270 degrees for high discharge over 1.8m on the four sides of the vehicle. The drum can also be lifted up 20 degrees at bottom by two hydraulic cylinders for the convenience of concrete discharge.

\tThe vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

\tHigh strength steel plate, which enhances the load capacity and high stability of vehicle.

\tThe material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.

\tMixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.

Company Brief Introduction

Product Overview

Description

Home
Categories
Concrete Mixers
jfmixer carmixer 2.6 CBM mobile self loading concrete mixer truck self loading concrete mixer trucks

Category: Concrete Mixers >>>
Supplier: Laizhou,Jufeng,Machinery,Co.,Ltd.

Price:$21,875.00 - $23,215.00

Price in USD:Details

Quantity:

Product Description

Engine
Brand	YUCHAI (Cummins Engine optional)
Model	YCD4T22T-105
Type	In-line, 4-Cylinder, Turbo Charged and Water Cooled,
Rated power	78 KW (106HP) @ 2400 rpm
Max torque:	330 N.M @2000 rpm
Emission standard	Euro II

Chassis
Structure	Articulated chassis
Transmission gear	Automatic, 4F+ 4R shift
Driving & steering	4-Wheel drive (4x4), hydraulic articulated steering
Wheelbase	2800 mm
Tread	1700 mm
Axles	Large size wheel-side reducer driving axle
Tyre size	Off road steel cord type, 1670-20, PR14

Cabin
Type	ROPS & FOPS type closed front cab
Joystick control	Double-joystick control the hydraulic system
Weighing system	Optional. The "loading cells" are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.
Air conditioning system	Optional
Electric system
Alternator	24V-1500W
Battery:	2x12V-80AH

Water system
Max. water suction capacity	250 L/min. (Self-priming electronic water pump)
Water tank capacity	2x250 L.

Vehicle
Max. Driving speed	25.0km/h
Gradient	Fully loaded 40%
Min. turning radius	5.3 m
Operating weight	6,500 Kg
Max. payload	6,200 Kg
Max. gross weight	12,700 Kg
Overall size (L×W×H)	7800 mm × 2720 mm × 3000 mm (4000 mm full height)
Service refill capacities
Fuel tank:	75L
Total hydraulic system capacity:	75L
Engine oil	16L
Optional accessories:
Dongfeng Cummins engine
Foton Cummins engine
Electronic Weighing device
Centralized greasing system
Hydraulic water pump
Air conditioner in cabin

Contact Person: James Yang					Contact Person: Jerry Lee
osition: Director of Foreign Trade Tel: +86-15098557232 Wechat: JamesJFMIX QQ: 3269321933 Whatsapp: +86-15098557232					Position: Director of Foreign Trade Tel: +86-15098557112 Wechat: LeeJFMIX QQ: 1038640498 Whatsapp: +86-13705358617


Web Site: http://en.sdzkjf.com
Address: Tushan Industrial Park, Laizhou City, Shandong Province, China 261400

CMT2600R is driven by YUCHAI, 78 kW (106 HP), Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption. The CUMMINS Engine is availabe upon request.

The mixing drum can rotate hydraulically through 270 degrees for high discharge over 1.8m on the four sides of the vehicle. The drum can also be lifted up 20° from the bottom hydraulically for the convenience of discharge of concrete.

2x250L Water tank is fitted in the rear of vehicle. Self-priming electric water pump features quick suction (250L/min.)

The driving cameras fitted on the truck and monitor in cabin are designed for the driving safety.

600L Loading shovel is fitted with teeth in front and completed with hydraulic opening gate. It can fulfill the drum around 5 times of loading.

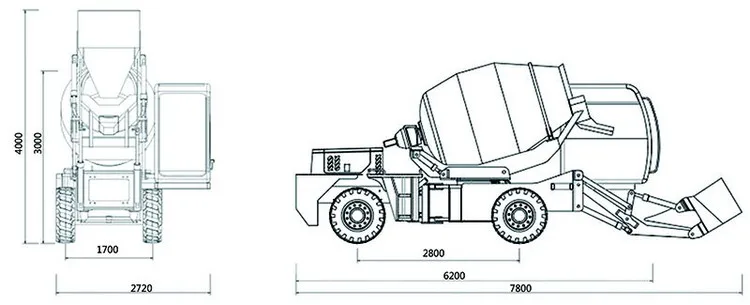

Overal Dimensions

Detailed Image

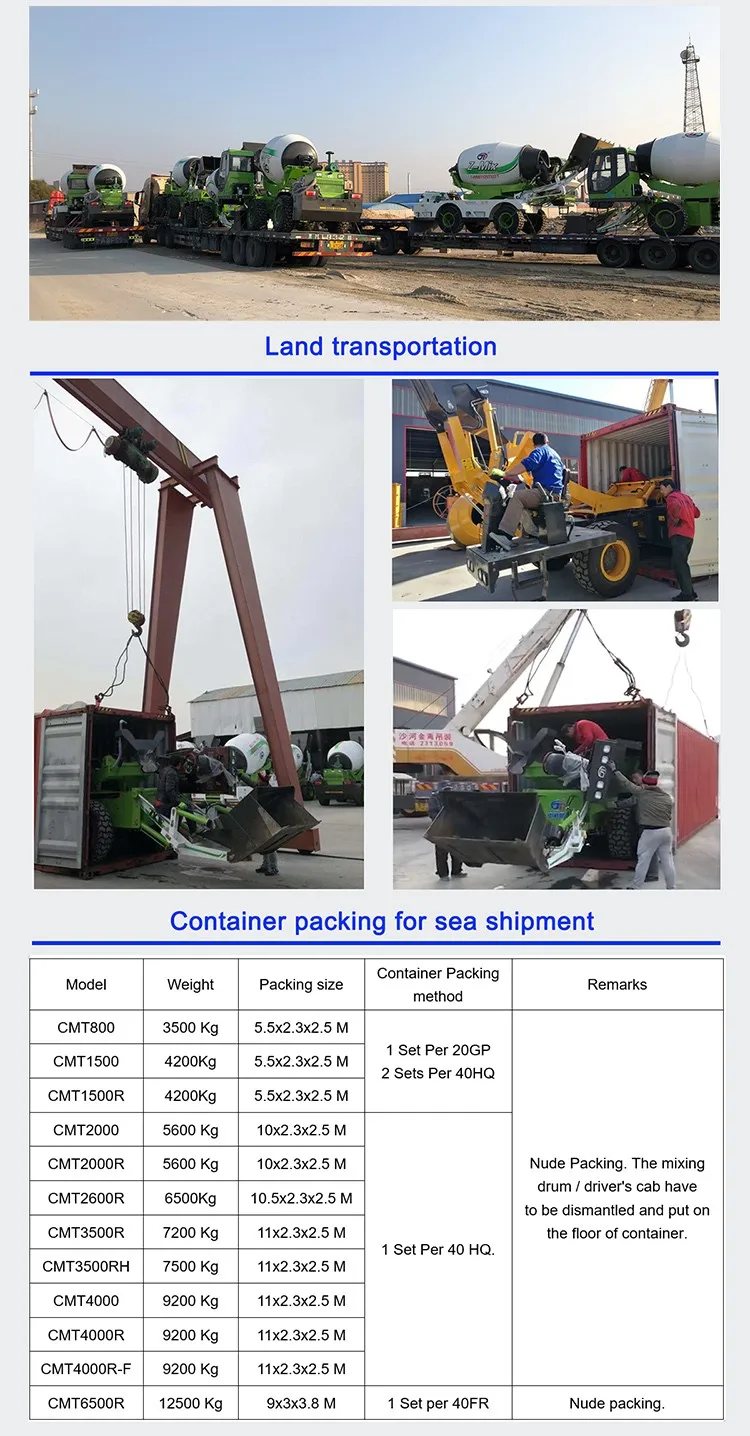

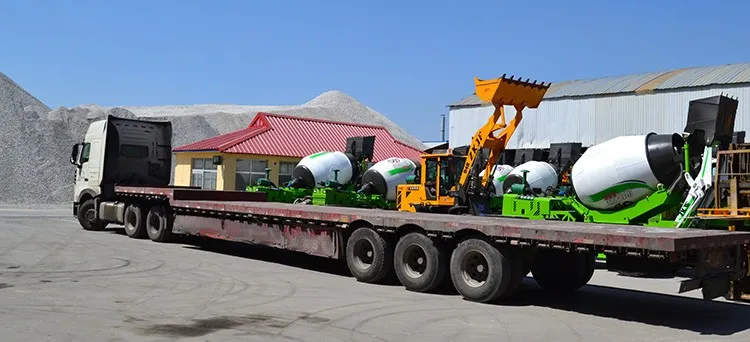

Packing & Delivery

Main Features

Our Company

Mixing Drum

Mixing volume

2.6 M3

Geometrical volume

Concrete output

2.6 M3 / batch, 10.4 M3 / hour

Drum rotating speed

Drum slewing angle

Laizhou Jufeng Machinery Co., Ltd. is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.

The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.

We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.

In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.
