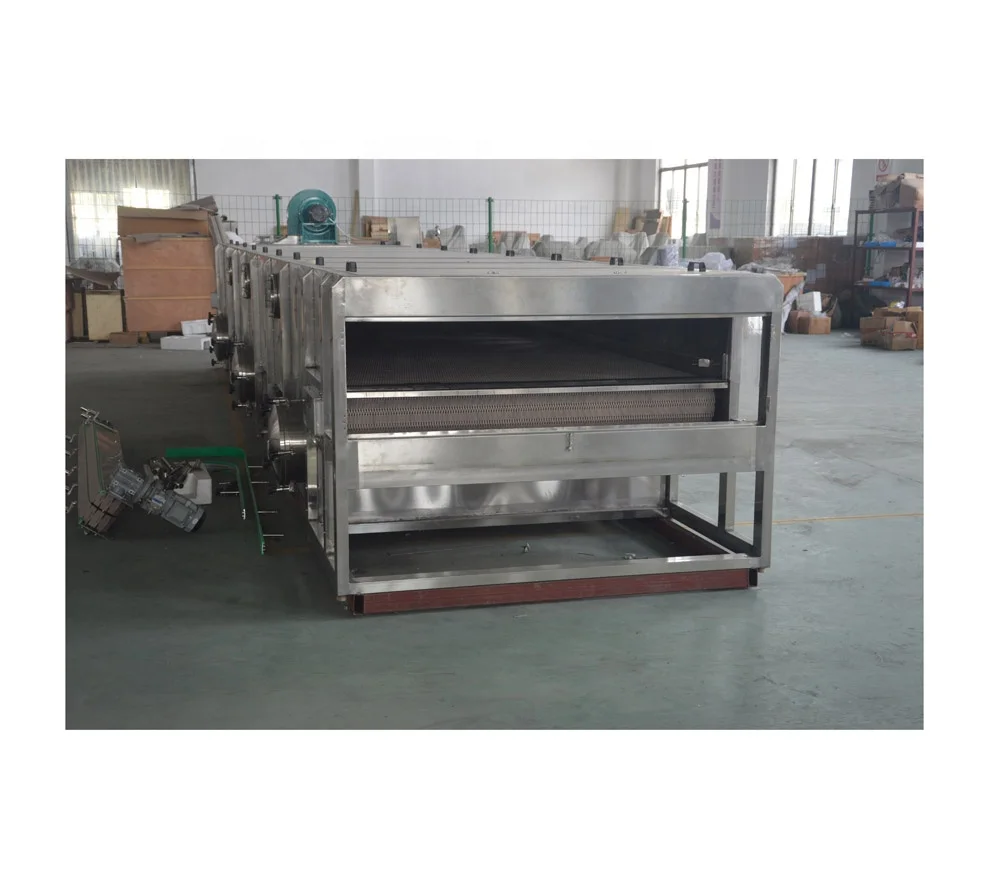

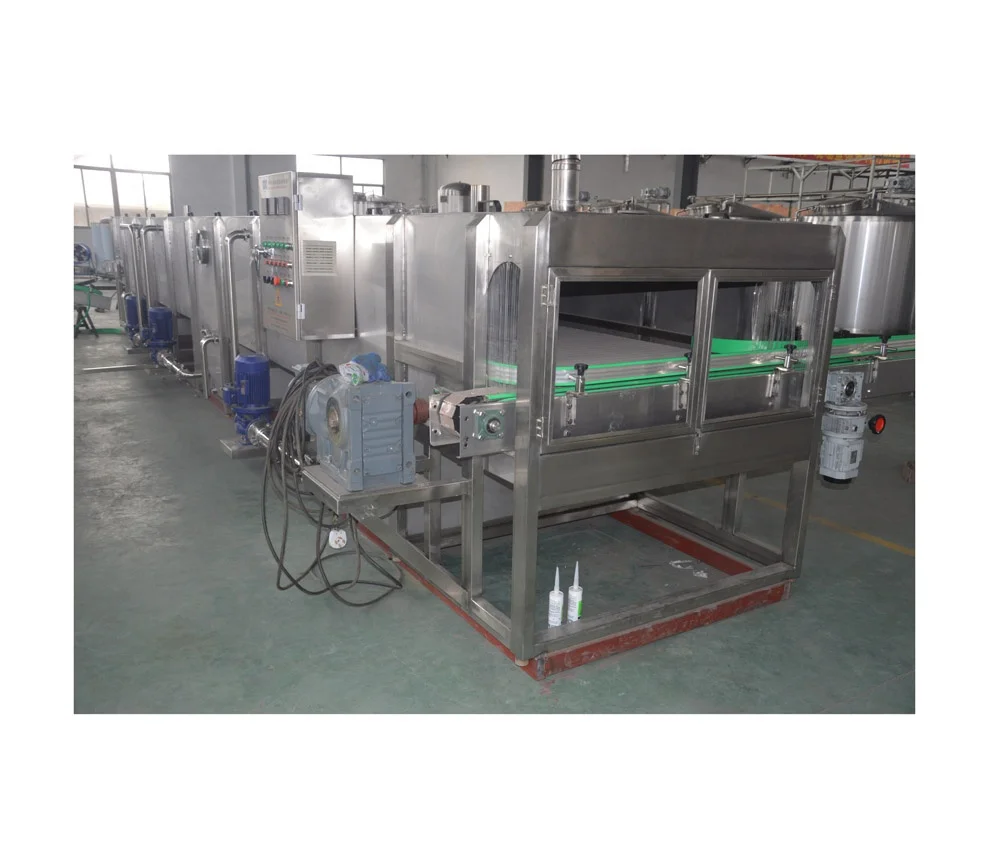

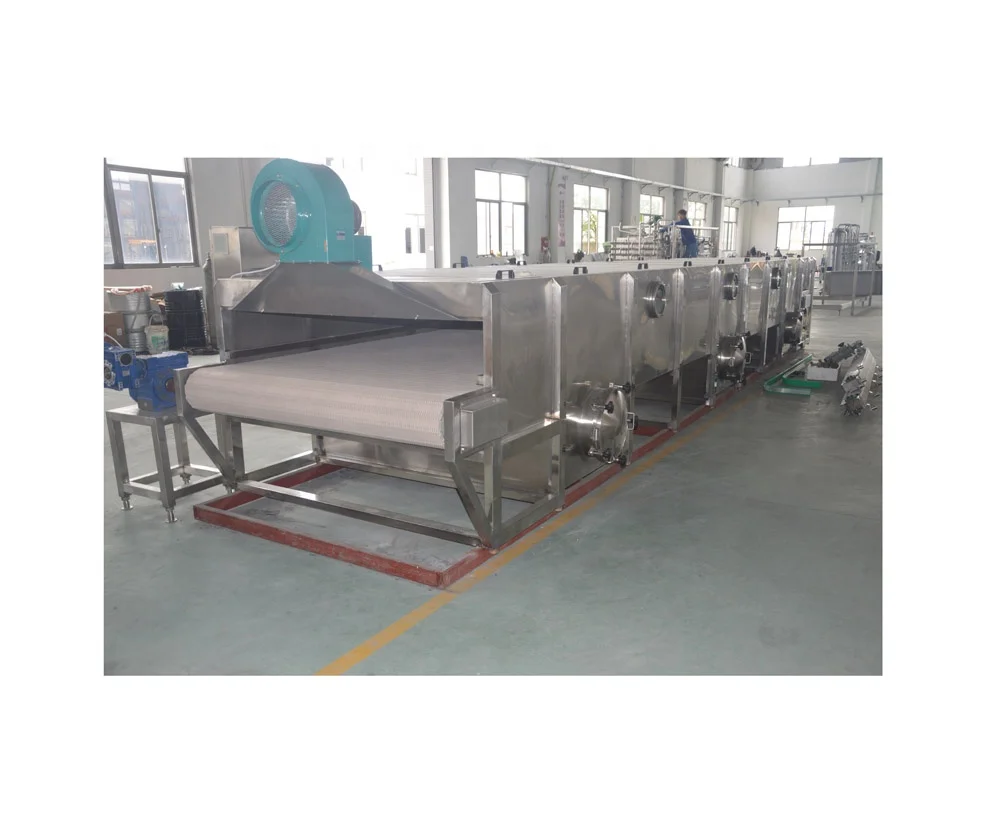

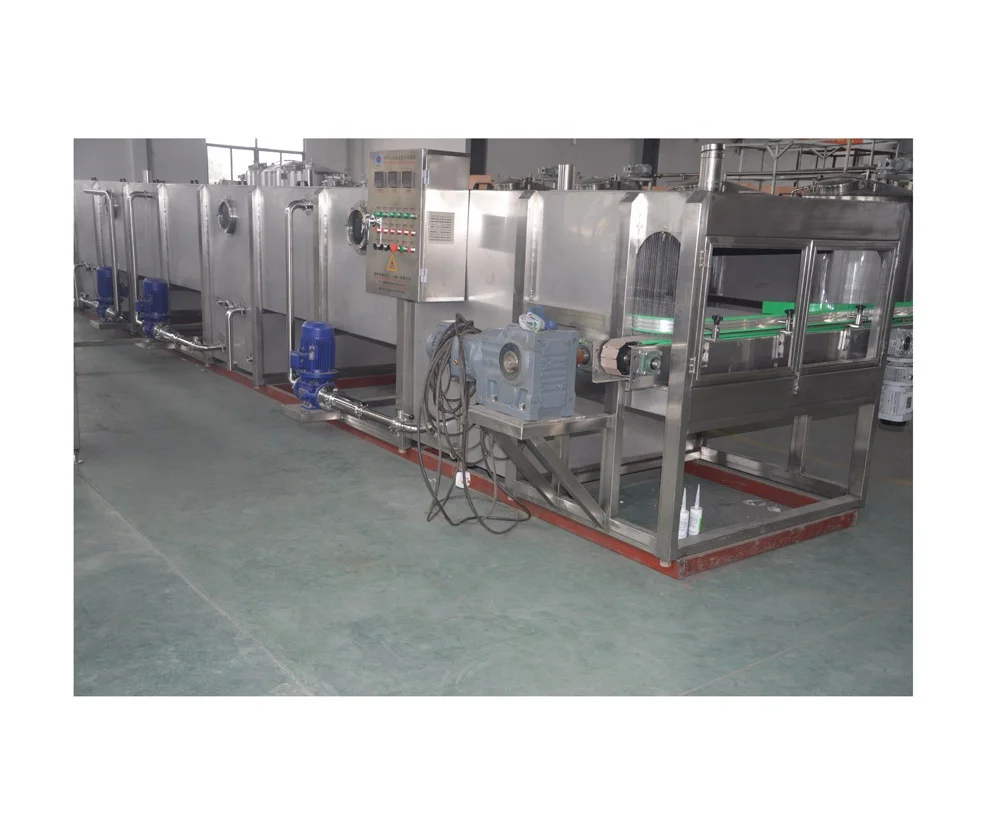

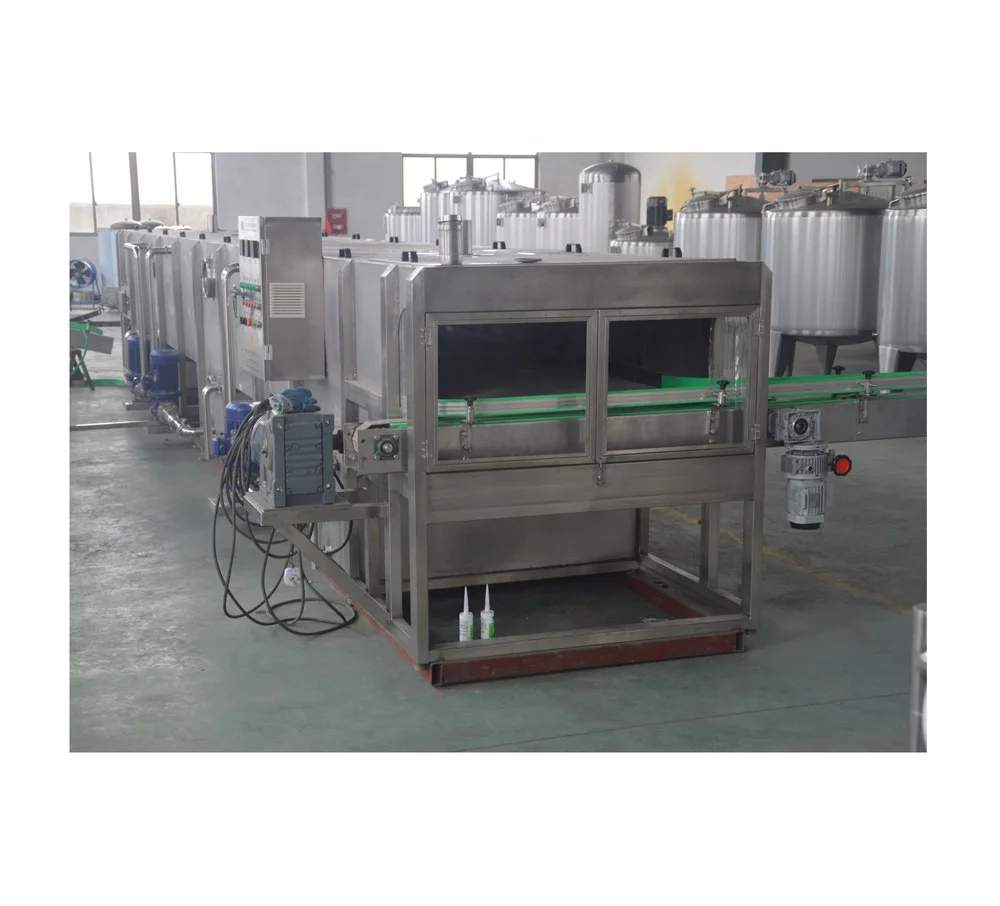

Машина для пастеризации молочных бутылок, туннельный стерилизатор
Машина для пастеризации молочных бутылок, туннельный стерилизатор
Машина для пастеризации молочных бутылок, туннельный стерилизатор
Машина для пастеризации молочных бутылок, туннельный стерилизатор
Машина для пастеризации молочных бутылок, туннельный стерилизатор
Машина для пастеризации молочных бутылок, туннельный стерилизатор
Машина для пастеризации молочных бутылок, туннельный стерилизатор

Машина для пастеризации молочных бутылок, туннельный стерилизатор

Share on (1600207612901):


Price:

Quantity:


Product Overview

Description



Product Description

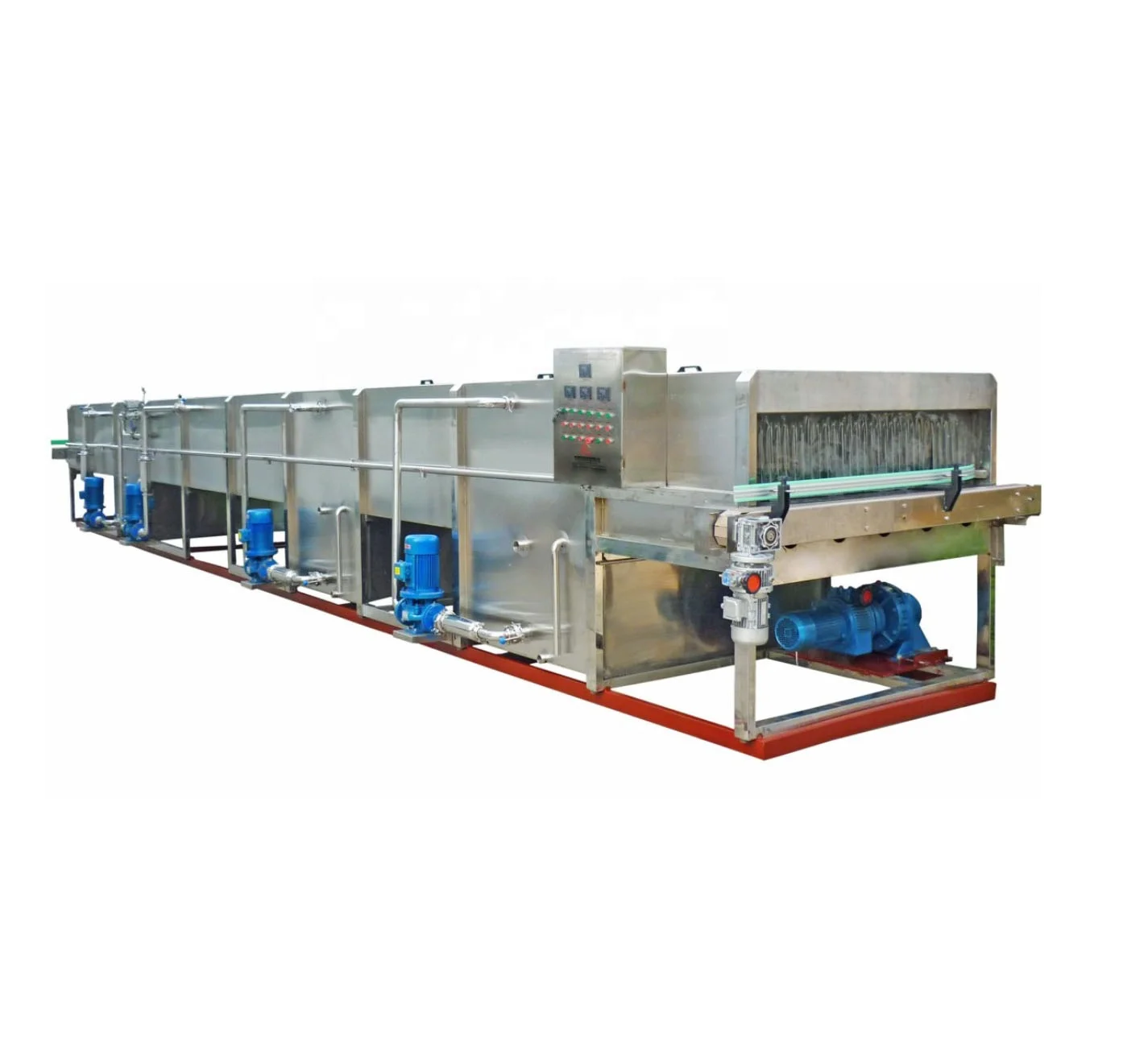

Glass Bottles Tunnel Pasteurizer Beer Sterilation Tunnel

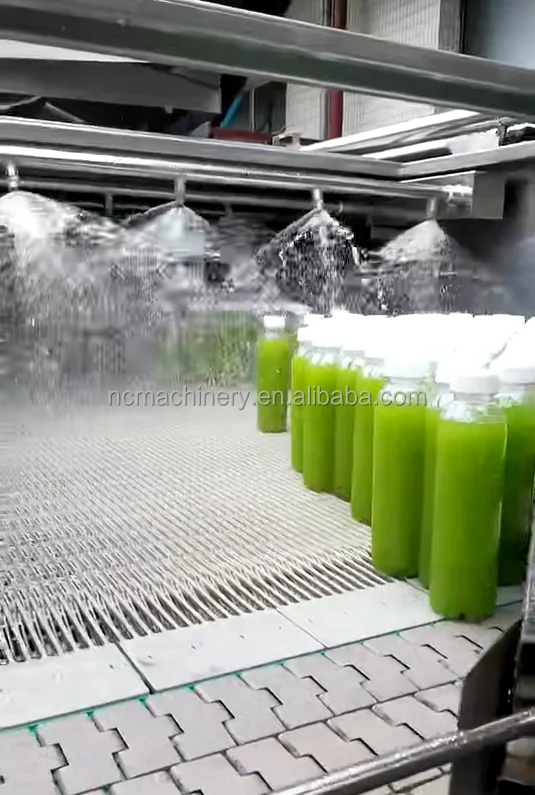

Continuous spray sterilizing machine- this machine is suitable for fruit juice, tea, dairy beverage.After hot filling and capping, into the sterilization tunnel, the temperature rise by heating, reaching the pasteurization temperature, in the sterilization tunnel water under high pressure pump, the spray head evenly sprayed on the bottle body, the bottle slowly forward in the chain plate, a tunnel to reach room temperature, to achieve cooling purposes.

Imported the most advanced technology from Germany, Italy, Taiwan . By circulating hot water preheating, pasteurization, warm water pre-cooling, cold water-cooled four-part treatment. The machine adopts the brand-name high temperature polypropylene chain plate, temperature control with digital temperature control device in Japan, all imported stainless steel body, stable and reliable operation, nice appearance




Design requirement
Material Pasteurizing Temp
Inlet Temp
 2℃ -4 ℃
Outlet Temperature
35-40℃
Packing
Aluminum cans
Process material
Cans
Product
Carbonated drinks(cola drink)
Dimension of Cans
250-750ml
Capacity
12000 Cans Per hour
Size
12000×2000 MM(Length× Width)
Equipment and technical parameter
Name
Technical parameter
Name
Technical parameter
Model
NCPL
Total Power
22 kw
Material
SUS304
hot water pump
3 sets
Thickness of Material
3mm
Flow rate of pump
30 cubic meter Lift:36m
Thickness of Cover Plate
2mm
Heating plates
8m2 2 sets
Conveyor
High temp. resistance; Both the inlet and outlet hole with 3 meters conveyor ;the conveyor adopts transducer to adjust its
speed;0.75kw(new design) ;0.45 meters/m
Area of Conveyor: 45 Square Meter;
steam filter
3 sets
Main drive
adopts large torques low speed reduction gear
water filter
3 Sets
Temperature control system
Accurate, could guarantee the quality of pasteurization. The temperature changes is below ±1℃.
steam adjust valve
φ40, 2 pcs

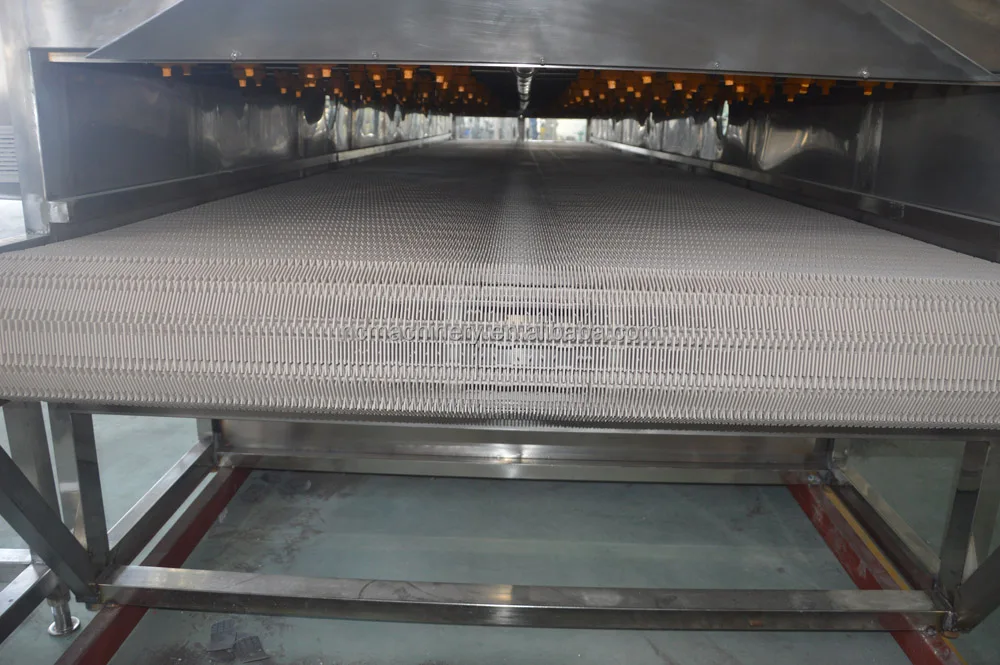

Main link-plate
high plastic plate, 16×1.8m
steam drain valve
φ32, 3 pcs
sprockets
16 pcs
manual adjust valve
φ50, 6pcs

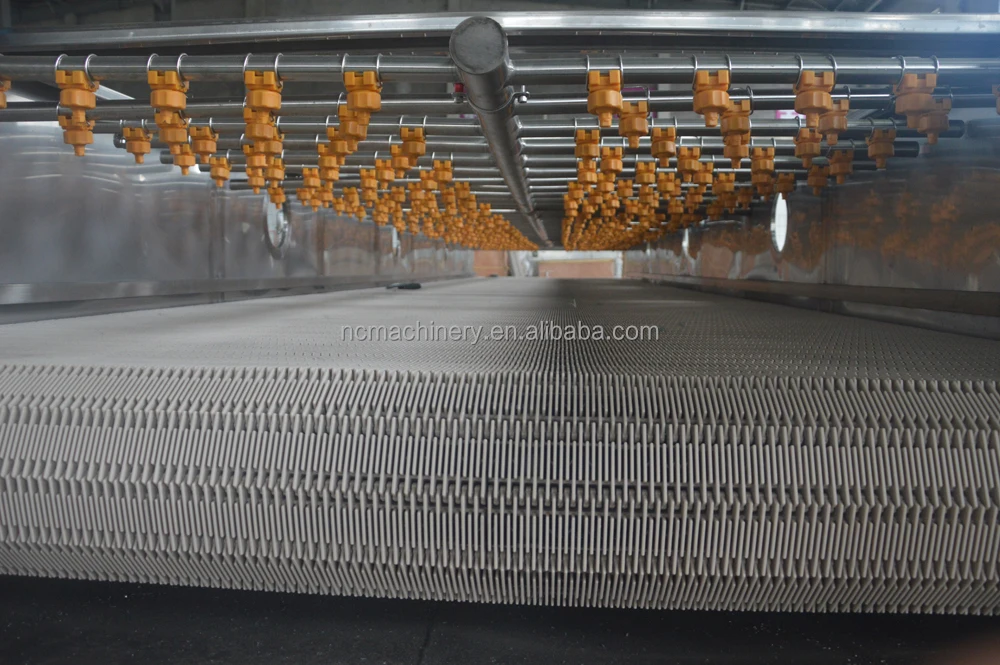

nozzle
600 pcs, high temperature resistance
pressure gauge
10pcs
Stepless speed changing main motor
1 set
Manhole
4pcs


Certifications






Supplier Brand




FAQ




Customer Photos




Company Profile




Contact Us

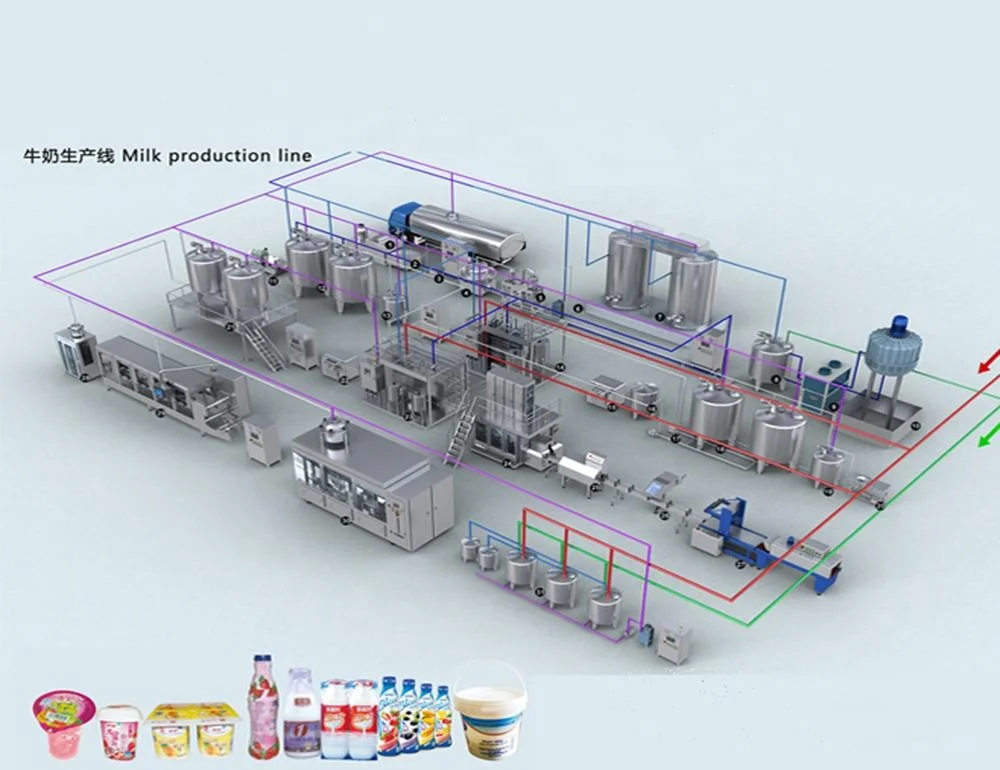

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
