Weihua 16t 32t double beam girder gantry crane a5 a7 working duty for paper mill


Brief introduction


lifting weight: 5ton~800ton
Lifting Height: 10m~30m


span: 18m~35m



Product Description

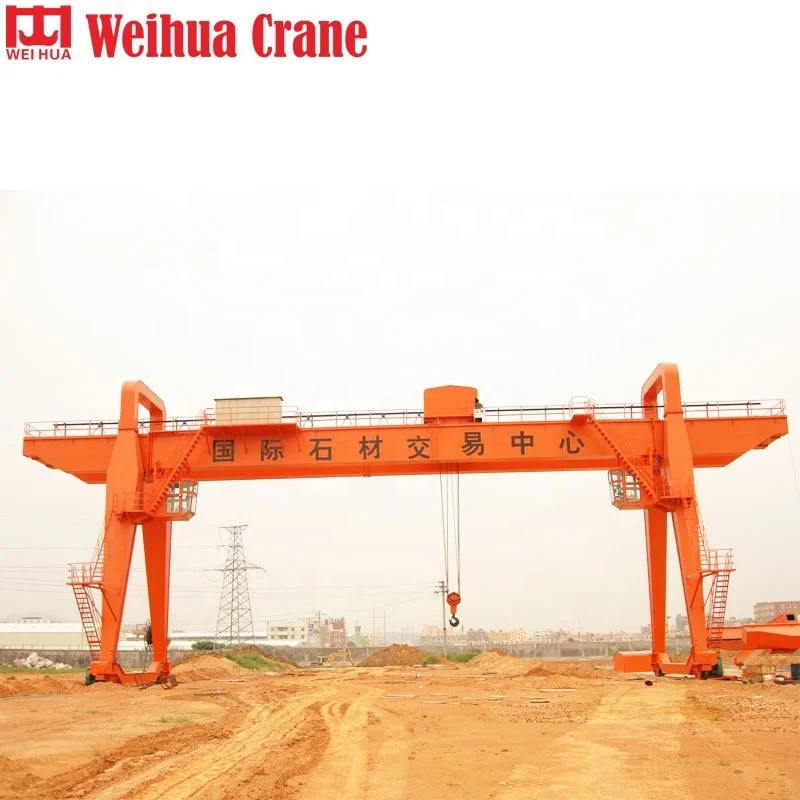

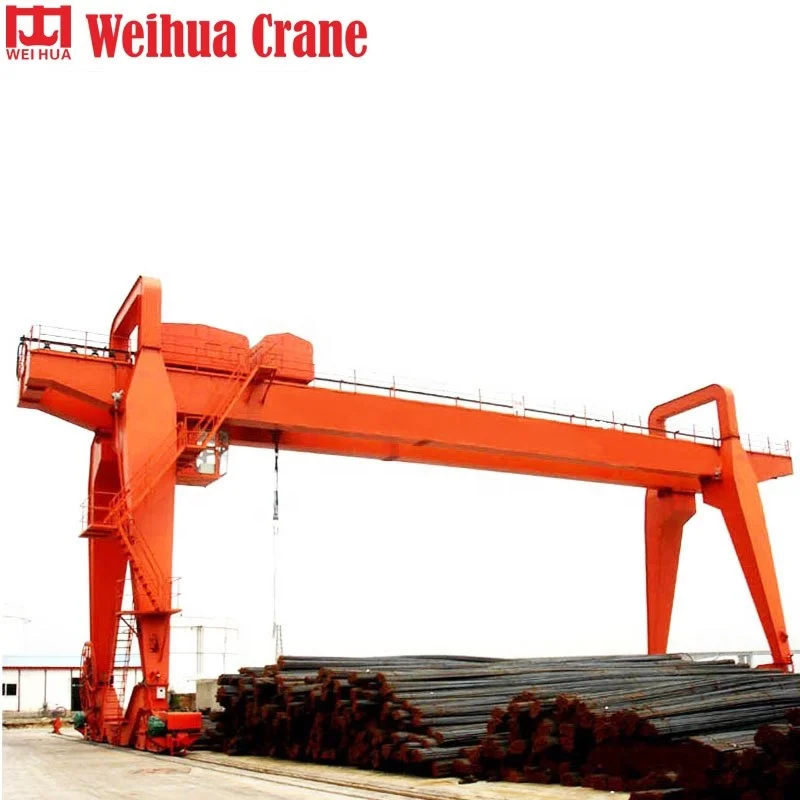

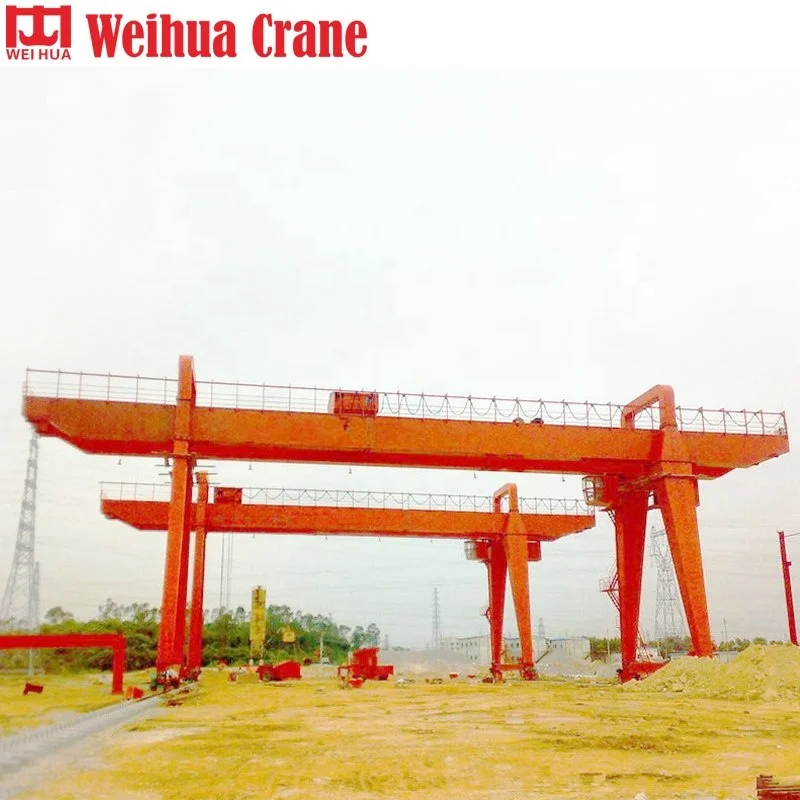

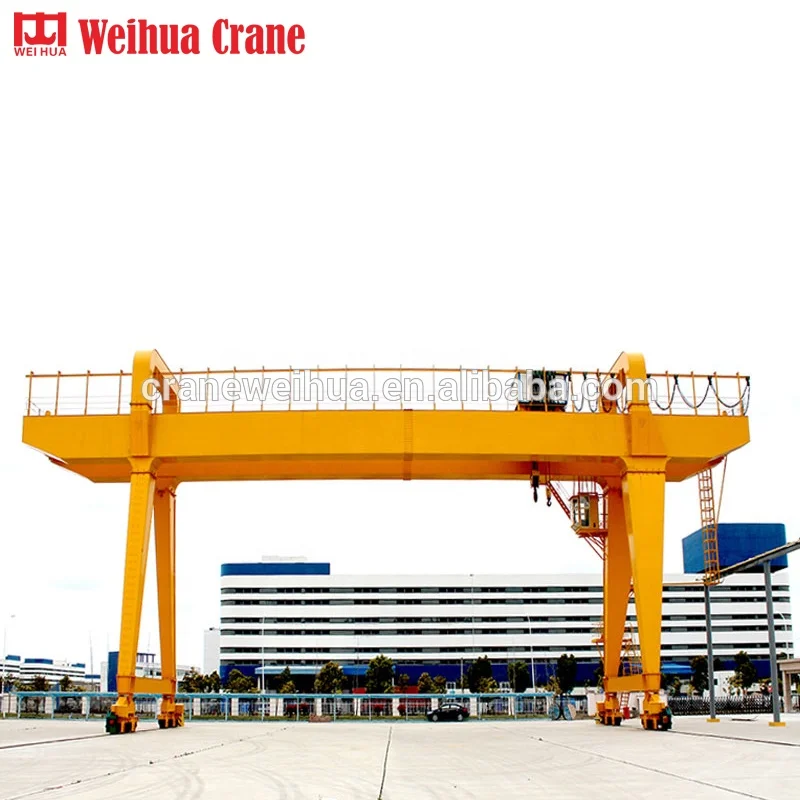

Double girder gantry crane for paper mill consists of four main parts, the bridge structure, the travelling mechanism, the trolley and electric equipment. The bridge is welded structure of box-type, individual drives are adopted for travelling mechanism on each end of the crane. All movements of the crane are controlled from the cabinet. This gantry crane are available for general service, such as loading, unloading, lifting and transferring work in outdoor storage or on railwways.




The Double girder gantry crane for paper mill  we are offering is designed to meet the required functions and requirement stated in your specifications, as well as for the operating conditions.


The sub-assemblies used by are standardized equipment of renowned manufactures and have been approved for specific crane operation by our test laboratory. Their characteristics regarding impact/vibrations, wear and safety were examined. A continuous high quality standard is ensured by series production and standardized sub-assemblies.


The electrical equipment is accommodated in robust steel plate control cubicles, on the crane girder.



All movements can be switched off by actuating the emergency-off switch at the control station via a main contactor.


The entire equipment is easy to install and dismantle due to the use of threaded bolts and top-hat rails


Cable inlet from cable gland


Power supply cable and control cable along the girder


A protective earth conductor is fitted as standard. A crane switch is provided.


Specifications of Double girder gantry crane for paper mill :













































































capacity(t)span(m)lifting height (m)work dutymain hoist speed (m/min)aux. hoist speed (m/min)cross travel speed (m/min)long travel speed (m/min)railtotal power(KW)
1018~3510A50.8~7.8 3.3~333~3043kg/m21.74
20/518~3510A50.6~60.78~7.83.5~353~3043kg/m39.7
32/5

18~2610A5 0.5~5.2 0.8~7.8 3.1~31 3~30 43kg/m 59
26~3512
50/1018~2610A5 0.4~3.9 0.78~7.8 3.6~36 3~30 43kg/m 71.4
26~3512
75~1000customized

Notes:The foregoing attached table shall only be used for reference. The actual application shall be appropriately modified according to customers' requirements.





Main products






















Company Information






Packaging & Shipping








Customer Visited






FAQ


Q&A


1, What's information should I provide to get the price?


More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.


2, Which kind crane can you provide?


Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds crane with customized parameters.


3, What services can you provide?


We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.


4, Which brand are the accessories and electronic components in your cranes?


We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have world-leading processing machines which are imported from Japan and German.


5, Do you provide crane spare parts?


Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.
