Mingke Factory Carbon Steel Belt for Bakery Burner
Mingke Factory Carbon Steel Belt for Bakery Burner
Mingke Factory Carbon Steel Belt for Bakery Burner
Mingke Factory Carbon Steel Belt for Bakery Burner
Mingke Factory Carbon Steel Belt for Bakery Burner
Mingke Factory Carbon Steel Belt for Bakery Burner
Mingke Factory Carbon Steel Belt for Bakery Burner

Mingke Factory Carbon Steel Belt for Bakery Burner

Share on (1600207775105):


Price:

Quantity:


Product Overview

Description





Width
200~3100mm
Length
customize available
Thickness
1.2/1.4/1.5 mm
Material
Carbon Steel
Tensile strength, Mpa
1250
Yield strength, Mpa
1100
Fatigue strength, N/m㎡
±430
Hardness, HV
380
Elongation
7
Welding factor
0.8

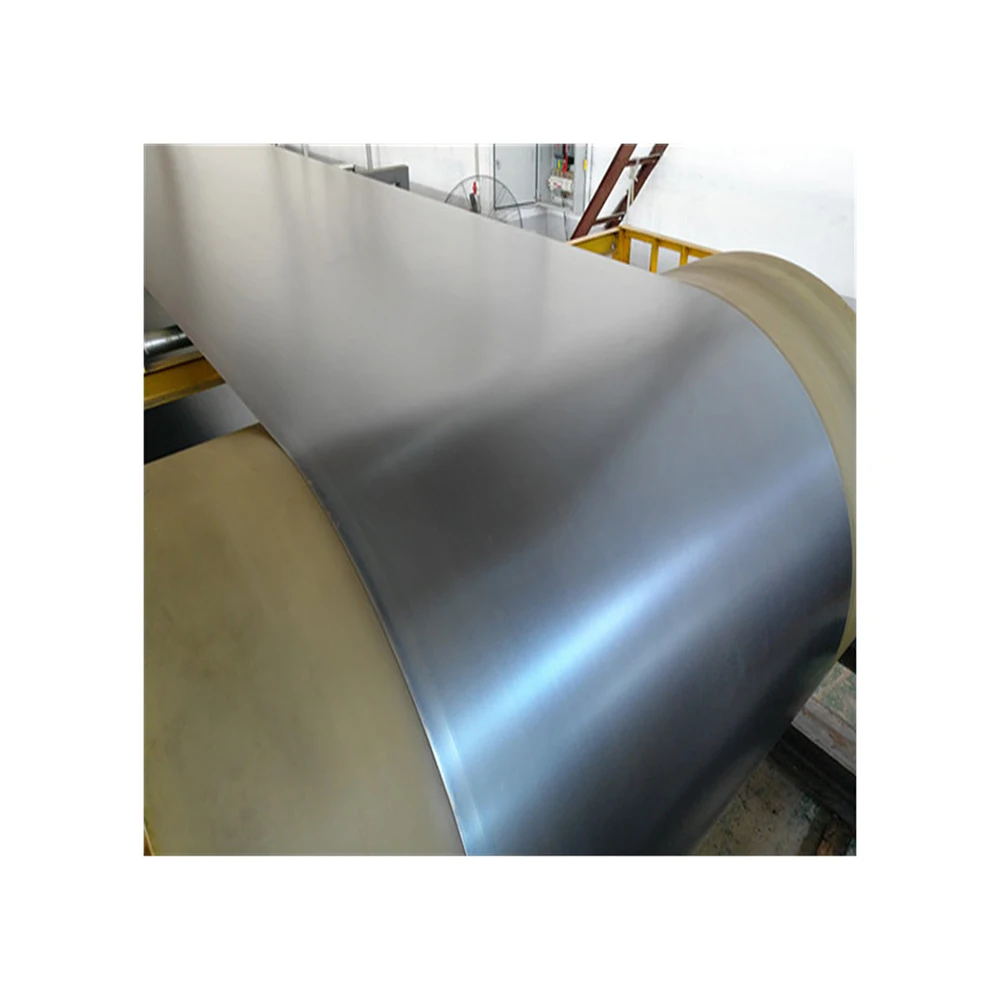

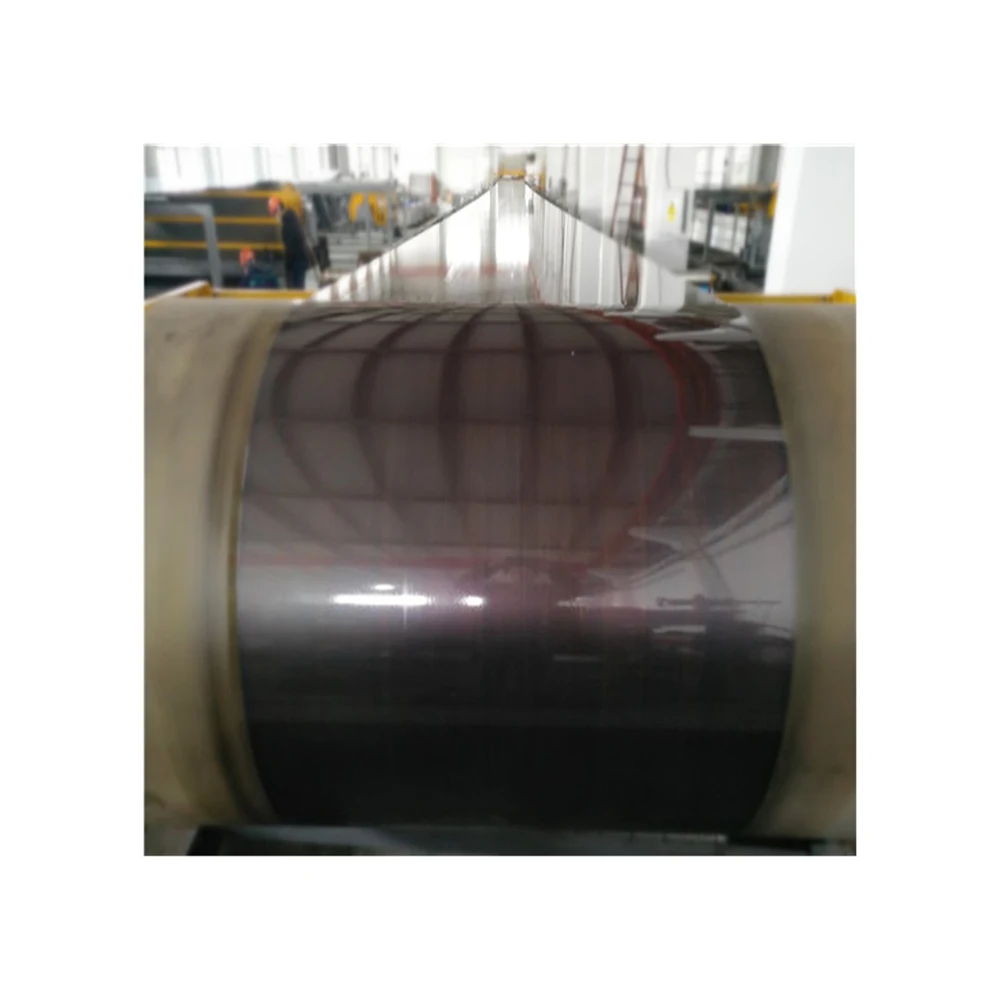

Mingke Carbon Steel Belts are widely applied to food industry, like tunnel bakery oven.
There are three types of ovens: steel belt type oven, mesh belt type oven and plate type oven.

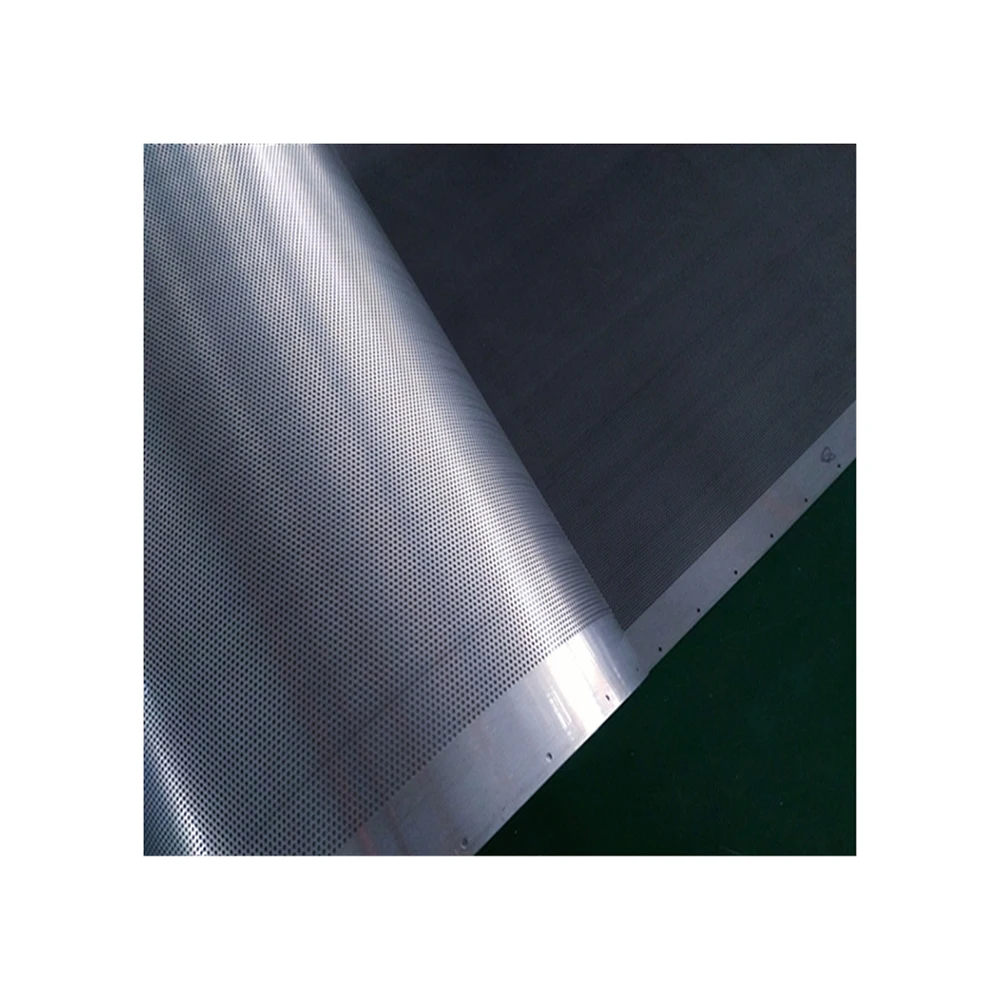

Compared with other types of ovens, steel belt type ovens has more obvious advantages, like: no leakage of material and much easier to clean, steel belt conveyor bears much higher temperature which is available for manufacturing higher end products. For bakery oven, Mingke can provide standard solid steel belt and perforated steel belt.

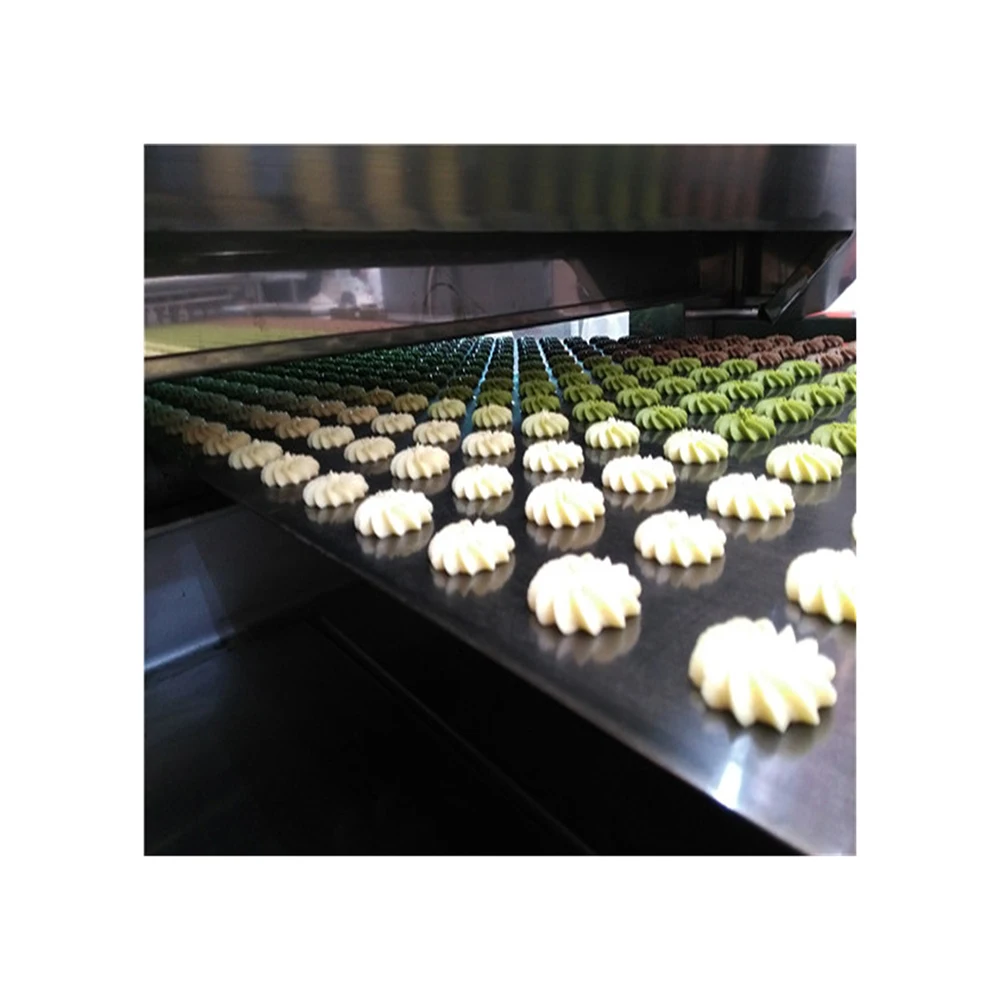

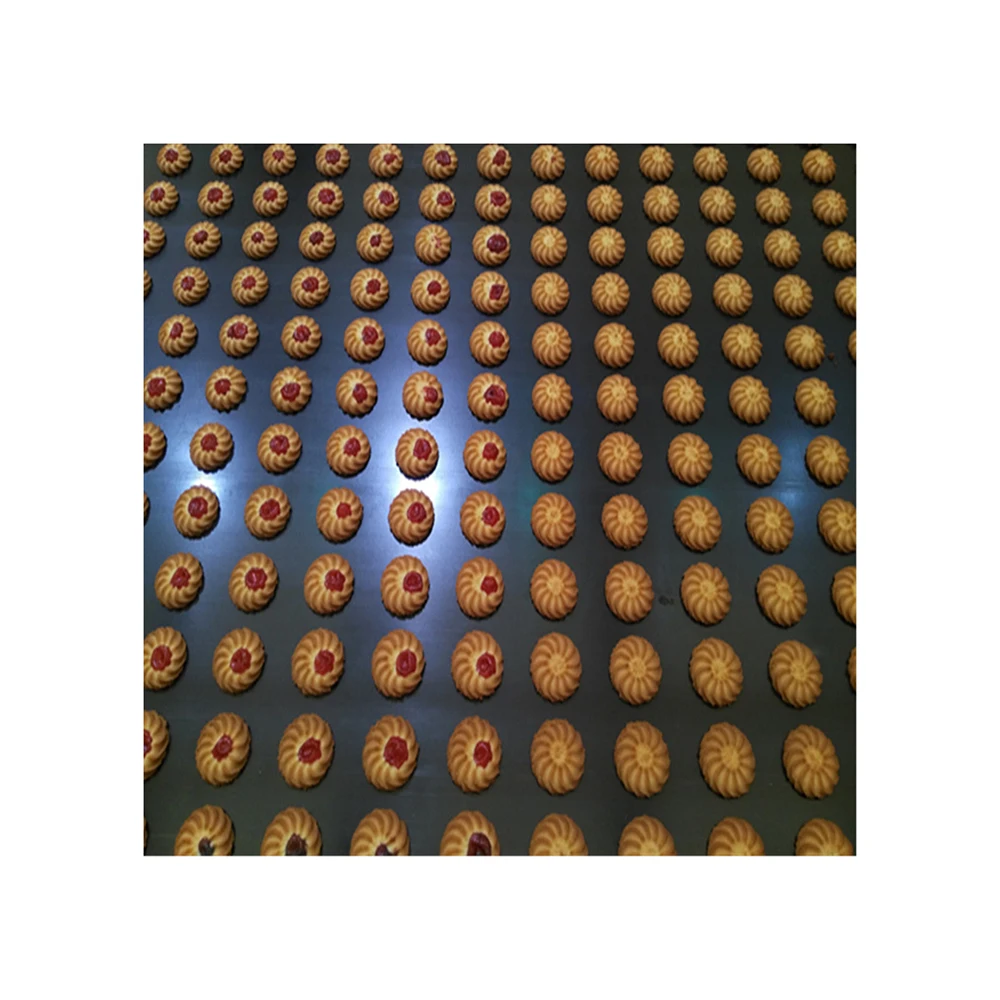

Applications of the steel belt oven:
Biscuits
Cookies
Swiss roll
Potato chips
Egg pies
Sweeties
Expanding rice cakes
Sandwich cakes
Small steamed buns
Shredded pork puff
(Steamed) bread
Etc.
Applicable Steel Belts:
CT1300, hardened or hardened and tempered carbon steel belts.
CT1100, hardened or hardened and tempered carbon steel belts.
Characteristics of Mingke Oven Belt:
Great tensile/yield/fatigue strengths
Hard & smooth surface
Excellent flatness and straightness
Excellent thermal conductivity
Outstanding wear resistance
Good corrosion resistance
Easy to clean & maintain
Much better than mesh belt or plate conveyors for oven.
Supply Scope of the Belts:


Model
Length
Width
Thickness
CT1300
≤170 meters
600~2000 mm
0.6 / 0.8 / 1.2 mm
CT1100


≤170 meters



600~2000 mm



0.6 / 0.8 / 1.2 mm

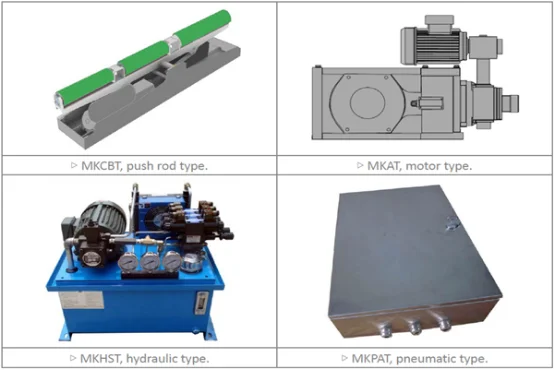

Steel Belt Tracking System:




In food industry, we can supply various True Tracking Systems for options (model: MKCBT, MKAT, MKHST, MKPAT) for the steel belt conveyors. Including small parts like Graphite Skid Bar.

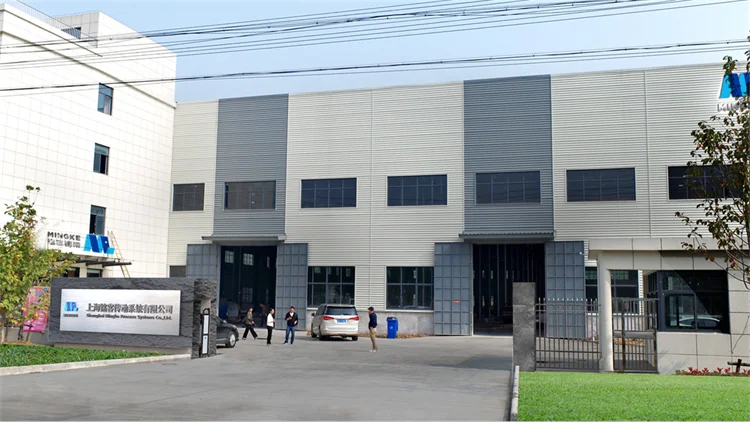

Shanghai Mingke Process Systems Co.,Ltd., founded in 2012, is a high-tech enterprise.
Mingke is specialized in the manufacture of high-end & high-strength steel belts and we provide continuous process solutions based on steel belts.

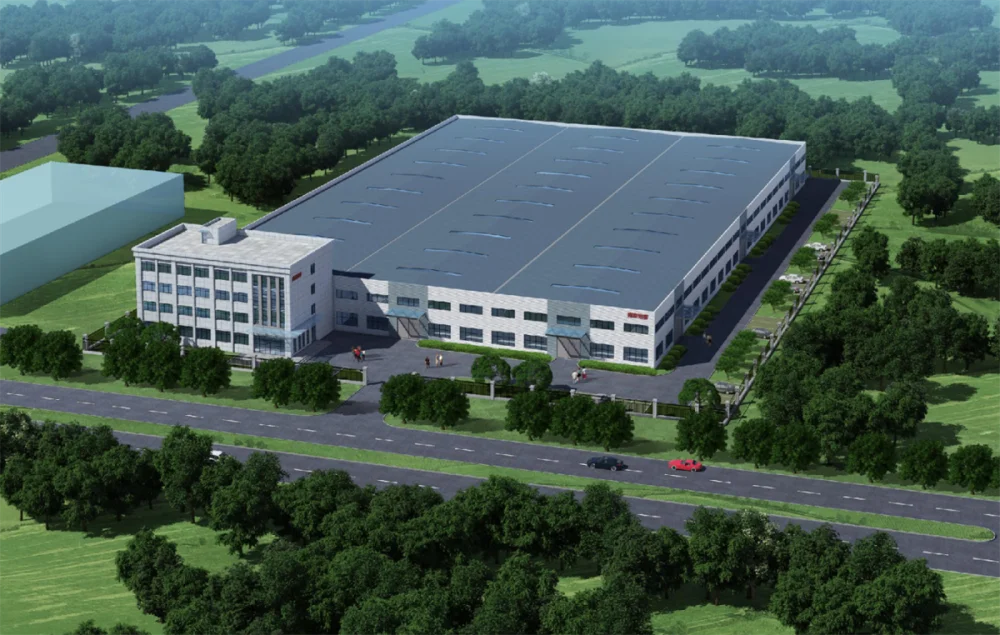

Our factory is located in Gaochun economic development zone, Nanjing city; and our R&D office is located in Fengxian district, Shanghai Hongqiao.
Mingke steel belt consists of imported top quality steel material in combination with European belt technology and knowhow. We can supply following types of steel belts: MT1650/MT1500/MT1050 Martensitic Stainless Steel Belts, AT1200/AT1000 Austenitic Stainless Steel Belts, DT980 Super Corrosion Resistant Dual Phase Stainless Steel Belt, CT1300/CT1100 Carbon Steel Belts, DT1320 Dual Phase Carbon Steel Belt, etc.
Our steel belts are widely applied to various industries, and they are playing the role of core component in all industrial automation process systems. Like: Wood Based Panel Industry (continuous double belt press / Mende press / single opening press), Chemical Industry (cooling flaking / pastillating machines), Rubber Industry (rubber rotary curing vulcanizer - Rotocure / plate vulcanizing machinery), Food Industry (tunnel bakery oven / drier for fruit and vegetables / IQF machine / meat conveyor / chocolate production lines / coffee cooling line...), Film Casting Industry (super-mirror-polished-steel-belt), Conveyor & Sorter Systems, Ceramic Industry (ceramic press), Steel Belt Sintering Oven, Scattering, Lamination (textured structure steel belt), Automotive Industry (tile testing), Papermaking Industry (metal belt calender), Aviation Industry (tunnel wind experiment) and Artificial Marble Industry, etc.
We have professional belt after-sales service system, located in nearly ten countries and regions around the world.
Apart from steel belt, Mingke can also supply belt equipment, like: Isostatic Double Belt Press, Chemical flaking/pastillation machines and Customzied Industrial Conveyors.
Mingke independently R&D manufactured Double Steel Belt Press is the first set of isostatic type Double Belt Press made by China.














Mingke Steel Belt
Nearly 10 years' experience.
The same quality level as EU.
Whole production process, from start to end, all by ourselves.
10+ after-sale service offices worldwide.
Located in Shanghai (headquarter) and Nanjing (Factory).
