Оптовая продажа Сделано в Китае управления 1U 19 дюймов полная нагрузка 24 портовая коммутационная панель cat 6

Share on:

Price:8,50 $ - 11,50 $
Price in USD:Details


Product Overview


Products Description

Product Model
Product Color
Product Material
Metal:1.5mm Cold rolled steel sheet Plastic:PC/ABS,UL94V-0
Product Name

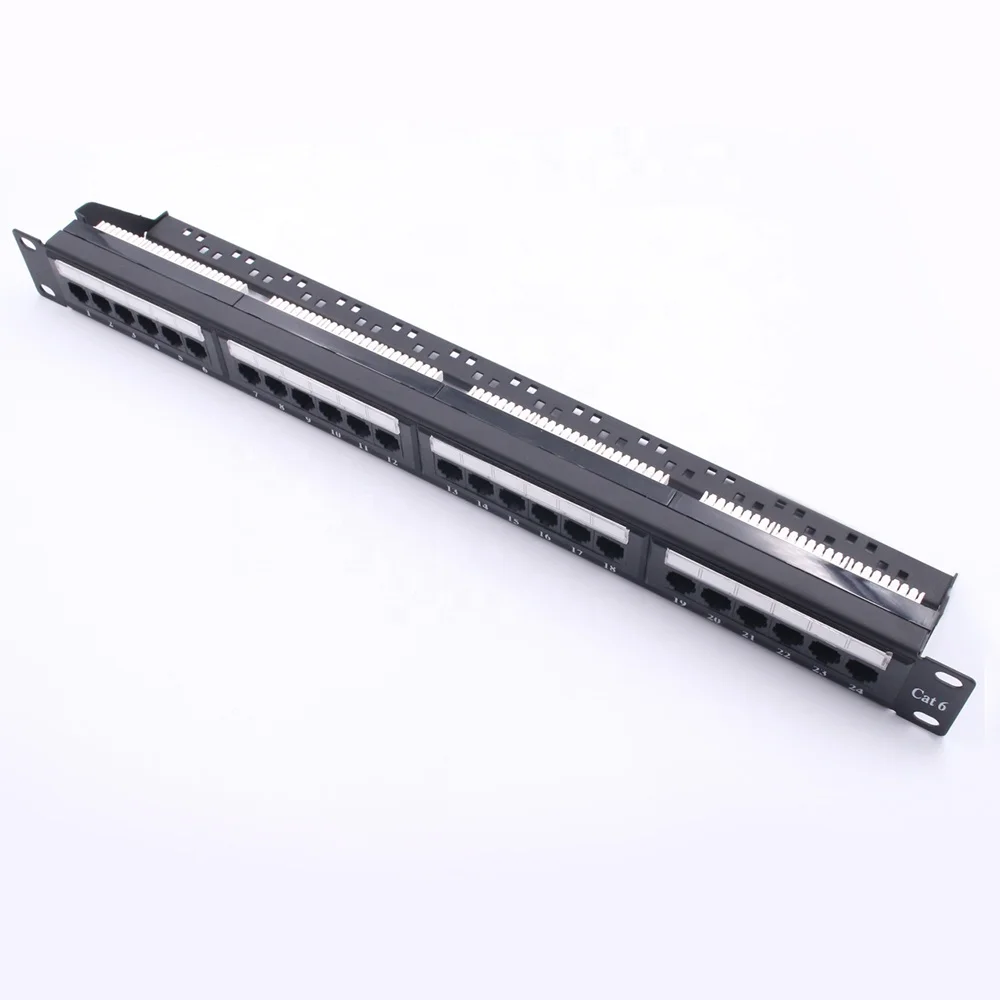

24 Ports UTP Patch Panel
1pc/neutral box; 25pcs/carton(could be customized)

Product Description
Standard:ISO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1 ;ANSI/TIA–1096-A (FCC Part68);IEC 60603-7
Wiring Standards:T568A/T568B
Application: for home ,hotel, office and buildings network wiring
Material: *Panel:SPCC 1.5mm *Housing:PC/ABS *Spring Wire: Phosphor Bronze with Gold-plated 3u-50u" *IDC Contact:Phosphor Bronze with tinned
Working life: 750 times Min for RJ45 jack; 200times min for IDC
Current Rating:1.5 Amps
Contact Resistance:2.5mΩ max
Insulation Resistance:500mΩ minimum
Dielectric Strength:1000V RMS at 60Hz for 1 minute
Flammability rating:UL 94V-0
QC:100% broken circuit testing
Humidity:10% ~ 90%RH
Temperature:-20℃~ 60℃
OEM / ODM:Available
--PREPARE YOURSELF Heavy-duty 24 port patch panel supports for 10-Gigabit Ethernet, made for Cat 6 cabling, but backwards-compatible with Cat5e & B17Cat5 cabling. Use included cable ties for easy cable management
--24 PORT 'CAT6 PATCH PANEL is ideal for Ethernet, Fast Ethernet and Copper Gigabit Ethernet (1000Base-T) network applications. * Meets ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801 Standards*
 --GOLD PLATED CONTACTS Ensure a solid connection Install this Rj45 Network patch panel without any effort in universal 19" racks, cabinets, or wall mount brackets with 1U (1.75") standard height. Numbered ports and color-coded T568A and T568B diagram for quick and easy installation.
 --B17COLOR-CODED LABELING for T568A and T568B wiring schemes 180° angle type (horizontal) patch panel 24 cat6. NEW VERSION 110D IDC type terminal blocks (use 110 or Krone type tool).

Related Products


Q1:Can you make my logo on product?
A1:Yes, of course.We can provide OEM service.

Q2:What is the MOQ?
A2:500 Piece.

Q3:Where is the port of shipment?

Q4:Could you provide some samples?
A4:Yes,you can.We supply free sample which in stock.But the express is on buyer's account.

Q5:What is your terms of payment ?
A5:Normally,we can accept 30% Deposit and 70% against copy of B/L,Trade assurance.
