OEM&ODM Single mode 10/100/1000M fiber media convertor rj45 converter
OEM&ODM Single mode 10/100/1000M fiber media convertor rj45 converter
OEM&ODM Single mode 10/100/1000M fiber media convertor rj45 converter
OEM&ODM Single mode 10/100/1000M fiber media convertor rj45 converter

OEM&ODM Single mode 10/100/1000M fiber media convertor rj45 converter

Share on (1600207869596):


Price:$48.00

Quantity:


Product Overview

Description

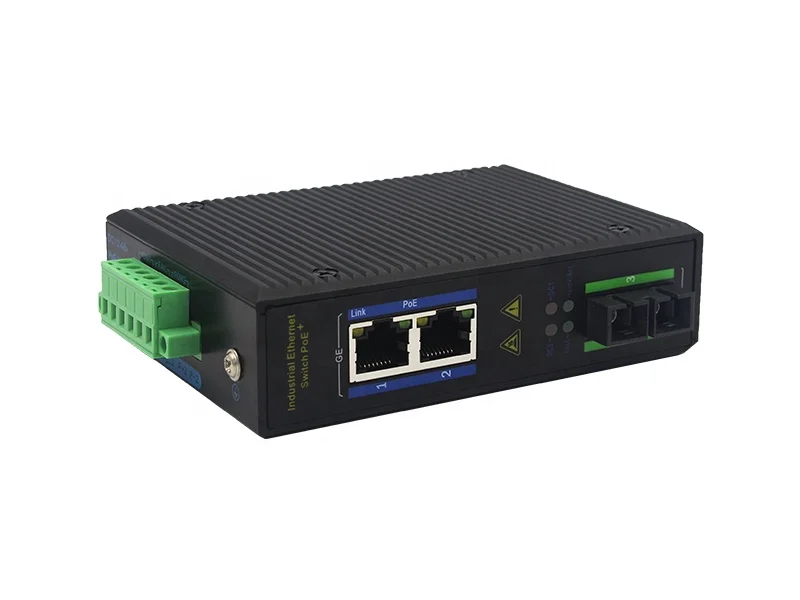

 Product Name 2 Port 10/100/1000M Industrial Poe Switch
 Product Model YHD12GP-SC
 Interface 2x 10/100/1000Base-T ports POE + 1x Gigabit SC slots
 Network Protocols

 IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;


 IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af,  IEEE802.3at

 PoE Specification


 PoE Standard: IEEE802.3af/ IEEE802.3at
 PoE ports: 1-4 ports support PoE
 Each PoE Port: Max. 30 Watts
 Power Pin Assignment:1/2+;3/6-
 Output Voltage: DC48V
 Fiber MediaMulti-mode: 2km; Single-mode: 20/40/60/80KM
 Performance Specification Bandwidth: 10Gbps
 Packet Buffer Memory:1M
 Packet Forwarding Rate:1488000pps/port
 MAC Address Table: 2K
 Forwarding Mode Store-and-Forward
 Protection Lightening protection, IP40 protection
 Power Supply Input Voltage: DC48V /Terminal block
 Other Specifications
 Working Environment Working temperature: -40~80℃ ;  Storage temperature: -45~85℃
 Relative Humidity: 5%~95 %( no condensation)
 Shell IP40 protect grade, metal shell
 Installation DIN-Rail or Wall mounts
 Weight & Size Product Weight: 0.5 KG
 Product size (L×W×H): 127mm× 107m m× 33mm
 Warranty 5-years

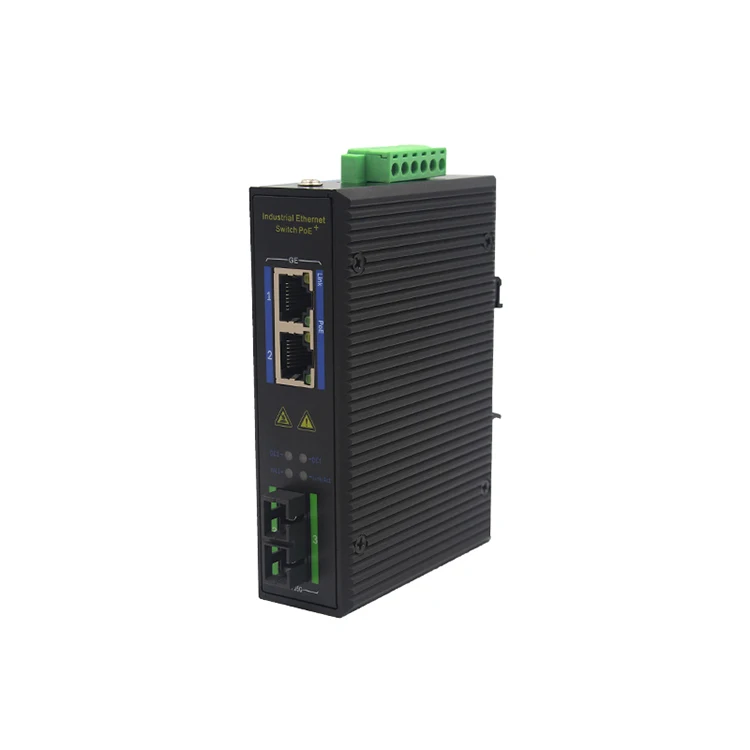

19 (1).jpg


19 (2).jpg

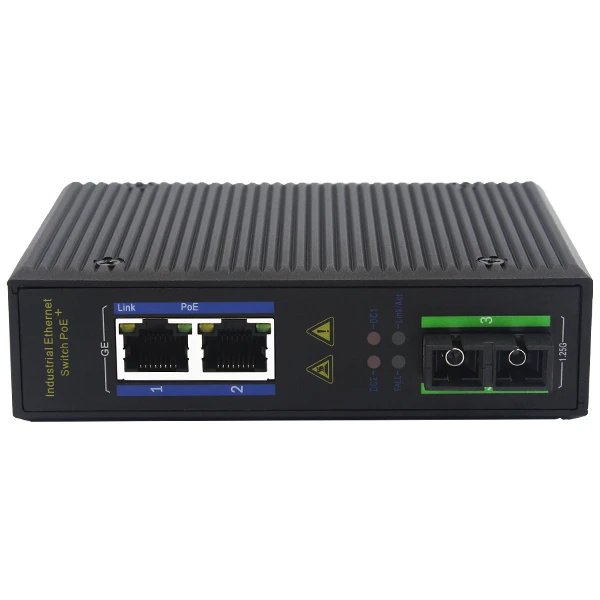

19 (3).jpg
