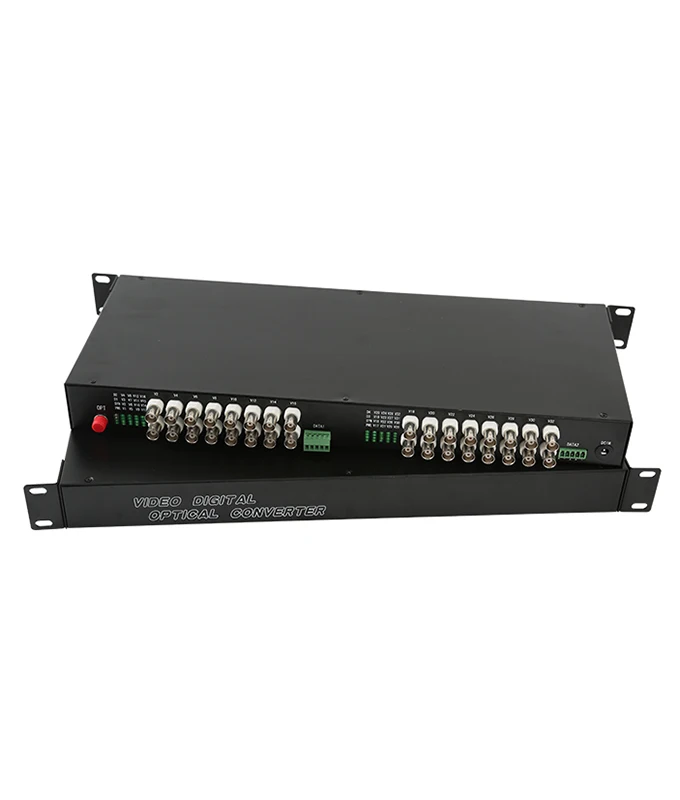

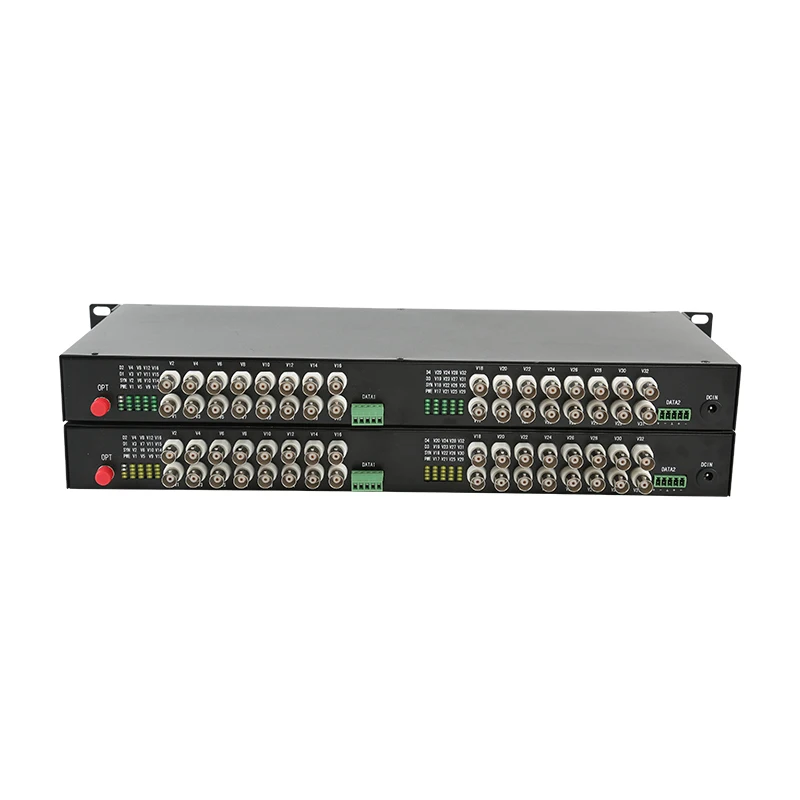

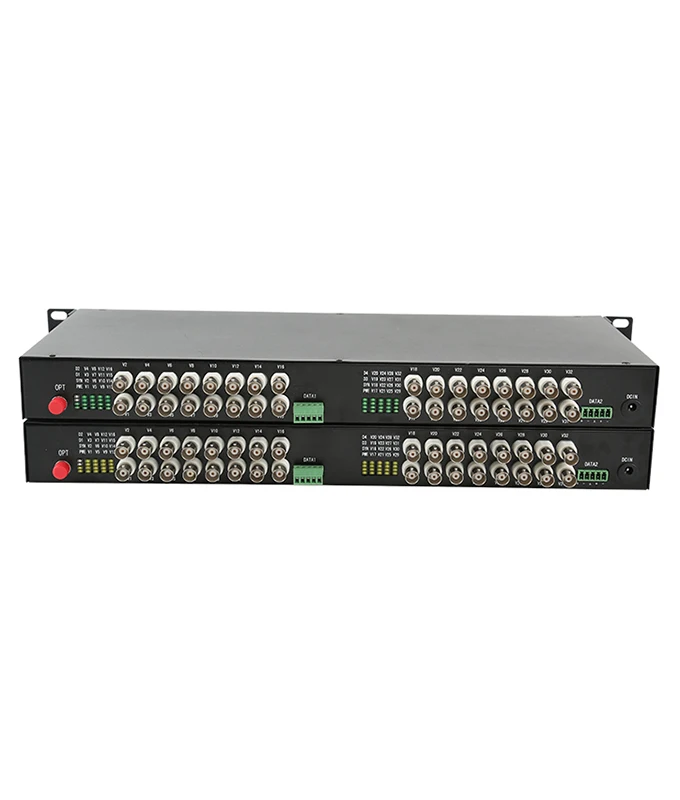

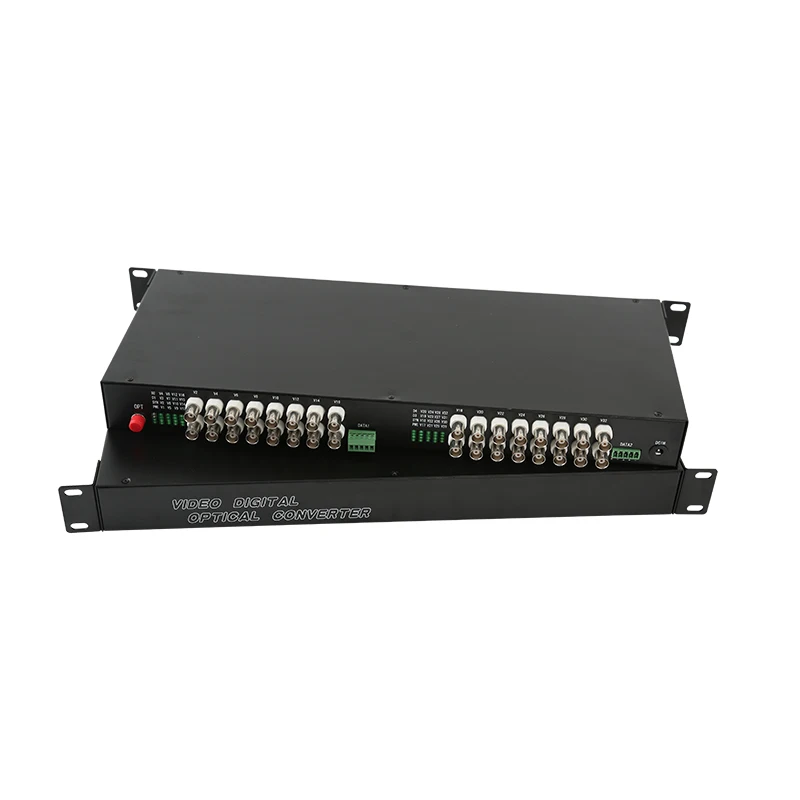

32CH RS485 data AHD CVI TVI to Fiber Optical Media converter 1080P for CCTV 2MP
- Category: >>>
- Supplier: Wanying Kaifeng Electronic Co. Ltd.
Share on (1600207894331):
Product Overview
Description

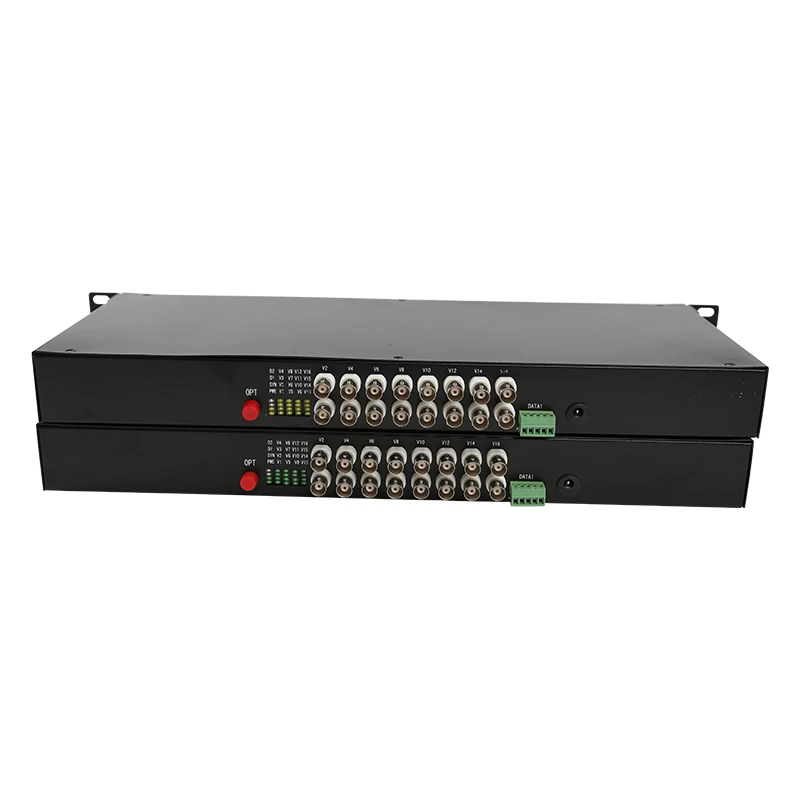

16Channel Forward HD TVI/CVI/AHD/CVBS Video to Fiber Converter Fiber Optic Converter Transmitter Receiver
Product Description
1. Introduction
The coaxial HD optical transceiver is designed for long-distance optical fiber transmission HDCVI AHD TVI HD composite video, and adopts self-developed uncompressed digital photoelectric conversion technology.Use fiber-optic point-to-point transmission of megapixel HD video for video transmission without delay and high reliability. Multiple HD coaxial HD composite video can be transmitted at the same time.Supports 1280×720,1280x960,1920×1080 resolutions, 1280H/25f, 1280H/30f 1280H/50f, 1280H/60f, 1920H/25f,1920H/30f.
.2. Features
1)Compatible with Hikvision (TVI), Dahua (CVI), XM (AHD) 1080P/2MP (1920×1080), 960P/1.3MP (1280×960), 720P/1MP (1280×720)coaxial HD camera
2)Compatible with both digital analog cameras and coaxial HD cameras
3)12V power supply, shared camera power supply does not burn out the machine
4)Internal use of power protection chip to effectively prevent voltage instability and burn out the machine application
5)Transportation monitoring system Security monitoring system
6)Remote multimedia teaching/campus monitoring, video conferencing system Intelligent community system
3. Package Contents
1 x Transmitter
1 x Receiver
2 x Power adaptor AC100~240V DC5V/2A (default US, EU/UK/AU available )
1x Manual
4. Specifications
product name | 16-channel 1080P HD CVI/AHD/TVI fiber converter |
Product number | HD1080P16V-S |
description | CVI/TVI/AHD Coaxial HD Fiber Converter |
Fiber interface | Single mode dual fiber FC/UPC |
Video Input/Output Impedance | 75Ω (Non-equilibrium) |
Video Bandwidth | 45MHz |
Video Voltage | 500MVP-P |
Input Reflection Loss on Transmitting Terminal | >15dB |
Maximum Jitter on Receiving Terminal | <0.2UI |
Rise/Fall Time on Video Receiving Terminal | <0.8ns |
Video interface | BNC |
Transmission distance | 10KM |
Video bandwidth | 45MHZ |
Video resistance | 75Ω |
Support video format | CVI AHD TVI |
Support video pixels | 1080P 960P 720P |
Support Cameras: | CVI :1080P/2MP (1920×1080), 960P/1.3MP (1280×960), 720P/1MP (1280×720) AHD :1080P/2MP (1920×1080), 960P/1.3MP (1280×960), 720P/1MP (1280×720) TVI: 1080P/2MP (1920×1080), 960P/1.3MP (1280×960), 720P/1MP (1280×720) |
Data format | RS485, does not support coaxial encryption |
Data rate | 0~200 Kbps |
Bit error rate | < 10-9 |
Data interface | terminal block |
Power consumption | 2.5w (input: DC12V 2A) |
working environment | Operating temperature: -30 °C ~ +75 °C Storage temperature: -40 °C ~ +85 °C Relative humidity: 0 ~ 95% (no condensation) |
Power Adapter | External power adapter (input AC100-240V 50/60Hz; output 12V 2A) |

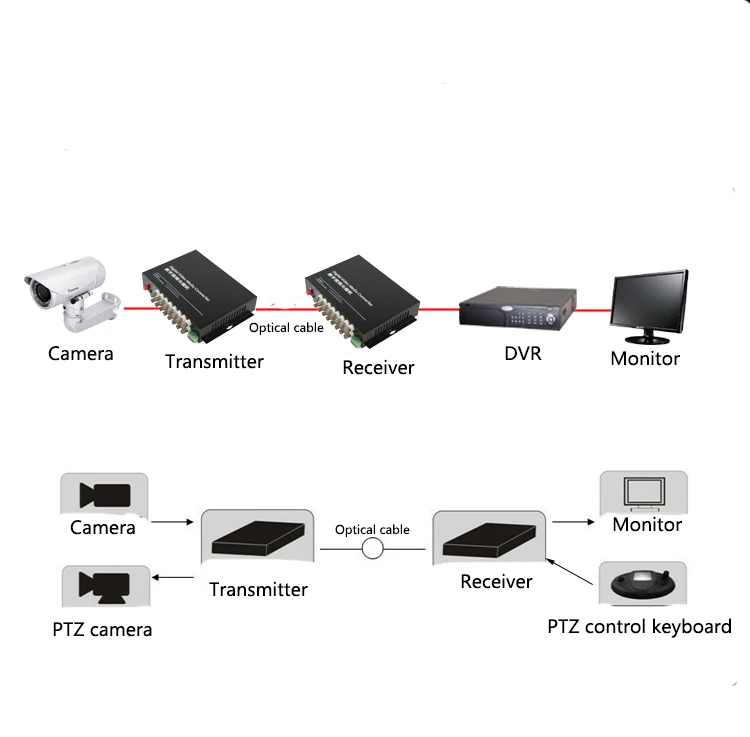

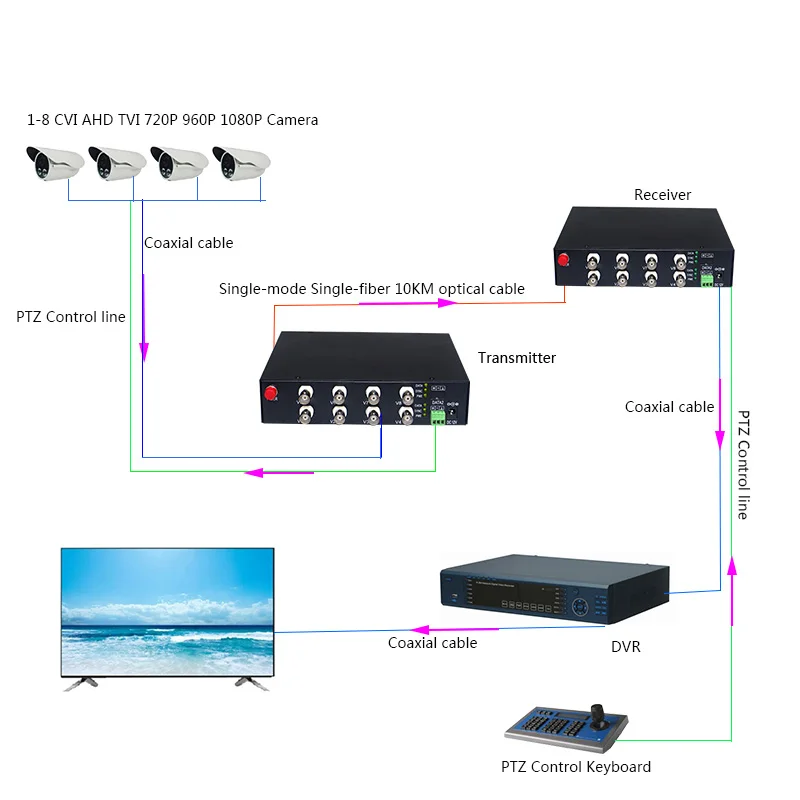

5. Connection Diagram
Packaging & Shipping
Company Information
I KVM Extender up to 150m with multi-function kvm transmitter receiver
FAQ
Q1: What about the lead time?
A1:Sample needs 3-5 days,mass production time needs 1-2 weeks for order quantity more than 100 PC.
Q2:How about the payment terms?
A2:We accept T/T, paypal or cash as payment .
Q3:What are your strengths?
A3:Our biggest advantage is the ODM service.
Q4:If we I am not clear about the how to use the products, what should I do?
A4:Each of our products has a manual, you can read it or you may contact with us.
