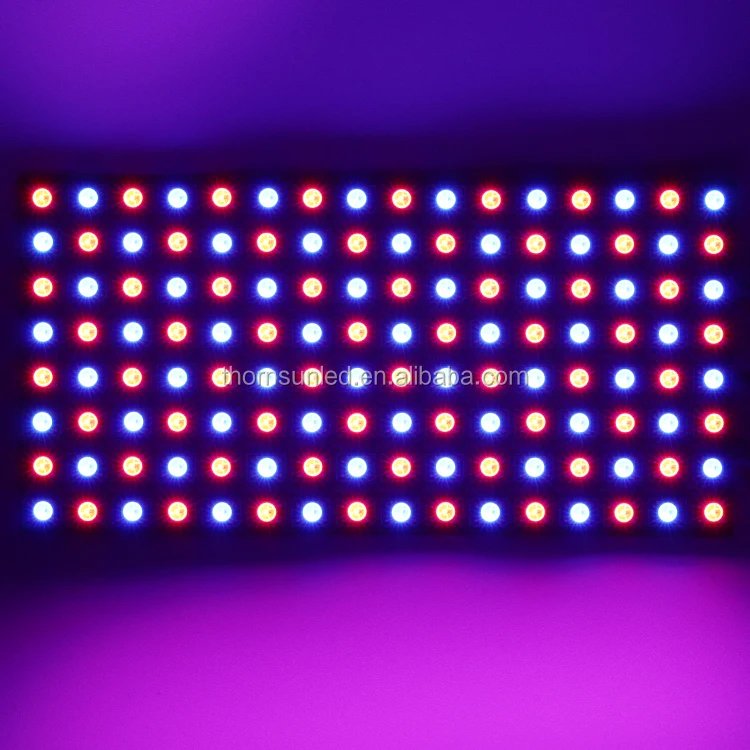

drop ship rgb ws2812b 8*16 128leds programmable led dot matrix ws2812b digital display
Specification
Model number:
TS-SK6812RGB-128
LED TYPE :
SMD5050 RGB chip

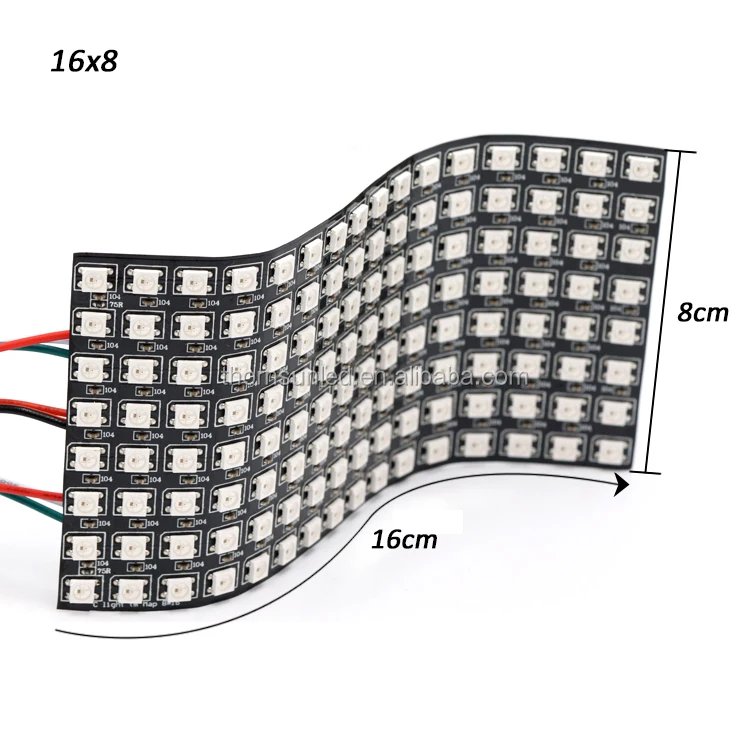

PCB Size:
8*16cm
IC Model:
WS2812B IC built-in 5050 RGBW led chip
View angel:
140 degree
LED QTY:
128LEDS
Power :
30.72w
Voltage:
DC5v
Color:
addressable full color
PCB pitch:
10mm
Package:
2pcs/bag , with anti -static bag

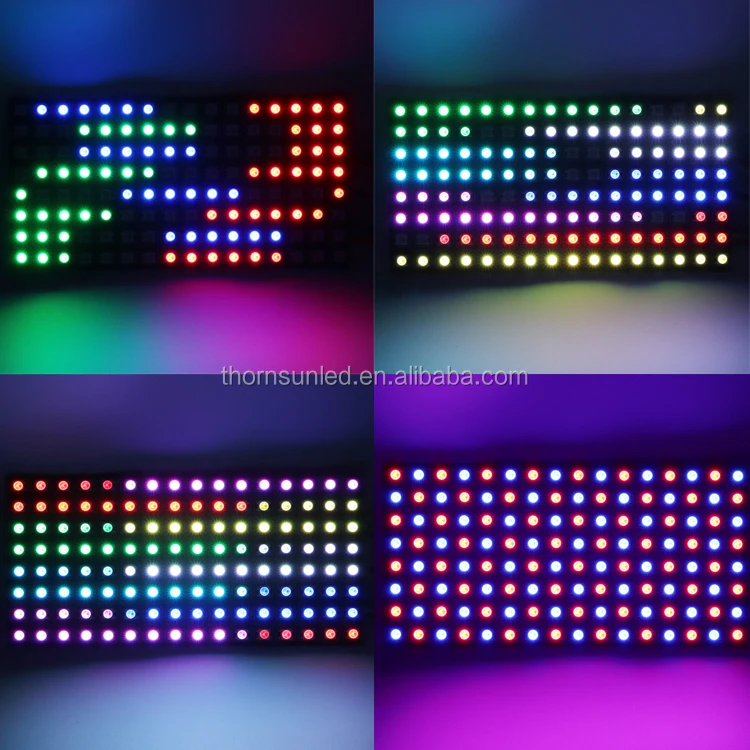

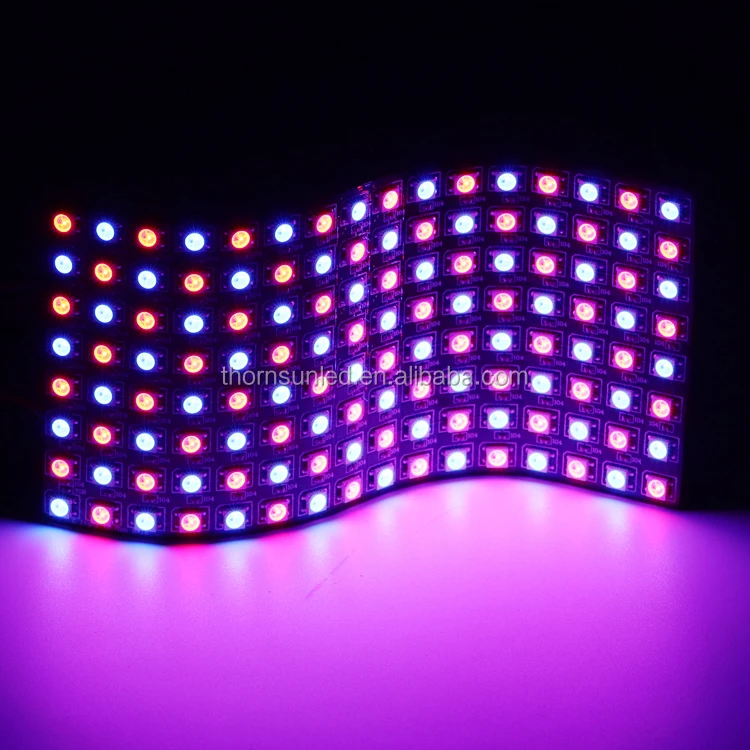

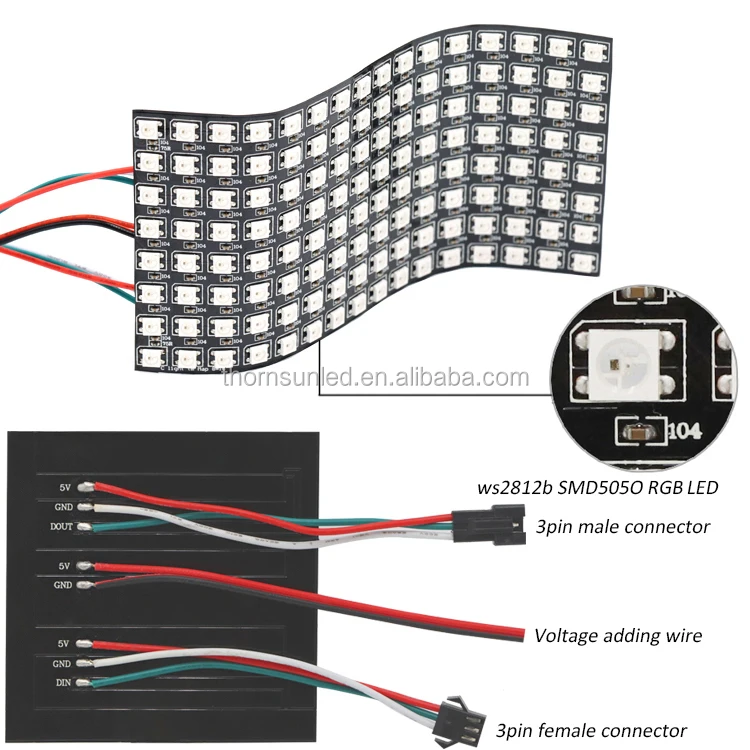

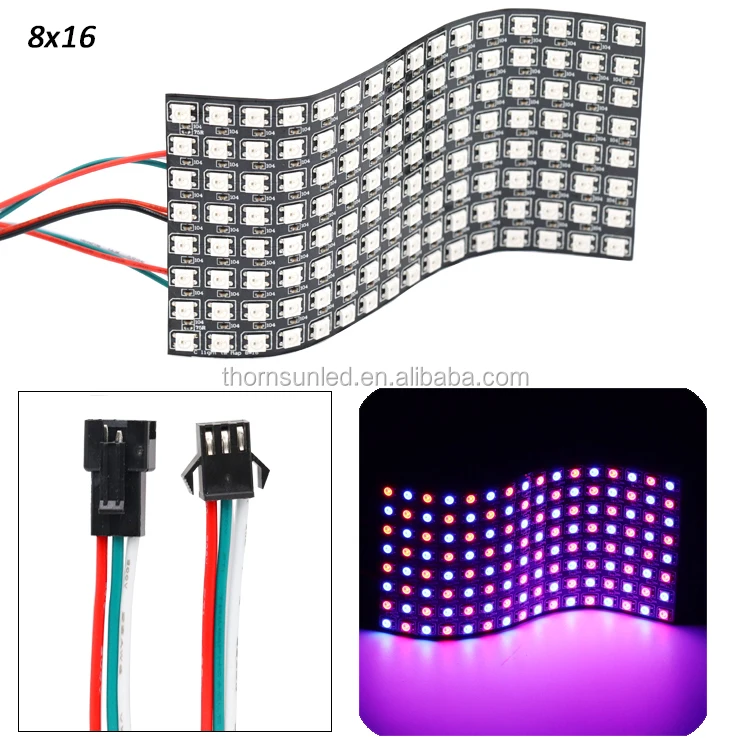

Detail use information: 1)You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface. 2)These panels require a 5V low voltage input for power which needs to be able to source a good amount of current– up to 5A in most uses (15A if all LEDs are set to bright white, which is NOT recommended). 3)Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking fora large panel of addressable LEDs to fit the contours of almost any surface you've come to the right place. 4)Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself. Needless to say, do NOT fold this matrix in half! Connection: SPI signal :LED strip+ LED power supply +led controller DMX control :LED strip + LED power supply+DMX controller +DMX decoder LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online) LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply: T-1000S +Meanwell power:
