Product Overview

Description



Product Description


S2300 Series L2 Gigabit Access Switch is the new version of S2300  Series, it is developed for the Enterprise, Carrier and SMB market. It provides the stable, reliable and secure high-performance switching service for high speed internet.

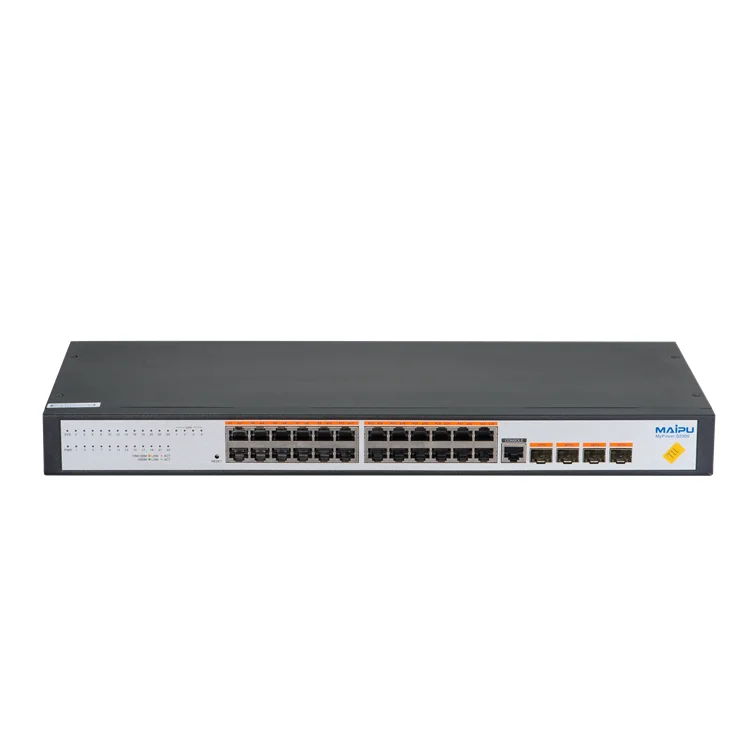

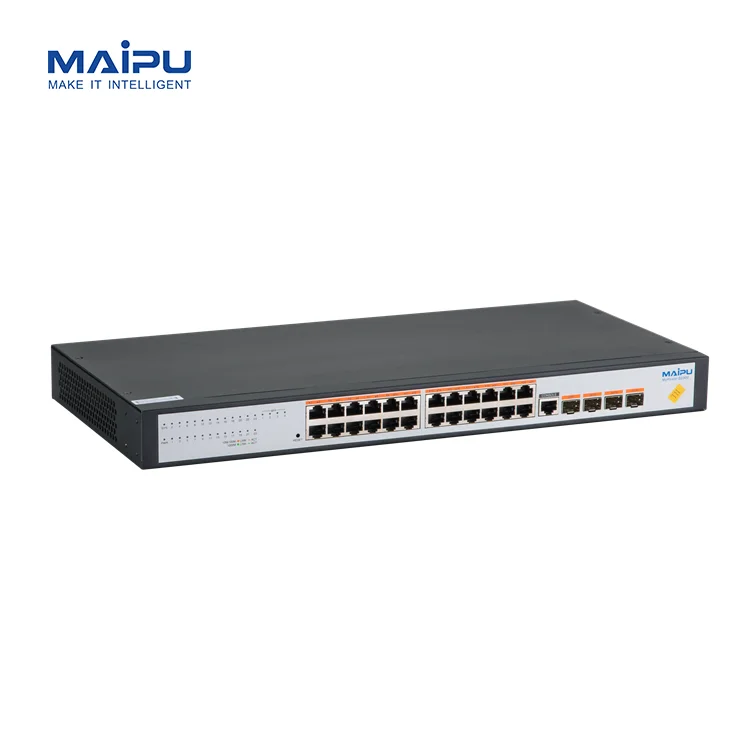

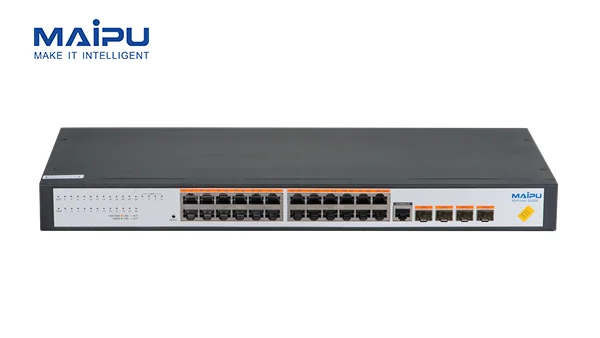

S2300-28TF AC provides 24*10/100/1000M electric ports and 4*100/1000M SFP interfaces, AC Power Supply.














































































































































Product Model



S2300-10TF-AC



S2300- 10TP-AC



S2300-20TP-AC



S2300- 28TF-AC



Product configuration



Structure



Desktop



Desktop



Desktop



Desktop



Access port



8



8



16



24



Uplink Port



2*SFP



2*SFP



4*SFP



4*SFP



DDMI



Yes



Yes



Yes



Yes



Performance parameter



Switching capability



20Gbps



20Gbps



40Gbps



56Gbps



Throughput



14.88Mpps



14.88Mpps



29.8Mpps



41.7Mpps



PoE&PoE+



N/A



140W



260W/380W



N/A



Buffer



4.1Mbit



4.1Mbit



4.1Mbit



8Mbit



Jumbo frames



9KBytes



9KBytes



9KBytes



12KBytes



MAC entries



8K



VLAN



4K



Link Aggregation



8



QinQ



Yes



Queue/Port



8



Multicast groups



512



Standards & Protocols



L2 protocol



VLAN, Private VLAN, Voice VLAN, GVRP, MSTP, BPDU guard, Traffic control, broadcast storm suppression, external loop detection, link aggregation, 1:1 port mirroring, LLDP,


Aging time and add/remove static MAC, mac-address management 1:1 and N:1 VLAN mapping



Multicast



IGMP compatible, IGMP Snooping, Fast leave, multicast VLAN, MLD



QoS



Each port supports 8 queues


Supporting 802.1p/TOS/DSCP priority and mapping Port speed limitation and traffic monitoring


Queue scheduling: SP, WRR, SP+WRR


Rate Limit, Bandwidth control based on port Storm Control



Application protocol



FTP, TFTP, HTTP, SNTP, DNS Client, DHCP Client, DHCP Snooping, Option82



Security mechanism



Supporting 802.1X and Guest VLAN, MAC-based authentication Port isolation, Error-disable, Port Security, IP/MAC/Port/VLAN binding manually


MAC address binding and MAC quantity limitation


ARP packet speed limitation, ARP Guard, ARP Inspection, Standard ACL, extended ACL


IP Source Guard



Management



Shell, Web, Telnet, SSH, SNMP, ROM, AAA, Radius, Logging, Syslog, Ping, Trace Route, Link Detection(VCT)



IEEE standards



IEEE 802.3u (100BASE-T)       IEEE 802.3ab (1000BASE-T)


IEEE 802.3z (1000BASE-X)      IEEE 802.1ad (QinQ)


IEEE 802.3ad (LACP)              IEEE 802.3x (Flow Control)









Order Information
































Product Model



Description



S2300 Series



S2300-10TF-AC



8*10/100/1000M electric ports and 2*1000M SFP interfaces, AC Power Supply.



S2300-10TP-AC



8*10/100/1000M electric ports and 2*1000M SFP interfaces, PoE enable, AC Power Supply.



S2300-20TP-AC



16*10/100/1000M electric ports and 4*1000M SFP interfaces, PoE enable, AC Power Supply.



S2300-28TF-AC



24*10/100/1000M electric ports and 4*1000M SFP interfaces, AC Power Supply.






Company Introduction


 second company profile.jpg



Founded in 1993, Maipu Communication Technology Co., Ltd., has already formed five product lines: Router, Switch, Wireless, Unified Communication and SDN applications. Nowadays, Maipu products and solutions have been widely used in diversified sectors, including bank, telecom, ISP, government and other enterprise customers. Till now, Maipu products and solutions have been deployed in nearly 60 countries, such as India, Pakistan, Switzerland, Poland, Czech, Austria, Mexico, Russia, Singapore, Malaysia, Thailand, Indonesia and Niger.
