Stained Glass Machine Glass Painting Drawing UV Printing Machine
- Category: >>>
- Supplier: Shandong,Truetec,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

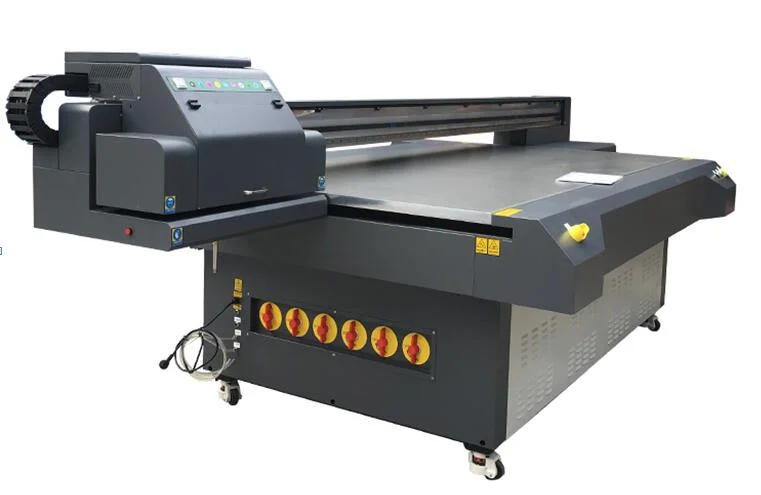

Stained Glass Machine Glass Painting Drawing UV Printing Machine
Product Description
Specification
Feature:
1. Smart function of printing white base and color images together.
2. Best Quality control boards for stability & performance.
3. Cab print with 3D Embossing effects with outdoor life more than 3 years.
4. CMYK white and varnish optional for glossy surface and high quality printing.
5. 3.5 Picoliter head nozzle provides a high-resolution print.
6. Double LED UV lamps with Water Cooling.
7. Vacuum Bed to hold the flexible media like Leather, foam board etc.
8. Applications in Signage Industry, PVC door panels, Wooden doors & Glass sheets.
9. Can print on Leather, Plastic, Wood, Glass, Metal, Ceramic Tiles, PVC, Acrylic etc.
1. Smart function of printing white base and color images together.
2. Best Quality control boards for stability & performance.
3. Cab print with 3D Embossing effects with outdoor life more than 3 years.
4. CMYK white and varnish optional for glossy surface and high quality printing.
5. 3.5 Picoliter head nozzle provides a high-resolution print.
6. Double LED UV lamps with Water Cooling.
7. Vacuum Bed to hold the flexible media like Leather, foam board etc.
8. Applications in Signage Industry, PVC door panels, Wooden doors & Glass sheets.
9. Can print on Leather, Plastic, Wood, Glass, Metal, Ceramic Tiles, PVC, Acrylic etc.
Printhead Technology | Drop-on demand piezo electric |
Printhead control | Printhead voltage is software adjustable |
Printhead Type | DX7/DX5 |
Printhead Number | 2 |
Color | CMYK+W |
Ink Characteristics | UV Curing Ink |
Ink reservoirs | Refillable on the fly while printing/1000ml per color |
LED UV Lamp | more than 20000-hours life |
Color Control | ICC based color,curves and density adjustment |
Color and Speed | CMYKW optional 3-12sqm/h |
Cleaning System | Automatic Cleaning System, Automatic Dry-preventing System |
Guide Rail | Taiwan HIWIN |
Working Table | Vacuum Sucking |
Printing Size | 2000*3000mm |
Print Interface | USB2.0 |
Media Thickness | 0-100mm |
Print Resolution | 360dpi, 720dpi,1440dpi,2160dpi |
Life of printed image | 3 years(outdoor),10years(indoor) |
File Format | TIFF,JPEG,Postscript,EPS,PDF etc. |
RIP Software | UltraPrint |
Power Supply | 220V 50/60Hz(10%) |
Power | 3100W |
Operation Environment | Temperature 20 to 30℃,Humidity 40% to 60% |
Machine Dimension | 3.7*3.35*1.3m |
Packing Dimension | 3.65*0.7*0.78m 3.9*2.25*1.18 m |
Weight | 1000kg |
Machine Details
Company Profile
We work with everything from raw material to final machine.We select every part carefully, strive to quality during production and test every machine before delivery. We will provide the best machine for you.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Exhibition
FAQ
Our Service
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
FAQ
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport.
4.If our price is higher than another company or factories ?
A:Please check, what is different with the machine,service and guarantee,especially the machine inner electric parts, sometimes,
if machine is breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for
the machines inside.
5. Question: How about all the production line?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport.
4.If our price is higher than another company or factories ?
A:Please check, what is different with the machine,service and guarantee,especially the machine inner electric parts, sometimes,
if machine is breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for
the machines inside.

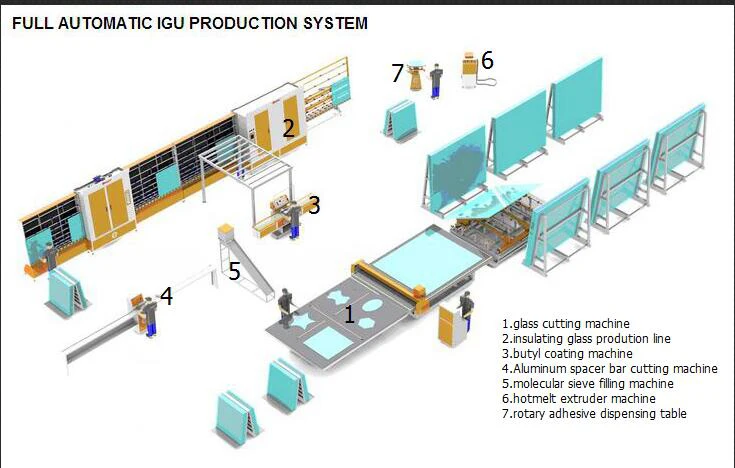

5. Question: How about all the production line?
Answer: like the picture said
