Brake Pad Information

(To view larger image of pad
click on Pad Part No)

CP3215D50

- Pad Area = 57.4cm²
- Pad Depth = 50.3mm
- Thickness = 16.8mm

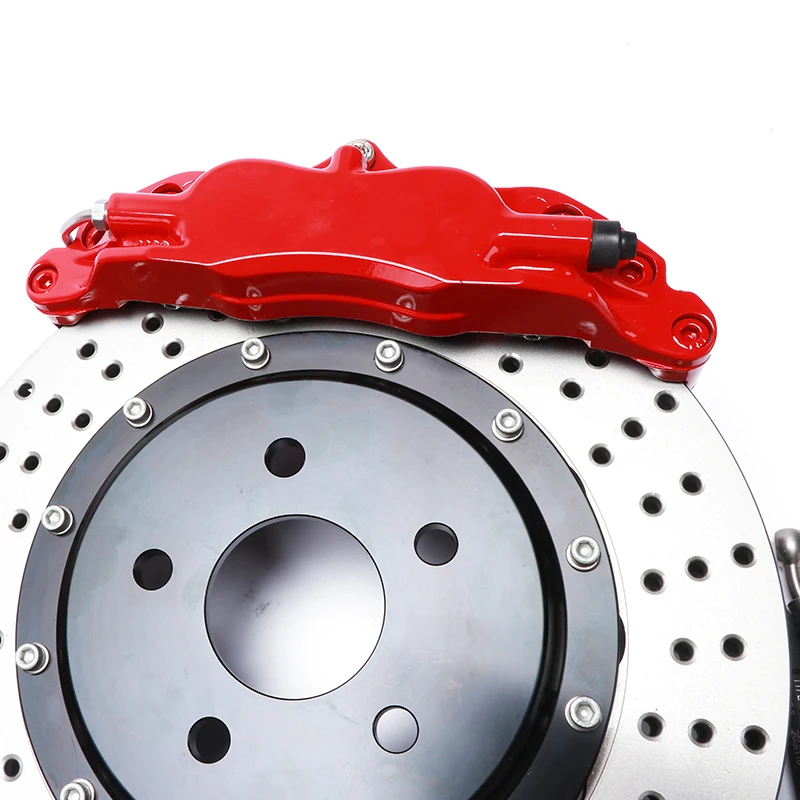

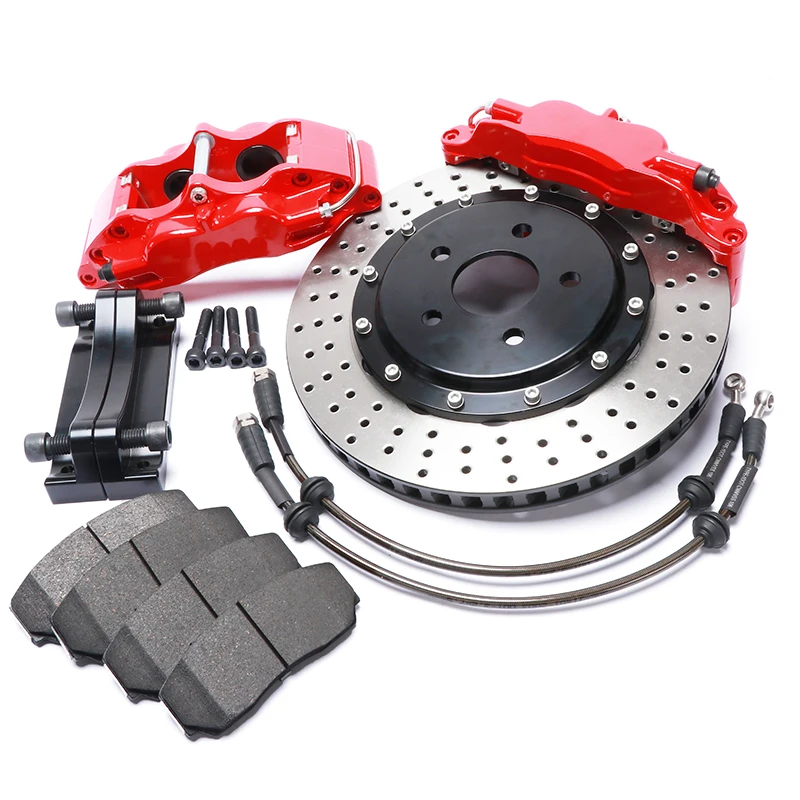

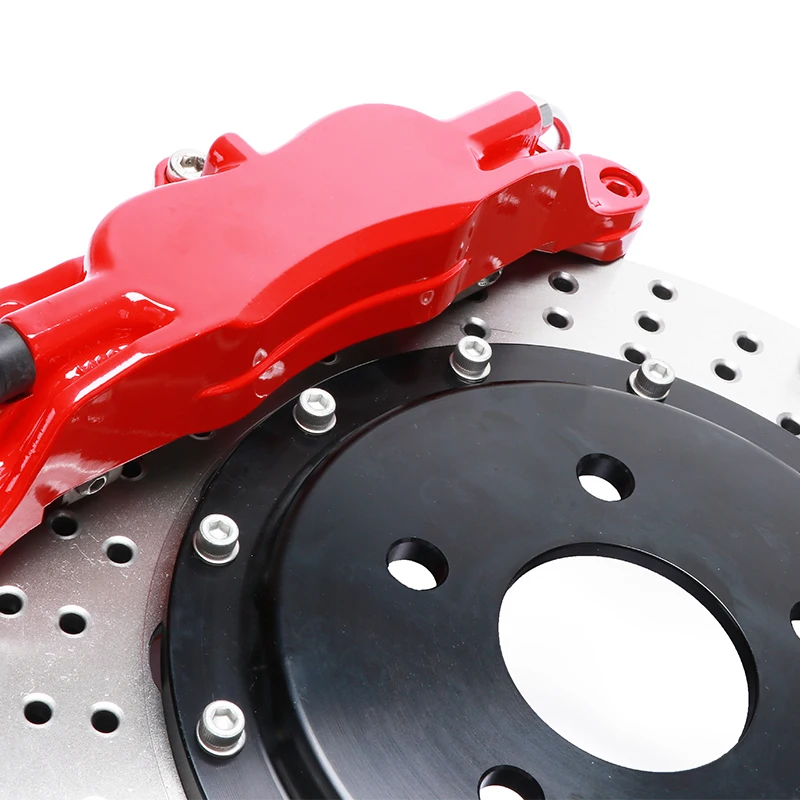

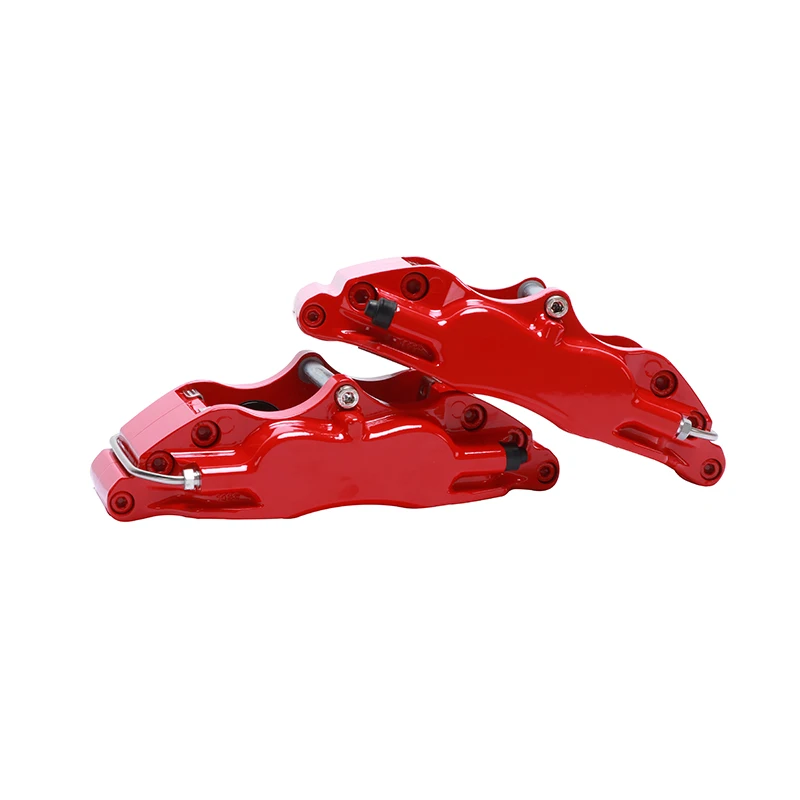

CALIPER TECHNICAL SPECIFICATIONS

Piston Sizes - mm

- Ø38.1 x 2
- Ø41.3 x 2

Piston Area - cm³

49.56

Disc Diameter - mm

- Max = Ø330.0 / - Min = Ø304.0

Disc Thickness - mm

- CP5200-802 to -805 = 32.0
- CP5200-806 to -809 = 28.0
- CP5200-810 to -813 = 32.0

Weight (no pads) - Kg

2.4

Hydraulic Threads

M10x1.0

Mounting Type

Radial

Mounting Centres - mm

152.0

Mounting Offset - mm

- CP5200-802 to -805 = 50.93
- CP5200-806 to -809 = 46.86
- CP5200-810 to -813 = 50.93

Mounting Hole Ø - mm

10.1

‘PL’ Dimension - mm

60.36

Bleed Screw Tightening Torque

17Nm

CALIPER SPARES

Pistons

CP5200-802 to -805 & -810 to -813
- Ø38.1 = CP2409-124
- Ø41.3 = CP2290-50
CP5200-806 to -809
- Ø38.1 = CP2889-105
- Ø41.3 = CP3357-111
