COLO Industrial High Efficiency Powder Coating Paint Booth

COLO Powder Coating Booths are designed with optimal airflow for powder containment and application efficiency, which provide a superior environment for powder coating aluminum profiles, metal furniture products.


All our manual or automatic powder coating booths are configured with powder recovery system ensures high powder utilization that saves your cost.

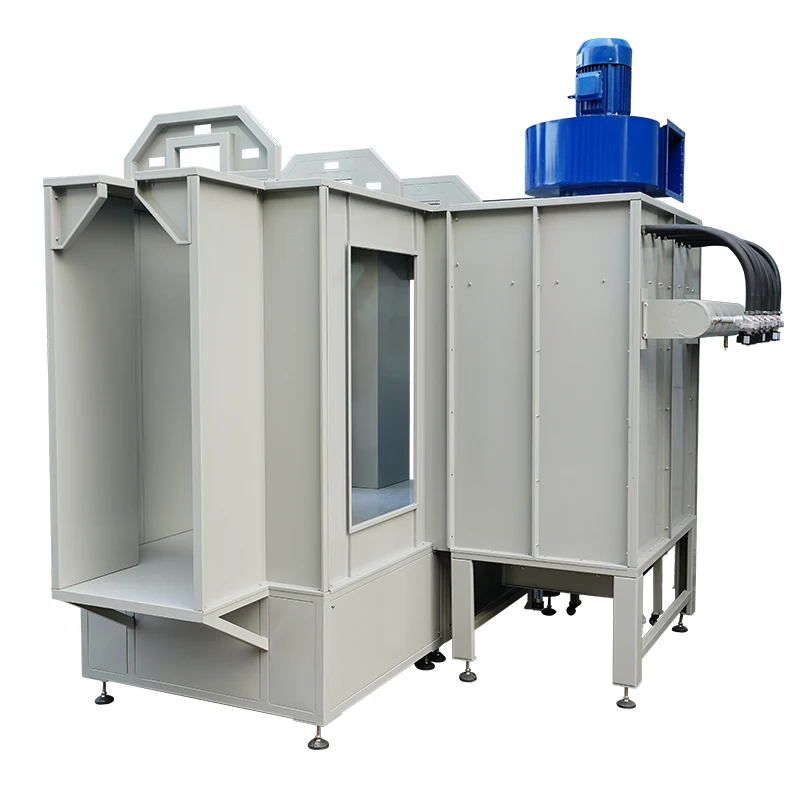

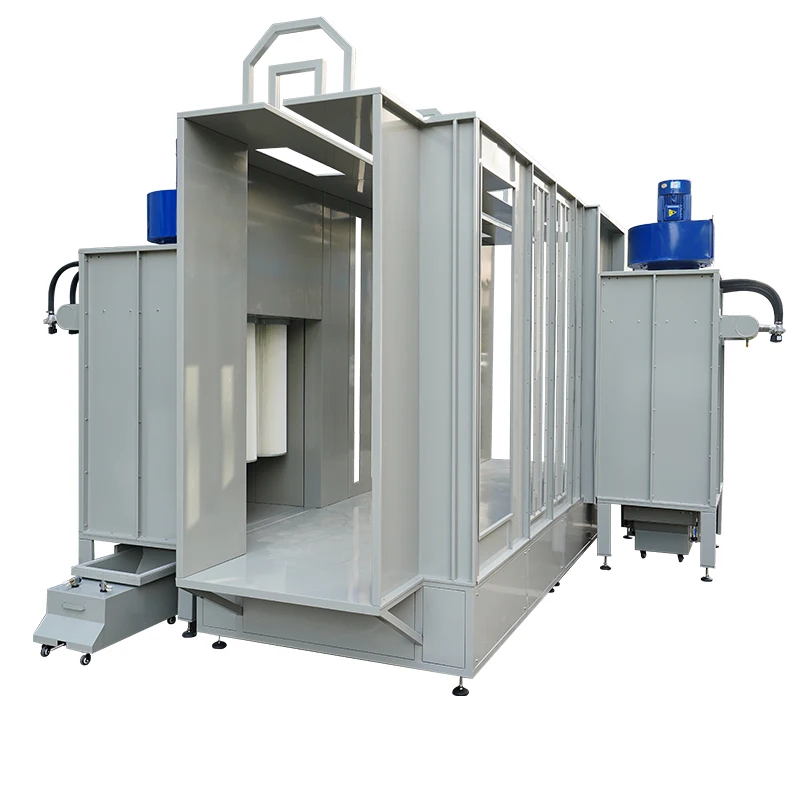

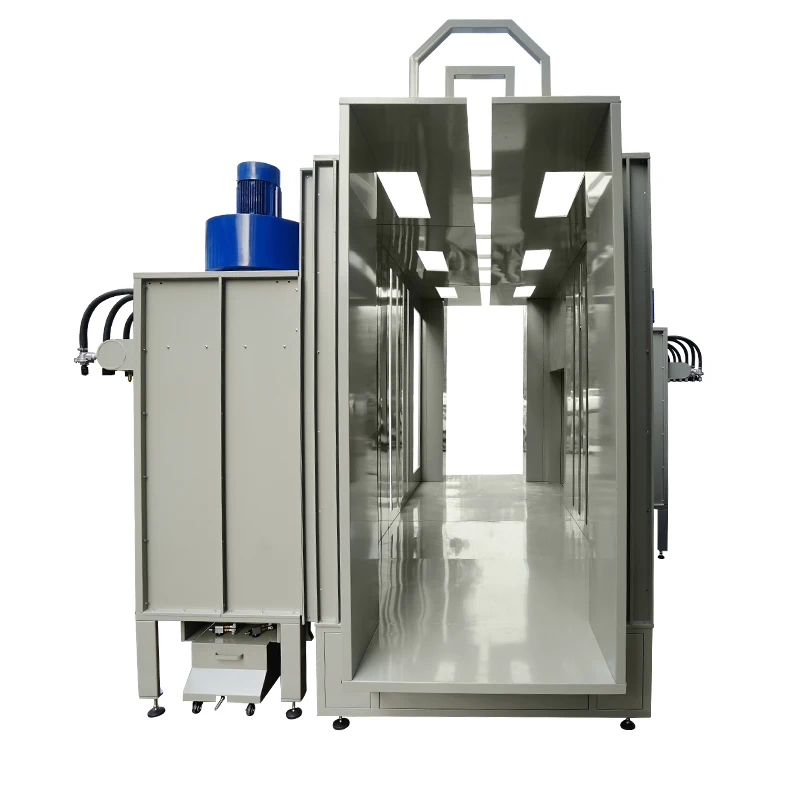

COLO-0825 Automatic Powder Coating Booth for Aluminum Profiles, Furniture




COLO Automatic powder coating Booth Features
1. Parts are pass thru the spray booth,hang on the conveyor system
2. With 2 stations for automatic powder coating reciprocator, as well as 2 openning stations for staff for manual coating.
3. Widely applicated in automatic powder coating line with single color.
4, Increase powder coating speed and maximize powder recovery rate, ensures clean working environment.

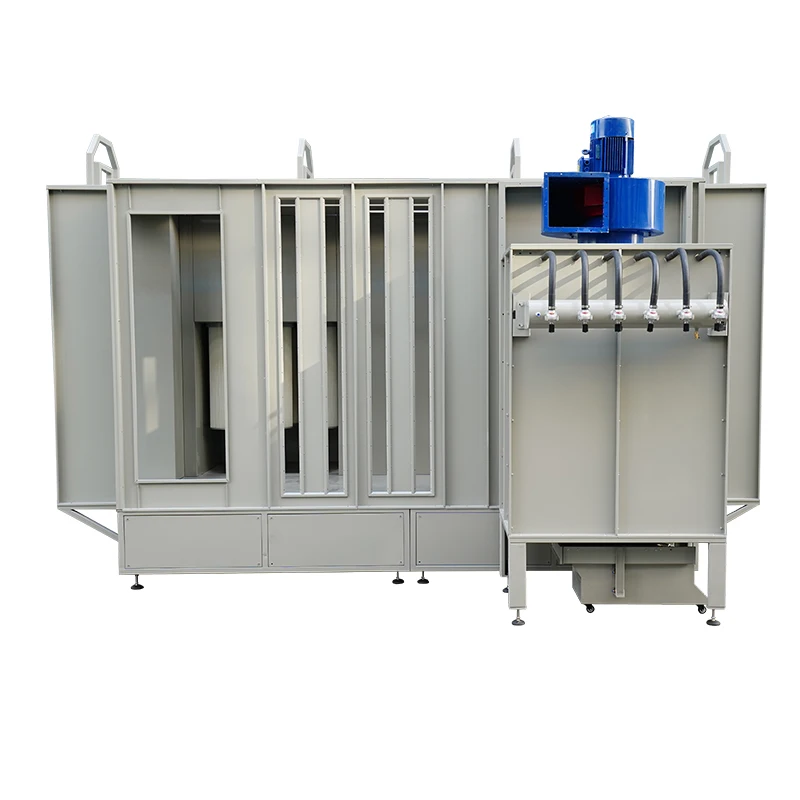

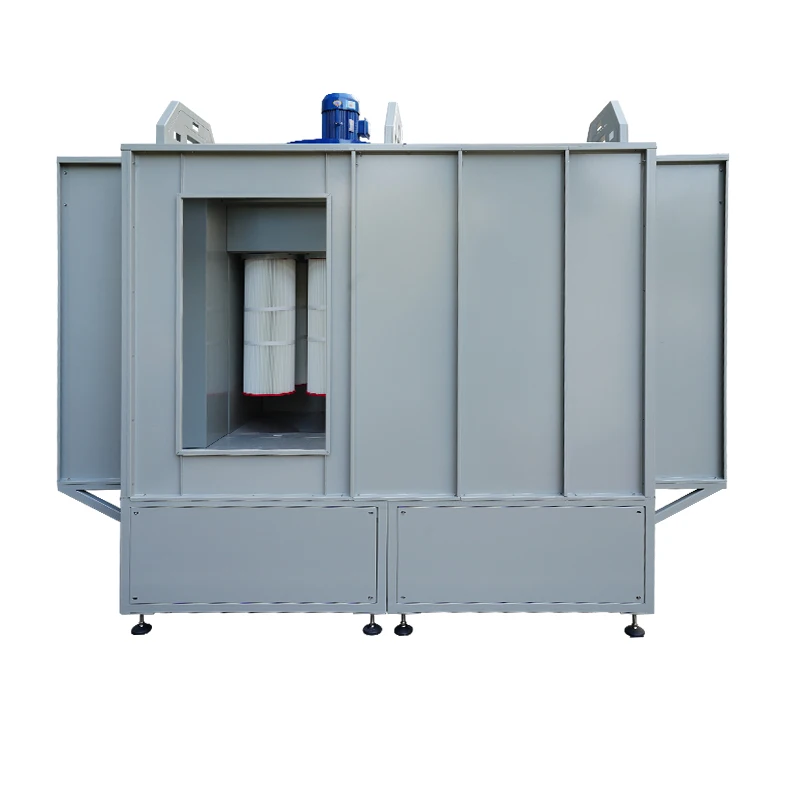

COLO-3212 Manual Powder Coating Booth for Aluminum Profiles, Furniture




Manual Powder Coating Booth Features
1. Parts are pass thru the spray booth,hang on the conveyor system
2. With 2 openning stations for staff for manual coating jobs, allows spraying workparts from two sides.
3. Oversprayed powders will be attached on filters which can be cleaned for recycling.




Detailed Pictures

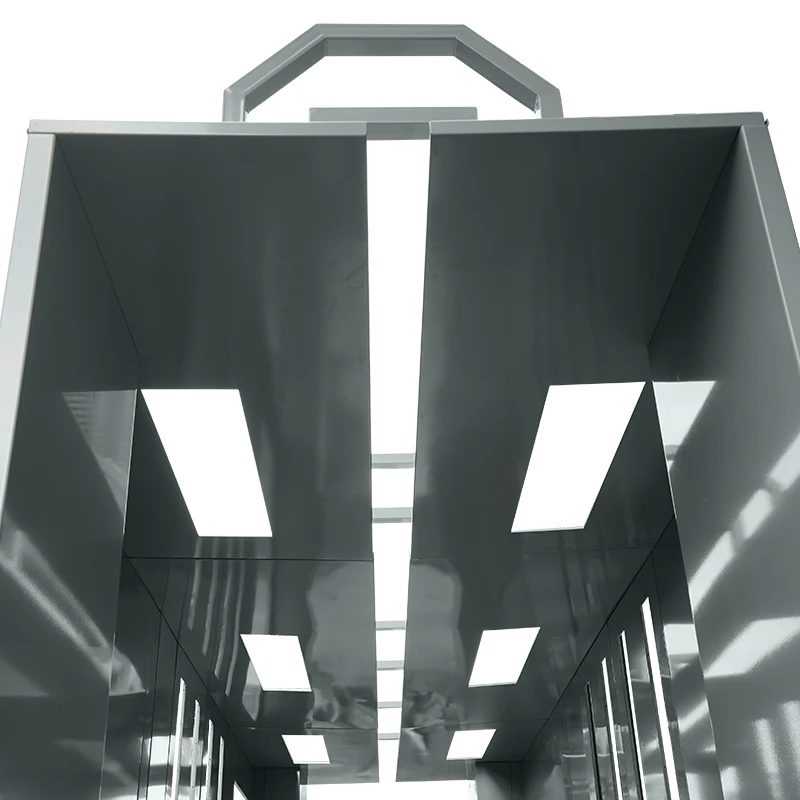

The main structure is dominated by dusting the powder room, filters,recovery systems, cleaning systems, lighting, fans, control component systems, compressed air piping and other components



Powder Collector Modules
There are Cartridge modules attached directly to the powder booth at both sides, which are compact and requires less factory space..

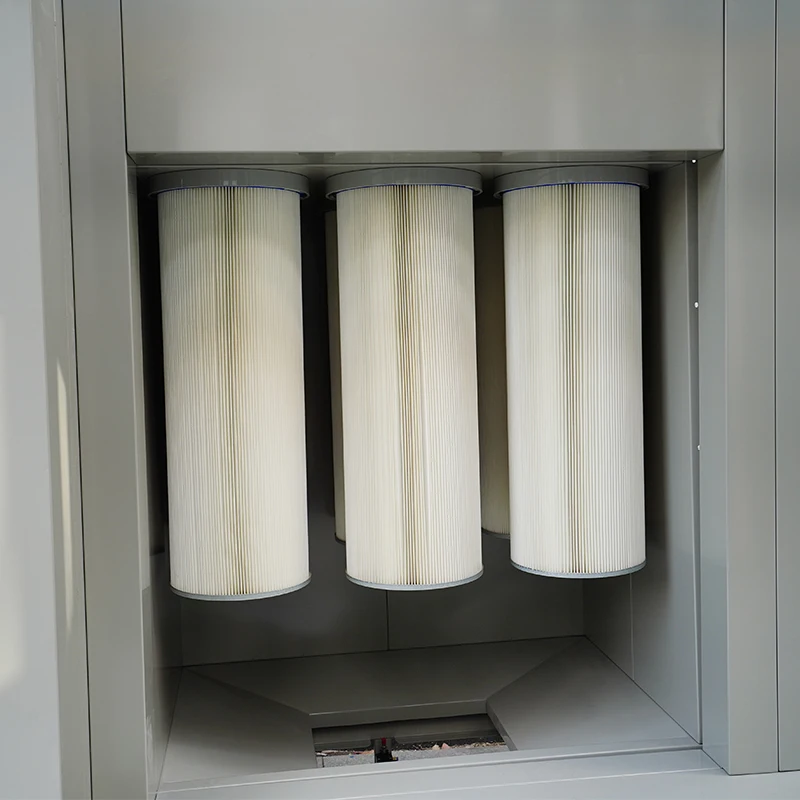

Catridge Filters
Our cartridge filters are made of high precision filters, which ensures 100% separation of powders from air. Only dust free air exhausted.
These filters has longer life that supportes for your big daily production.


PLC Control
Filter cleaning, fan working, all controlled by PLC, giving you easy and reliable operation process.
Fan
A powerful centrifugal fan sucks the air from the cabin, dragging the remaining powder paint from the application
towards primary filters.


Powder Collect Hopper
Filter Cleaning are through pulse-jet controlled by soleniod valves. This pulse-jet cleaing extent filter's life.
Powder Collector Hopper
The filtered powder is then discharged into a hopper trolley beneath the unit which can be manually rolled away for fully emptying, or connected with powder feed center for automatic recycling.


Technical Data


Model
COLO-S-0825
Booth Type
Automatic Type
Inner size (mm)
800 width x 2000 height x 4000 depth
Overall Dimension (mm)
1200 width x 2580 height x5000 depth
Weight
1100kg
Power Supply
5.5kw
Filters
12pcs (polyester)
Filter hang type
easy for change
Filter cleaning system
Pneumatic
12 month
12 month


Model
COLO-S-3212
Booth Type
Manual Type
Operating Dimensions
Width620 * Depth2920 * Heght1500mm
Overall dimensions
Width1200 * Depth3000 * Heght2033mm
Power Supply
4kw
Filters
4pcs (polyester)
Filter hang type
easy for change
Filter cleaning system
Pneumatic
12 month
12 month


Related Products




Application

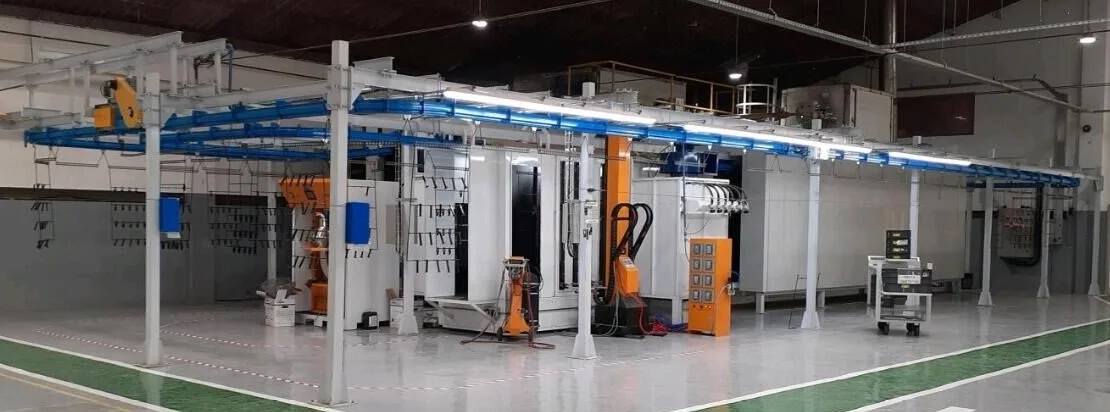

Automatic Powder Coating Booth Applications - Customer Case in Latvia
Perfectly synchronized with conveyor, reciprocator, automatic powder coating guns, centralized powder feed center. Ideal for automatic application of powder coating aluminum profiles, furniture products, metal doors, fence, iron gates, automotive parts, etc.

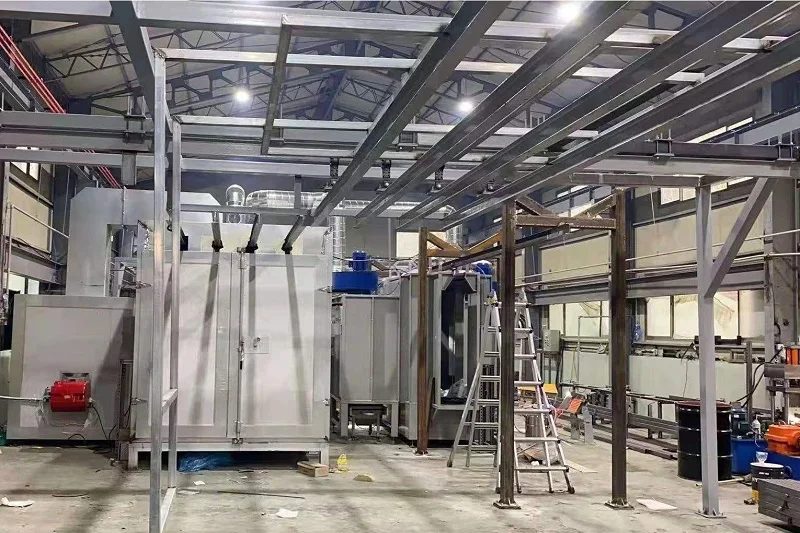

Mamnual Powder Coating Booth Applications - Customer Case in South Korea
Perfectly synchronized with conveyor system, rmanual powder coating guns, powder coating oven, suitable. Ideal for less budget, not large production, big or irregular parts, limited factory space




We have professional technical team design powder coating booths and systems as customer required!


Our Factory


We are a typical Chinese supplier and specialized in the research, development and production of powder coating equipments, such as powder coating gun, reciprocator, powder coating booth, powder coating oven, semi-auto powder coating line and full auto powder caoting line and so on. We also supply various kinds of powder caoting spare parts to our customer. We insist in offering superior quality products and efficient service.
If you are intereted in our products,please feel free to contact us.





We commited to your satisfactory and safety, if you are interested in our products,please feel free to contact us,thank you!



Packing & Delivery


For small parts or powder coating machines, they will be packed with wooden case for good safety.

For powder coating booths and ovens, we will pack with foams and films and ship into a full container.
