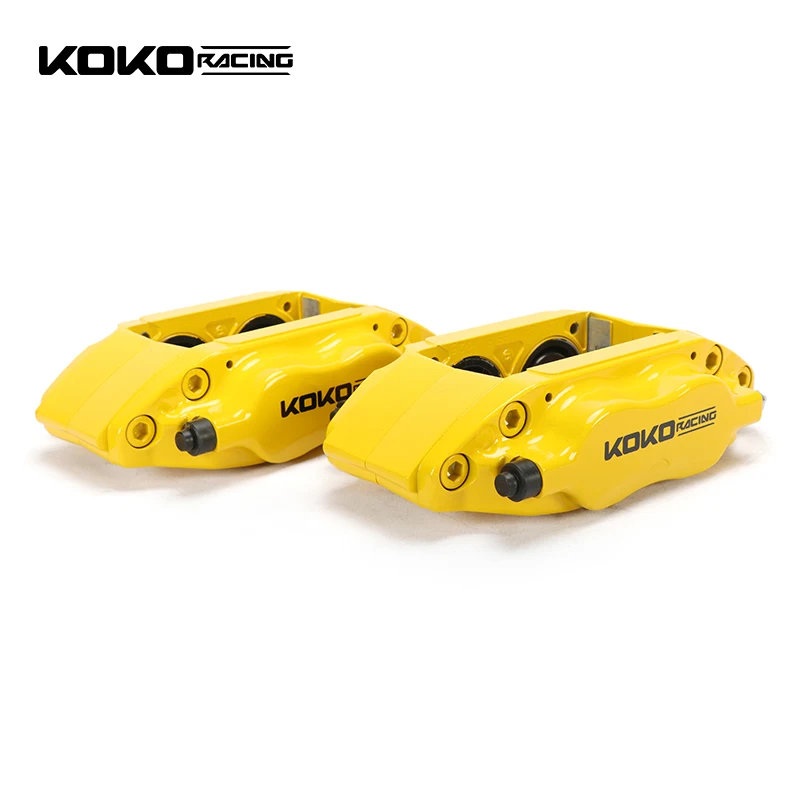

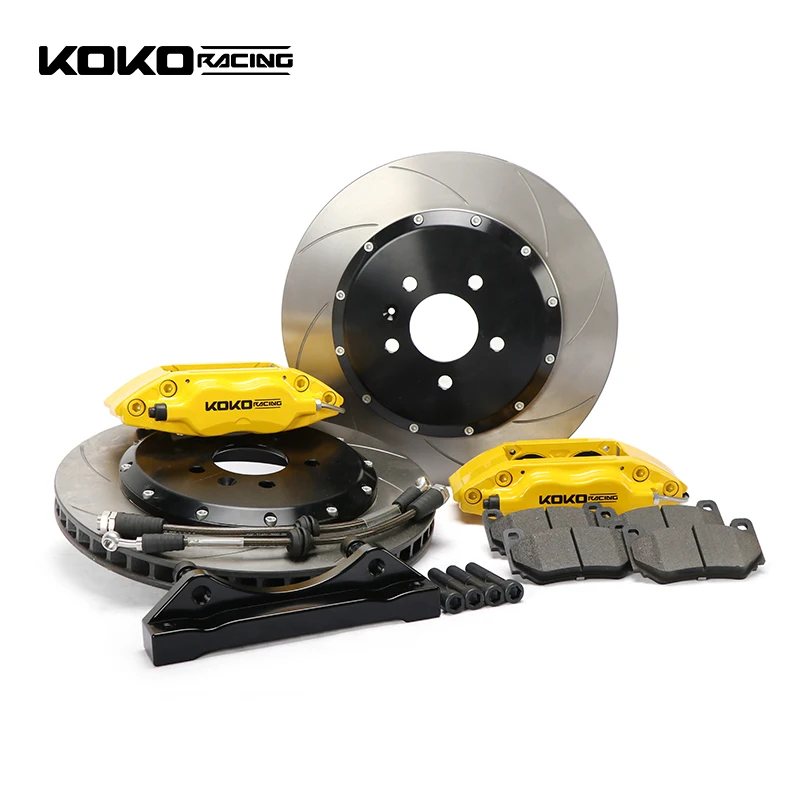

KOKO racing disc brake caliper 4 piston 7600 best kits for front 15 16inch rims for Suzuki Swift
KOKO racing disc brake caliper 4 piston 7600 best kits for front 15-16inch rims for Suzuki Swift
KOKO racing disc brake caliper 4 piston 7600 best kits for front 15-16inch rims for Suzuki Swift
KOKO racing disc brake caliper 4 piston 7600 best kits for front 15-16inch rims for Suzuki Swift
KOKO racing disc brake caliper 4 piston 7600 best kits for front 15-16inch rims for Suzuki Swift
KOKO racing disc brake caliper 4 piston 7600 best kits for front 15-16inch rims for Suzuki Swift
KOKO racing disc brake caliper 4 piston 7600 best kits for front 15-16inch rims for Suzuki Swift

KOKO racing disc brake caliper 4 piston 7600 best kits for front 15 16inch rims for Suzuki Swift

Share on (1600208742944):


Price:$462.00 - $580.00

Quantity:


Product Overview

Description

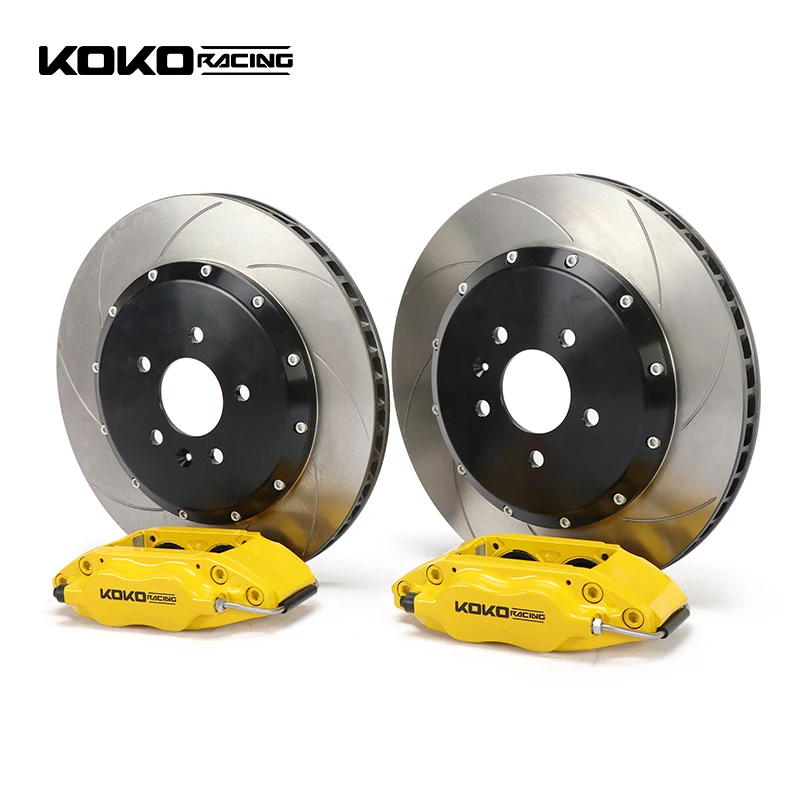

KOKO racing disc brake caliper 4 piston 7600 best kits for front 15-16inch rims for Suzuki Swift



Product Description

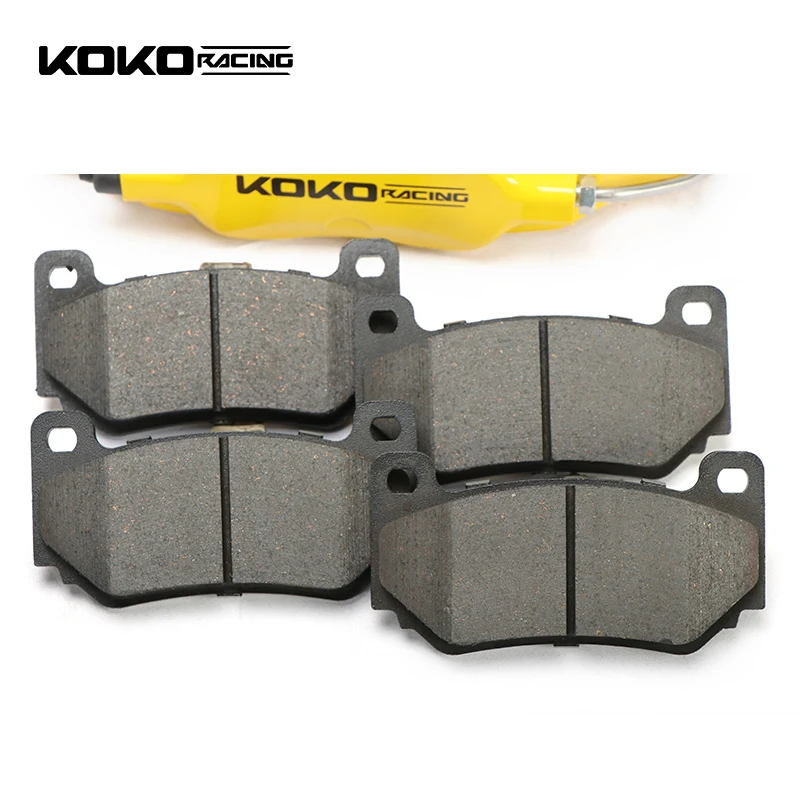

Brake Pad Information


(To view larger image of pad
click on Pad Part No)



CP3215D50

- Pad Area = 57.4cm²
- Pad Depth = 50.3mm
- Thickness = 16.8mm

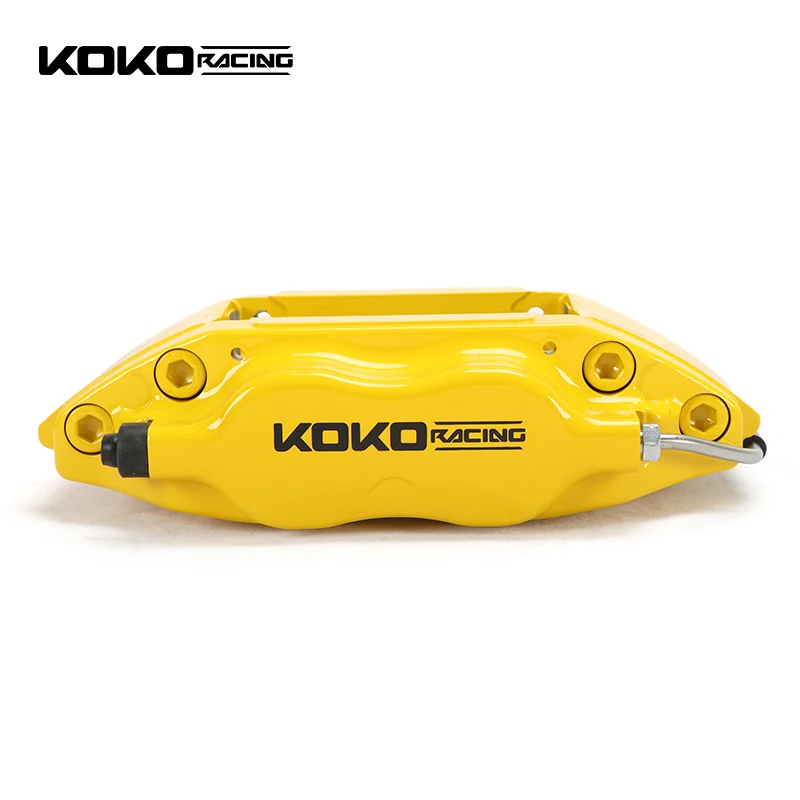

CALIPER TECHNICAL SPECIFICATIONS







Piston Sizes - mm



- Ø38.1 x 2
- Ø41.3 x 2



Piston Area - cm³



49.56



Disc Diameter - mm



- Max = Ø330.0 / - Min = Ø304.0



Disc Thickness - mm



- CP7600-802 to -805 = 32.0
- CP7600-806 to -809 = 28.0
- CP7600-810 to -813 = 32.0



Weight (no pads) - Kg



2.4



Hydraulic Threads



M10x1.0



Mounting Type



Radial



Mounting Centres - mm



152.0



Mounting Offset - mm



- CP7600-802 to -805 = 50.93
- CP7600-806 to -809 = 46.86
- CP7600-810 to -813 = 50.93



Mounting Hole Ø - mm



10.1



‘PL’ Dimension - mm



60.36



Bleed Screw Tightening Torque



17Nm



CALIPER SPARES







Pistons



CP5200-802 to -805 & -810 to -813
- Ø38.1 = CP2409-124
- Ø41.3 = CP2290-50
CP5200-806 to -809
- Ø38.1 = CP2889-105
- Ø41.3 = CP3357-111






CP7600 Family - 152mm Mounting Centres - 16.8mm thick pad


Applications:
- Performance Road Front.
- Factory Brake Kits.


Features:
- Radial Mount, 152mm centres.
- Suits Ø330 max / Ø304 min x 32 or 28mm thick discs.
- Cast two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Piston dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Steel wear plates.
- Pad anti-rattle clip fitted.
