Hoston Semi-automatic Gear Hobbing Machine Y3150/3180
US $5600-$6000
Зубчатая машина для продажи Y3150 зубчатая машина для продажи
- Category: Gear Cutting Machines >>>
- Supplier: Henan Wadley CNC Machinery Co. Ltd.
Share on (1600208961374):
Product Overview
Description
Product Overview

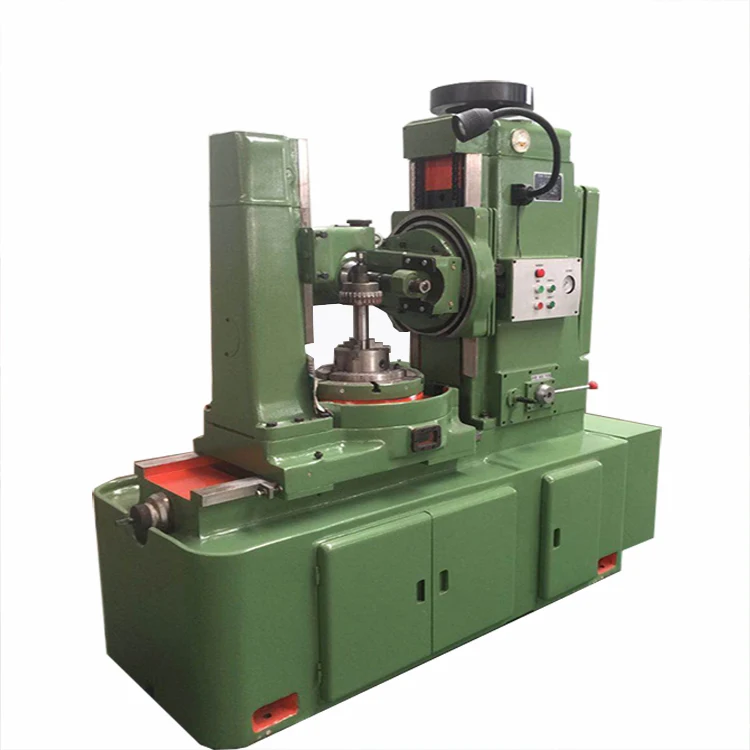

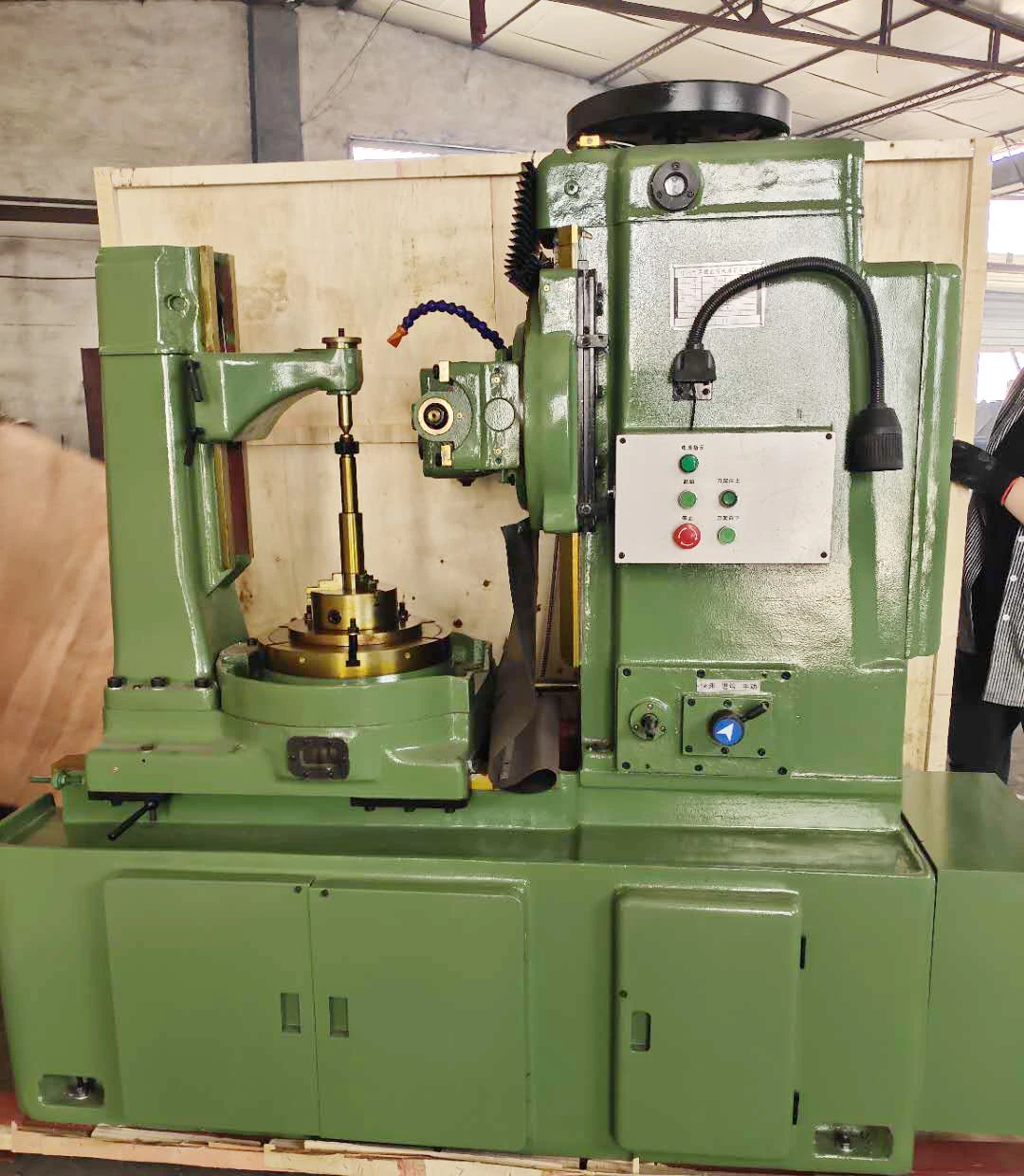

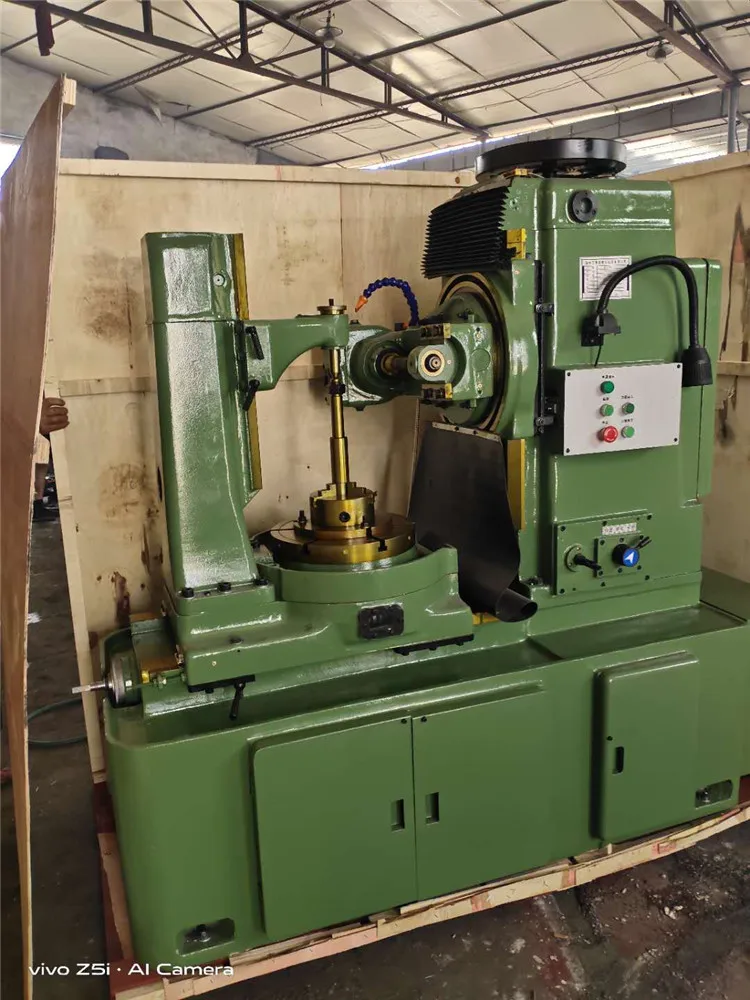

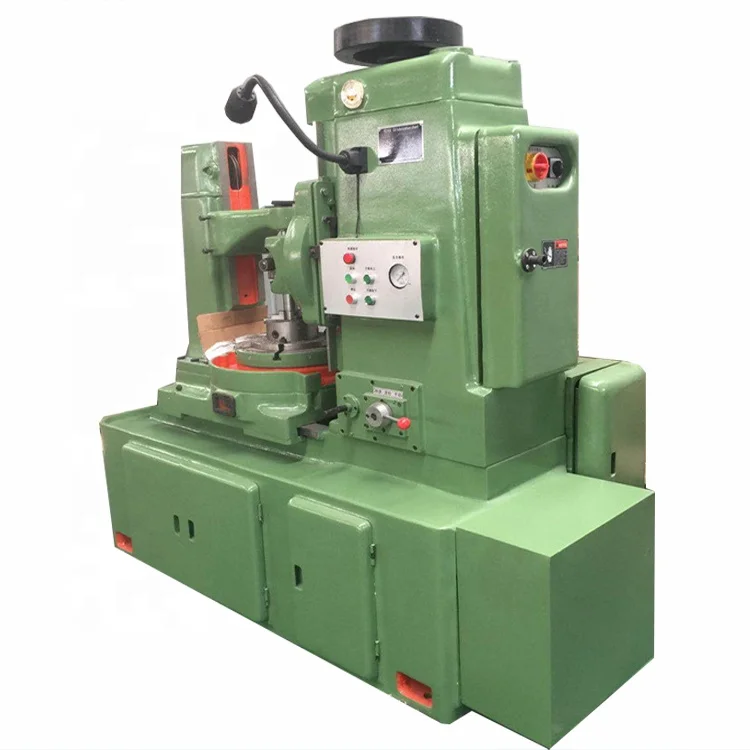

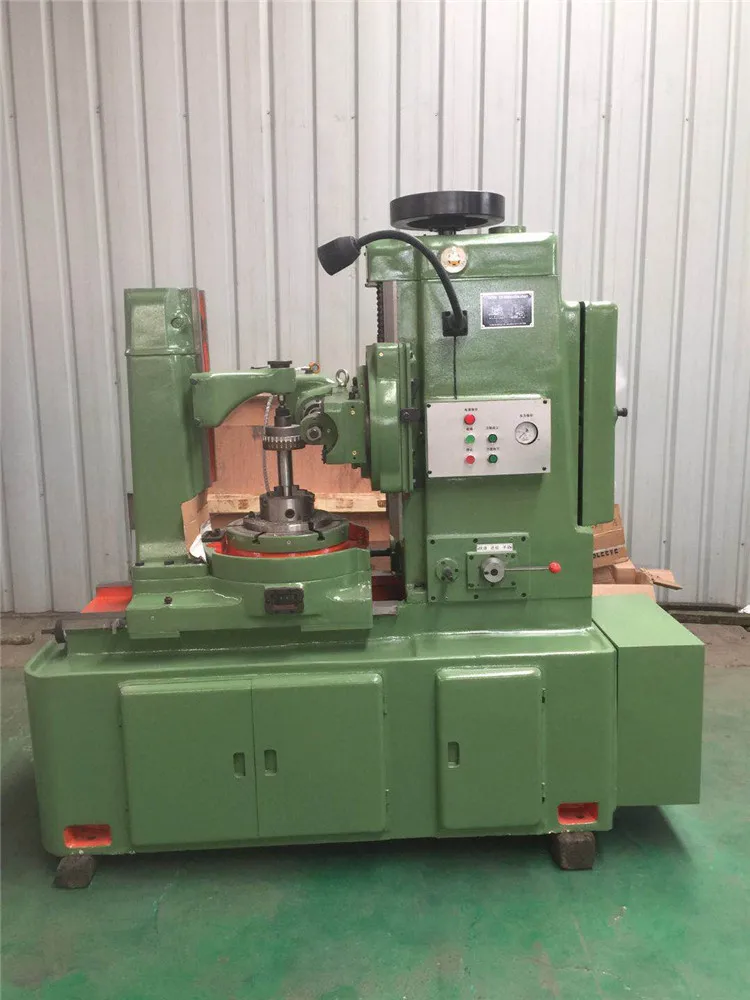

Gear Hobbing Lathe Machine
Gear hobbing machine is the most widely used machine tool in gear processing machine tools. It can cut straight gears, helical cylindrical gears, worm wheels, sprockets, etc. on the gear hobbing machine. Gear hobbing is based on the principle of generative method Machining gears. Using a hob to process the counter wheel is equivalent to the meshing of a helical cylindrical gear pair. Hobbing gear belongs to the generative method, which can be regarded as a gear and rack drive without meshing clearance.
Gear hobbing machine widely used in various machinery manufacturing industries such as automobiles, tractors, machine tools, engineering machinery, mining machinery, metallurgical machinery, petroleum, instruments, aircraft and spacecraft. Gear processing machine tools have a wide variety of specifications, including small machine tools for processing gears of several millimeters in diameter, and large machine tools for processing gears of more than ten meters in diameter.
FEATURES AT A GLANCE
(1) Cylindrical helical gears and worm gears are produced in small batches and single pieces, and spline shafts with a certain range of parameters can also be rolled.
(2) Easy to adjust, with automatic parking mechanism
(3) Reliable safety device and automatic lubrication hobbing machine
(2) Easy to adjust, with automatic parking mechanism
(3) Reliable safety device and automatic lubrication hobbing machine
(4) Gear hobbing machine is easy to adjust and operate, and can be used for up and down milling to improve the production efficiency
(5) Gear hobbing machine equipped with a fast moving device of the tool post and automatic stop mechanism when the cutting is terminated, which is easy to operate.
(6) Gear hobbing machine equipped with a single-axis CNC system
PRODUCT SPECIFICATIONS
Model | Y3150 | Y3180 |
Max workpiece diameter(with rear column/without rear column) | 350mm/500mm | 550mm/800mm |
Max hobbing modulus | 8mm | 10mm |
Max Processing Width | 250mm | 300mm |
Min processing gear | Z/K=6 | Z/K=8 |
Max vertical travel of tool post | 300mm | 350mm |
Max swiver angel of tool post | ±240° | ±240° |
Distance between cutter axis and worktable | 235-535mm | 235-585mm |
Distance between cutter axis and worktable | 30-330mm | 50-550mm |
Spindle taper | Morse 5 | Morse 5 |
Hob diameter | 160mm | 180mm |
Max axial movement of cutter | 30mm | 50mm |
Hob abor diameters | Φ22,Φ27,Φ32MM | Φ22,Φ27,Φ32,Φ40MM |
Distance between hob axis center and worktable | 30-330mm | 50-550mm |
Worktable aperture | 80mm | 80mm |
Worktable diameter | 520mm | 650mm |
Worktable rapid moving speed | ≤500MM/Min | ≤540MM/Min |
Distance between worktable | 400-600mm | 400-600mm |
Axial feed rate and degree | 12Level 0.4-4MM/R | 12Level 0.4-4MM/R |
PRODUCT CONFIGURATION

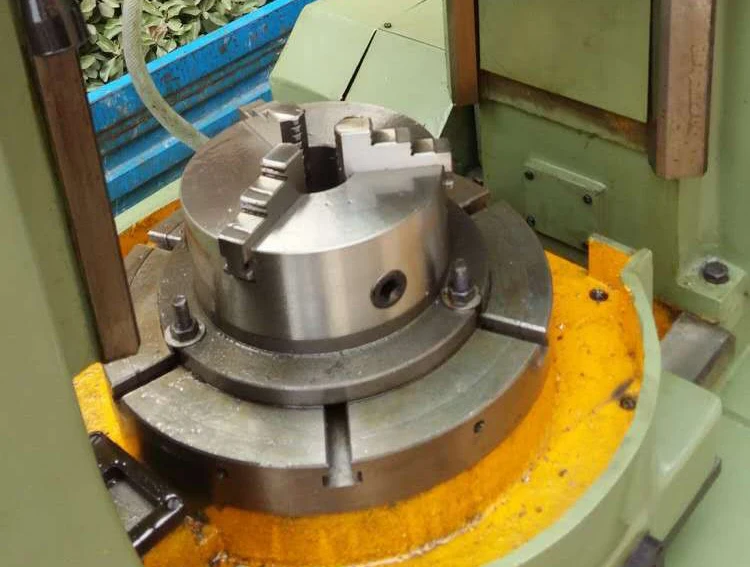

Rotary table
High-frequency
quenching table
high hardness
no deformation
When milling gears, the height between the bottom surface of the blank and the worktable cannot be lower than the height specified by the machine tool. The diameter of the blank washer should be less than 3 mm of the diameter of the root circle of the gear to be processed.
Hob shaft
Suitable for milling
cylindrical gears
helical gears
and turbine pairs, etc.
Material properties of the cutting part: (1) High normal temperature and high temperature hardness; (2) Necessary strength and toughness; (3) High wear resistance; (4) Good thermal conductivity and heat resistance (5) Better chemical inertness.
Transmission
Multi stage control
Stable operation
High precision
Check gear hobbing machine is normal. After adding lubricating oil to the machine tool, you can press the SB3 button to check whether the rotation of the motor is correct. When the motor rotates, observe the lubricating oil pressure gauge. If the pointer rises, the rotation is correct.

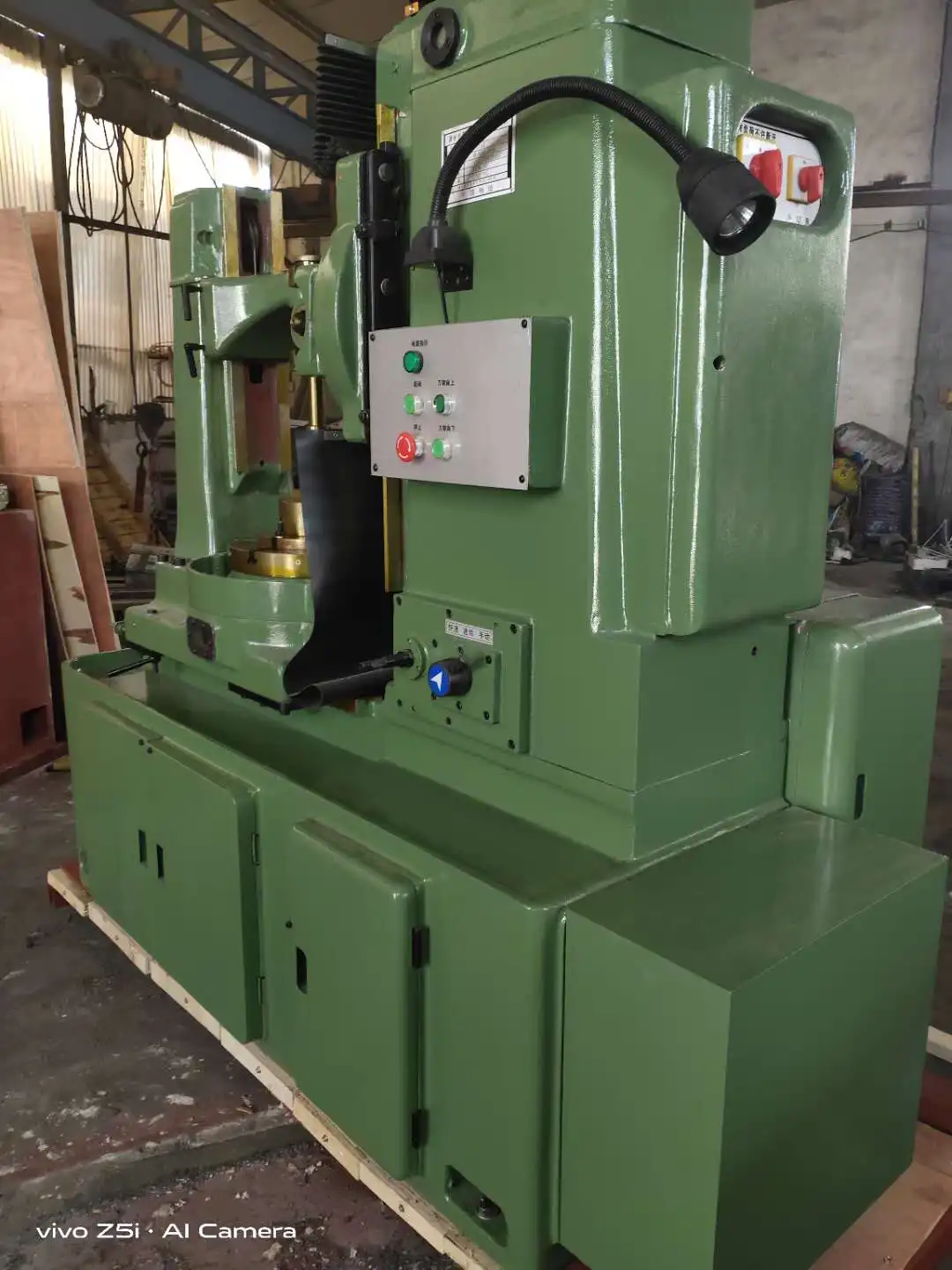

Control box
Simple design
Easy operation
Voltage can customized
Check the tightness and flexibility of the electrical components, check whether the terminals are loose and fastened;
.Before turning on the power, first check the ground resistance of the gear hobbing machine. It should be no higher than 0.1Q. The electrical insulation test with a shaking meter should not be lower than 1MQ;
.Before turning on the power, first check the ground resistance of the gear hobbing machine. It should be no higher than 0.1Q. The electrical insulation test with a shaking meter should not be lower than 1MQ;
