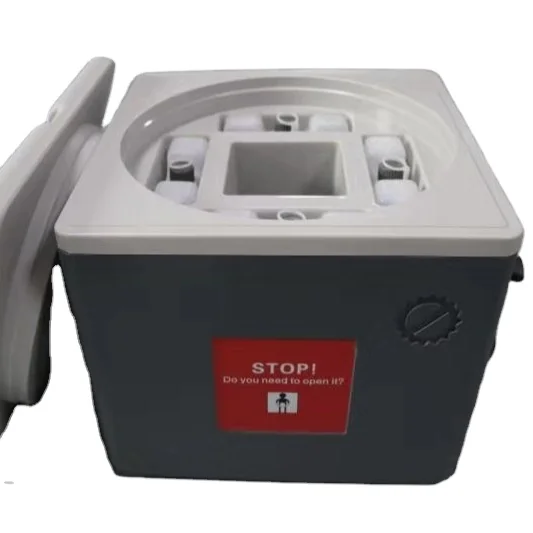

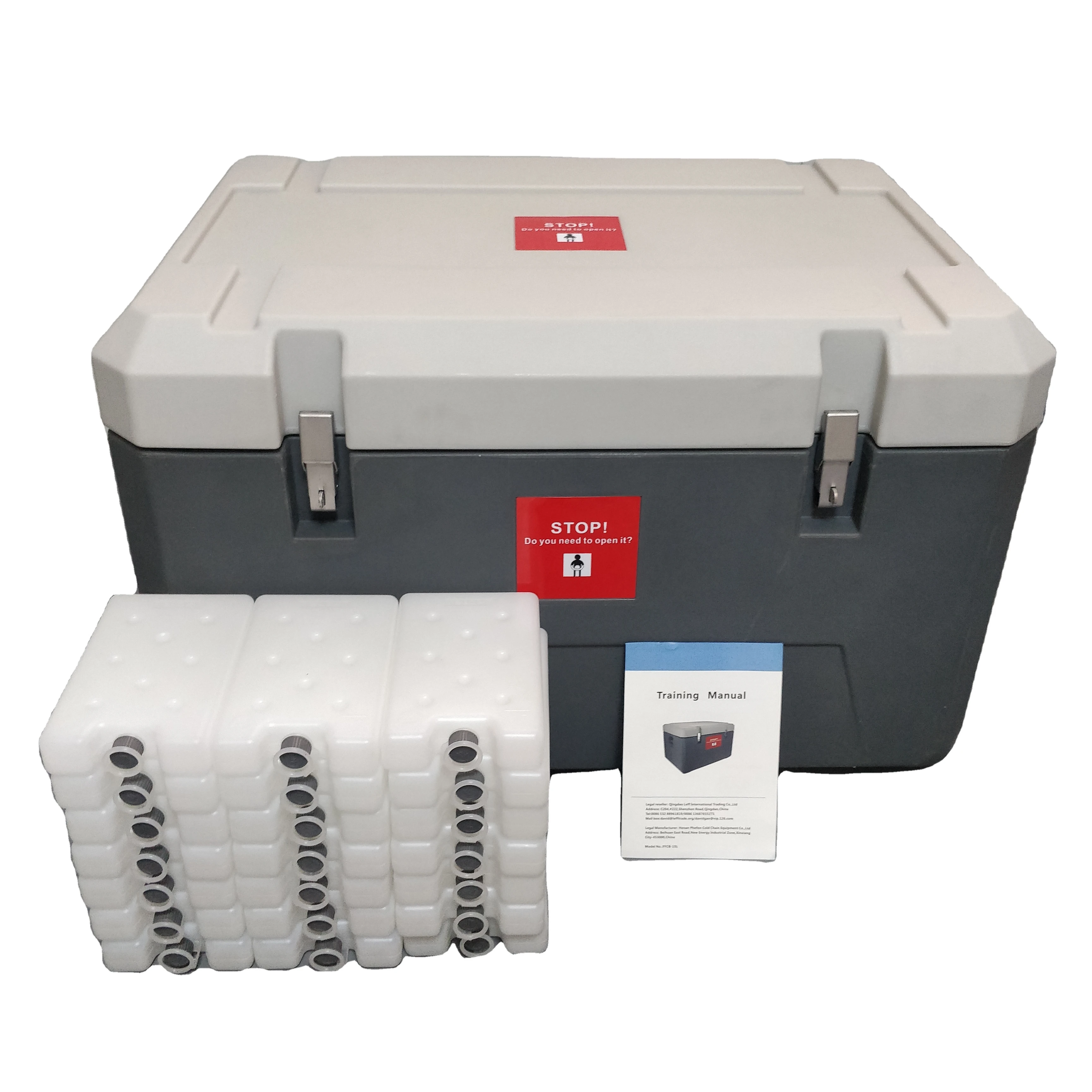

A grade Free freeze protection Cold WHO designated manufacturer vaccine cooler box
- Category: >>>
- Supplier: Henan Phefon Cold Chain Equipment Co. Ltd.
Share on (1600209406433):
Product Overview
Description
Description of portable vaccine refrigerators
1.Vaccine cooler box is applied to Cold medicine, bio-pharmaceuticals, and blood products Medical treatment and public health
terminals, take along with vaccine and medicals by car.
2.Professional labyrinth structure design to assure the insulation of box, and effective preent air circulation between outside
and inside
3.The inner layer adopt white engineering plastic with weak radiation ability and strong absorption power, reducing warm or cold
loss by radiation
4.Conforming to W.H.O specifications
1.Vaccine cooler box is applied to Cold medicine, bio-pharmaceuticals, and blood products Medical treatment and public health
terminals, take along with vaccine and medicals by car.
2.Professional labyrinth structure design to assure the insulation of box, and effective preent air circulation between outside
and inside
3.The inner layer adopt white engineering plastic with weak radiation ability and strong absorption power, reducing warm or cold
loss by radiation
4.Conforming to W.H.O specifications
Cold chain type | A grade Free-freeze protection | A grade Free-freeze protection | Free-freeze protection | Standard vaccine carrier |

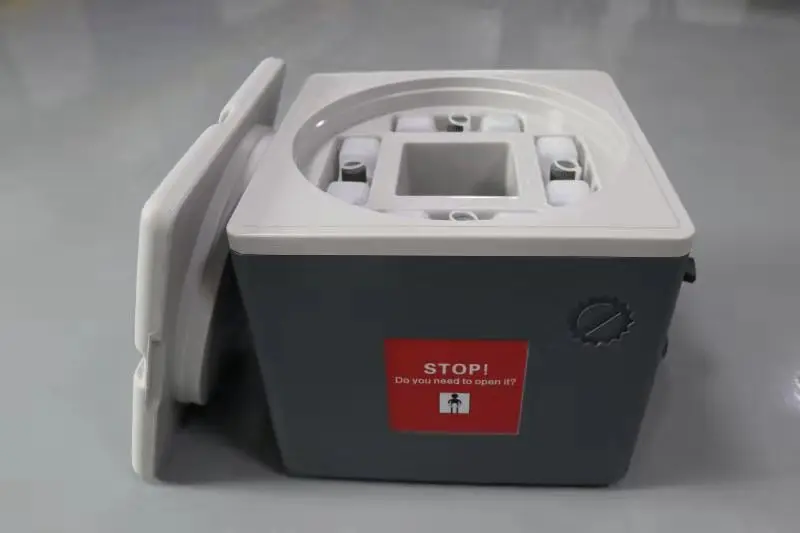

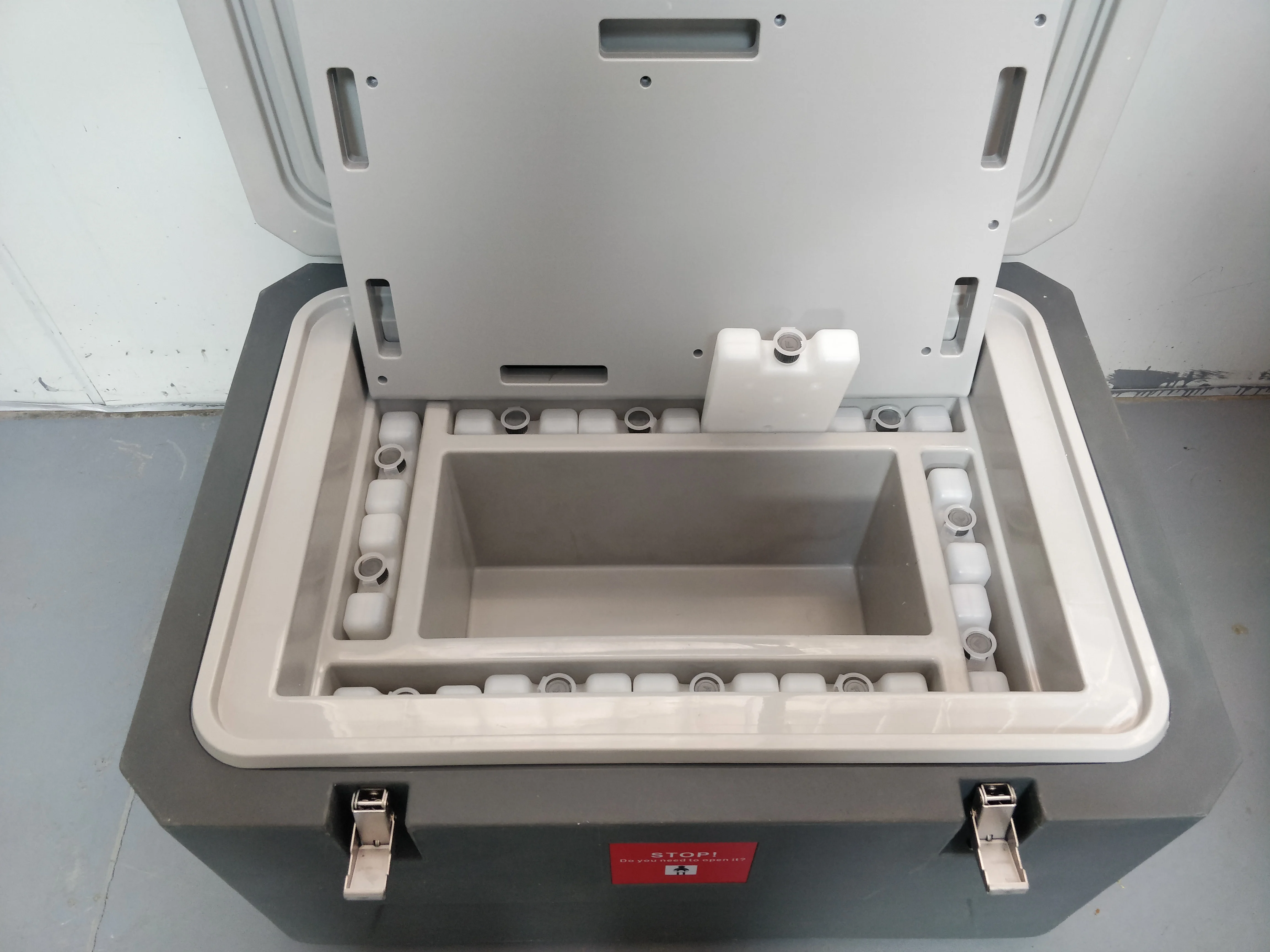

Model No. | FFVC-1.7L | FFCB-15L | FFCB21L | FS-3.6L |
Vaccine Storage Capacity | 1.7L | 15.4L | 21L | 1.4L |
Weight Fully Loaded | 5.5kg | 49.9kg | 52kg | 3.22kg |
Weight Empity | 4kg | 24kg | 25kg | 1.78kg |
External Surface material | HDPE | LLDPE | LLDPE | PE |
Internal lining material | PP | LLDPE | LLDPE | PP |
Insulation material | PU CFC FREE FOAM | PU CFC FREE FOAM | PU CFC FREE FOAM | PU CFC FREE FOAM |
Insulation Thickness | ≥40mm | ≥110mm | ≥110mm | ≥40mm |
External Diemnsion | 308x308x300mm | 770x540x470mm | 810x580x505mm | 250x250x280mm |
Internal Dimension | - | - | - | 163x163x170mm |
Vaccine Storage Dimension | 94x94x190mm | 415x185x200mm | 450x220x210mm | 163x163x170mm |
Lid Type & Fixings | Removable | Unremovable | Unremovable | Removable |

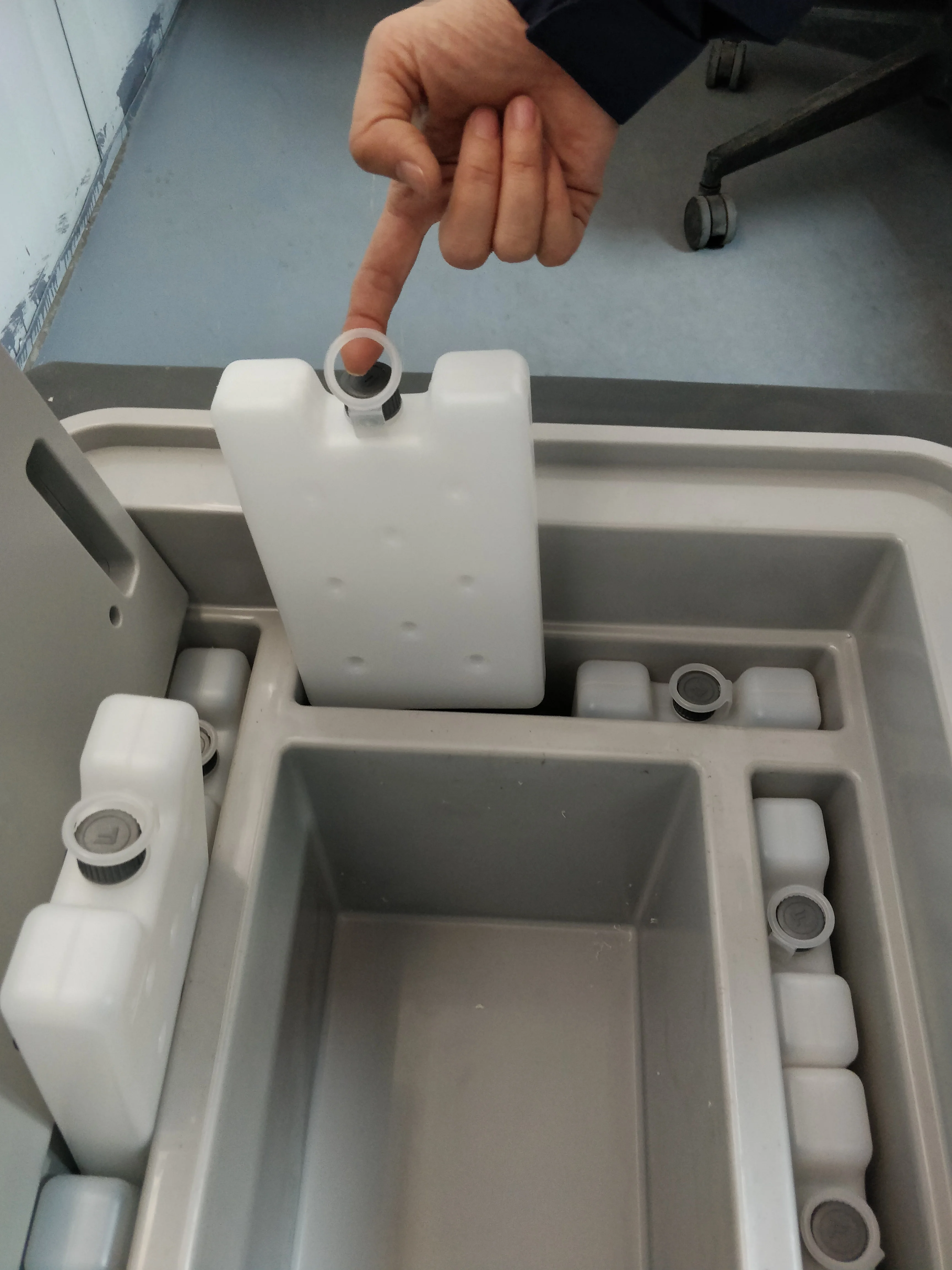

No.of Ice Packs Required | 4(0.6L） | 21(0.6L) | 21(0.6L) | 4(0.3L) |
Ice Pack Type | E5/15 | E5/15 | E5/15 | E5/15 |
Cold Life(at 43℃） | 38 hours | 106hours | 86 hours | 40hours |
Quantity/Carton | 1 | 1 | 1 | 6 |
Gross Weight per Carton | 6kg | 24kg | 27kg | 13.5kg |
Carton dimension(cm) | 31x31x37cm | 80x57x52cm | 84x61x56cm | 78x53x31cm |
PQS | YES | YES | NO | YES |

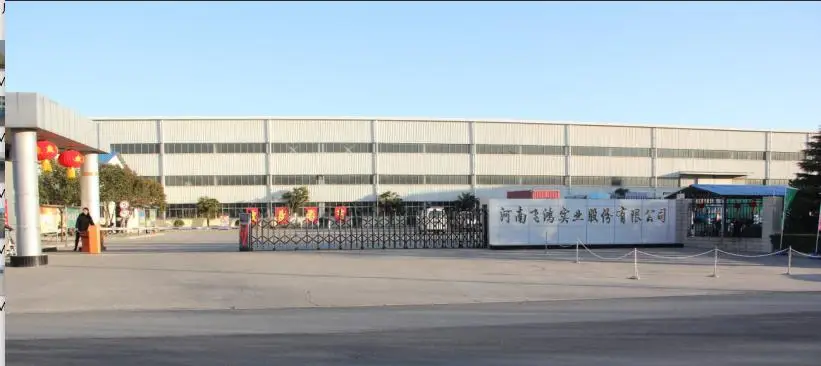

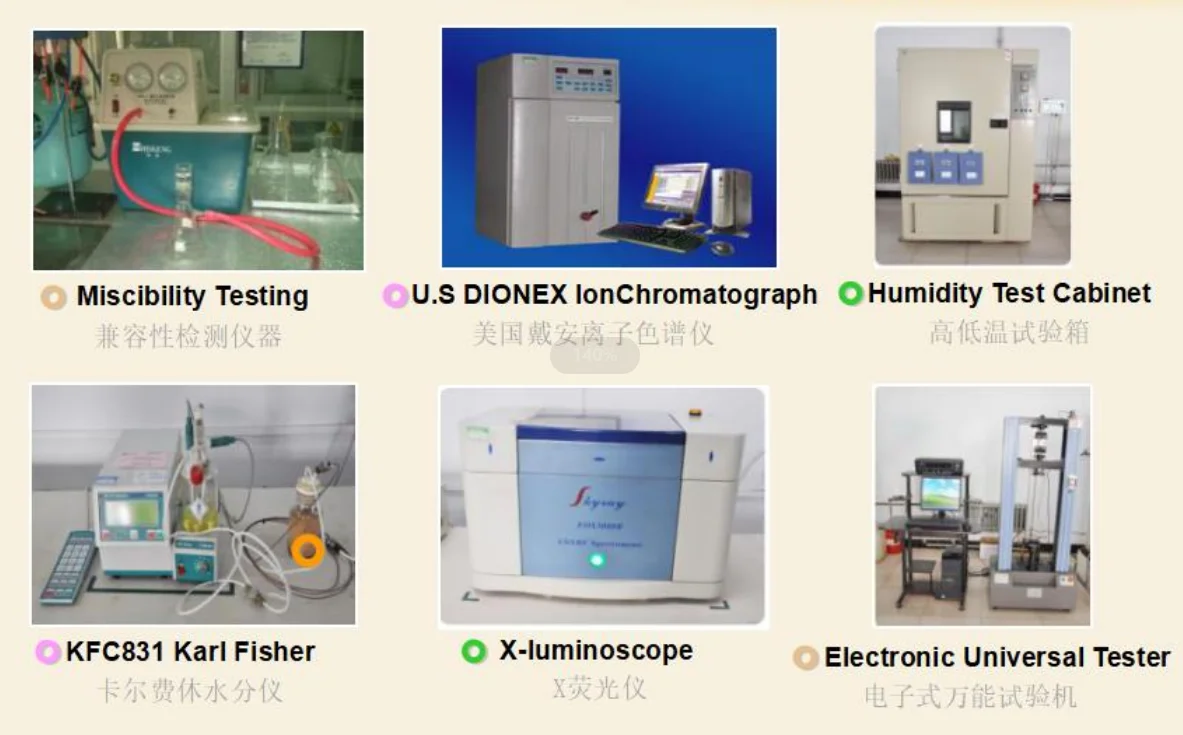

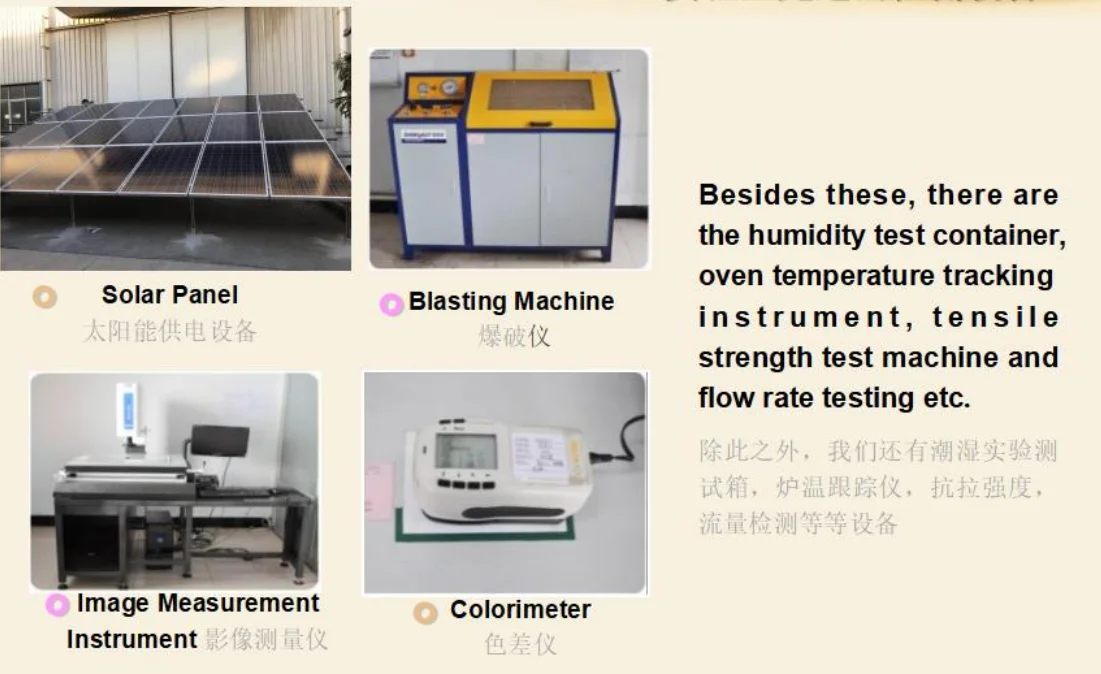

Henan Phefon Cold Chain Equipment Co.,Ltd., located in National (Xinxiang) Chemical & Physical power industry zone,covers about 266,400 m2 land. There are injection molding equipment,blister molding, extrusion molding and ancillary production workshops,which set up according to the standardized production of medical equipment,built a full climate simulation laboratory according to WHO standard,with strong research and development in production capacity,it can meet the full requirements of different customers.
Our products are cold boxes and vaccine carrier,ice/water-packs,coolant bags used in food cold chain logistic,medical cold chain transportation and the package of biological products,focus on the security of food and vaccine/medicine during each shipment.
Our products are cold boxes and vaccine carrier,ice/water-packs,coolant bags used in food cold chain logistic,medical cold chain transportation and the package of biological products,focus on the security of food and vaccine/medicine during each shipment.
We have a lot of optimization design on the product,reduce customer’s management and operating costs,can meet large quantities of medicine,food cold chain transport,transfer systems;based on the experience and technology R&D,we come out the A grade protection in Free-freeze cold boxes and vaccine carriers,and the phrase change material in medical appliance. Different insulation material have different performances into the environmental temperature control capability of medical transportation equipment.We also have reached the advanced monitoring system,location tracking equipment and completed sales services.Our Production capacity: 300,000pcs/year for cooler, and 5,000,000pcs/year for ice pack/water pack.

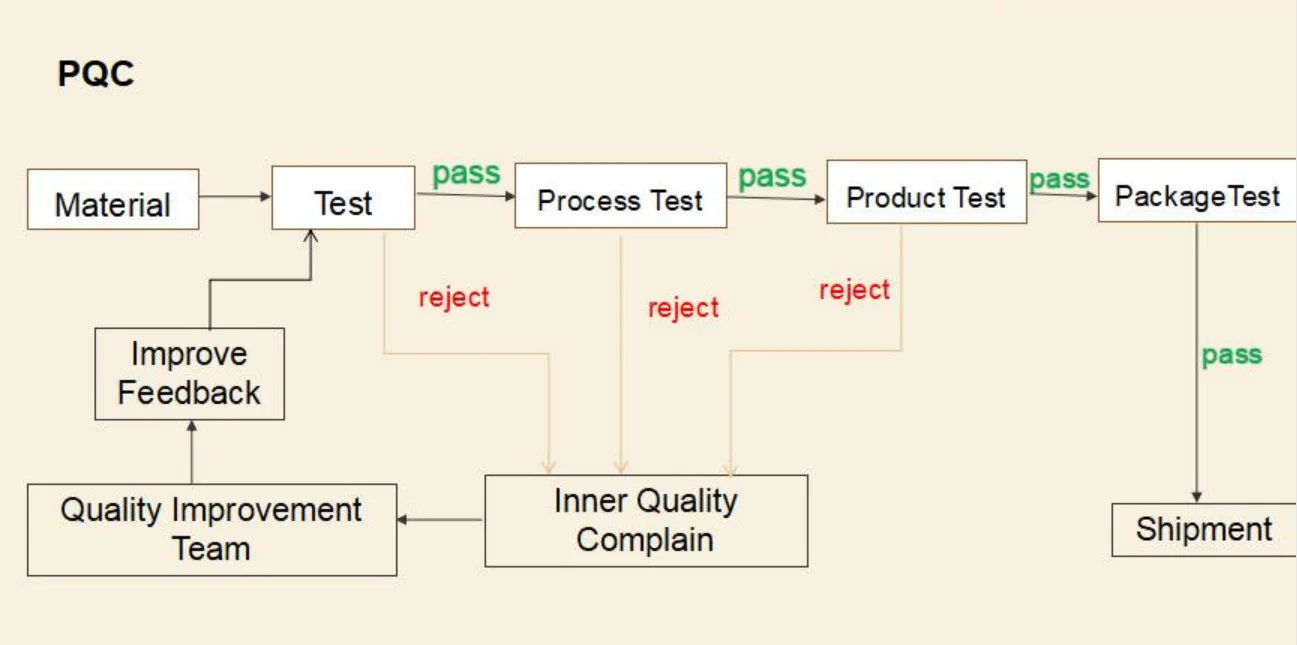

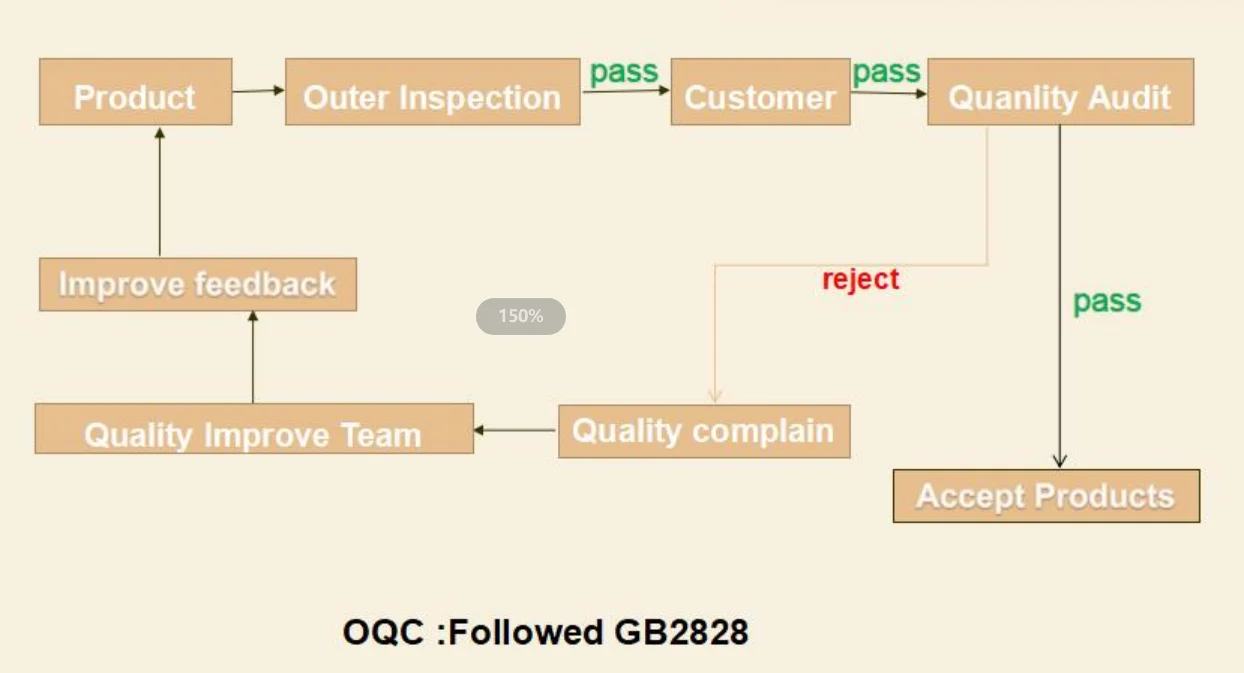

Our Mission: Security, reliable, green environmental protection, and customized. The company has a complete, scientific quality management system to the quality of survival. To seek development in good reputation, to win in the owner responsibility. Welcome friends from all over the world to visit and guidance.
1.What is your MOQ?
Usually our MOQ is 100pcs. lower quantity trial order is also available.
2.Can I get samples?
Sample is availabel. sample fee is paid by customers and it will be refund when make mass producction
3.How long is the sample lead time?
It will be takes about 5-10 days after confirming the sample details.
4.How long is the production lead time?
It normally takes anout 35-45 days, depend on order quantity.
5. What format of the file do you need if I want my own design?
We have our own designer in house. So you can provide JPG, AI, cdr or PDF, etc. We will make 3D drawing for mold or printing screen for your final confirmation based on technique.
6. How many colors are available?
We match colors with Matching System. So you could kindly tell us the color code you need . We will match the colors. Or we will recommend some popular colors to you.
Usually our MOQ is 100pcs. lower quantity trial order is also available.
2.Can I get samples?
Sample is availabel. sample fee is paid by customers and it will be refund when make mass producction
3.How long is the sample lead time?
It will be takes about 5-10 days after confirming the sample details.
4.How long is the production lead time?
It normally takes anout 35-45 days, depend on order quantity.
5. What format of the file do you need if I want my own design?
We have our own designer in house. So you can provide JPG, AI, cdr or PDF, etc. We will make 3D drawing for mold or printing screen for your final confirmation based on technique.
6. How many colors are available?
We match colors with Matching System. So you could kindly tell us the color code you need . We will match the colors. Or we will recommend some popular colors to you.
