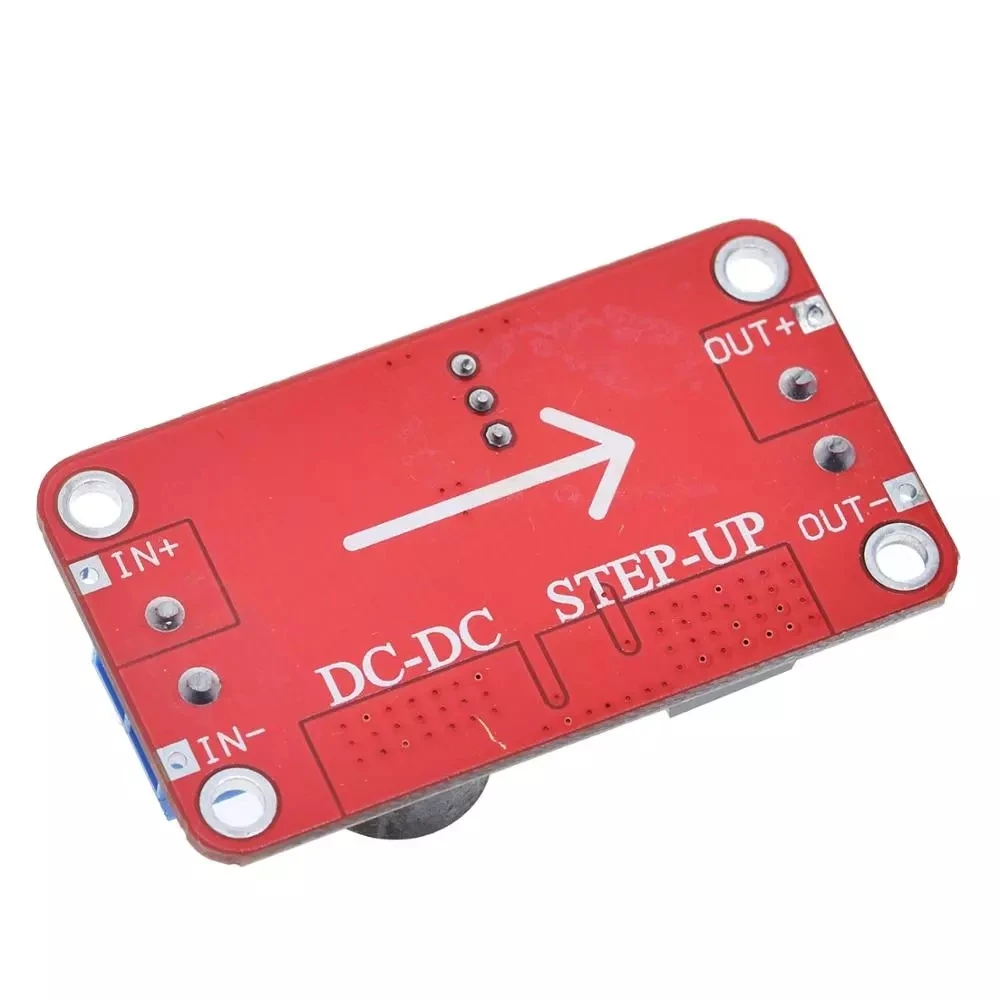

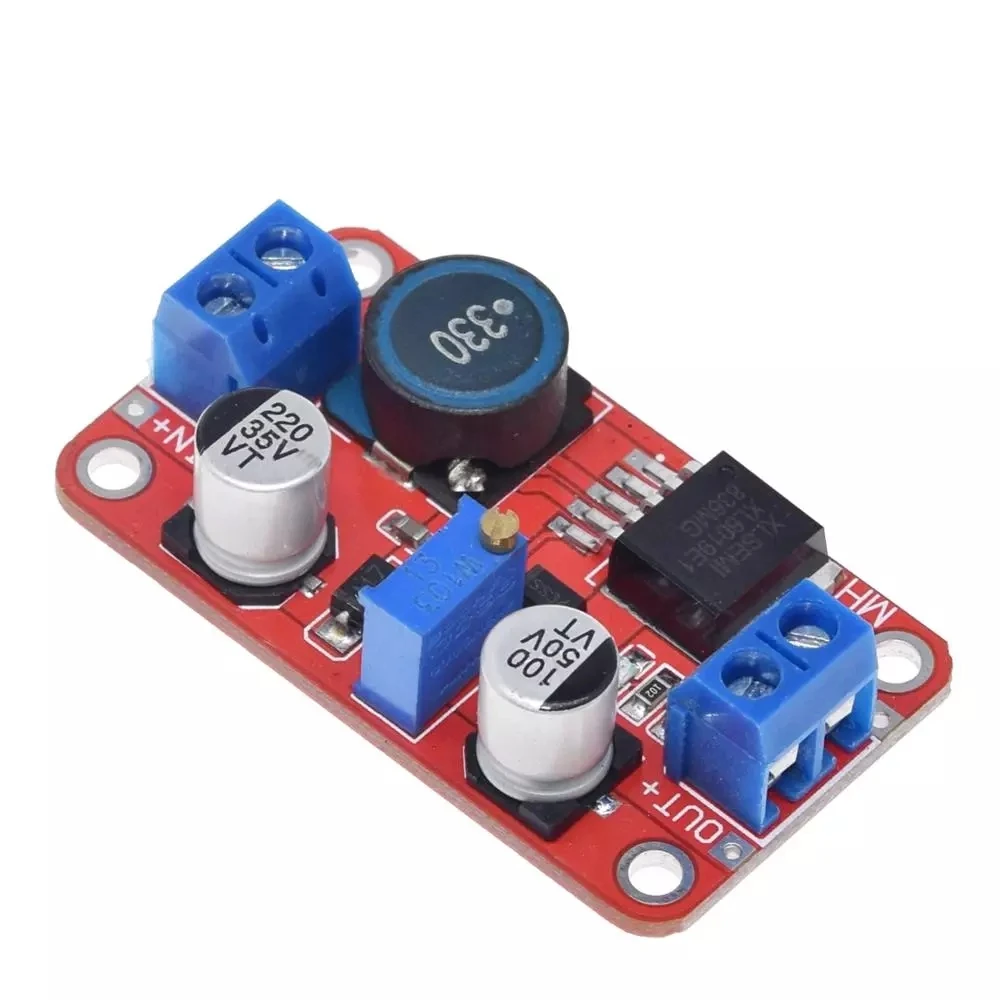

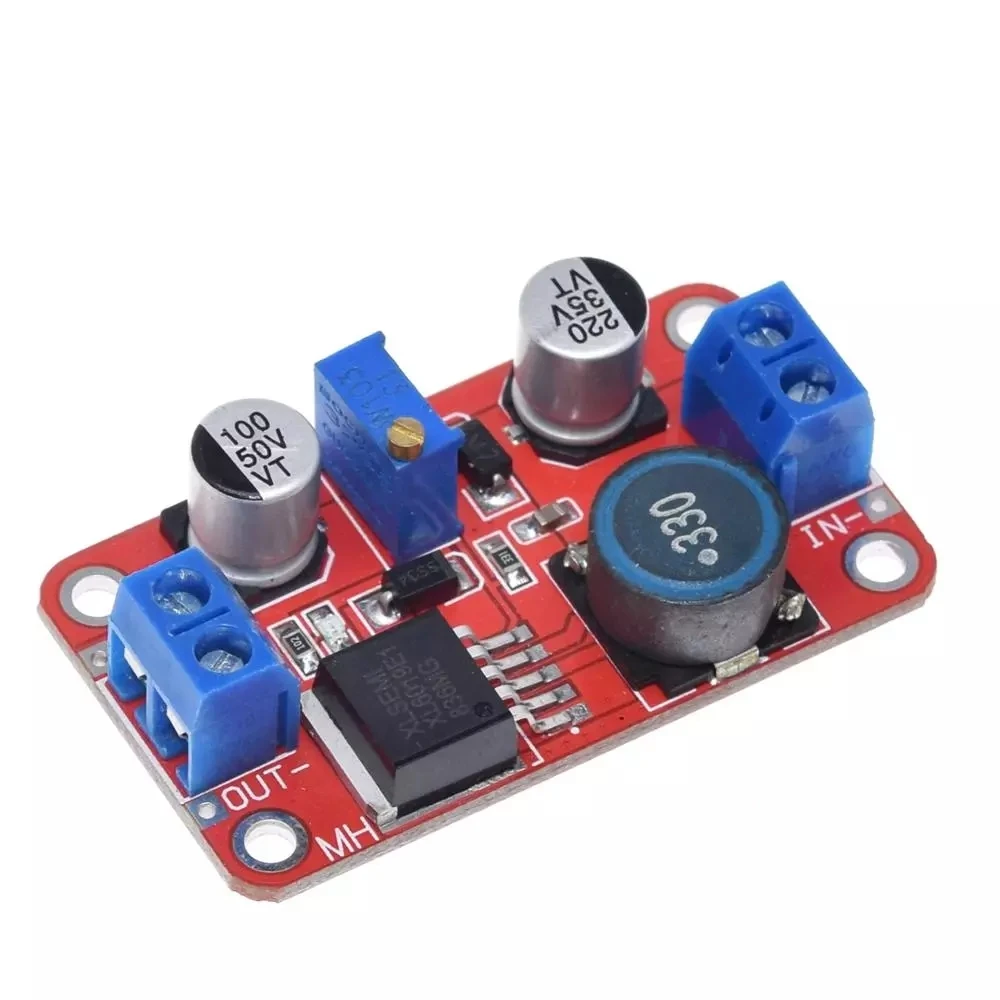

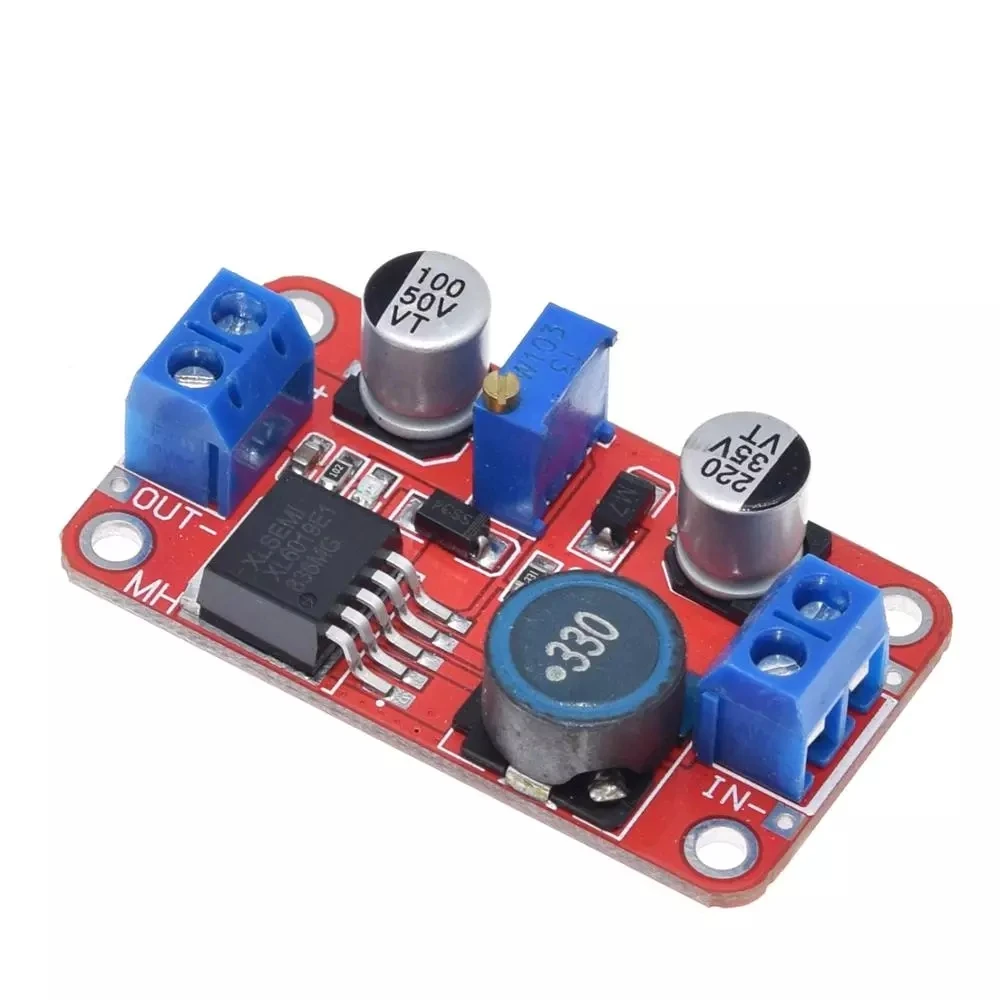

5A DC DC Step Up Power Module Boost Volt Converter 3.3V 35V To 5V 6V 9V 12V 24V XL6019

Product Performance:

1.conventional constant voltage output topologyBOOST fully integrated solutions, integrated MOSFET,fewer external components, lower system cost.

 2,.wide voltage range input,the input voltage up to35V.

3.output voltage is adjustable,supports up to 40V.

4.built-in over-temperature protection, overcurrentprotection circuit full set of reliability, high reliability.

5.the system conversion efficiency of over 90%, tofacilitate thermal design.

6.TO263-5L standard package,suitable for 30W boostapplications within.
