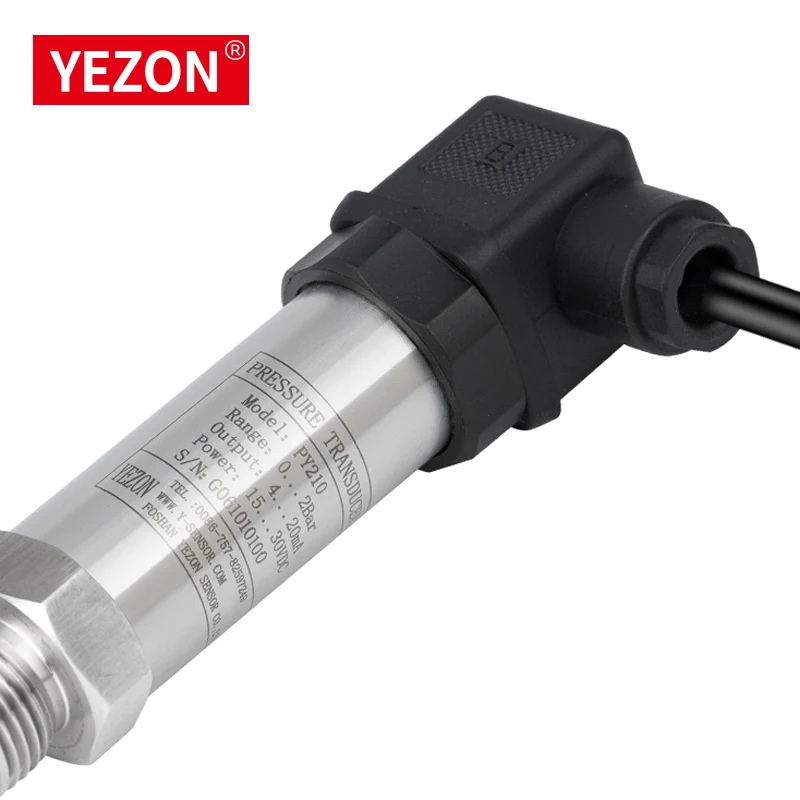

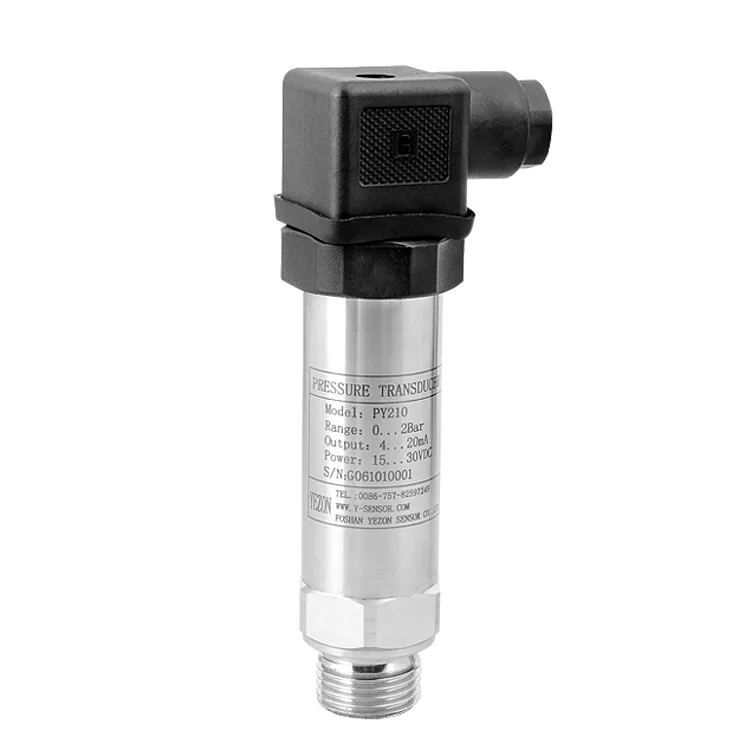

PY210 IP65 High Precision Air Industrial Transducer Negative Pressure Sensor
- Category: >>>
- Supplier: Foshan Yezon Sensor Instrument Co. Ltd.
Share on (1600209484381):
Product Overview
Description
Products Description
Model | PY210 |

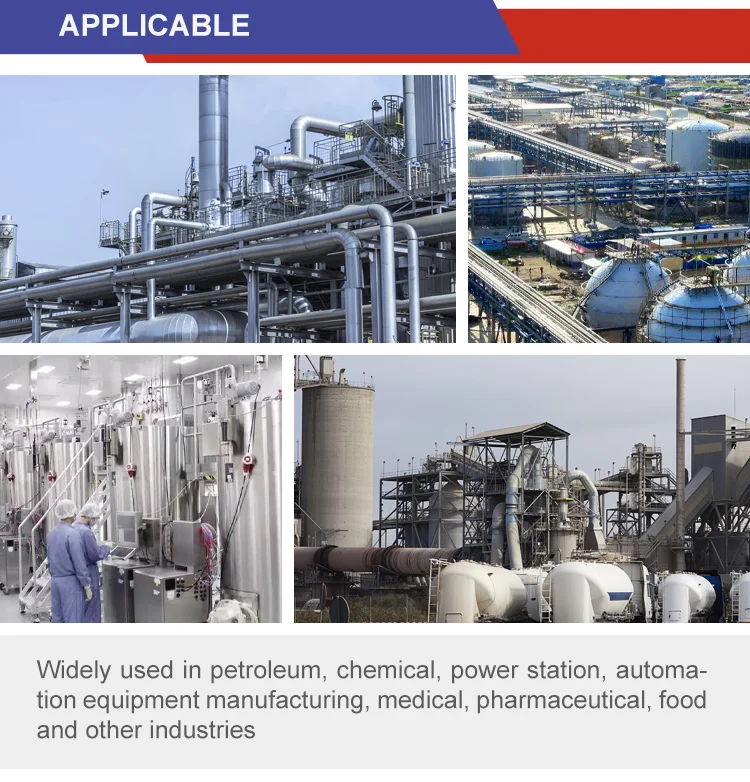

Application | Gauge and absolute pressure, liquid-liquid, air pressure; |
Accuracy | 0.5 level (default) 0.3 level (need to be customized); |
Response time | 5ms (up to 90% FS); |
output signal | Current two wires: 4~20mA; voltage three wires: 0~5V, 1~ 5V ,0～10V RS485, RS232, wireless short distance (within 2000 meters) network transmission, GPRS wireless transmission; |

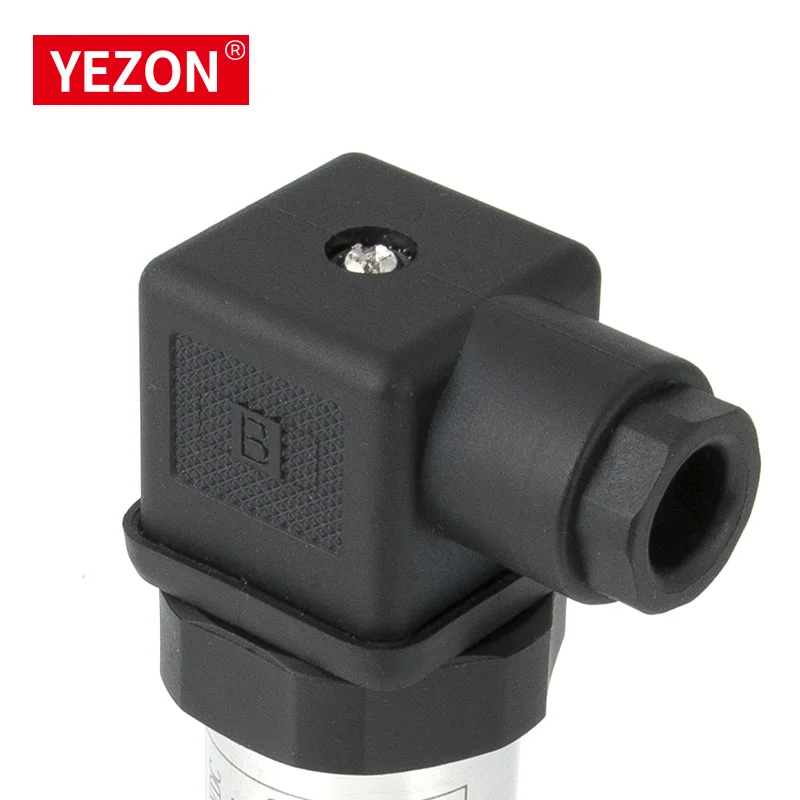

Electrical Interface | Hessman leads, direct leads, aviation plug leads; |
Range | -0.1KFa-0-60MPa 0~±10KPa ~ ±100KPa; |
Extreme overload | 200%; |
Medium temperature | -20 ~ 60°C (temperature compensation -20 ~ 70°C); |
Supply voltage | DC24V [15 ~ 36VDC] (default), 12VDC power supply needs to be customized; |
Stable performance | ± 0.296FS/year; |
Sealing level | IP65; |

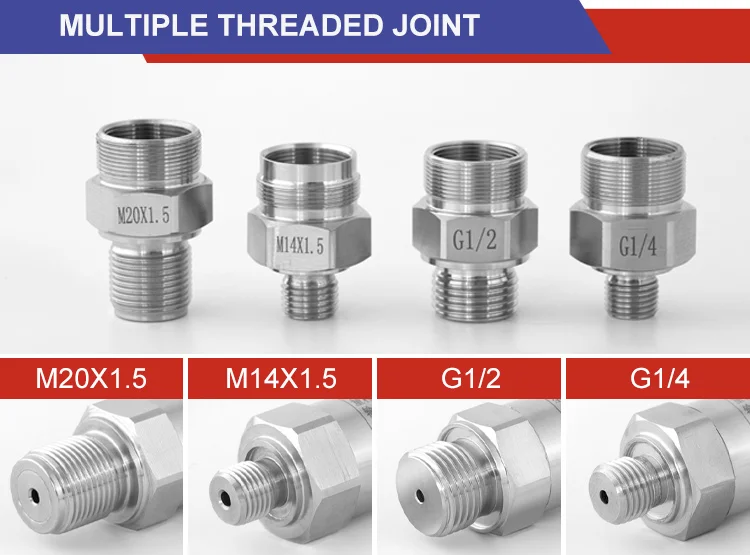

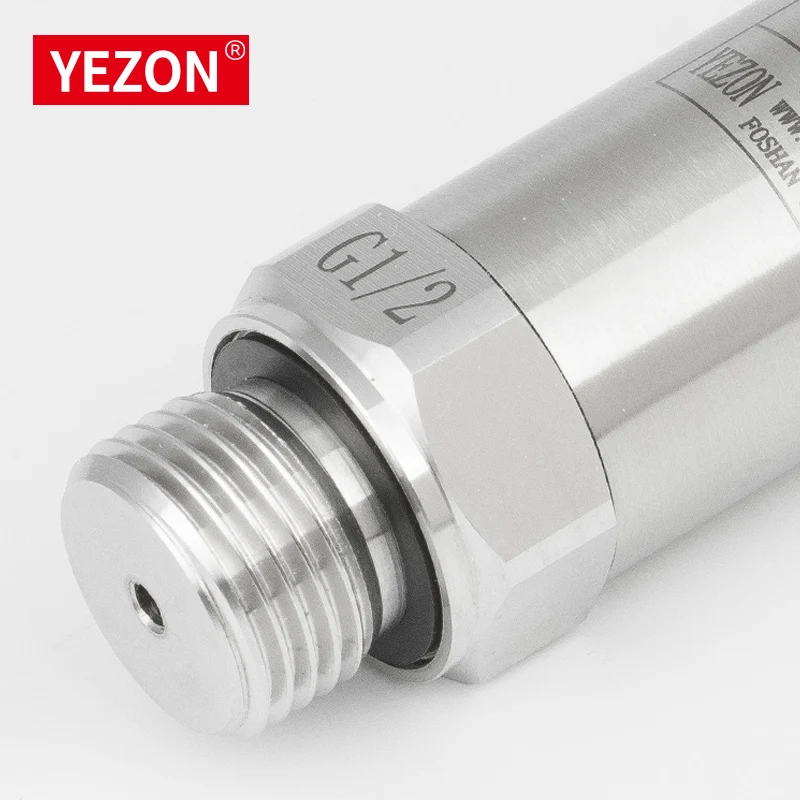

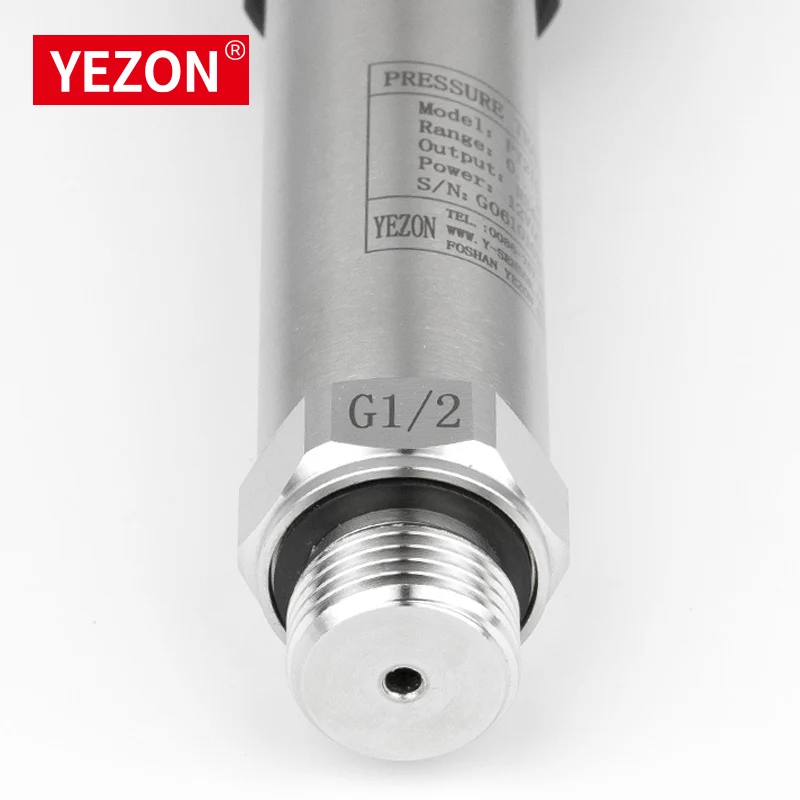

Thread connection | M20X1.5, M14X1.5, GI/2, G1/4; |

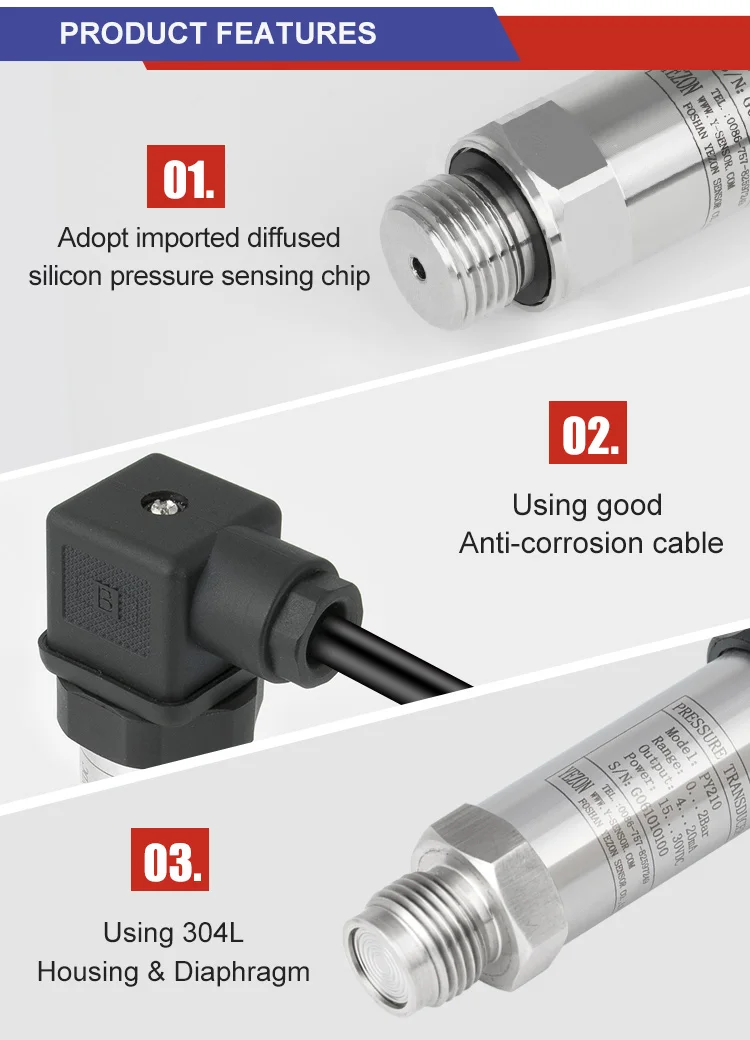

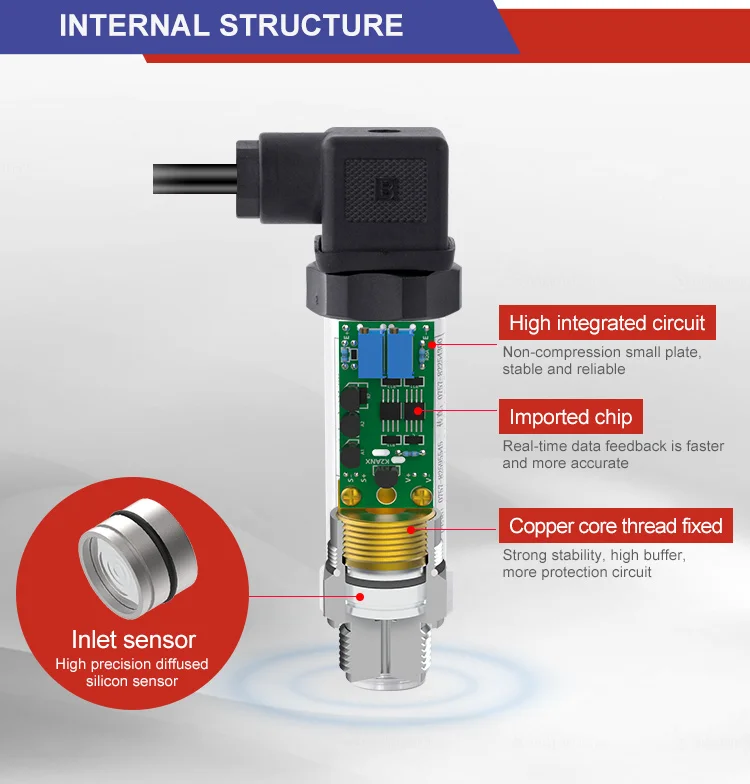

[1] Using imported diffusion silicon
[2] Advanced placement technology with zero full-range compensation and temperature compensation
[3] Amplified integrated circuit with high precision and high stability
[4] Up to twice the instantaneous pressure shock
[5] Intelligent foot protection (overvoltage / overcurrent / reverse connection)
[6] Various output signals. There are current type and voltage type.
[7] Full-scale Park compensation 'Temperature compensation
[8] Protection level reaches IP65
congeneric Product
FAQ
Can you provide calibration report of PM300 flush diaphragm waterproof pressure sensor ?
Yes, VOLLTEL can provide calibrationreport.
Can you accept OEM brand?
Yes, VOLLTEL can accept OEM brand without extra charge.
Can you offer samples?
Yes, you can apply for sample testing.
Warranty=?
12 months (option 18 months)
How long will you give me the reply?
we will contact you in 12 hours as soon as we can.
What pressure range should I work in?
A gauge range of twice the working pressure is generally selected.The working pressure in all cases should be limited to 75% of the gauge range. Where alternative pressure and pulsation are encountered, working pressure should be limited to 2/3 of the gauge range
What do I need to know to select the right product?
The following are the basics for most products used in industrial environments: Application - Pressure range -Temperature range -Medium - Pressure Connection
