DTECH hot sale IoT transmission component converter rs232 to 485
- Category: >>>
- Supplier: Guangzhou Dtech Electronics Technology Co. Ltd.
Share on (1600209486451):
Product Overview
Description

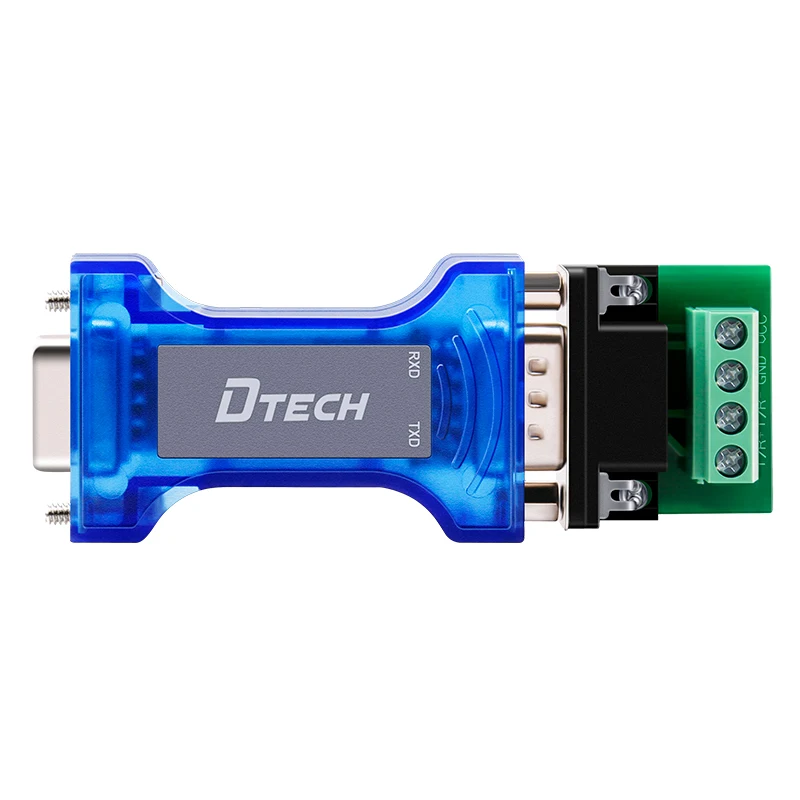

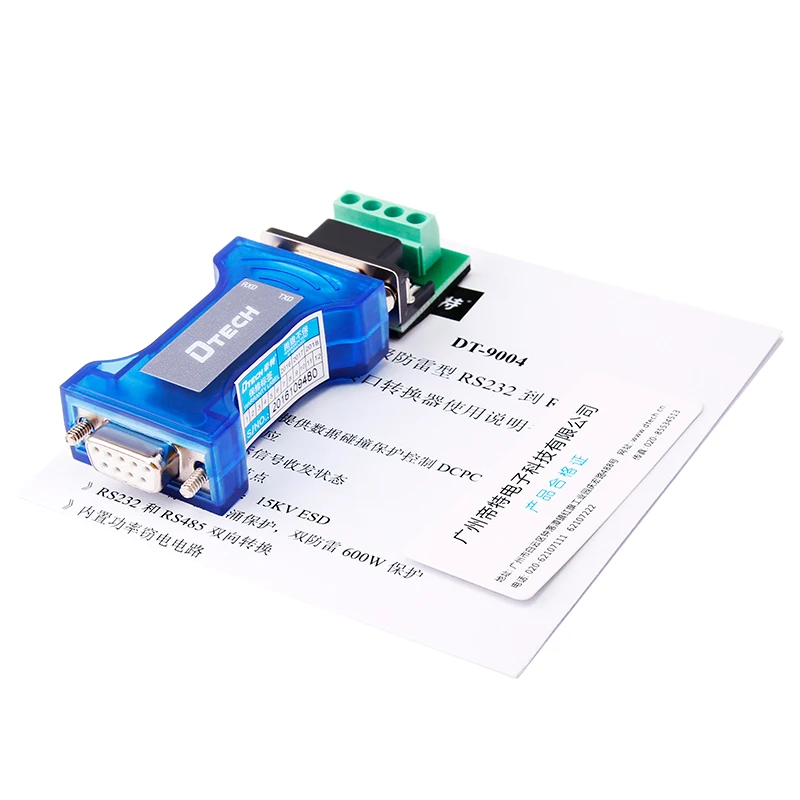

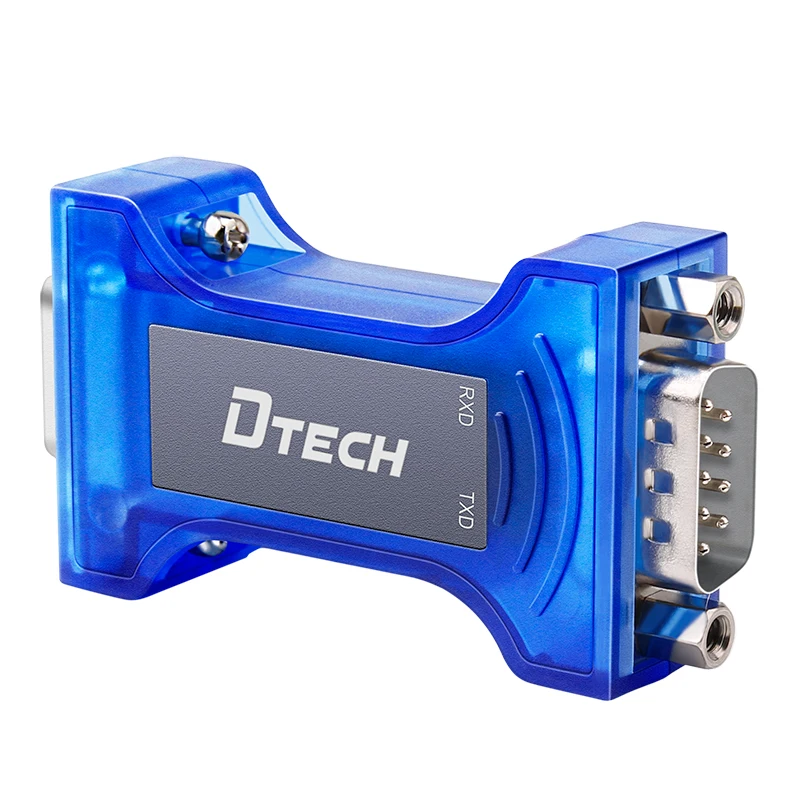

DTECH hot sale IoT transmission component converter rs232 to 485
Asynchronous Half Duplex Communication
This RS485 to RS232 converter allows to interface your devices using an RS232 communication link to an RS485 link and vice-versa.
Say No to Signal Interference
The rs232 to rs485 serial adapter is designed with built-in photoelectric isolation (isolated voltage 2.5KVrms/500VDC), which enable you to get reliable data and to effectively prevent the destruction of both ends of the electric equipment.
Double Protection
A built-in transient voltage suppressor (TVS) enables you to get double 600W lightning surge protection against the lightning strike over RS485 link, and 15KV static protection over RS232 link effectively protect your value devices against high voltage spikes. Simple Operation
DCPC (Data Collision Protection Control) function can detect the incoming or outgoing data and automatically switch into the send or receive mode, then you don't have to worry about the data collision problems.
It only requires three lines (RX, TX and GND) to get a RS232 to RS485 conversion, making it great for troubleshooting the serial system, fully plug and play.
Specific

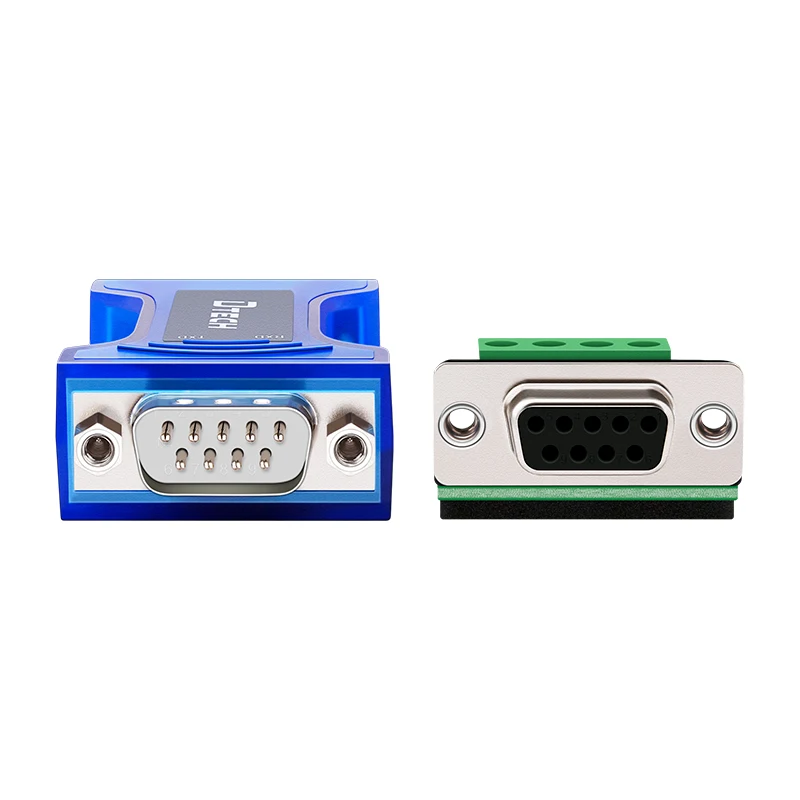

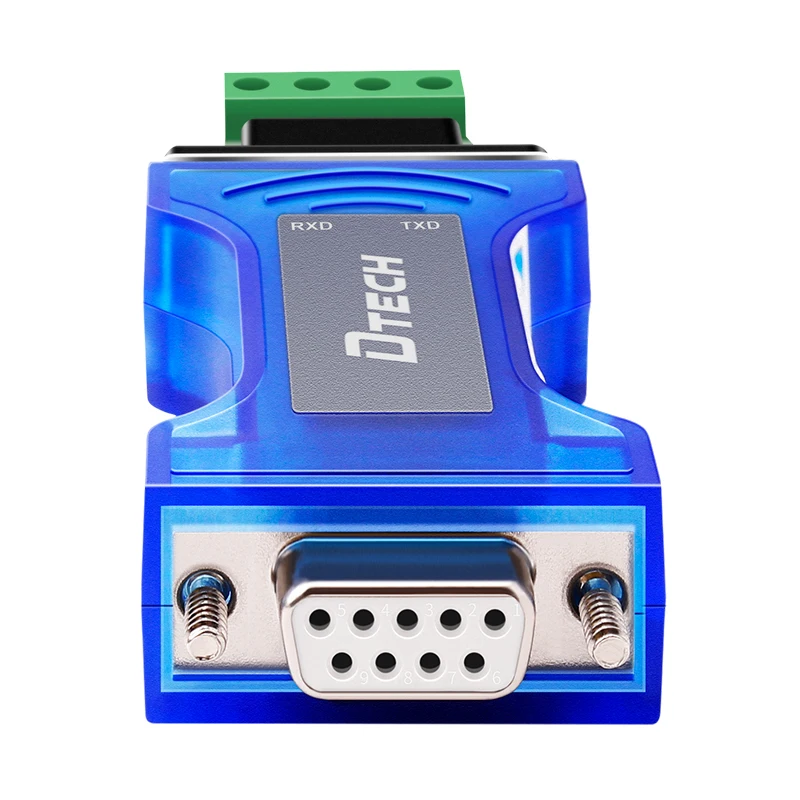

RS232 Link-9 pin female port.
RS485 Link-9 pin male port, 4 position terminal board.
EIA/TIA RS-232C, RS-485 specification.
Up to 32 nodes
Transmission Distance-4000ft over RS485 link, 50ft over RS232 link.
Transmission Media-twisted pair (>=24 AWG) or shielded cable.
Applications
Computer
Factory industrial automation control system
Micro controller (MCU)
Door safe / Parking system
SCADA (supervisory control and data acquisition)
This RS485 to RS232 converter allows to interface your devices using an RS232 communication link to an RS485 link and vice-versa.
Say No to Signal Interference
The rs232 to rs485 serial adapter is designed with built-in photoelectric isolation (isolated voltage 2.5KVrms/500VDC), which enable you to get reliable data and to effectively prevent the destruction of both ends of the electric equipment.
Double Protection
A built-in transient voltage suppressor (TVS) enables you to get double 600W lightning surge protection against the lightning strike over RS485 link, and 15KV static protection over RS232 link effectively protect your value devices against high voltage spikes. Simple Operation
DCPC (Data Collision Protection Control) function can detect the incoming or outgoing data and automatically switch into the send or receive mode, then you don't have to worry about the data collision problems.
It only requires three lines (RX, TX and GND) to get a RS232 to RS485 conversion, making it great for troubleshooting the serial system, fully plug and play.
Specific
RS232 Link-9 pin female port.
RS485 Link-9 pin male port, 4 position terminal board.
EIA/TIA RS-232C, RS-485 specification.
Up to 32 nodes
Transmission Distance-4000ft over RS485 link, 50ft over RS232 link.
Transmission Media-twisted pair (>=24 AWG) or shielded cable.
Applications
Computer
Factory industrial automation control system
Micro controller (MCU)
Door safe / Parking system
SCADA (supervisory control and data acquisition)
Product Name | Passive RS232 to RS485 converter(with lighting) |
Why choose us | 15 years of professional supply chain and perfect after-sales guarantee |
Function | Industrial terminal signal conversion |
Package | DTECH LOGO BOX |
