Q614/5F 16P Pneumatic three way ball valve DN 25 32mm Pneumatic wire mouth Three way valve thread 304 stainless steel L / T type
- Category: >>>
- Supplier: Ningbo Fenghua Gogo Automatic Trading Company LimitedNingbo Limited
Share on (1600209625382):
Product Overview
Description
Product Description

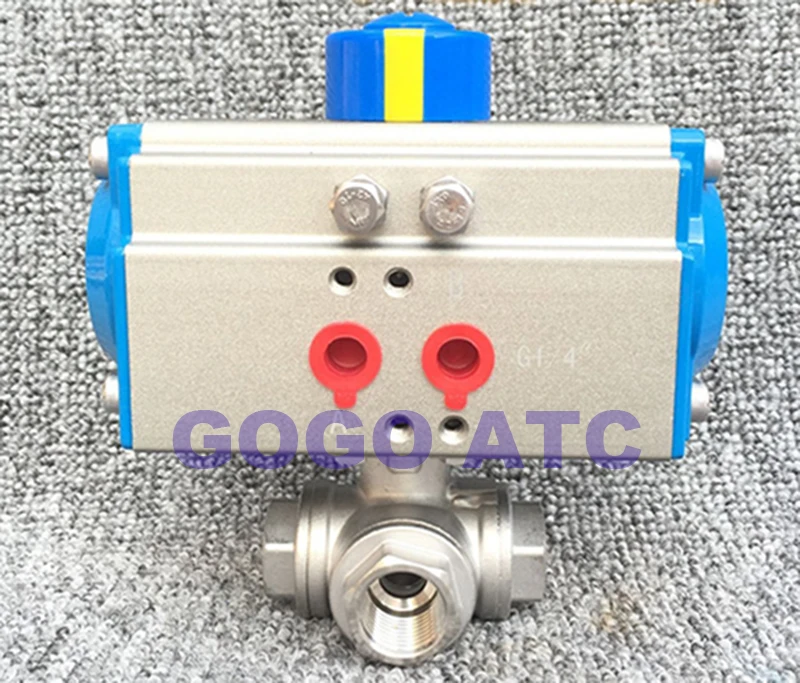

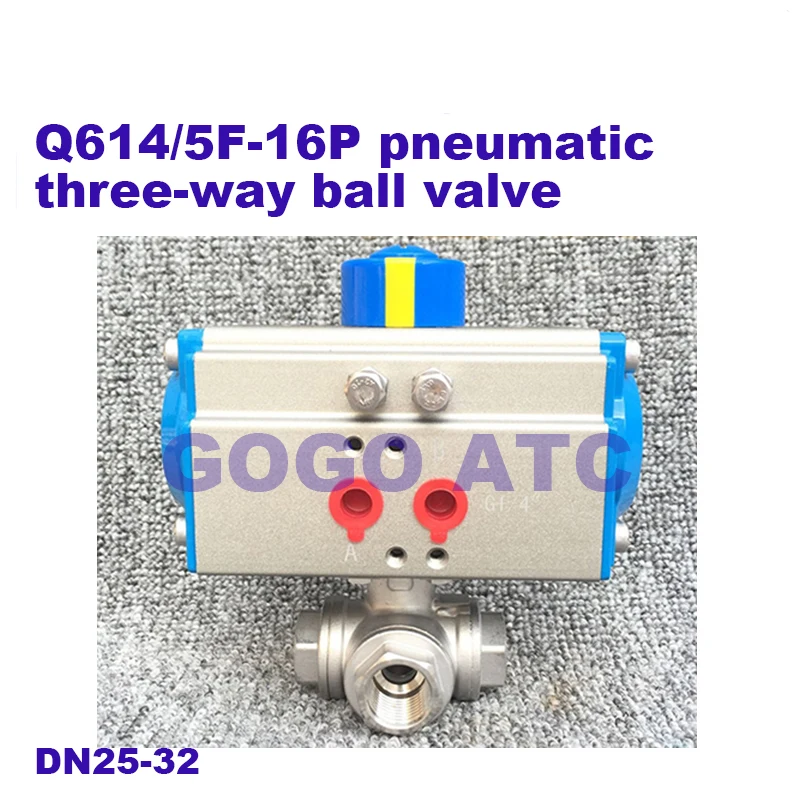

Q614/5F-16P Pneumatic three-way ball valve Pneumatic wire mouth Three-way valve thread 304 stainless steel L-shaped T type
SIZE:DN25 32
*Select China Post Air Mail Please note*
China Post Air Mail exists the problem of high risk of packet loss and Long time ,
we suggest that you use express transportation(EMS/DHL/Fedex/TNT/UPS) for safe and fast .
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
If you need other models or other size, please contact us

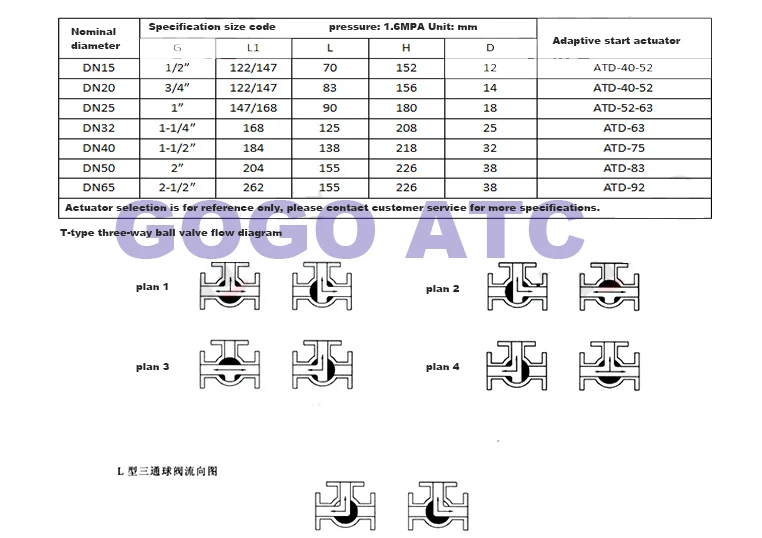

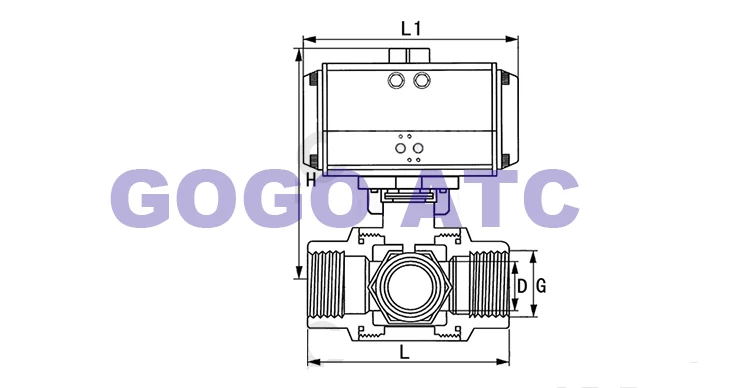

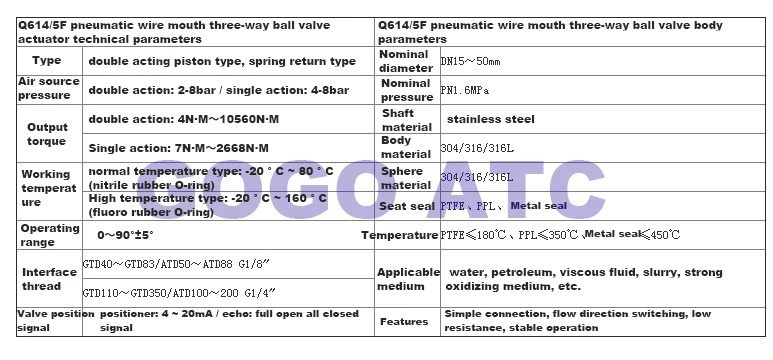

Product parameters
We also have other relevant products, If you need, please contact me !
Overview:
Q614/5F pneumatic wire three-way ball valve can be L-shaped and T-shaped, pneumatic L-shaped three-way ball valve (Q614F) for medium flow direction switching, can be connected to two channels perpendicular to each other; pneumatic T-shaped three-way ball valve ( Q615F) is used for medium shunting, confluence and flow direction switching. The T-shaped tee can make three channels communicate with each other or connect two of them. Pneumatic wire mouth three-way ball valve generally adopts two-valve structure, and can also adopt four-valve structure according to user requirements. It is widely used in water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline systems. Switching the flow direction of the medium and splitting or mixing the fluid.
Features
1. Compact structure, rapid opening and closing, smooth flow path and low fluid resistance.
2, good sealing performance: the use of four-sided valve seat material polytetrafluoroethylene elastic deformation to achieve a leak-free seal.
3, a multi-purpose valve: any port can be used as an inlet without leakage, the three-way can be made into an L-shaped port, or can be made into a T-shaped port.
4, convenient maintenance: After the system is relieved of pressure, it can be inspected and repaired without removing the entire valve body.
Pneumatic actuators
The new GTD series or ATD series pneumatic actuators are double-acting and single-acting (spring return), gear transmission, safe and reliable; large-diameter valves adopt AW series pneumatic actuator fork-type transmission, reasonable structure, output torque Large, double acting and single acting.
1. Gear type double piston, large output torque and small volume.
2. The cylinder is made of aluminum and gold materials, which is light in weight and beautiful in appearance.
3. Manual operation mechanism can be installed at the top and bottom.
4. The rack type connection can adjust the opening angle and rated flow.
5. The actuator can be equipped with electric signal feedback indication and various accessories for automatic operation.
6, IS05211 standard connection provides convenience for the installation and replacement of the product.
7. The joint screws adjusted at both ends can make the standard product have an adjustable range of ±4° at 0° and 90° to ensure the synchronization accuracy with the valve.
