Product Overview
Description

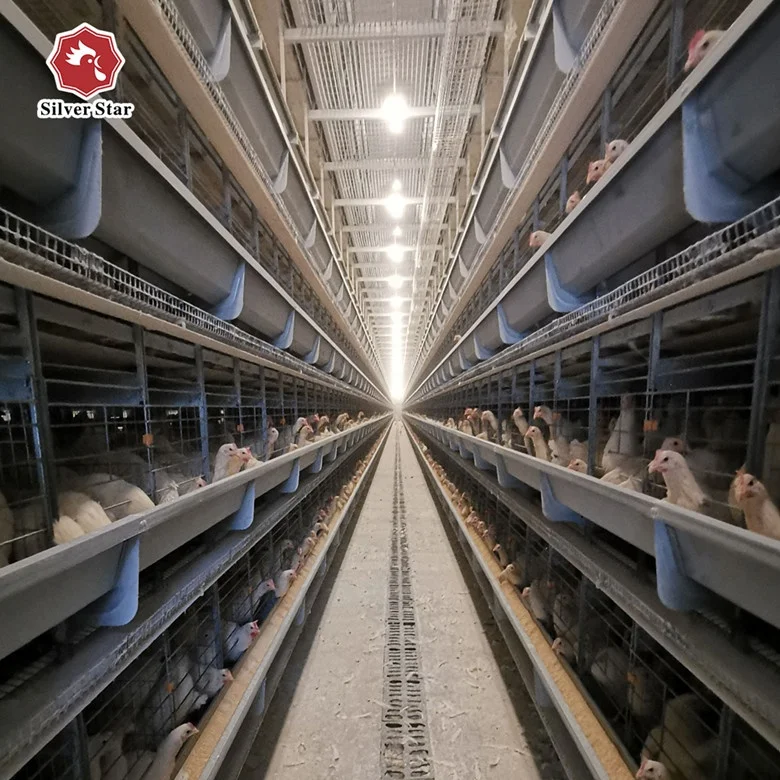

China factory H type batter chicken cage automatic galvanized poultry layer cages for Africa farm

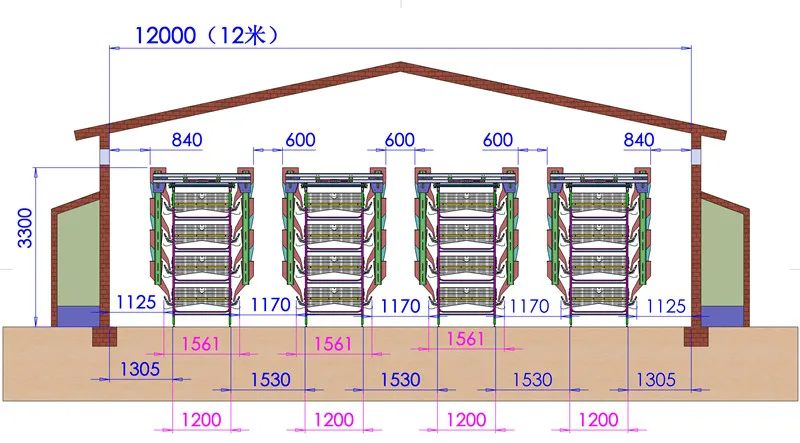

(1)Tiers:3,4,5,6,8 leves/floors
(2)Material:Q235 Hot-Dipped Galvanized,Zinc thickness: 275g/㎡
(3)Frame:Material of leg of frame is hot-dip galvanized steel with thickness: 2mm
(4)Feed trough:Material: hot-dip galvanized steel. Thickness: 1.0mm.
(5)Design:Fully Automatic Poultry Breeding Layer Egg Chicken Cage Equipment

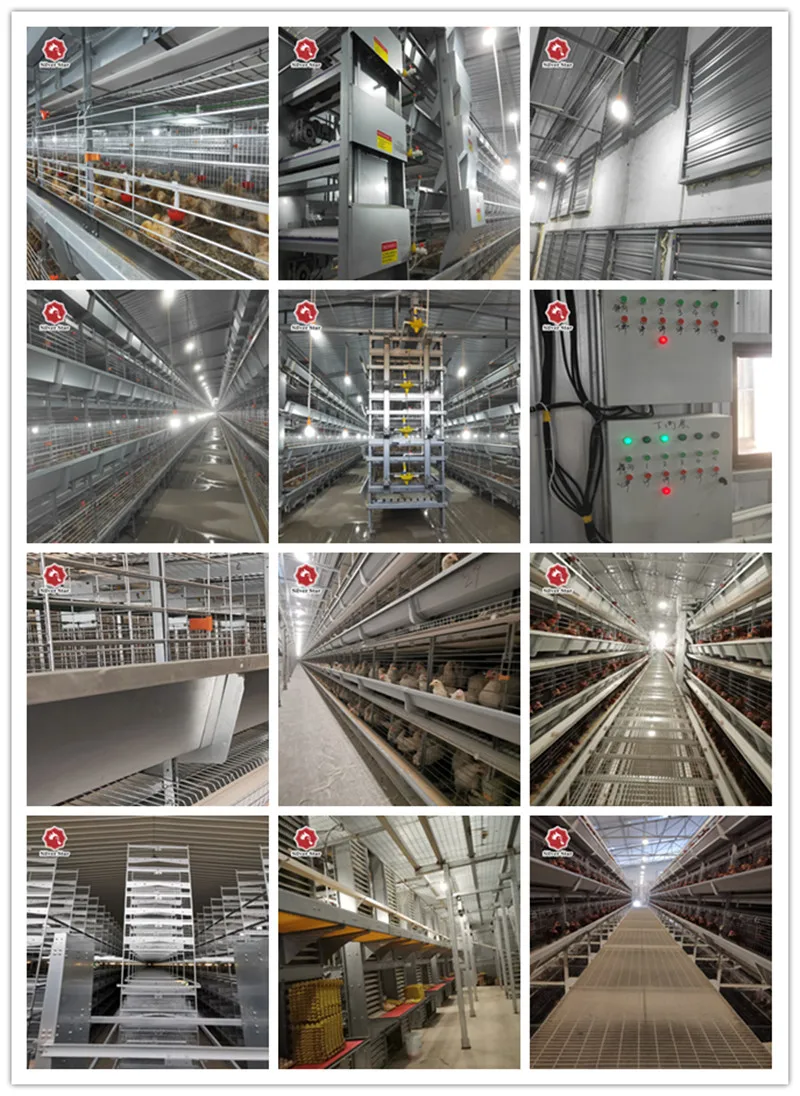

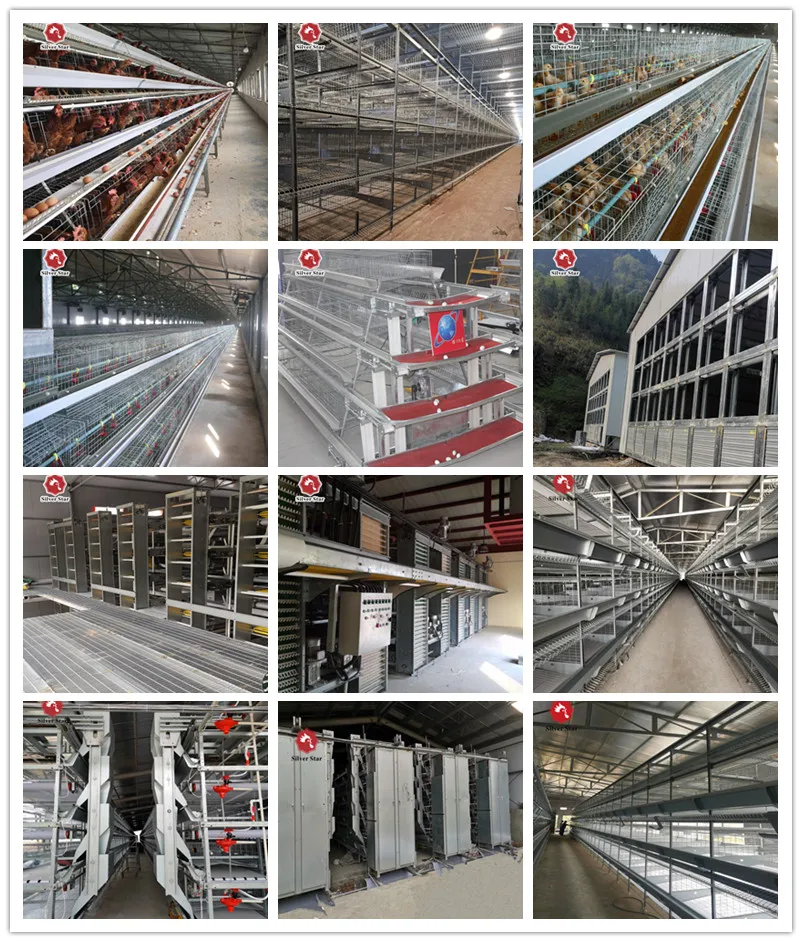

(6)Fully Automatic System Including Egg Chicken Farm Layer Chicken Poultry Battery Cages Body,Egg Layer Bird Chicken Laying Hens Cage Frame,Feeders,automatic drinking system,on-rail hopper feeding system,manure removal stystem,egg collection system,Ventilation System etc
Automatic On-Rail Hopper Feeding Machine Equipments
1.Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel
2.Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.
3.Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.
4.Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.
Silo&Feed Uploading Machine Equipments
1.Capacity:4tons,8tons,10tons,13tons,15tons,20tons,33tons
2.Thickness:3mm thickness hot galvanized steel
3.Feed density0.65ton/m3.Material of silo is galvanized steel (275g) ,which is anti-erosive and ensures the long service life
4.Feed weighing device can be installed if required to control the feed amount consumed by layers
5.Auger Feed Uploading Device:Hot-Dipped Galvanized
Egg Collection Machine Equipments
1.Hot-dip galvanized 1.5mm side plate,speed 2.95m/min.
2.Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device.
Egg Belt
1.Material is PP woven belt,thickness 2mm,Width 100mm.
2.Clip for egg collection belt:Material is PVC, for one unit, each tier with 4pc.
Crossewise Egg Conveyor
Directly transfered to egg collection house,cheap price&cost saved
Front Drinking Lines
1.Nipple Drinkers
2.Water Pipes
3.Water Pressure regulator
4.Filter
5.Medical pump
Nipple Drinkers&Water Pipes
1.Water flow: 30-40ml
2.No water splashing or leaking, the bird house is dry and clean.
3.25mm*2mm PVC round pipe,resistance 90°bending with seven times.
Reducing Valve
1.With double back-flushing system
2.Working pressure:0.1-0.4Mpa.
3.Water flow at working mode is 20kg/min.
Automatic Manure/Waste Cleaning Machine Equipments
1.Belt type manure cleaning machine:Hot-dip galvanized 3mm side plate,chain safety door with 1mm hot-dip galvanized steel, running speed 3m/min.1.5KW
2.Manure cleaning belt:Material is PP, which has high tensile strength to ensure a long service life.Thickness is 1.2mm.Width is 1.2m.
3.Bracket for manure cleaning belt:Material is hot-dip galvanized steel, thickness is1.5mm.
Crosswise Manure/Waste Conveyor
Transverse manure conveying :
Each house is with 1 set, transverse and slope conveying is separate, the material is 5mm angle steel welded.
Manure belt: rubber belt with 8mm thickness.
The transverse manure conveying system adopts rubber conveying belt. There is no leak of manure during the transportation.
Ventilation Fans
1.Fan frame: Hot-dip galvanized steel with Zinc thickness 275g/m2.
2.Blade: 430BA stainless steel with 1.2mm thickness sheet.
3.50"Fans
Size:1380x1380x450mm
Airflow:44000m3/h
380V/ 50HZ /1.1KW
Cooling Pad
1.Thickness:150,200mm
2.Length:1500,1800,2000,2500mm or as customers' request
3.Frame:Galvanized Or Aluminimum
4.Water Recycling System Included
Environmental Controller
EC-1211 Environmental Controller
1.Box Size:305x228x120mm
waterproof box
2.Multi-functions
3.High quality and application
Roof Fans
1.Diameter:80cm
2.Material:Stainless Steel
3.Application:Poultry House
4.No electricity need,no noise,can work in the long way.
