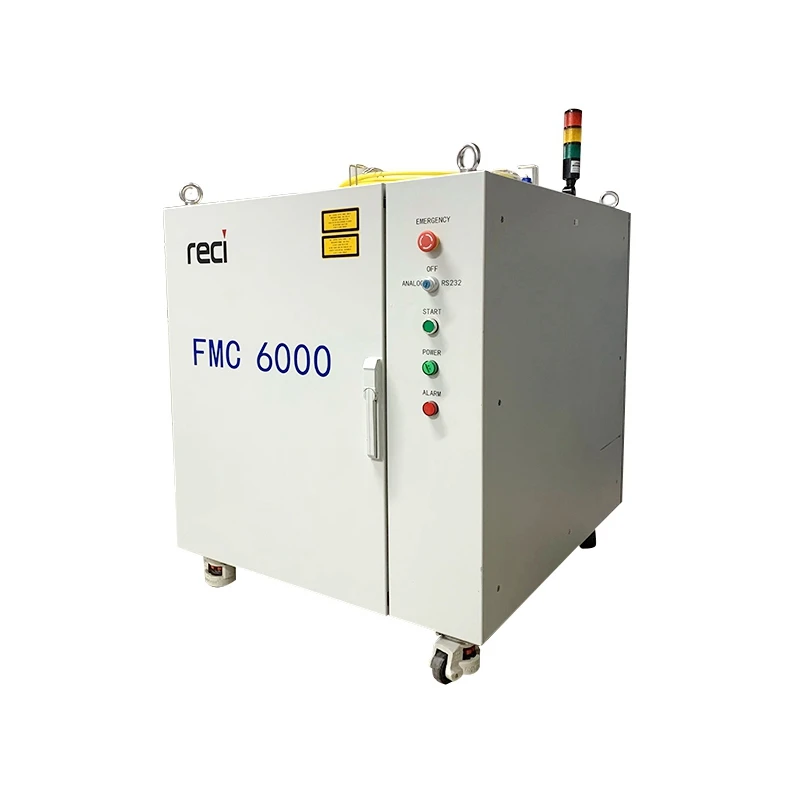

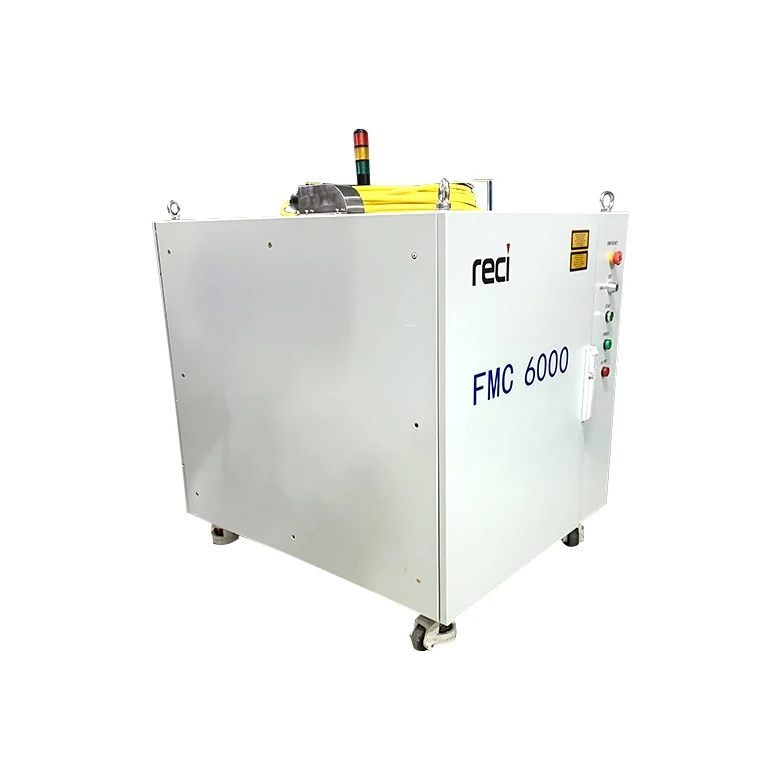

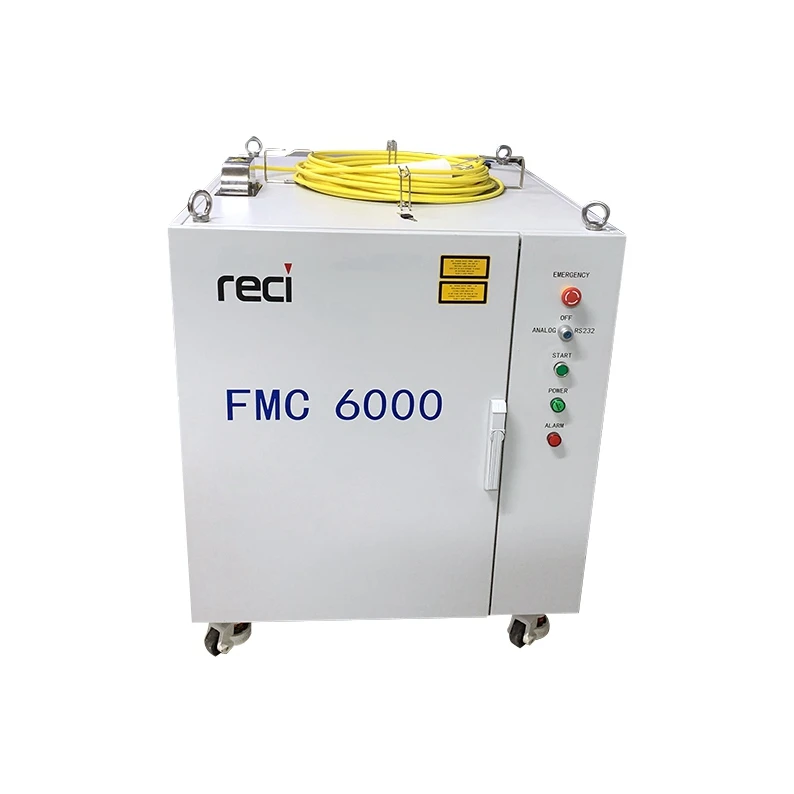

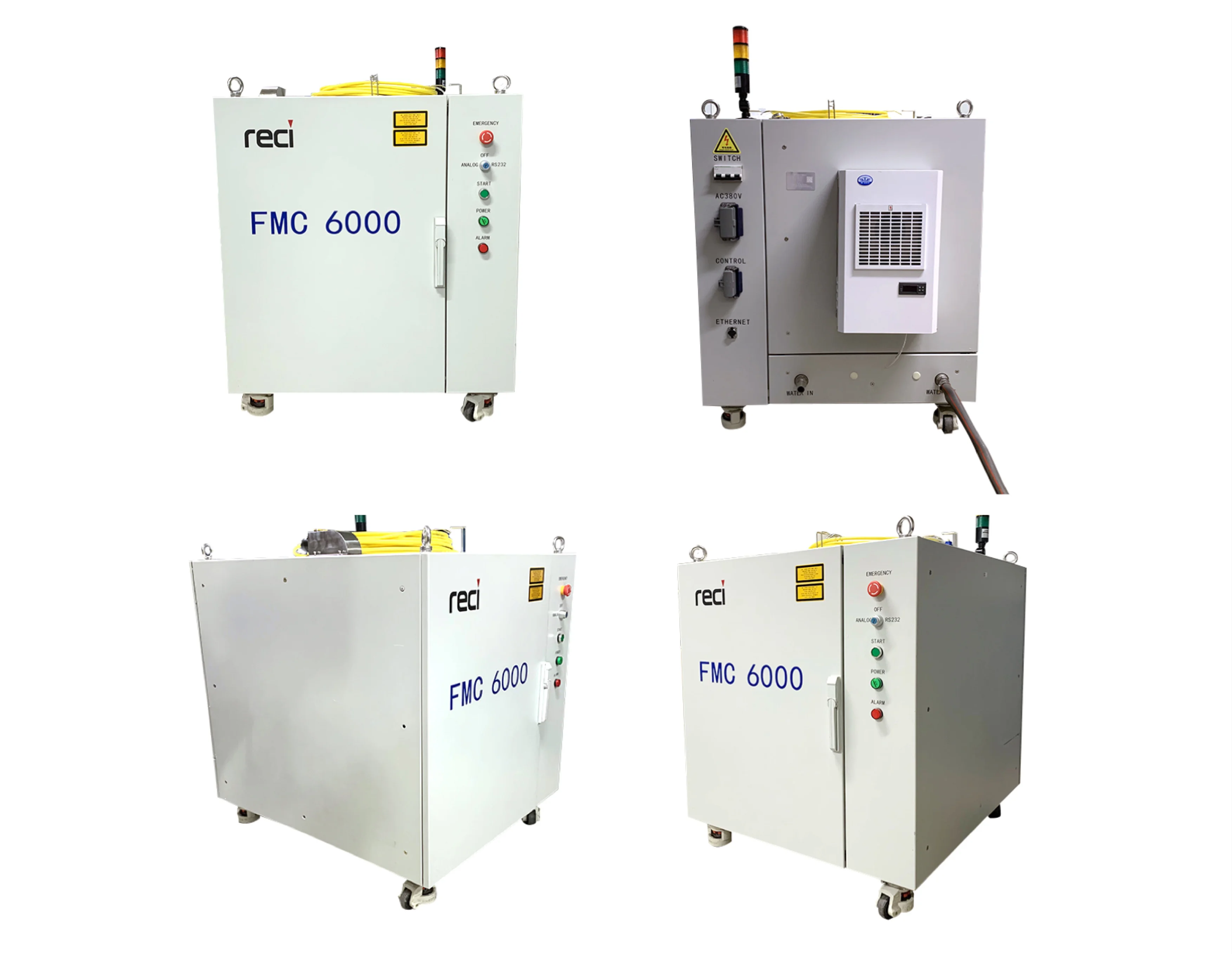

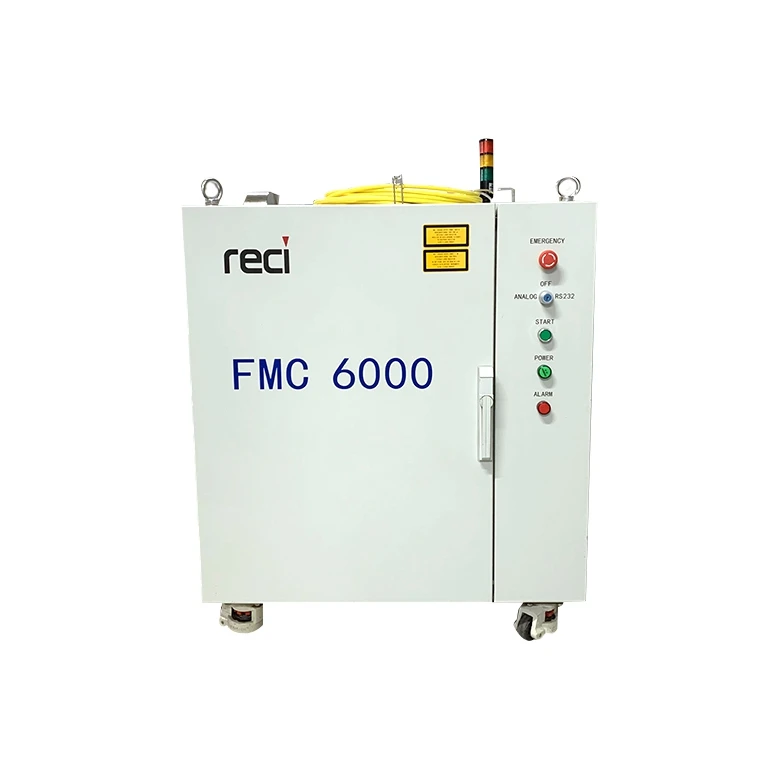

Reci Widely Used Superior Quality Single mode Fiber Laser Cutting Matel Machine Germany IPG Laser source 4000KW RECI Laser
- Category: >>>
- Supplier: Zhejiang Reci Laser Technology Co. Ltd.
Share on (1600209696945):
Product Overview
Description
Product Description
Reci Widely Used Superior Quality Single-mode Fiber Laser Source for Cutting Matel compared with IPG Raycus Laser
MODEL | FMC4000 | FMC6000 | |||
Optical Specification
| Output Power(W) | ≥4000 | ≥6000 | ||
Operating Mode | CW/Modulate | ||||
Power Range (%) | 10~100 | ||||
Central Wavelength (nm) | 1080±3 | ||||
Max. Modulation Frequency (kHz) | 20 (kHz) | ||||
Beam Delivery Optics | QBH | ||||
Output Fiber Diameter (μm) | 100 (Customized 50) | ||||
Delivery Fiber Length (m) | 20 (Customized 15) | ||||
Operating Voltage (VAC) | AC 380V 50/60Hz | ||||
Control Mode | Ext. RS 232/Ext. AD/Hyper terminal | ||||
| Ambient Temperature (℃) | Dimensions W×H×D (mm3) | 806×873×1216 | 886×1241×936 | ||
Weight (kg) | <300 | <400 | |||
Ambient Temperature (℃) | 5~40 | ||||
Ambient Humidity(%) | <70 | ||||
Cooling Method | Water cooling | ||||
QBH Cooling Water Temperature (℃) | Room temperature (No condensation) | ||||
Cooling Water Temperature (℃) | 25 (28 in summer) | ||||
Cooling Water Flow with load(L/min) | >10 | >15 | >20 | >30 | |
Fiber Laser Source
FMC series high-power multimode continuous-wave fiber laser is developed and produced by Beijing Reci Laser Technology co., Ltd. The average output power ranges from 4000W ~ 15000W, with modular design, high system integration, good environmental stability, long lifespan and maintenance-free operation. The series products can be widely used in metal cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, and high electro-optic conversion efficiency. Especially, the cutting speed is fast, and the slits are bright while cutting the thick metal plate, which has obvious advantages compared with other similar lasers on the market.
More Products
Product Line
Our Company
Certification
Exhibition
Packaging&Shipping
FAQ
Q: Does it similarly as Rofin Rf Metal Laser?
A: Yes, We have the power from 100W to 700W.
Q: I want to customize the Fiber diameter. Can you do it?
A: Yes, we can do 20/30um for FSL1000 and 30/50um for FSC1500 and FSC2000. You can text me if you have other special requirements.
Q: Can you do OEM Fiber Lasers?
A: Yes, if you meet the requirements, we can do some OEM for you.
Q: How can I clean when the laser tube lens polluted?
A: Blow the lens surface obliquely with balloon. If the above no effect, user needs to remove the lens and use a cotton ball with a little alcohol to rotate the lens. No need too much alcohol, but the glue layer of the adhesive lens cannot be touched in case of gas inside escaping. The laser cannot be used till alcohol evaporating.
Q: How can I store the laser tubes when I do not use it?
A: The cooling liquid must run out in storage or transportation; The output must be covered with a dust-proof plastic wrap; The storage temperature should be kept between 2-40°C and the humidity between 10-60%.
