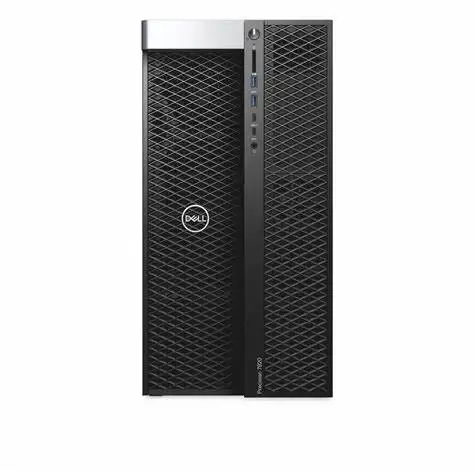

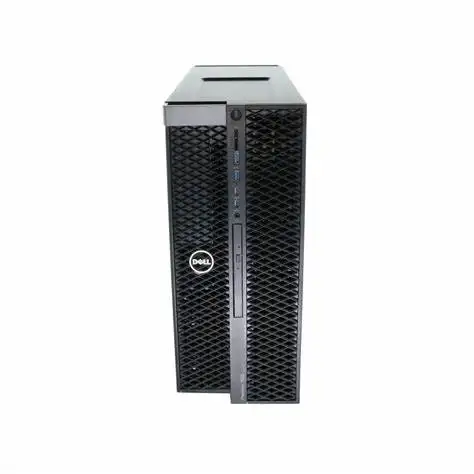

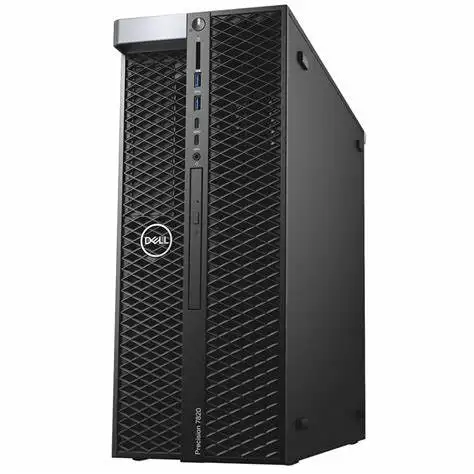

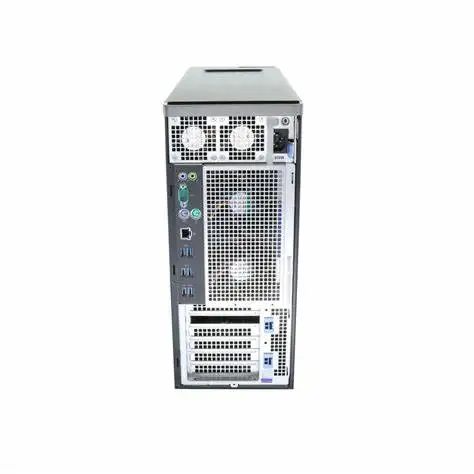

Product Name | PowerEdge T7820 Tower Workstation |
Processor | One or Two Intel Xeon Scalable Processor family CPUs (1st and 2nd generation) with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology |
Memory | Six channel memory up to 768GB 2933MHz DDR4 DDR4 ECC memory with dual CPUs, 12 DIMM Slots (6 DIMMs per CPU). Note: Memory speed is dependent on specific Intel Xeon Scalable Processor CPU installed. |
Storage controllers | Integrated: Intel® chipset SATA controller (6Gb/s) with 6 SATA ports plus 2 dedicated ports for optical drives. Intel RSTe software RAID 0,1,5,10 Intel RSTe (vROC) software RAID 0,1,10 option (motherboard activation key) for M.2 NVMe PCIe SSDs on Dell Ultra-Speed Drive Quad card, Duo x8 card (RAID 0,1) and for 2 x front FlexBay M.2/U.2 NVMe PCIe SSDs |
Chipset | Intel® C621 (Lewisburg) |
Audio Controller | Integrated Realtek ALC3234 High Definition Audio Codec (2 Channel) |
I/O & Ports | Front 2 – USB 3.1 Gen 1 Type A 2 – USB 3.1 Type C 1 – Universal Audio Jack Internal 1 – USB 2.0 Type A 1 - 2 x 5 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports) 6 - SATA @6Gb/s plus 2 for optical Rear 6 – USB 3.1 Gen 1 Type A 1 – Serial 1 – RJ45 Network 2 – PS2 1 –Audio Line out 1– Audio Line in/Microphone |
Security Options (Check regional availability) | Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington® lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise Lockable front bezel (covers FlexBays), Front FlexBay NVMe drives are removable (hot swap). |
Manageability3 | AMT or vPro with DASH support Dell vPro Enhancements (Grasslake) SNMT/CIM vis OMCI Dell Command Suite |
