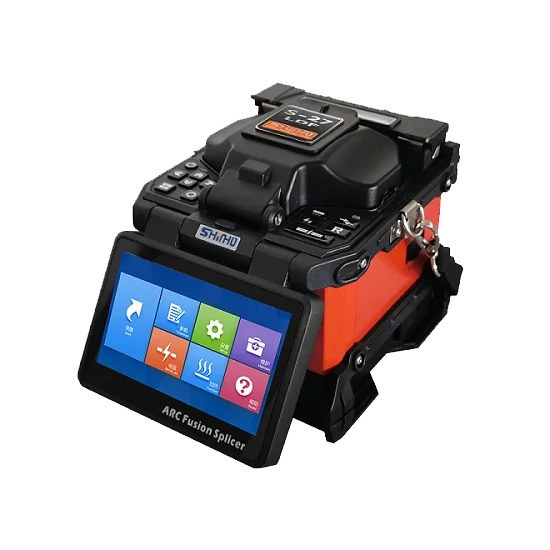

Large Diameter Fiber (LDF) Specialty Fiber Fusion Splicer S 27
S-27 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~600um) with S-27 Specialty Fiber Fusion Splicer.
Features
※ Applicable to cladding diameter 125~600μm fiber

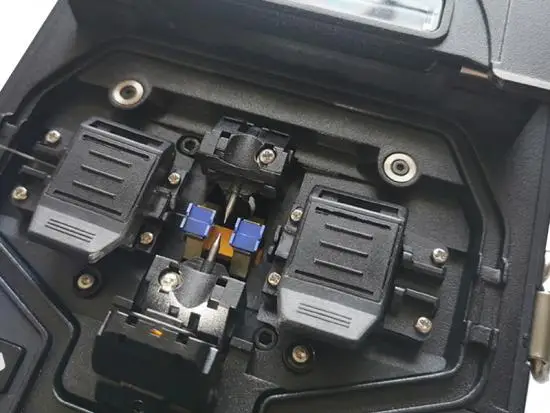

※ Accurate alignment, world standard fusion loss

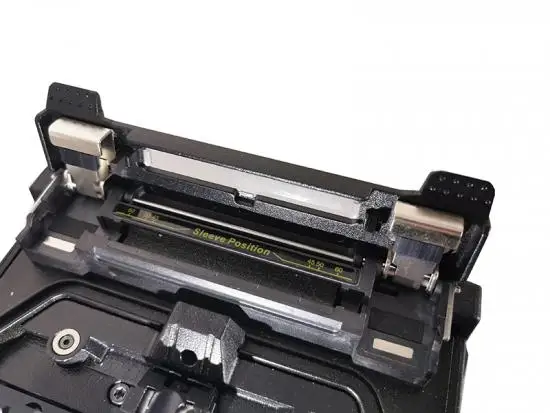

※ 14s splicing time, 24s heating time for 40/60mm tube
※ Applicable to different types fibers (SM/MM/DS/NZDS)

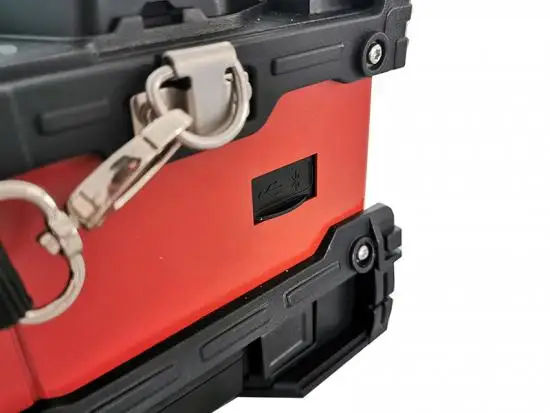

※ Ruggedized body, waterproof, anti-dust, anti-shock
※ Easy to maintenance, easy to replace the electrodes
※ USB port for software upgrading, records exporting
※ Support 4000/100 groups fusion records/fusion images
※ Comply with CE/Rohs international standard
Specification | ||
Alignment method | Clad to clad | |
Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) | |
Cladding diameter | 125～600µm | |
Coating diameter | 250～1000µm | |
Typical splice loss | SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS: 0.04dB | |
Return loss | ＞60dB | |
Splicing program | 40 groups | |
Operation mode | Manual/ Automatic | |
Auto- heating | Available | |
Typical splice time | 14seconds | |
Typical heating time | 24 seconds for60mm/40mm heating tube | |
Fiber magnification | X orY single fiber image120X，X andY double image 60X | |
Viewing display | Dualhighsensitivitycamera,5 inch 800*480 LCD Monitor | |
Data storage | 4000 groups data records and 100 group images | |
Loss evaluation | Available | |
Tension test | 1.8～2.2N | |
Interface | GUI menu interface, easy for operation | |
Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V | |
Electrode life | ＞3000 times discharge (125um)，＞1000 times discharge (＞125um) | |
Terminals | Micro-USB 2.0 port, forsoftwareupgrading, records exporting | |
Operating condition | Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s | |
Dimension | 155mm (L)×144mm (W)×155mm (H) | |
Weight | 2.3kg (incuding battery) | |
