Permanent magnet synchronous motor、Three phase asynchronous motor
Applicable vehicle type
Medium Bus、Large Bus、Logistics Vehicle
Product type
V6-H-4D160G
Rated input voltage
DC 540V
Rated power
160kW&5.5kW&5.5kW&3kW
Input voltage range
DC 350V~750V
Rated output current
253A&13A&13A&110A
Maximum output current
456A&19.5A&19.5A&130A
Output frequency range
0～1000Hz
Protection level
IP67
Cooling type
Water cooling

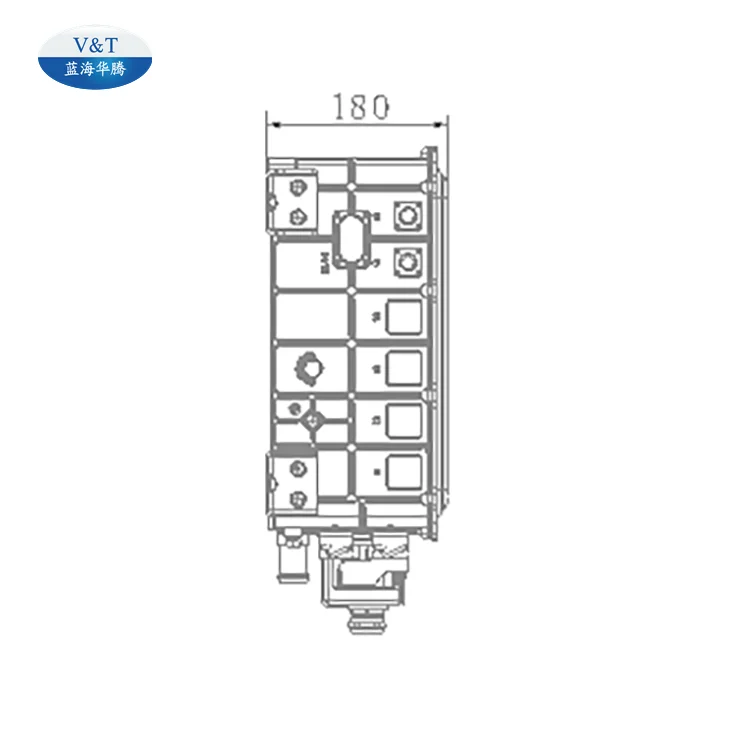

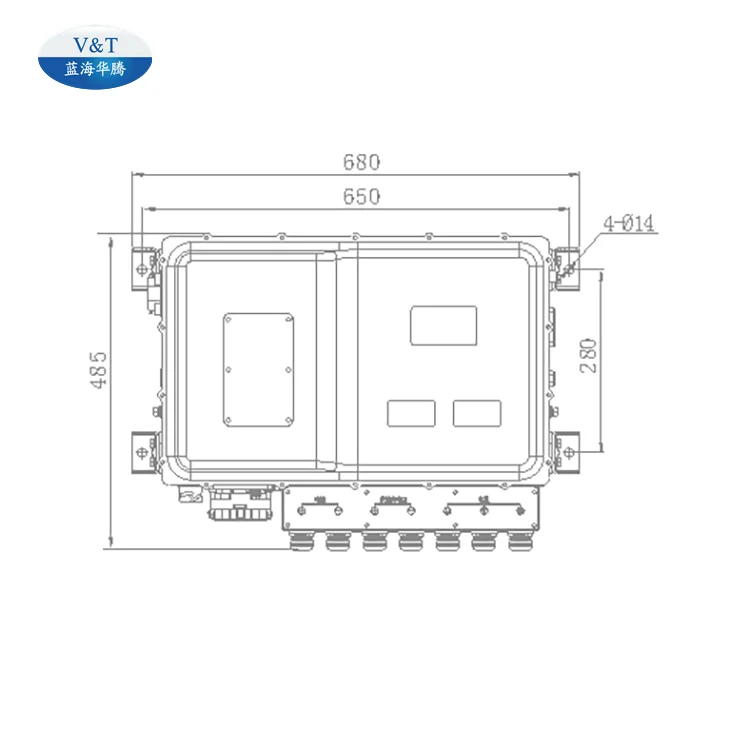

Outline dimension
680*485*180（mm）
Weight
35kg
The product has high power density, strong environmental adaptability, and long design life.
■ Adopt integrated structure design, reduce the number of packaging shells, wiring harness parts, and improve the reliability of electrical connections.
■ The entire system has a simple structure, low manufacturing cost, and convenient installation, which is conducive to the wiring harness assembly and assembly of the entire vehicle, and has high economic benefits.
