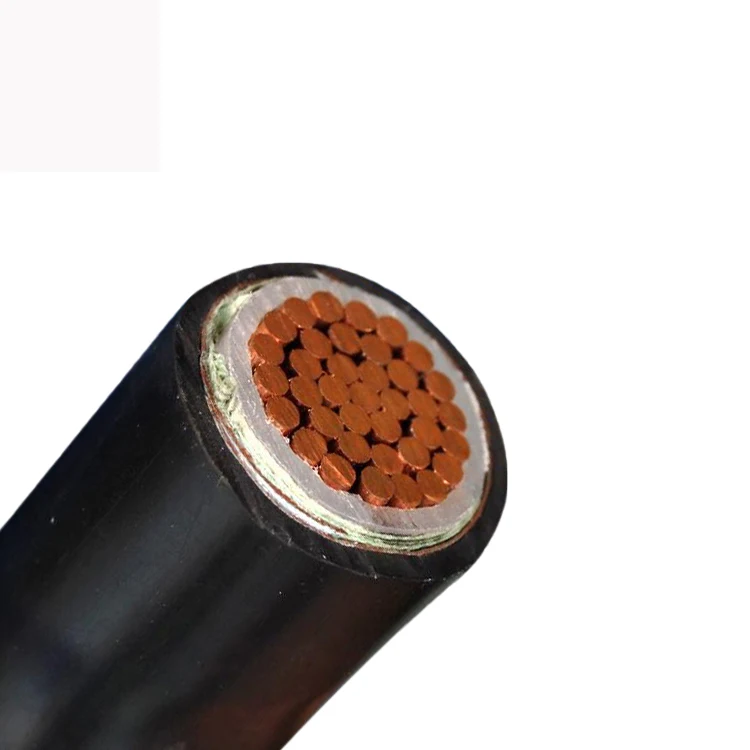

0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable
0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable
0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable
0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable
0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable
0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable
0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable

0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable

Share on:


Price:RUB 23.01 - RUB 383.38
Price in USD:Details

Quantity:


Product Overview

Description

0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable

Product Description



Conductor: Aluminum or Copper
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Insulation: PVC/LSF/Fire Resistant
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-300mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
We can customize the size according to your requirement

 armoured cable5

Power Cable Parameter:
Part Number Cross Section Stranding Approx Weight Approx Overall Diameter Gland Size Single Cleat Nom. Max. DC-resist conductor 20° C Current rating laid direct
(mm²) (mm) KG/KM (mm) (mm)   (Ohm/km) (Amp)
SWAPVC4X1.5 4 x 1.5 7/0.53 351 12.88 20s 0.5 12.1 32
SWAPVC4X2.5 4 x 2.5 7/0.67 429 14.43 20s 0.6 7.41 42
SWAPVC4X4.0 4 x 4.0 7/0.85 538 16.87 20 0.6 4.61 55
SWAPVC4X6.0 4 x 6.0 7/1.04 670 17.87 20 0.7 3.08 69
SWAPVC4X10 4 x 10 7/1.35 998 20.1 25 0.8 1.83 92
SWAPVC4X16 4 x 16 7/1.70 1,272 22.4 25 0.9 1.15 119
SWAPVC4X25 4 x 25 7/2.14 1,940 27 32 1 0.727 152
SWAPVC4X35 4 x 35 7/2.52 2,390 30.1 32 1.2 0.524 182
SWAPVC4X50 4 x 50 19/1.78 2,925 31.5 32 1.4 0.387 217
SWAPVC4X70 4 x 70 19/2.14 4,200 37.4 40 1.6 0.268 266
SWAPVC4X95 4 x 95 19/2.52 5,355 40.9 50s 1.8 0.193 319
SWAPVC4X120 4 x 120 37/2.03 6,925 46.6 50 2 0.153 363
SWAPVC4X150 4 x 150 37/2.25 8,200 50.2 50s 2 0.124 406
SWAPVC4X185 4 x 185 37/2.52 9,975 55.8 63s TC9 0.0991 458
SWAPVC4X240 4 x 240 61/2.52 12,700 62.5 63 TC10 0.0754 529
SWAPVC4X300 4 x 300 61/2.85 15,275 67.4 75s TC11 0.0601 592
SWAPVC4X400 4 x 400 61/3.20 19,875 77 75 TC12 0.047 667
Certifications

 photobank

Production Flow

product flow 1



Our factory has advanced equipment of 20 sets production lines and 25 sets testing machinas, The production capacity is more than 12 million kilometers. We have skillful staff over 20-year experience,before starting working, every worker need to be trained professionally. Therefore, we can promise the product will be 100% quantified.

0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable


Testing:



test

In our factory, every roll wire need to be test strictly, We wil test resistance, insulation thickness, the tension, stretch and so on. Before packing, every cable need to be test quantified, and we can make promise the 100% quantified.

Packaging & Shipping

photobank (1)

0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable

Package:

When you identify the details, don't forget to choose the package and its color. In usually, customer usually choose wooden drum and you can choose paint blue color, yellow color or red color. If you don't like these package or color, we can customize for you, now, you can send us your wanted package and colors.



delivery 1

0.6/1KV PVC Single Core Armoured XLPE PE 300mm2 400mm2 500mm2 630mm2 800mm2 Copper Power Cable

Delivery:

First of all, we will delivery on time. Especially in the busy season, we will word overtime to make sure delivery on time.

Secondary, about the loading, the cable will be protected well, all the needed measure will be adopted.

Thirdly, we have cooperated with profesional shipping agent and shipping company to keep you receive the intact on time.

Now you can send us the inquiry.



Buyer Feedback

photobank (6)

We promise 100% quantified product, and we will also pay attentiont to package and delivery. Therefore, our customer can receive the perfect product. Come to start our business.

FAQ

1. The time you can get the quotation after the sending the inquiry

In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.

2. For Sample

We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.

3.Payment

Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight

4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.

......

If you have any other question, you can send us inquiry, we will reply to you as soon as possible
