High Quality Standard Oil and Gas Tank or Pressure Vessel
- Category: >>>
- Supplier: Shenyang Yongye Industry Co. Ltd.
Share on (1600210053226):
Product Overview
Description

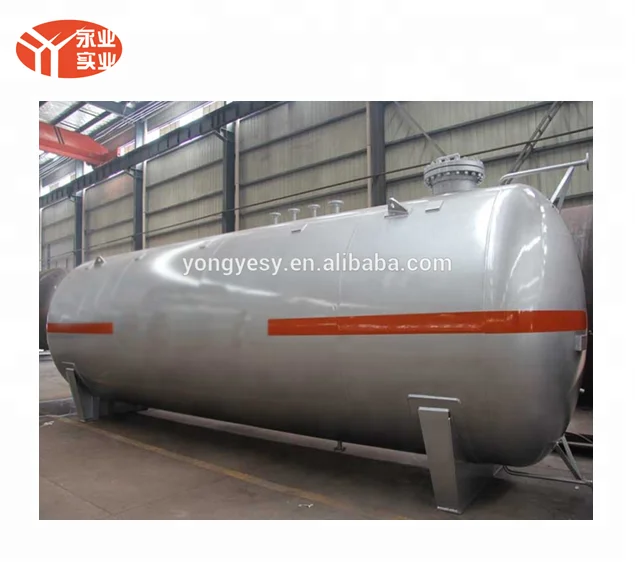

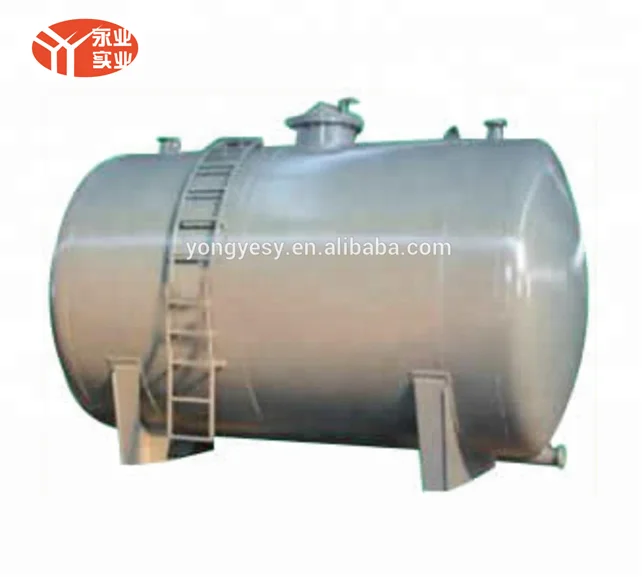

ASME Gas storage tank for petroleum pipeline
Product Description
Product Description: storage tank/pressure vessel/storage
Pressure Vessels & Tanks | |
Design Code | ASME VIII-1, PD5500, API 650 |
Diameter Range | Up to 4 Meter |
Length Range | Up to 50 Meter |
Pressure Range | Up to 35 Mpa |
Material Code | From ASME & ASTM |
Available Material | CS, SS, Alloy, High Alloy |
Major Markets | Refinery, Petrochemical, Chemical, Offshore, Pharmaceutical,Marine Industries |
Packaging & Delivery:
| Packaging Detail | By seaworthy packages |
| Delivery Detail | 30-60Days |
Specificatopns:
1.Material: stainless steel and carbon steel .
Material | Mild Steel | Carbon Steel | Low temperature CS | SS304/L | SS316/L |
Plate | SA36 | SA516 Gr.70N | SA516 Gr.70N | SA240 304/L | SA240 316/L |
Pipe | - | SA106 Gr.B/SA53-B | SA333 Gr.1 / 6 | SA312 TP304/L | SA312 TP316/L |
Tube | - | SA179 | SA179 | SA213 TP304/L | SA213 TP316/L |
Tubesheet | - | SA266 Gr.2N | SA350 LF2 CL.1 | SA182 F304/L | SA182 F316/L |
Forging | - | SA105N | SA350 LF2 CL.1 | SA182 F304/L | SA182 F316/L |
Fitting | - | SA234 WPB | SA234 WPB | SA403 WP304/L | SA403 WP316/L |
Bolt | - | SA193 B7 | SA193 B7 | SA193 B8 | SA193 B8 |
Nut | - | SA194 2H | SA194 2H | SA194 G8 | SA194 G8 |
2.Pressre: up to 35MPa .
3.ASME & CE standard.
Company Information
Company Presentation:
We, Shenyang Yongye Industry Co., Ltd. founded in 1999, specializes in designing and manufacturing the pipeline cleaning, interior coating, detecting and positioning devices, pressure piping components (insulating joints), pig launcher and receivers, quick opening closures, filter separators, heat exchangers, gas tanks, oil tanks, monel nickel copper alloy series.
All products being widely used in oil field, petrochemical and natural gas industries both in domestic and abroad market. Yongye industry company has its own laboratory, Research and development team, professional technical team, all products designed as per GB Chinese standard or ASME code and manufactured strictly carry out ISO 9001 system and HSE management system.
Company View:
![LC8)4DOLU4()U4BAE(]XC2J.jpg](http://sc02.alicdn.com/kf/HTB1DWwiHFXXXXcZXpXXq6xXFXXX0/200447593/HTB1DWwiHFXXXXcZXpXXq6xXFXXX0.jpg)
Cooperation:
![K5]_VS{3YQHI2IFV~{7R71.jpg](http://sc01.alicdn.com/kf/HTB1zaHwGFXXXXX_aXXXq6xXFXXXU/200447593/HTB1zaHwGFXXXXX_aXXXq6xXFXXXU.jpg)
Market:
Market
FAQ
1. Price term: FOB, Dalian, China.
2. Payment: T/T, D/A, D/P, Western Union.
3. Delivery time: 35-45 working days after payment is received.
4. Standard Steering:Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.
Our Services
1. Factory Supply:
a. has its own lab, excellent design team, advanced professional equipment and better production environments;
b. all products designed with ASME code and manufactured strictly carry out ISO 9001 system and HSE management system.
2. OEM Ability:
can produce according to your demand, the material, the size, the color and the logo is optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,
b. passed the ISO9001-2008;
c. our brand is china famous brand with good reputation in the market.
4. Good Service: 24-hour hotline and email.
Our Trade Process:
