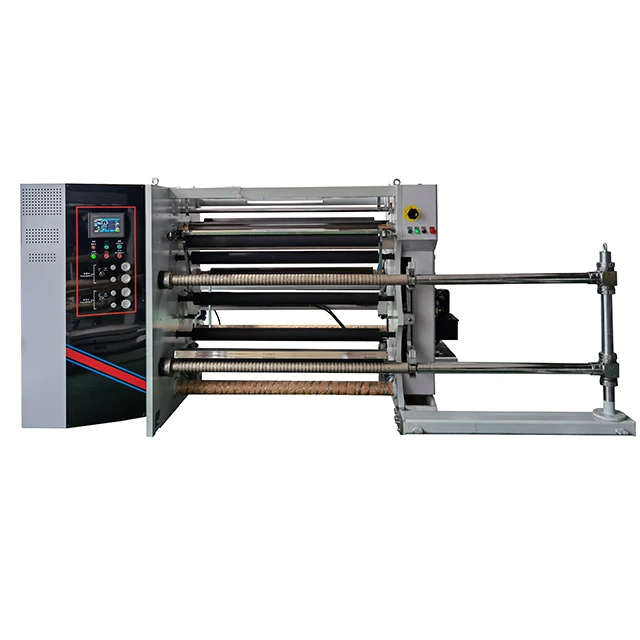

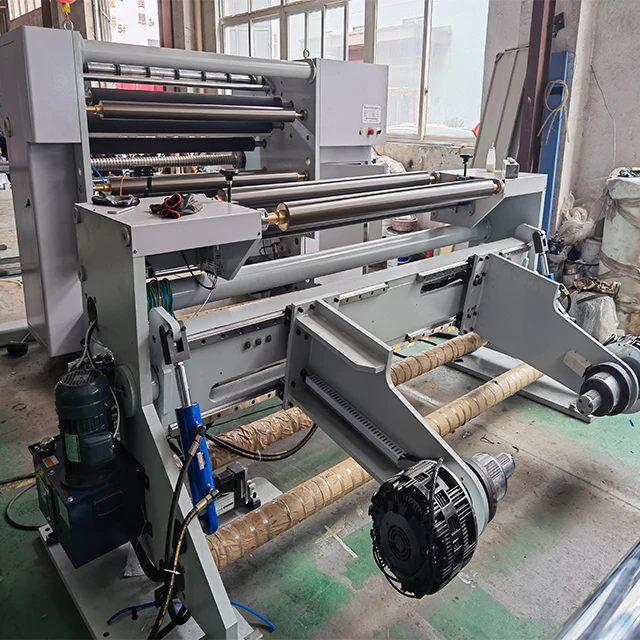

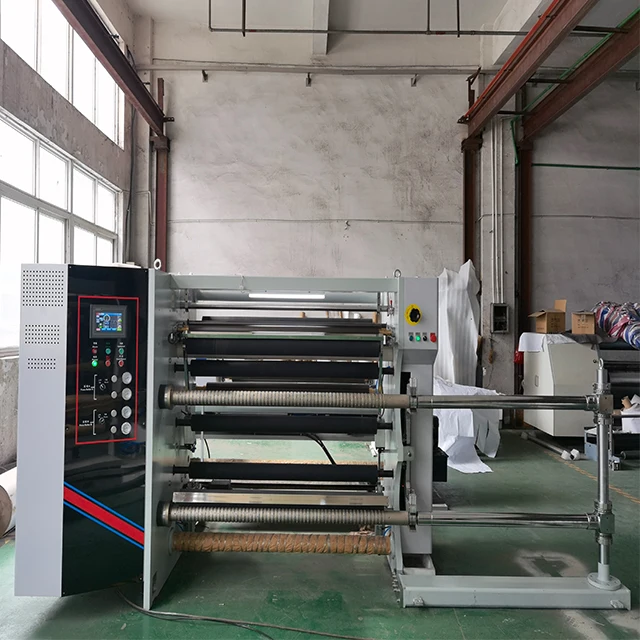

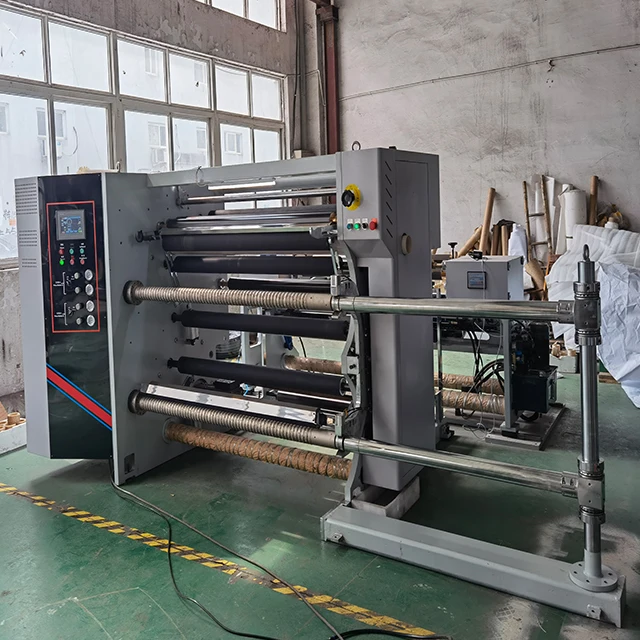

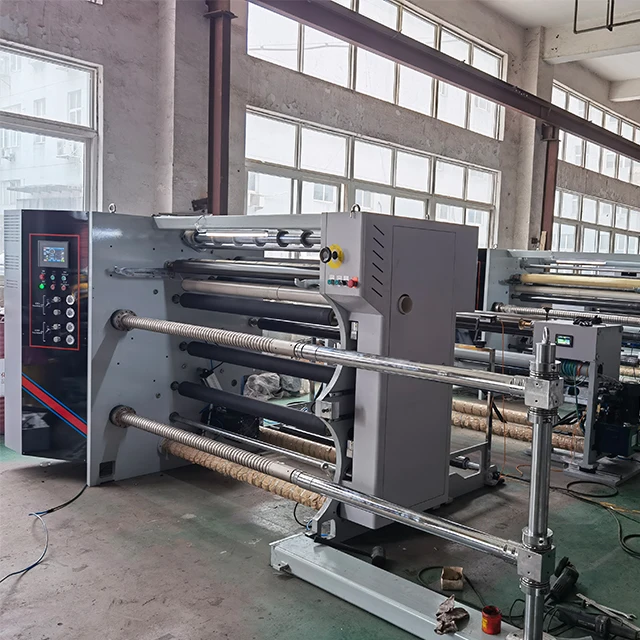

Siemens PLC and Servo Motor Control High Speed Plastic Film Slitting and Rewinding Machine
- Category: >>>
- Supplier: Ruian Lingfeng Machinery Co. Ltd.
Share on (1600210210682):
Product Overview
Description
ZSFQ-1100/1300/1600 Full Automatic 500meter Speed Slitting Rewinding Machine
Introduce:
This Machine main use on packaging industry;it can according customer require to slitting rewinding different specification roll. Whatever it is printed material or white material. High Speed and Accuracy is it’s advantage.
Suitable for PET, Laminated Plastic Film, PVC,BOPP ,PE etc plastic film.it can slitting thin paper such as new paper,grease-proof paper,silicon paper,cigaretee paper,laminated paper etc special kinds paper.
Main Feature:
1) Machine adopt 3 sets servo motor to control, it can guarantee machine working very stable.
2) Machine adopt Siemens PLC brand, through PLC to adjust parameter( include meter, tension, blower etc).

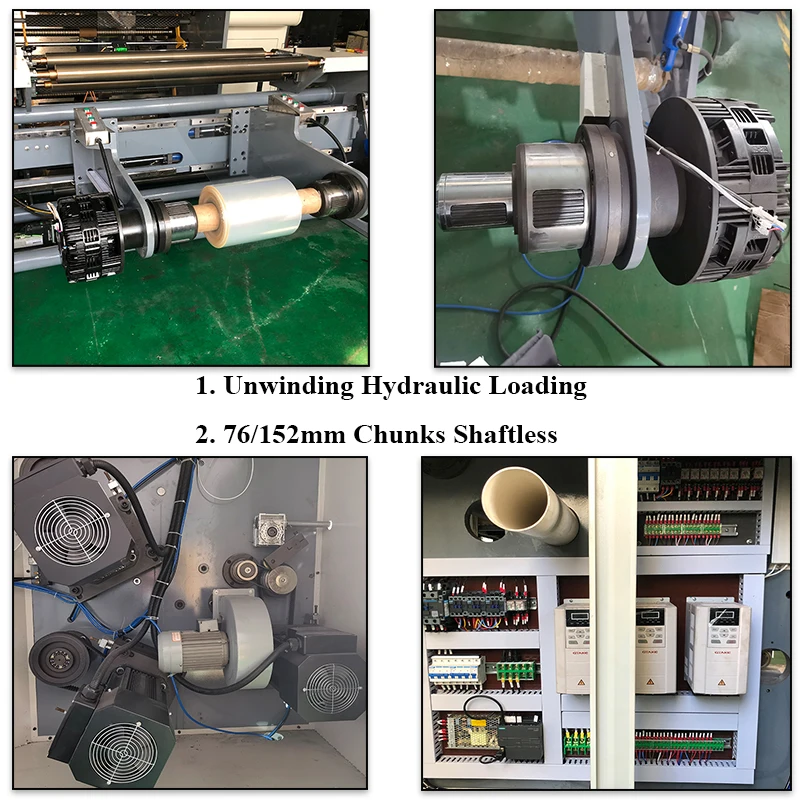

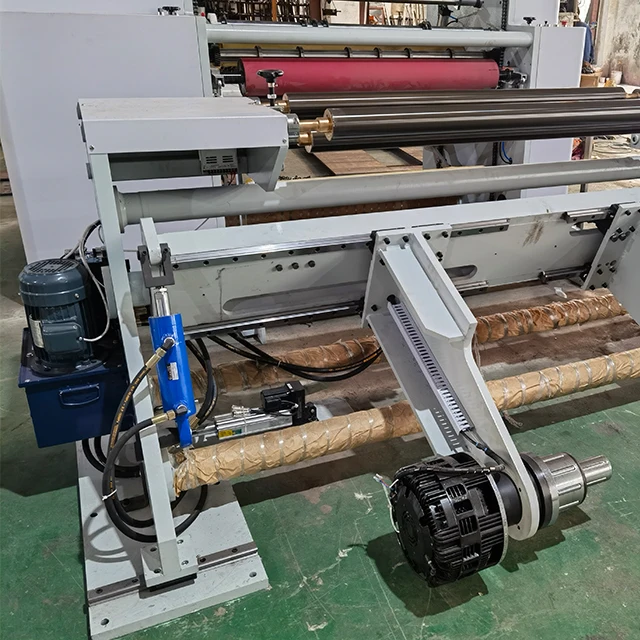

3) Unwinding&Rewinding device adopt 3 inch shaft, pneumatic loading system.
4)Unwinding device have Web Guide control, through import sensor to correct edge of feeding , to guarantee feeding is very exact .

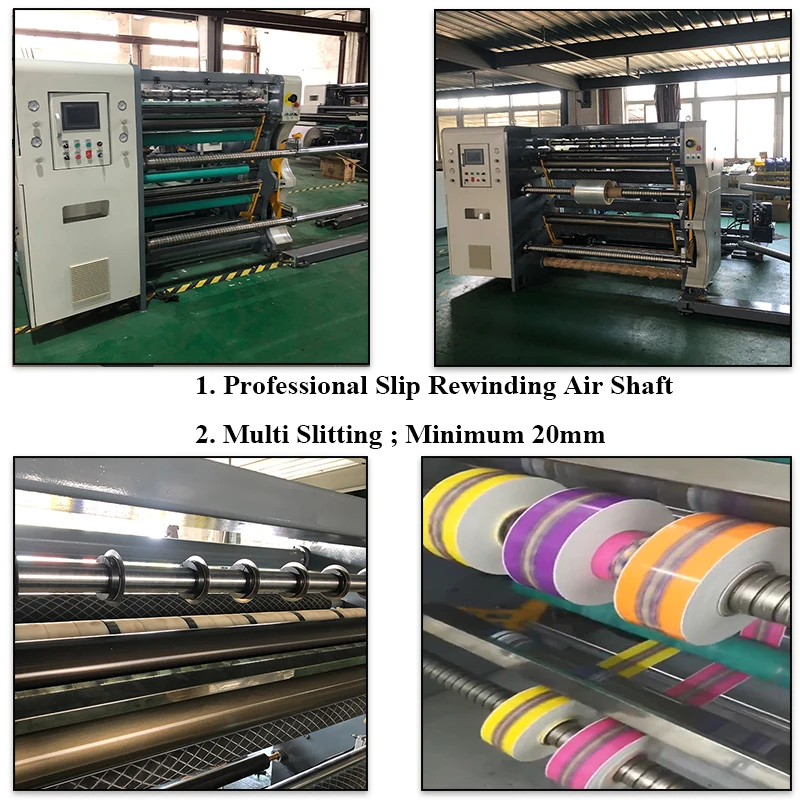

5)Standard machine slitting blade adopt circular slitting blade and Flat blades (Double Purpose). standard free give 10 sets each one.
6) Rewinding device has ancillary device to help clear finished rewinding roll.
7) Machine has automatic counting meter, automatic stop ,automatic alarm etc function.
Machine Specification:
| Model | ZSFQ-1100 | ZSFQ-1300 | ZSFQ-1600 |
| Max.Unwinding Wide | 1100mm | 1300mm | 1600mm |
| Max.Unwinding Diameter | 1400mm | 1400mm | 1400mm |
| Max.Rewinding Diameter | 600mm | 600mm | 600mm |
| Rewinding Roll Width | 20-1100mm | 20-1300mm | 20-1600mm |
| Minimum Slitting Width | 20mm | 20mm | 20mm |
Max.Unwinding Roll Weight Hydraulic Loading | 1200KG 2000KG | 1200KG 2000KG | 1200KG 2000KG |
| Machine Working Speed | 400-500meter per mins | 400-500meter per mins | 400-500meter per mins |
| Maximum Machie Speed | 500meter per mins | 500meter per mins | 500meter per mins |
| Machine Volatge | 380V50HZ | 380V50HZ | 380V50HZ |
| Machine Power | 13KW | 18KW | 23KW |
| Machine Size | 5500mm*3200*1700mm | 5500mm*3500*1700mm | 5500mm*3700*1700mm |
Machine Details:(Machine has improve and update every years, details please contact with sales man)
Packaging Picture:
Company Information:
1. 20 YEARS TECHNOLOGY EXPERIENCE AND PROFESSIONAL WORKER TEAM
2.FOCUS ON PAPER ROTARY CUTTING MACHINE, CROSS SHEET CUTTING MACHINE, SLITTING REWINDING MACHINE,REWINDING MACHINE,PAPER BOX FORMING MACHINE,PAPER CUP MAKING MACHINE,PAPER BAG MAKING MACHINE ETC
3.PROVIDE PROFESSIONAL 24H TECHNOLOGY SUPPORT ONLINE
4. 20DAYS DELIVERY TIME FOR STANDARD MACHINE ORDER
5.SUPPORT OEM SERVICE,PROFESSIONAL ENGINEER TECHNOLOGY SUPPORT.
6.OWNNER WORKSHOP
FAQ:
FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
