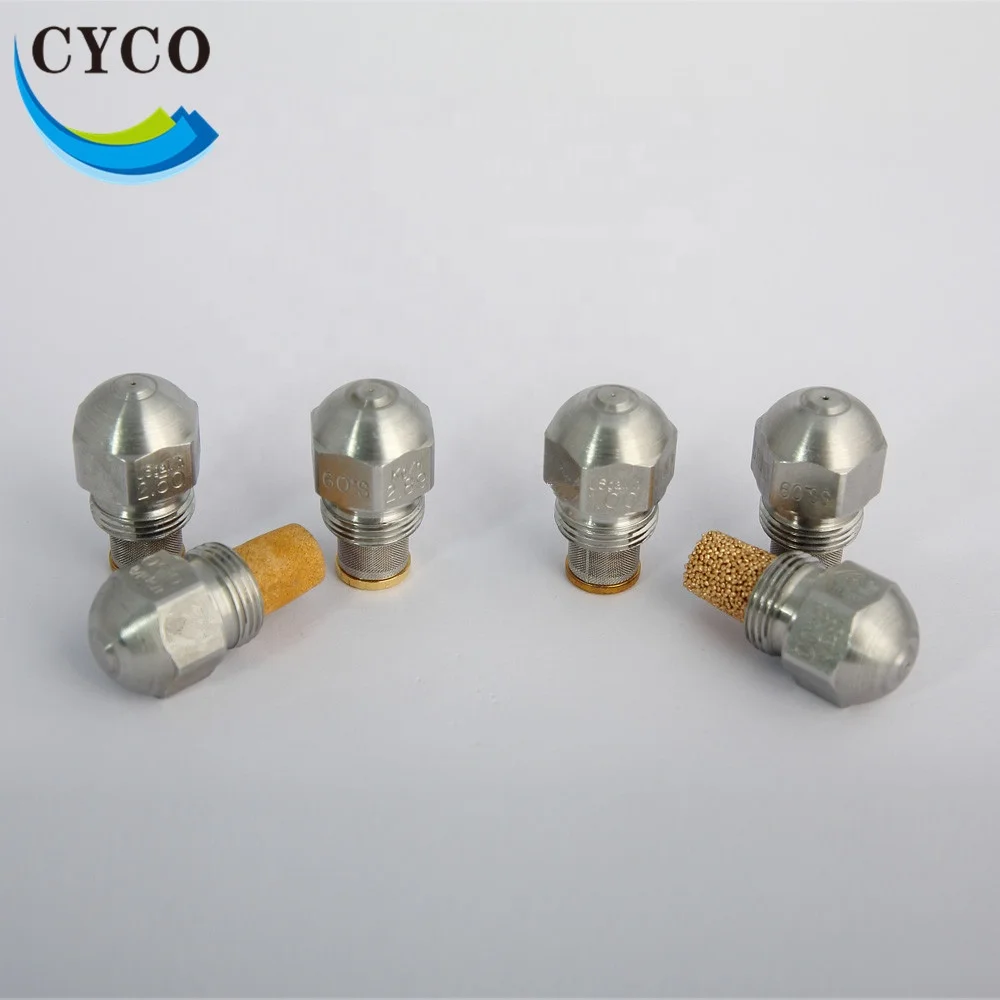

CYCO 30 45 60 80 Degree brass solid cone oil burner misting spray oil jet diesel heavy waste oil burner nozzle

CYCO 30 45 60 80 Degree brass solid cone oil burner misting spray oil jet diesel heavy waste oil burner nozzle

Category: Boiler Parts >>>
Supplier: Dongguan Changyuan Technology Industrial Co. Ltd.

Price:RUB 143.15

Quantity:

Product Overview

Description

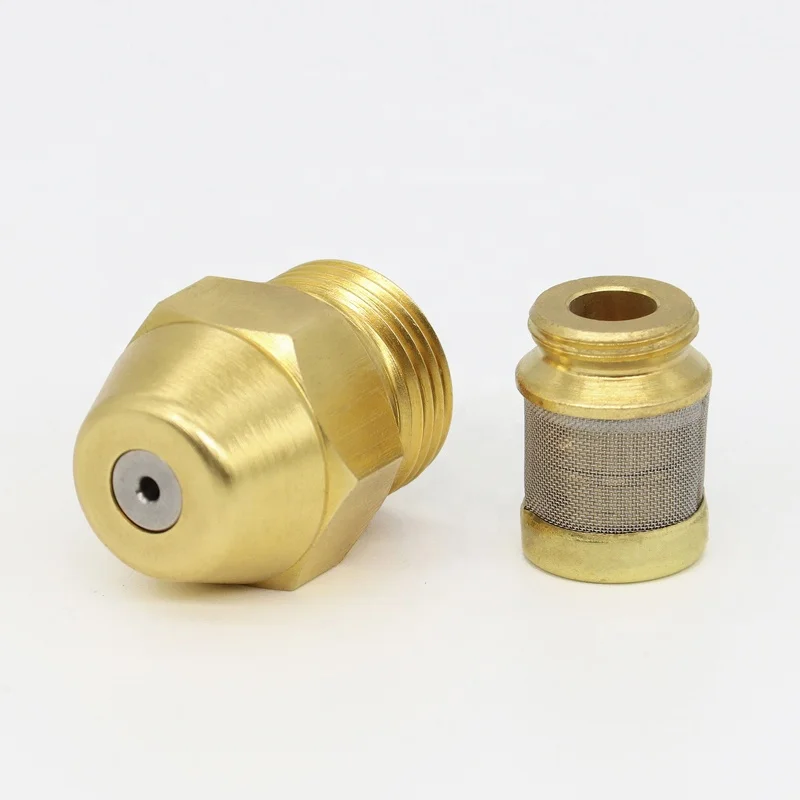

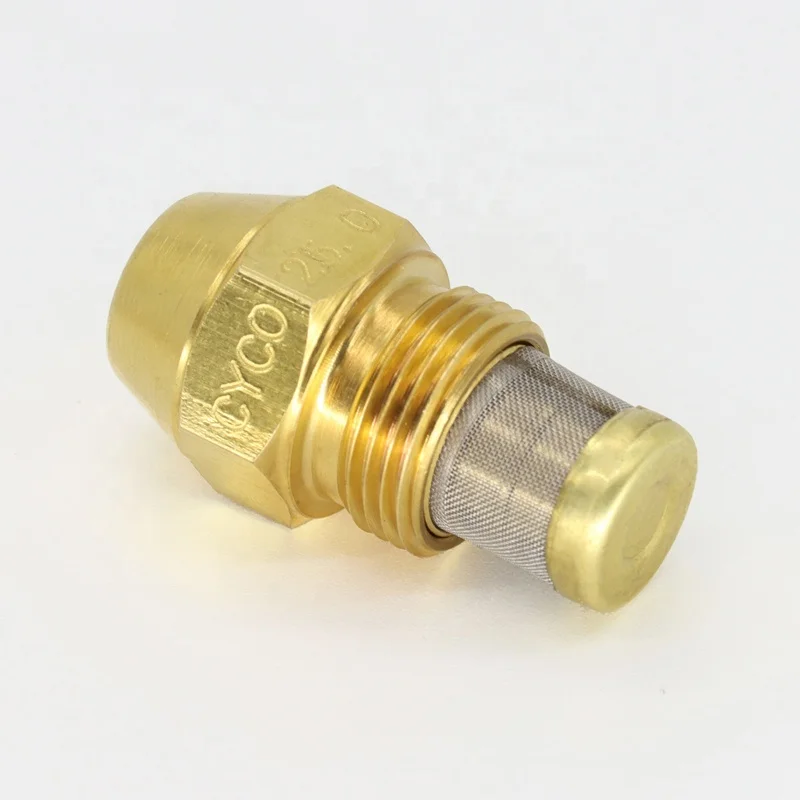

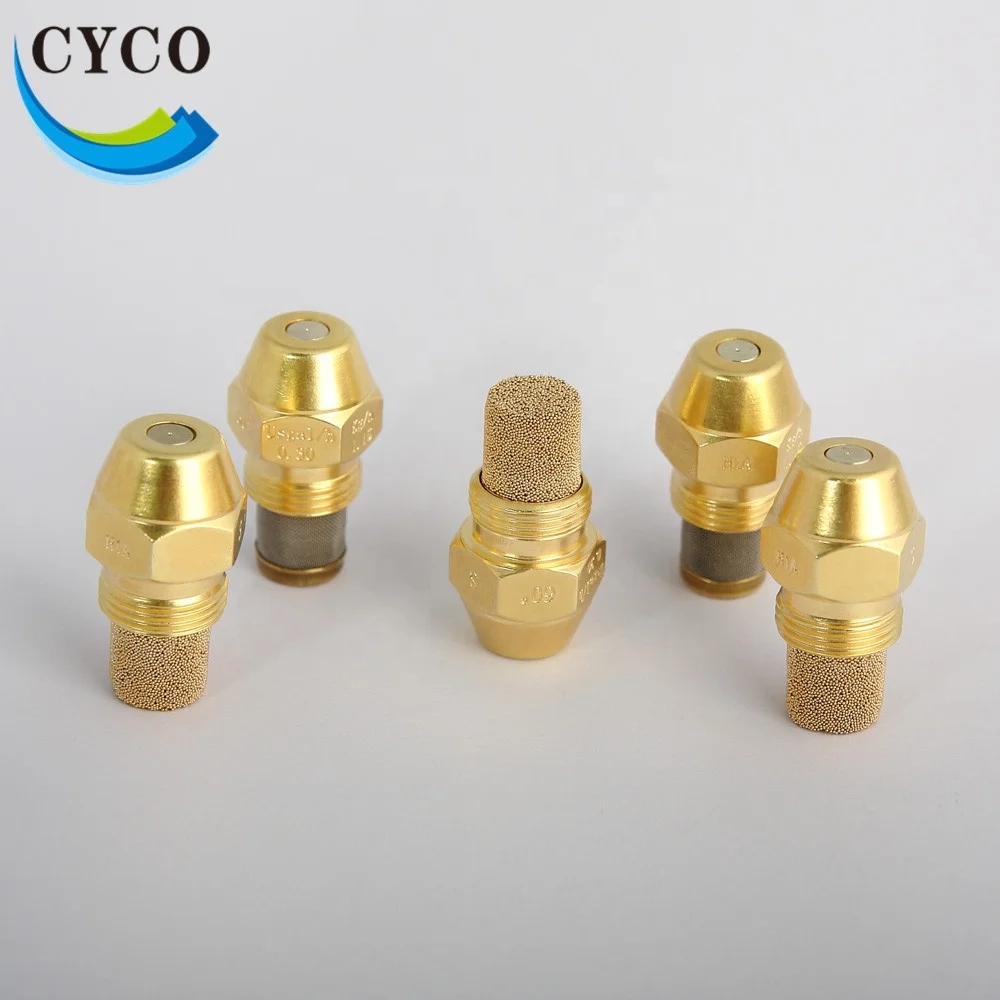

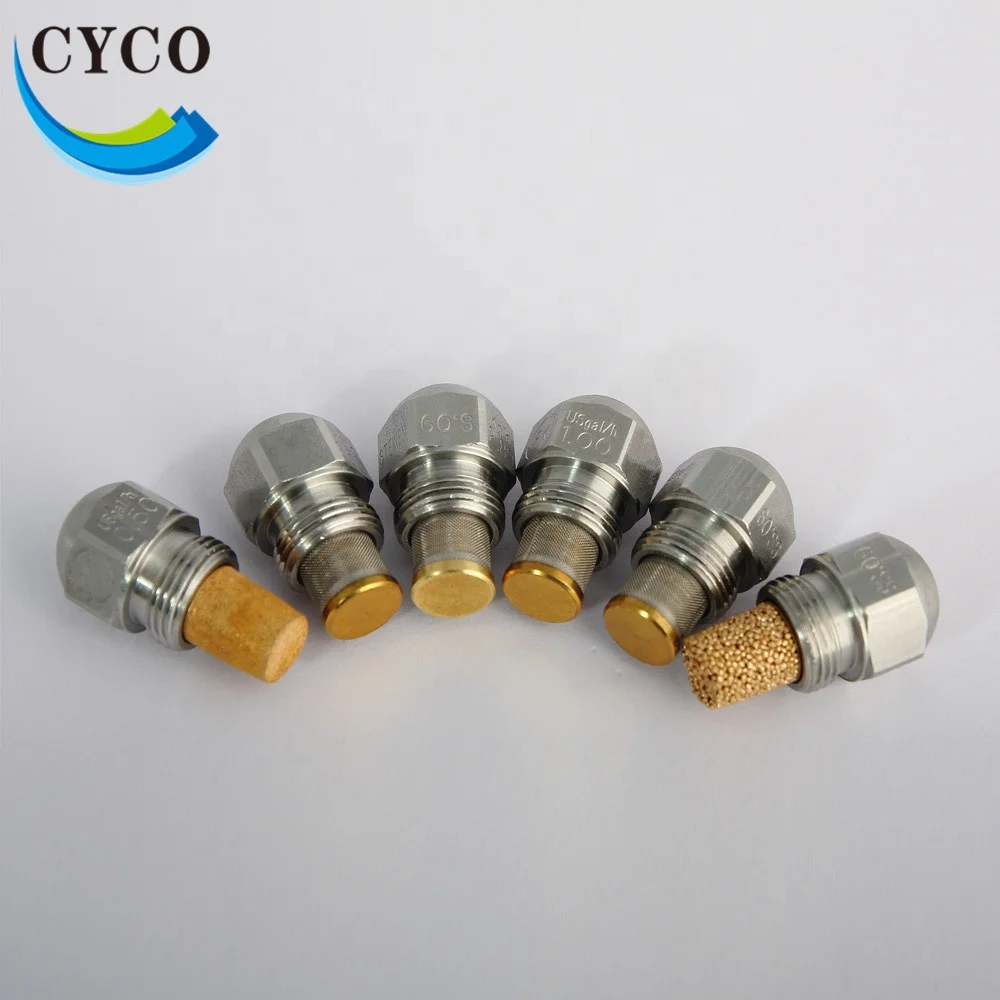

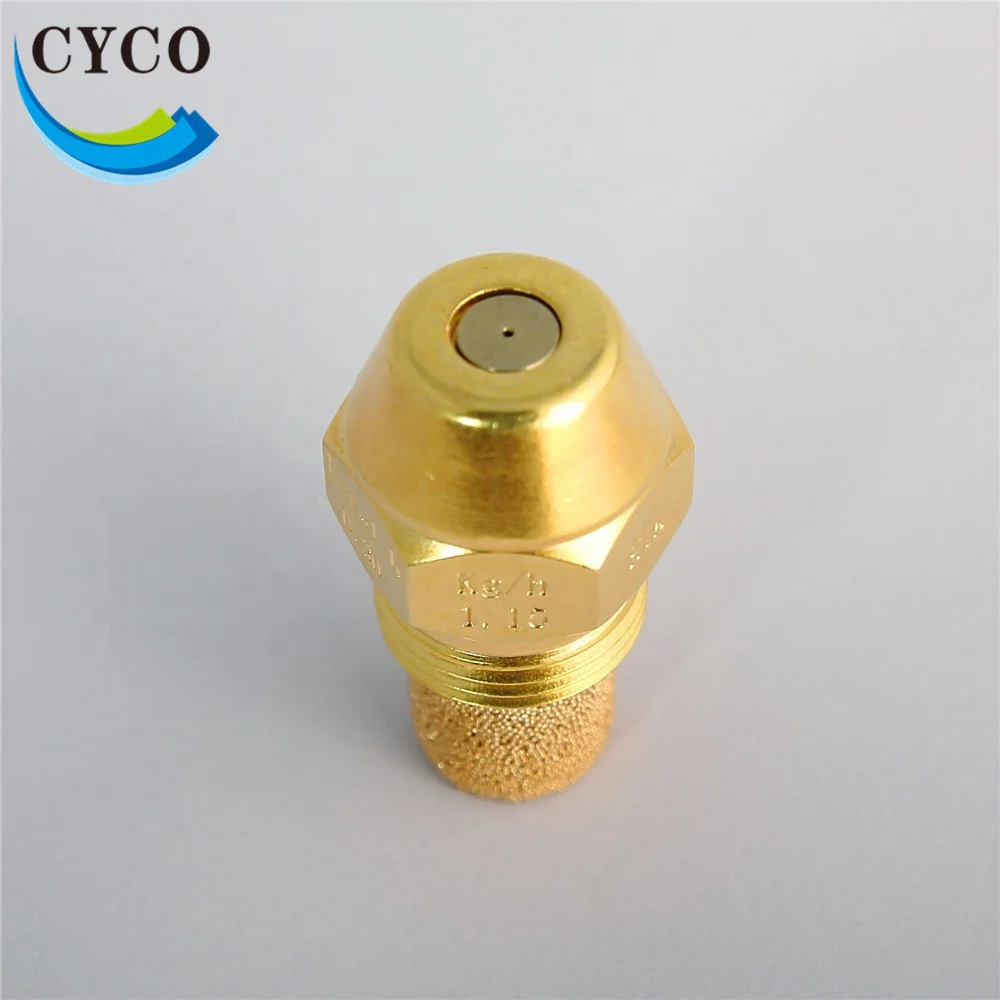

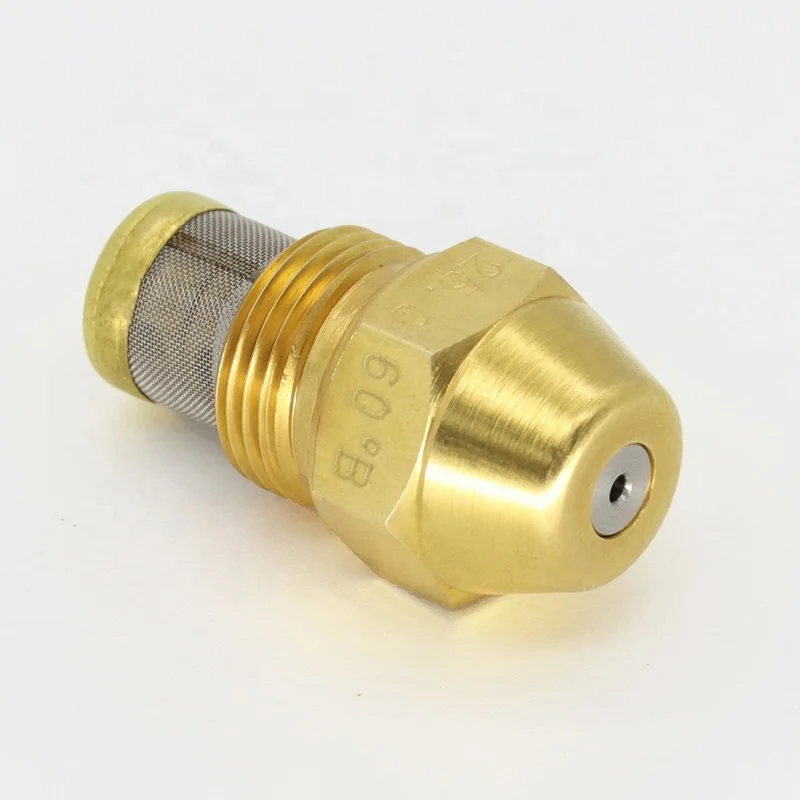

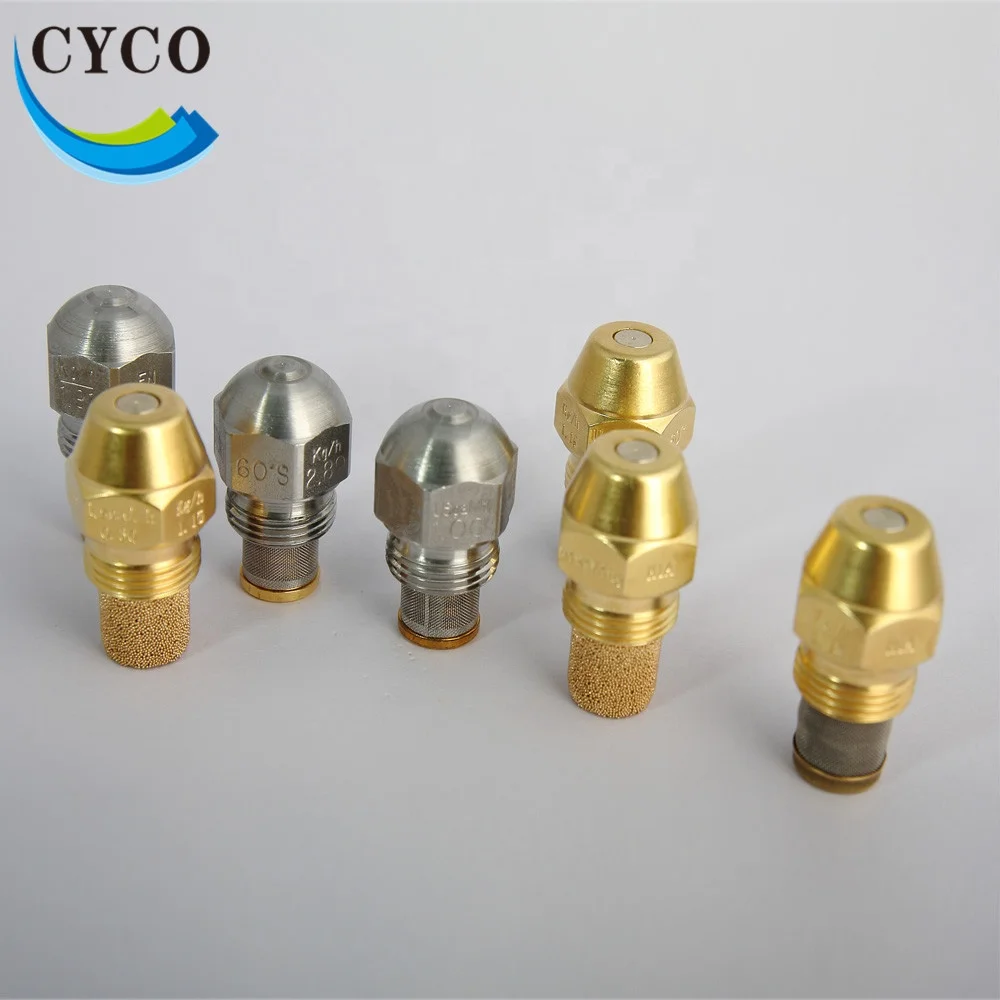

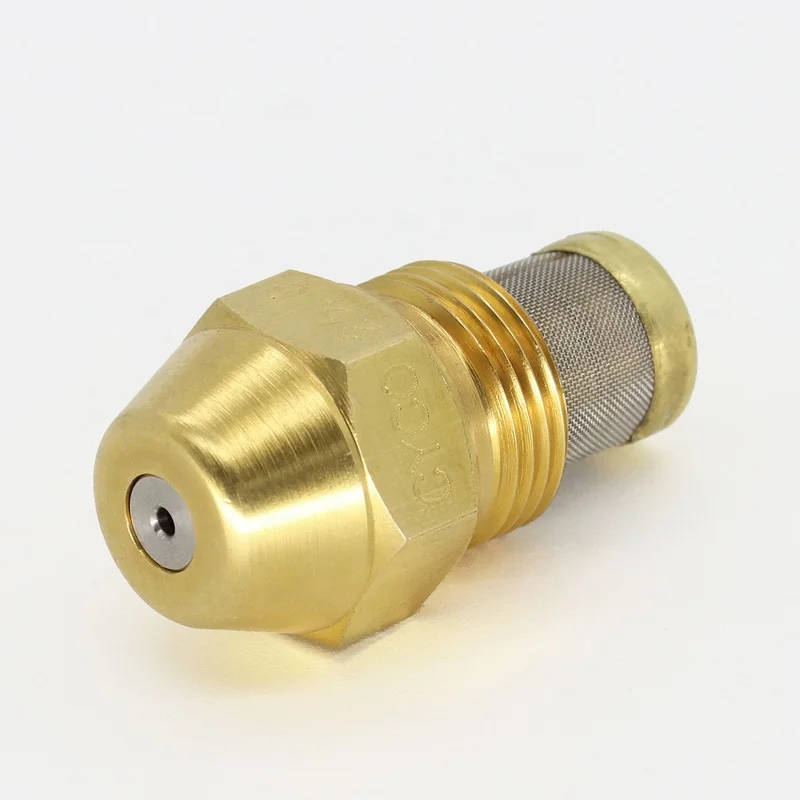

CYCO 30 45 60 80 Degree brass solid cone oil burner misting spray oil jet diesel heavy waste oil burner nozzle

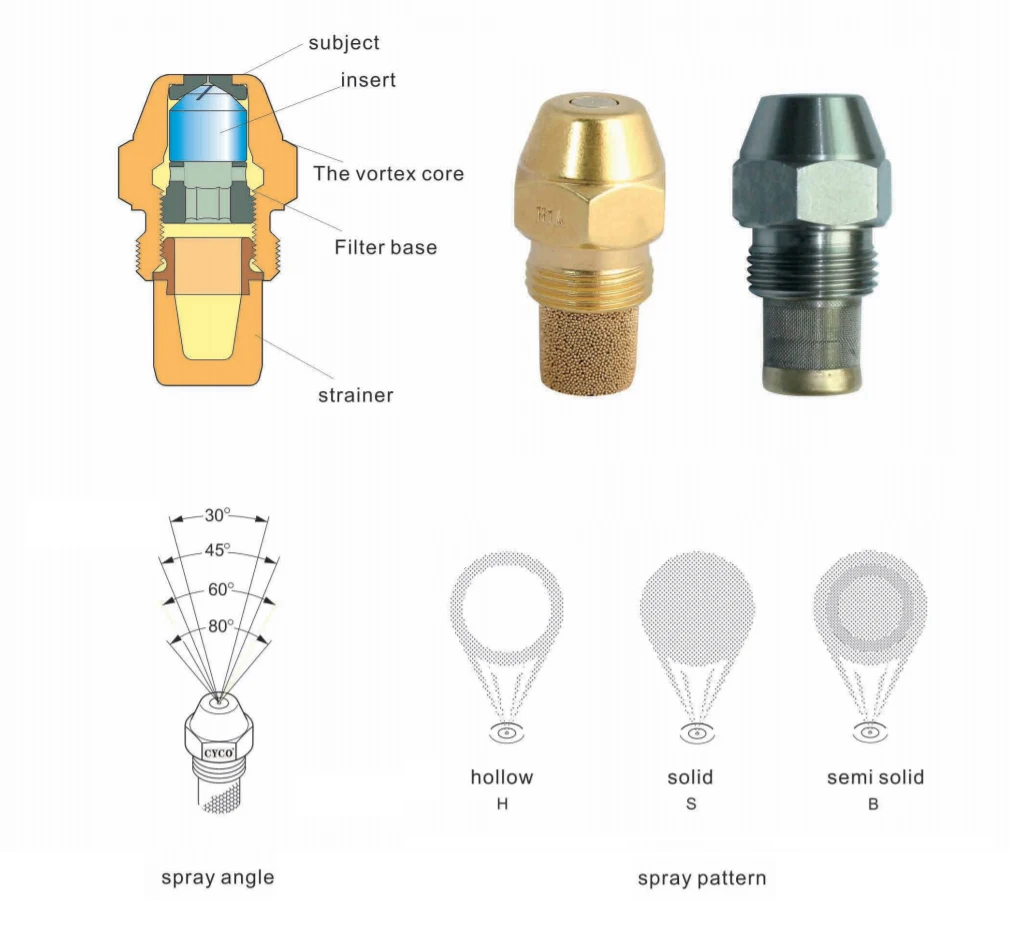

OD fuel nozzle is a single fluid high-pressure atomizing burner nozzle, which is suitable for atomizing burning of light oil and heavy oil. This series have four different angles 30°, 45°, 60°, 80°, and 3 kinds of spraying pattern: solid (S), and half solid cone (B), hollow (H), the flow parameter is from 0.5 us gal to 35 us gal.

Features:

1. Light oil, heavy oil atomizing

2. Flow range is from 0.5 us gal to 35 us gal

3. 100% capacity test before packing

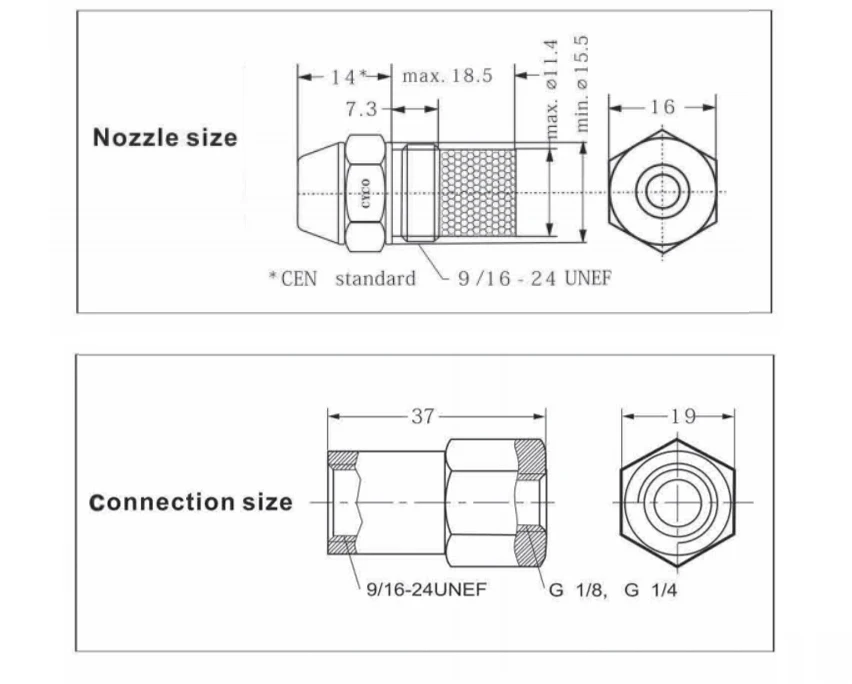

Specification

Brand:	CYCO
Model:	OD
MOQ:	10PCS
Sample:	Free
Filter:	Brass/SS
Material:	Brass, Stainless Steel
Jet Angle:	30°, 45°, 60°, 80°
Spray Pattern:	Hollow Cone, Solid Cone, Half Hollow Cone
Flow Range:	0.5 - 35 us gal
Recommend Installed Torque:	15-20 Nm
Max. Installed Torque:	25 Nm
Connection Type:	BSPT, NPT
Services:	OEM/ODM
Common Applications:	light oil atomizing heavy oil atomizing

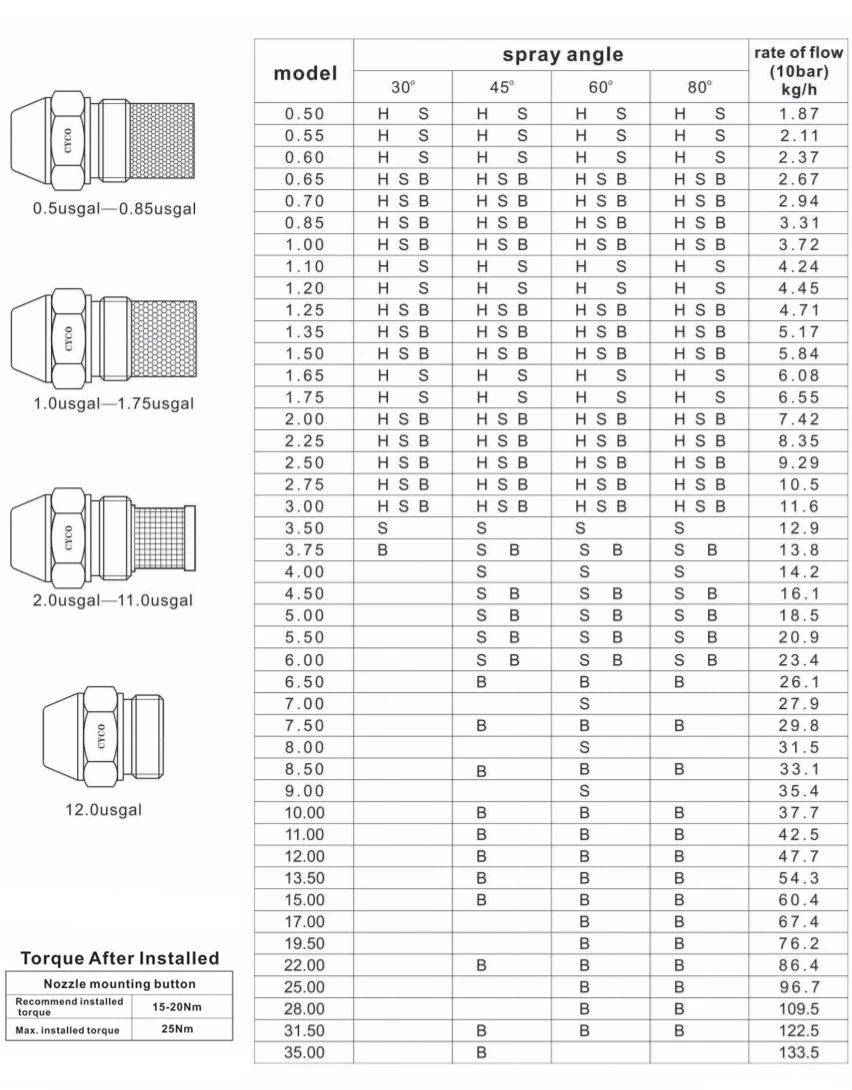

Performance Data

Related Products

Oil Burner Nozzle

Hollow Cone Nozzle

Solid Cone Nozzle

FD Anti-Drip Fine Misting Nozzle

FE PP Fine Misting Nozzle

Ultrasonic Air Atomizing Nozzles

High Pressure Firefighting Water Mist Nozzle

Adjustable Clamp Ball Nozzle

Company Profile

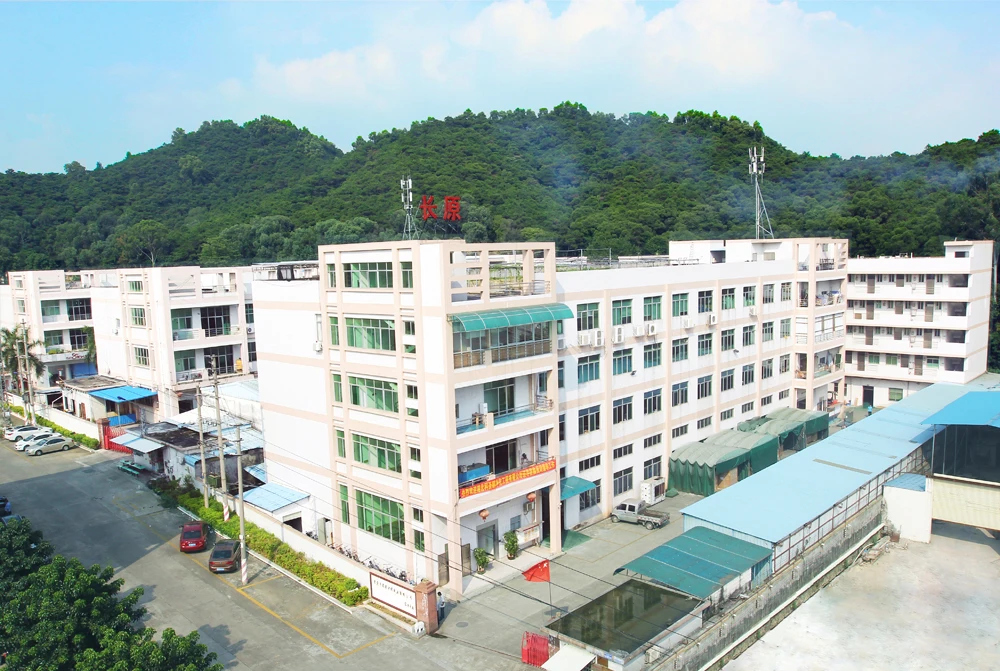

Dongguan Changyuan Technology Industrial Co., Ltd. which was found in the year 1997 is a professional Hi-tech Spraying & Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has won ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of spray nozzle products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.

Changyuan Technology offers a wide range of highly competitive spray nozzle products. Our main products include spray nozzle, water mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fan spray nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle, pulp and paper nozzle.

Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and soon. And our products have been exported to many foreign countries, such as USA, German, England, Japan, Korean, Russia, India, UAE, Brazil and many other countries. We have established long-term cooperation with our partners in these countries.

Our Customers

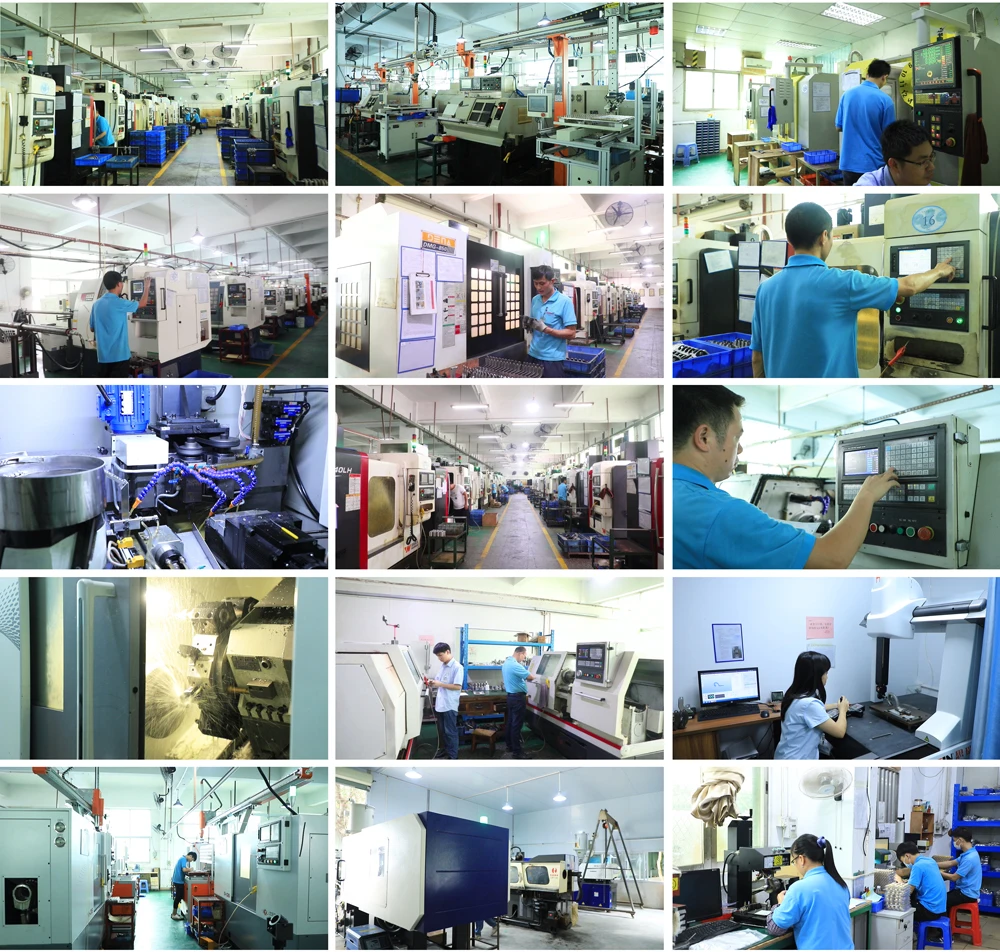

Advanced Production Equipments:

4 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below

100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines
2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm
4 Wire Cutting Machines
3 Pneumatic Marking Machines
1 Laser marking machines

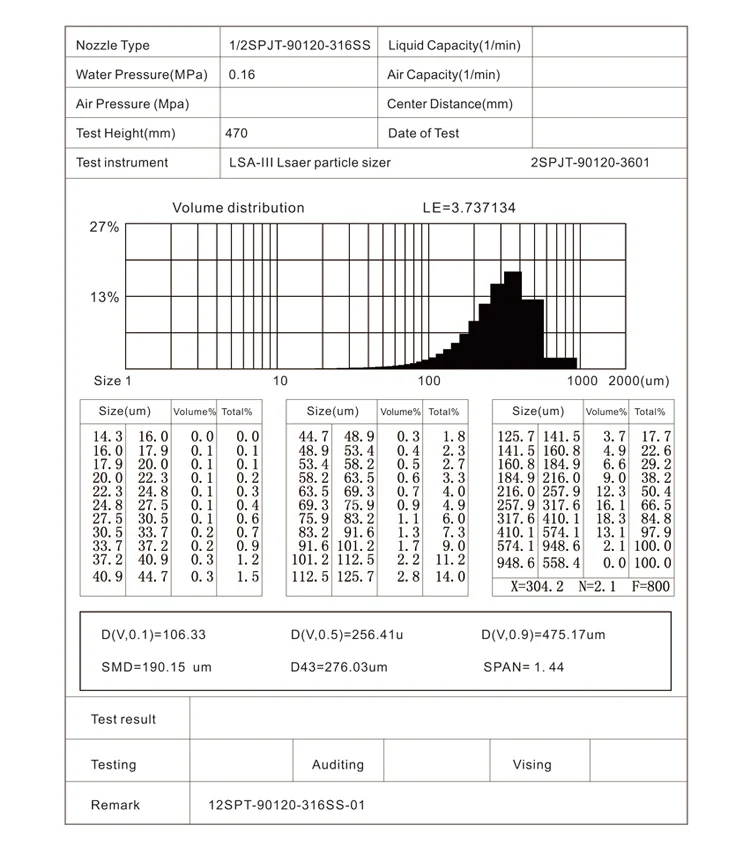

Testing Report Sample:

By our special testing equipment, you can test flow performance, droplet size, angle and other parameters, all nozzles will be tested before shipment.

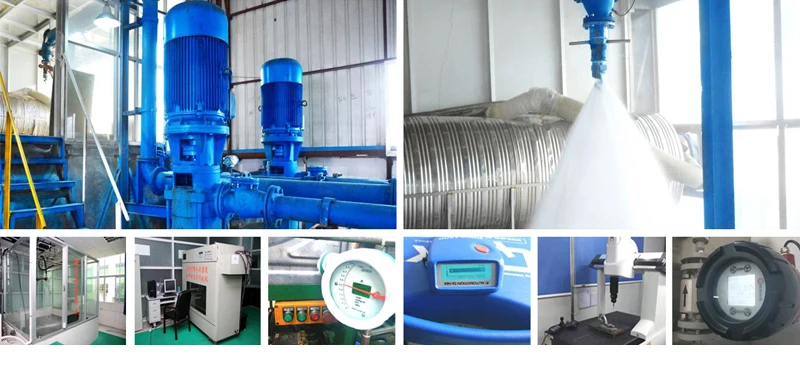

Testing Facilities:

2 Computerized Full Performance Test Lab ( Pattern, Flow and Particle Size).

10 In-production test stands.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Q1. Can you help me with my project?

A: Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings, pictures of the area you want to cool/mist and we'll send you a quote for free.

Q2. Can I have a sample order for this nozzle?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3. What about the lead time?

A: Usually, sample needs 1-2 days, mass production time needs 1-3 weeks

Q4. How do you ship the nozzles and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 3 months warranty to our formal products.

Q6: How to order?

Step 1 : send an inquiry

Step 2 : confirm the operating conditions

Step 3 : product recommendation and quotation

Step 4 : sampling

Step 5 : confirm order details and make a payment

Step 6 : proceed with product preparation upon receipt of payment

Step 7 : shipping

Q7: Nozzle Questions?

We have answers. With over 21 years experience and 5,000,000+ nozzles shipped, you can trust us with your spray application. Call or contact us today to learn how partnering with CYCO can make your project a success
