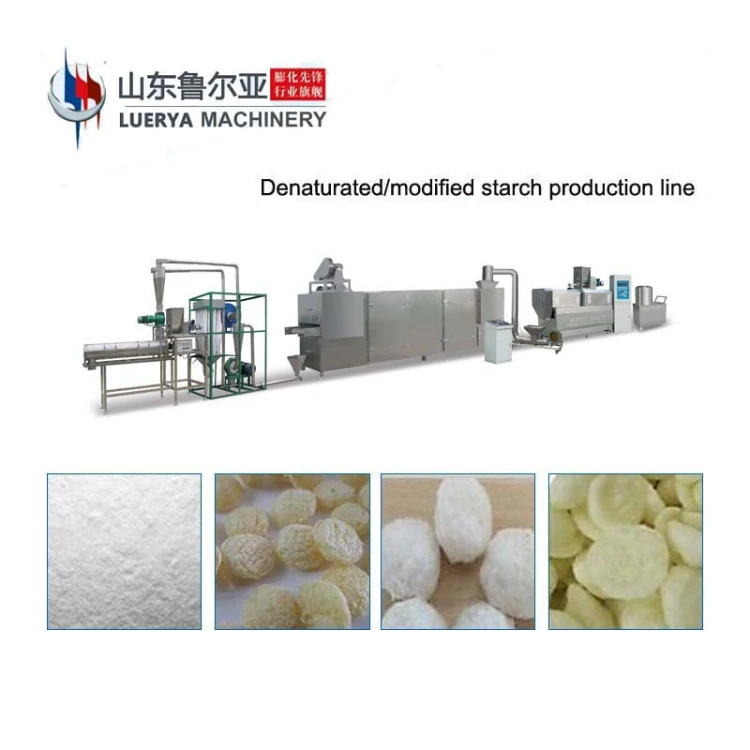

Modified/Pregelatinized Starch Processing Line For Industry 1.Modifed starch is always used as building material,oil drilling material and so on.The processing line adopts cereals flour (starch, corn, wheat, rice, oat, soy, etc)as raw material to produce nutrition powder though mixer, extruder, dryer to crusher. baby food, FBF, CSB, samaposha, nutritional powder,denatured starch etc can be produced by this processing line.

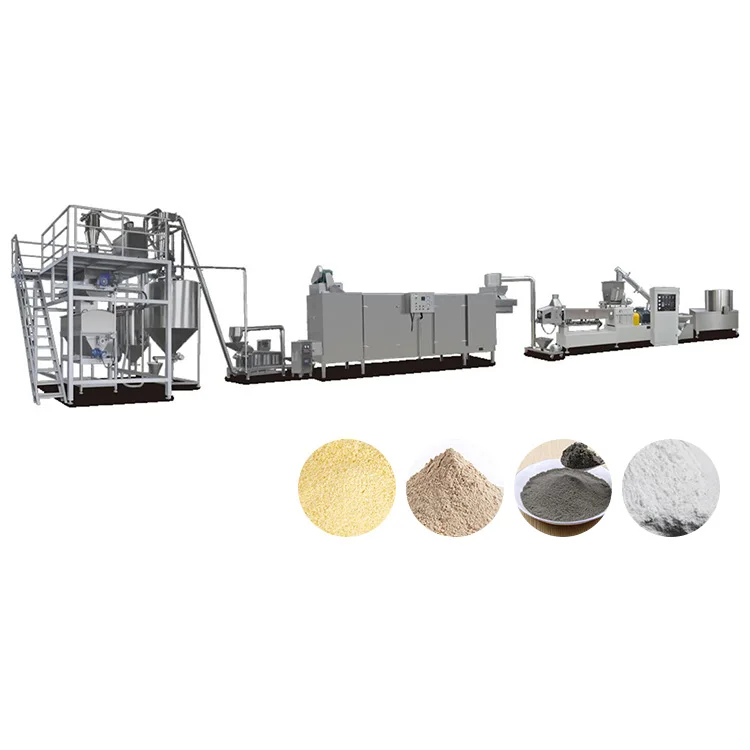

2. Mixing system --- Extrusion system --- Dryer system --- Crusher system --- Package system
Product Paramenters
Model
Throughput
Installation power
Actual Power
Dimension
SX-65 Twin screw extruder production line
120-150kg/h
75KW
50KW
24x1.2x2.0m
SX-70 Twin screw extruder production line
200-250kg/h
100KW
75KW
26x1.4x2.5m
SX-85 Twin screw extruder production line
300-500kg/h
130KW
80KW
28x2x3 m
Details Images

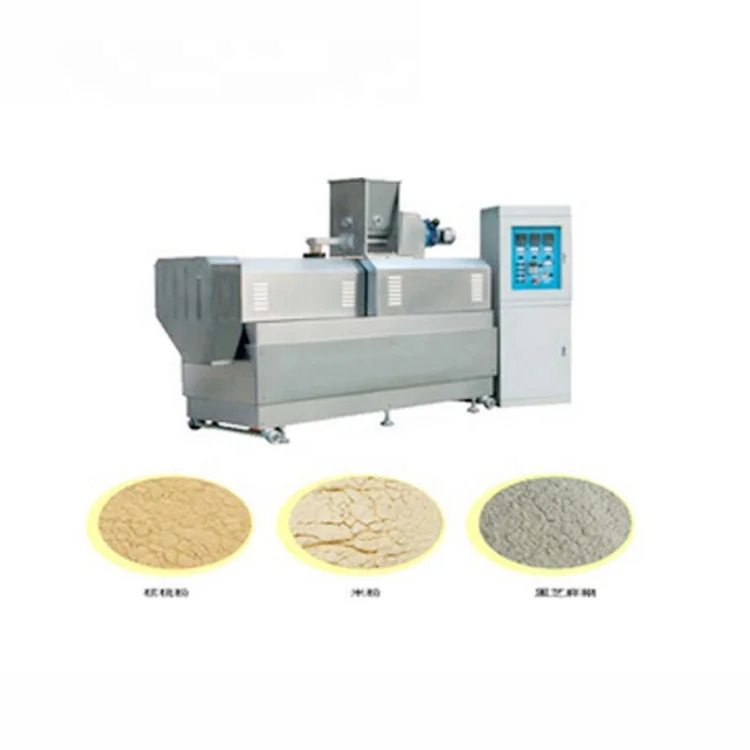

1. SX65 Double Screw Extruder
1. This machine is consisting of feeding system, extruding system, cutting system, heating system and controlling system. 2. It can process various materials, frequency speed-controlling, high automation, stable per formation, long life. 3. Longer life: uses special material and technology, endure fray.
2. SX70 Double Screw Extruder
1. New type Rail-mounted cutting system;
2. Gear Box is manufactured by our factory;
3. New Type Direct Transmit System, more power (no belt, between gear box with motor), reducing energy consumption;
4. Full automatic heating system and cooling system;
Combination Screw
Sliding Cutting System
PLC System
Driving System
3. Main Machine (New design) - Dryer
1. The oven is a five layers,10 meters circulated continuous dryer. 2. It mainly consist of drive motor,stainless steel drive belt, circulating fan, dehumidification equipment, aircraft, PLC control system, etc. 3. The Moisture of the dried material is around 9-10%.
