HPC series automatic hydraulic one time cup making machine

Product Overview

Description

HPC series automatic hydraulic one time cup making machine



Parameters

Mode/Parameter	HPC-660	HPC-700	HPC-720	HPC-750
Available material	PP,PE,PET,HIPS,GPPS
Formed Area(mm)	650×320	700×350	720×450	750x500
Formed Depth(mm)	120/180	120/180	120/180	120/180
Formed Speed(cycles/min)	20-35	20-35	20-35	20-35
Max.width(mm)	660	700	720	750
Thickness(mm)	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0
Power of the whole machine(kw)	≤45	≤50	≤55	≤65
Air wastage (Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Water wastage (m3/h)	≤0.5	≤0.5	≤0.5	≤0.6
Dimension(mm)	5500x2300x2400	5800x2500x2600	6200x2800x2600	7200x2800x2600





Function

1. The machine adopts hydraulic pressure system to produce products, stable running, small noise, good mold locking ability.

2. Electromechanical, gas, hydraulic pressure integration, PLC control, high precision frequency conversion.

3. Completely automatic and fast production speed. By installing different molds to produce different products.

4. Adopt imported famous brands of electric and pneumatic fittings, stable running, reliable quality and long life.

5. The whole machine is compact, one mould has all functions, such as pressing giving, forming, cutting, cooling and finished product blowing. Short process, high quality of finished products and meet the national sanitary standard.

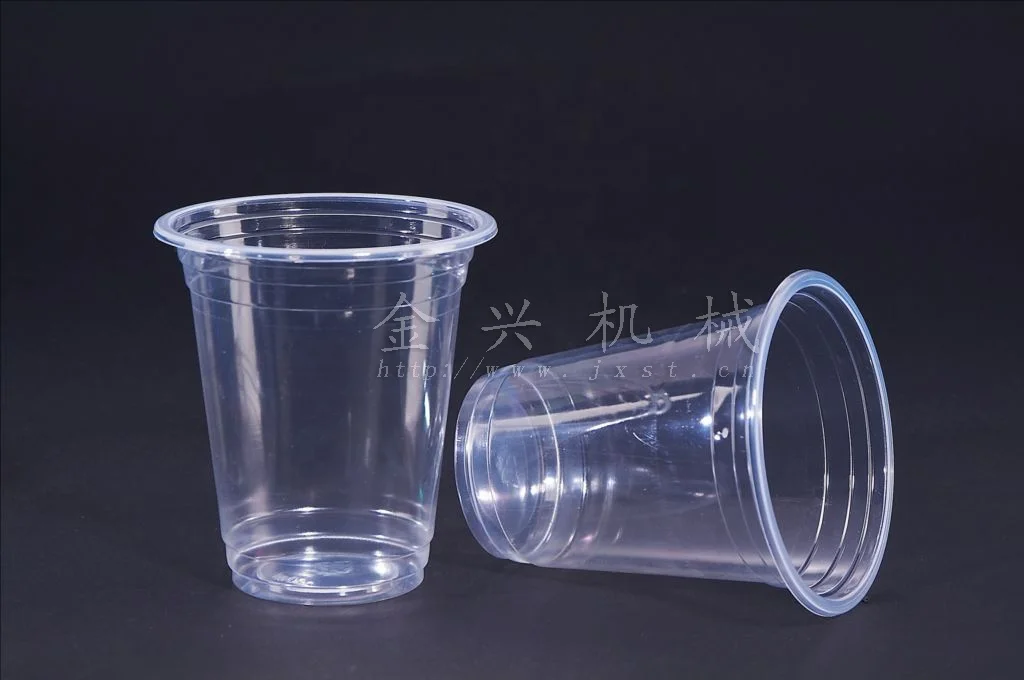

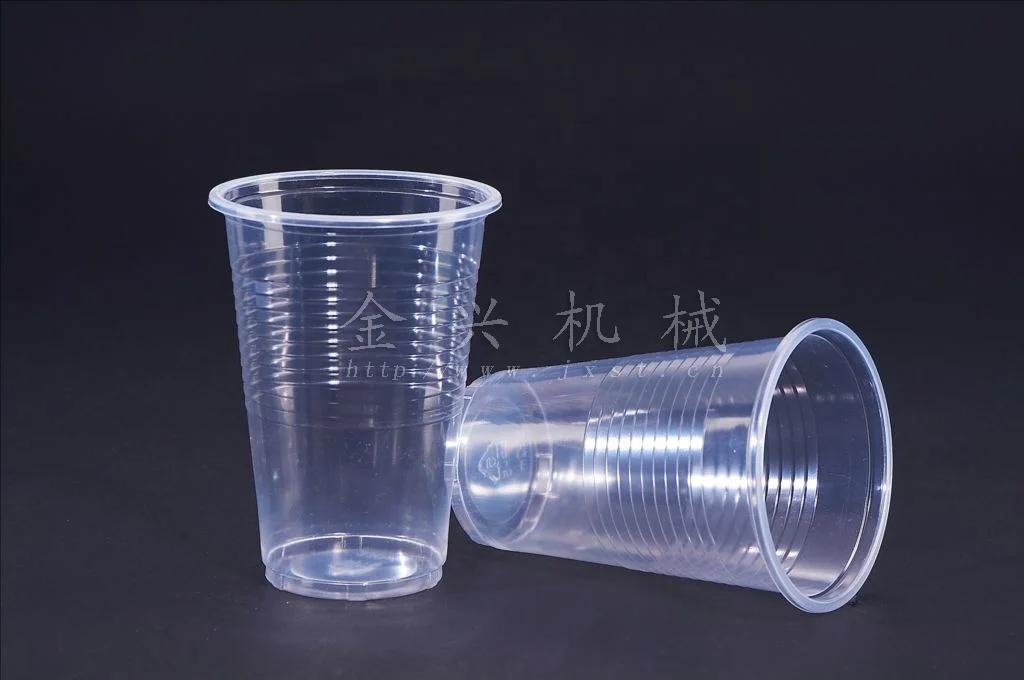

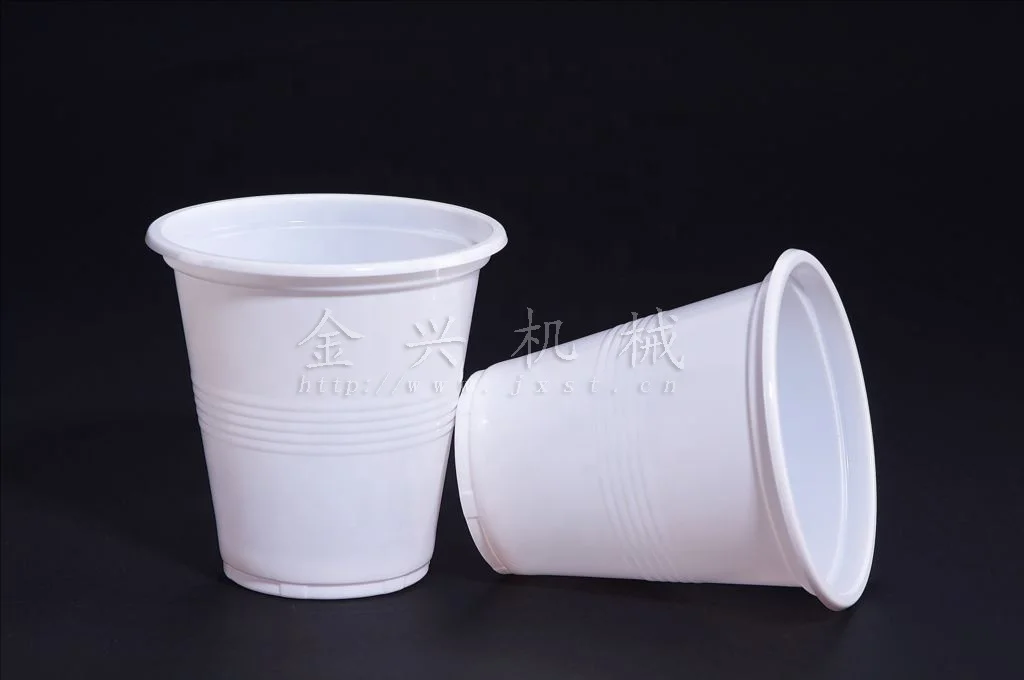

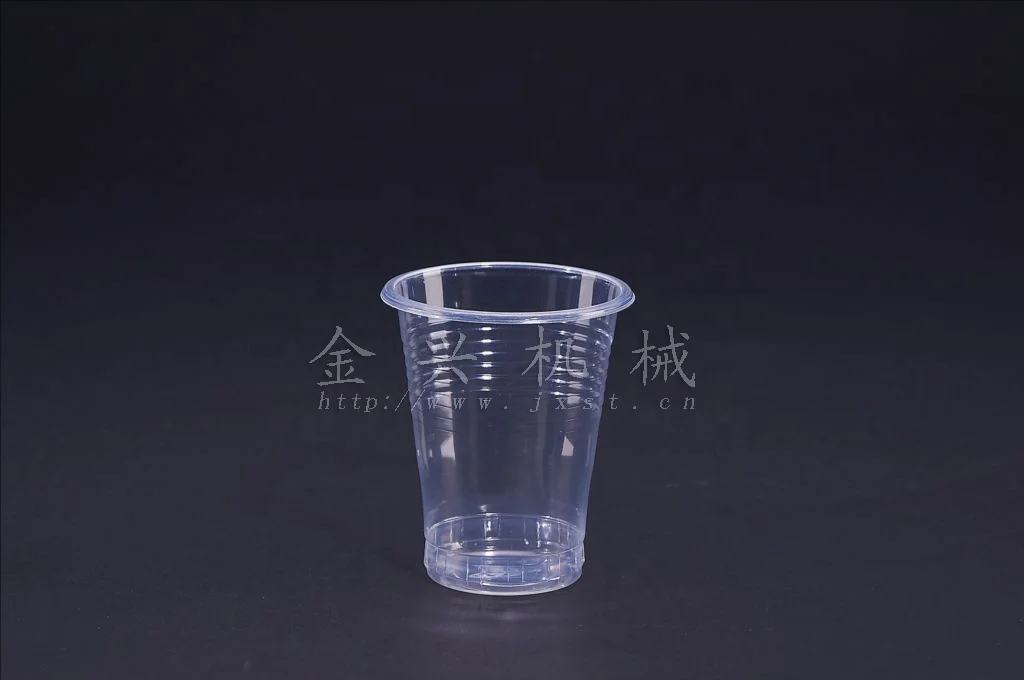

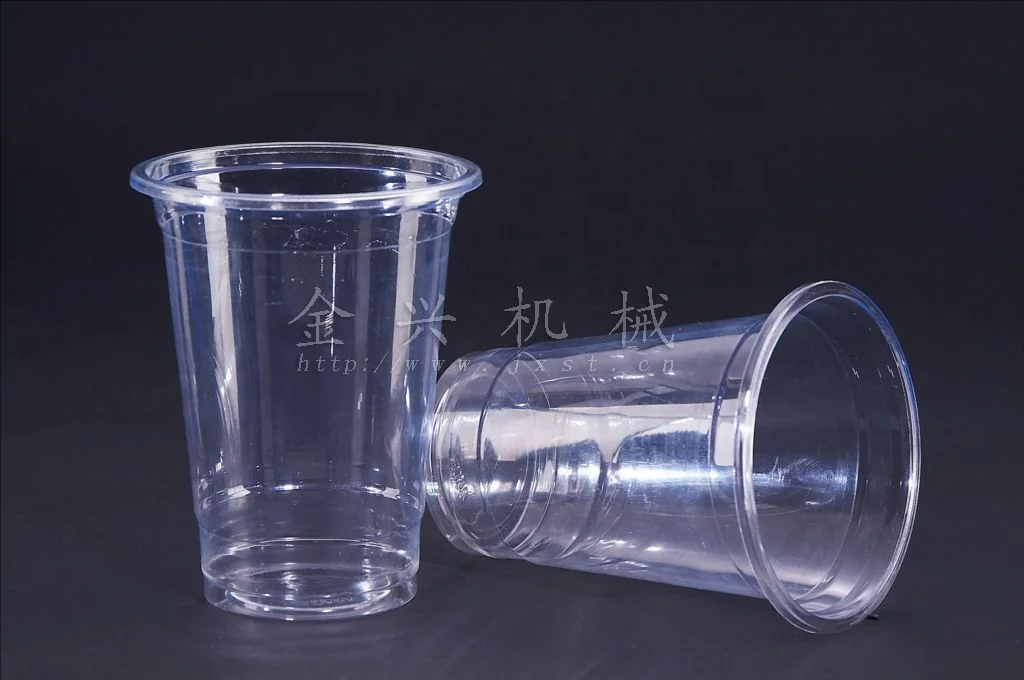

6. The machine is fit for producing PP, PE, PET, HIPS, GPPS and other plastic products, such as cup, box, bowl and so on. For example, milk cup, jelly cup, ice cream cup, one-off cup, instant noodle bowl, fast food box, food box and so on.



Main Fittings
1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider

Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;
2.Lubricating System: Taiwan Famous Automatic Oiling System;
3.Pneumatic System: Japan SMC;
4.Hydraulic System:Guangye hydraulic the pump and Taiwan Lianton hydraulic the electromagnetism valve.
