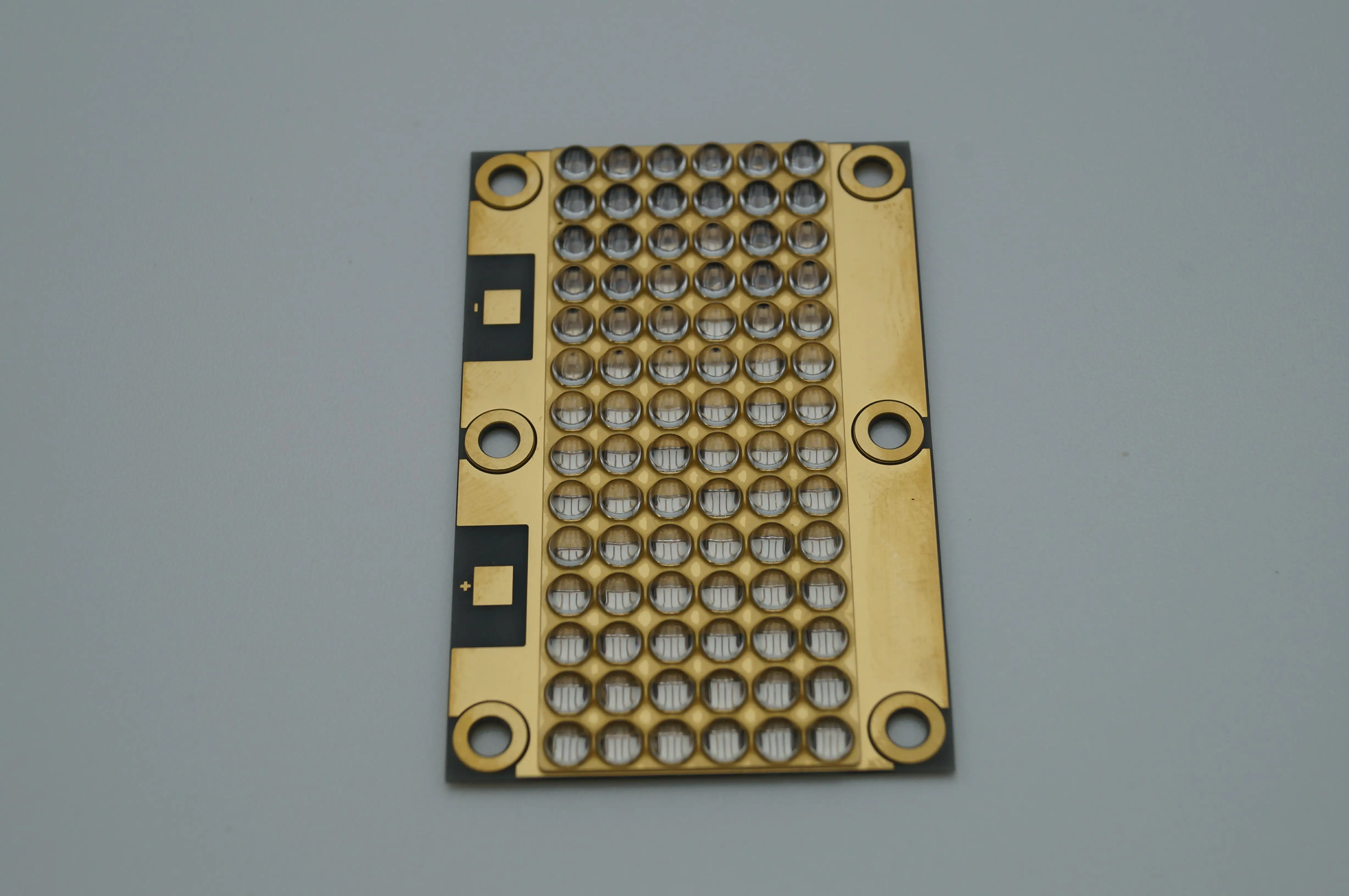

high power ultraviolet led curing lamp for printing

·  Electrical Characteristics

NO.

Item

Unit

Parameter

1

Operating  Voltage

V

40-50VDC

2

PCB Size

MM

52*34mm

3

Operating Current

A

4.2A(Max)

4

Power

W

200W(Max)

5

Power Density

MW

>65000

·  Photometric Characteristics

1

Wavelength

nm

365nm-405nm

2

UV LED Type

3

Chip Brand

Epileds/ San’an

4

Reflector Angle

°

60°/90°/120°

5

LED QTY

Pcs

84

·  Environmental Range

1

Operating Range

°C

-10~+40℃

2

Operating Humidity

RH

<60%

3

Storage Range

°C

-20~+60℃

4

Storage Humidity

RH

35%---45%

Note:

         1. More details can be offered based on the further enquiry.

          2. Customized is available.
