100m Wire Rope Hoist Suspended platform Electric Scaffolding Basket ZLP630 Suspended Platform

Working Platform: Steel + Red Painting; ( Steel+Galvanised or Aluminum Alloy+Painting is available also)

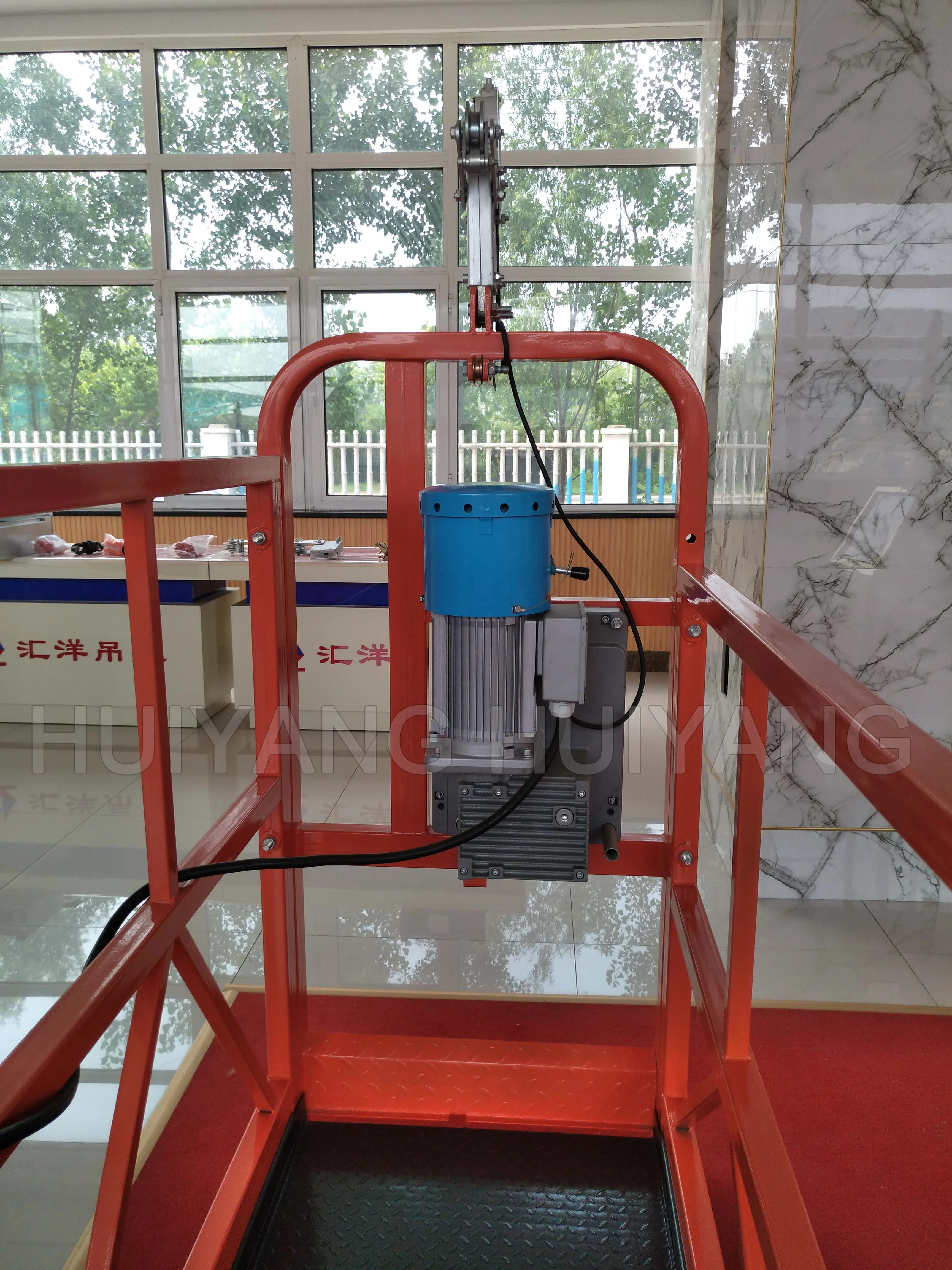

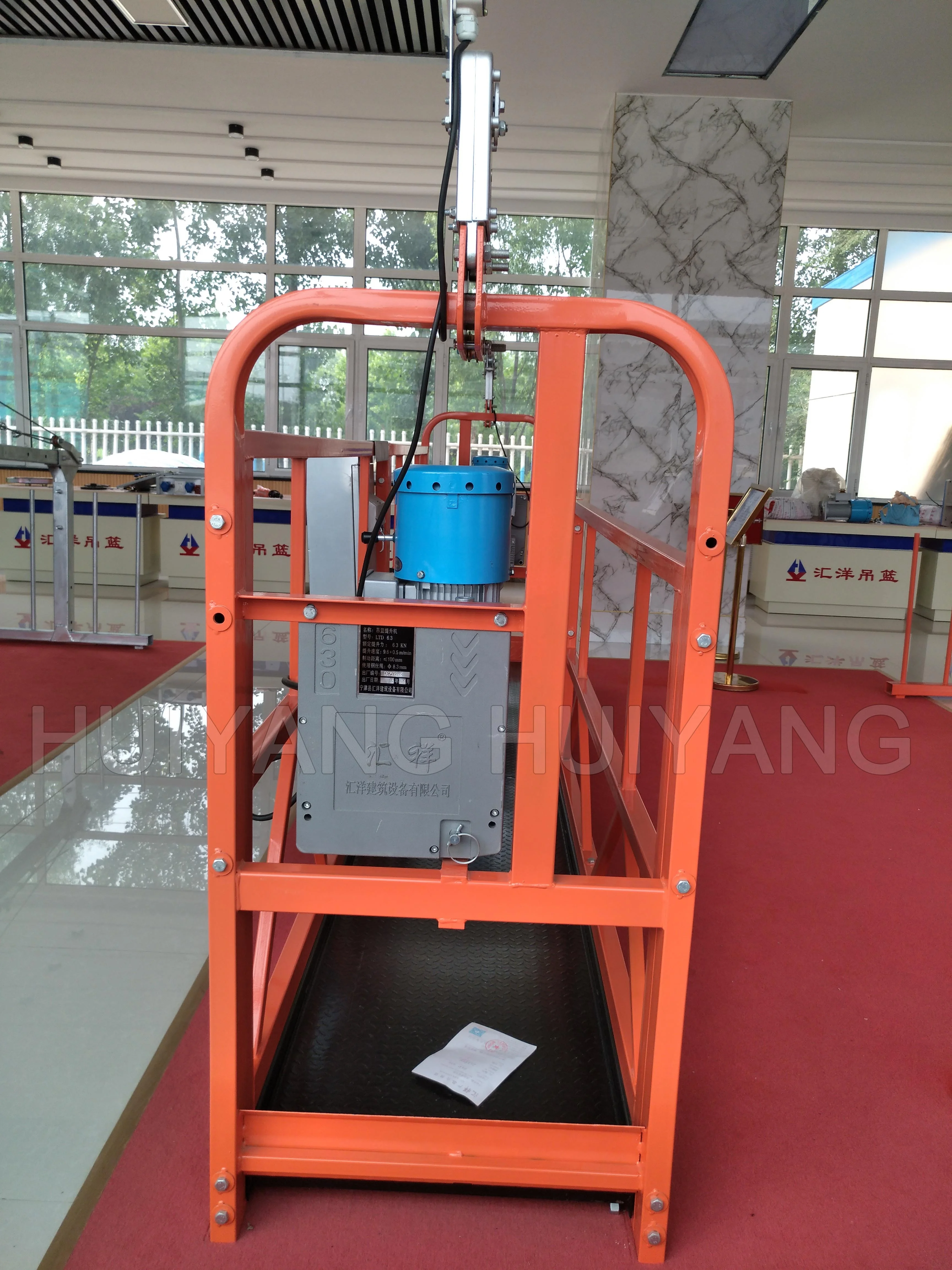

 1.1  Working Cage is the workplace at heights for the workers.

 1.2  L=6m (2+2+2) or (1.5+2+2.5) or (1+2+3)  W=0.69m; H=1.42m;
 1.3  With 4 pcs of Bottomsr Wheels fitted underneath, the platform is easy to move.

Suspension Mechanism: Surface with Red Powder Painting (or Hot-dipped Galvanized)

Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.

Components:

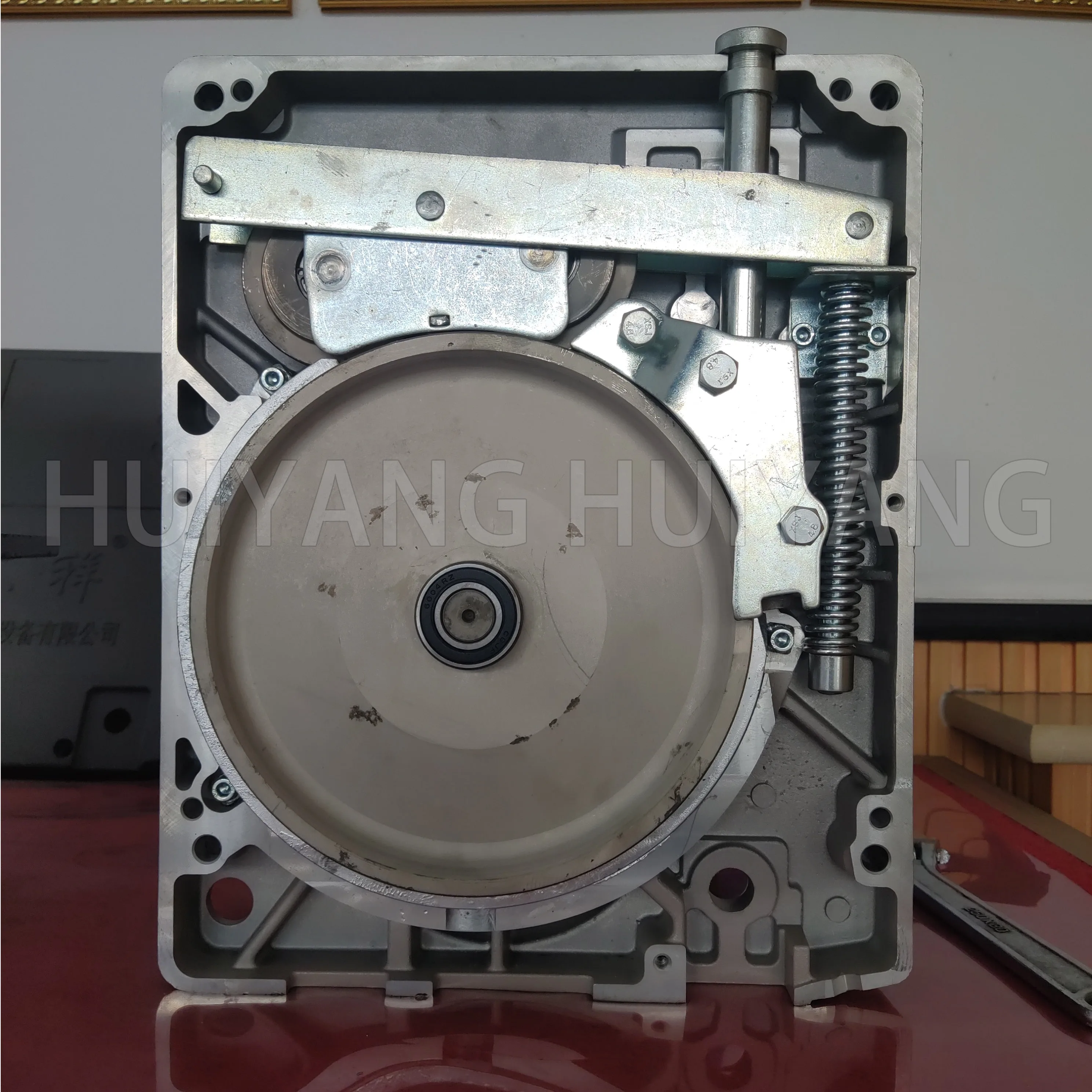

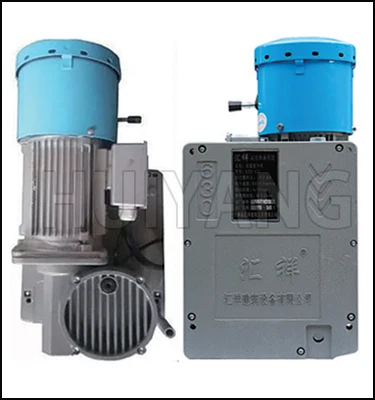

Hoist, LTD6.3, 1.5kw, 2 Pcs;
Safety Lock, LSG30, 2 Pcs;

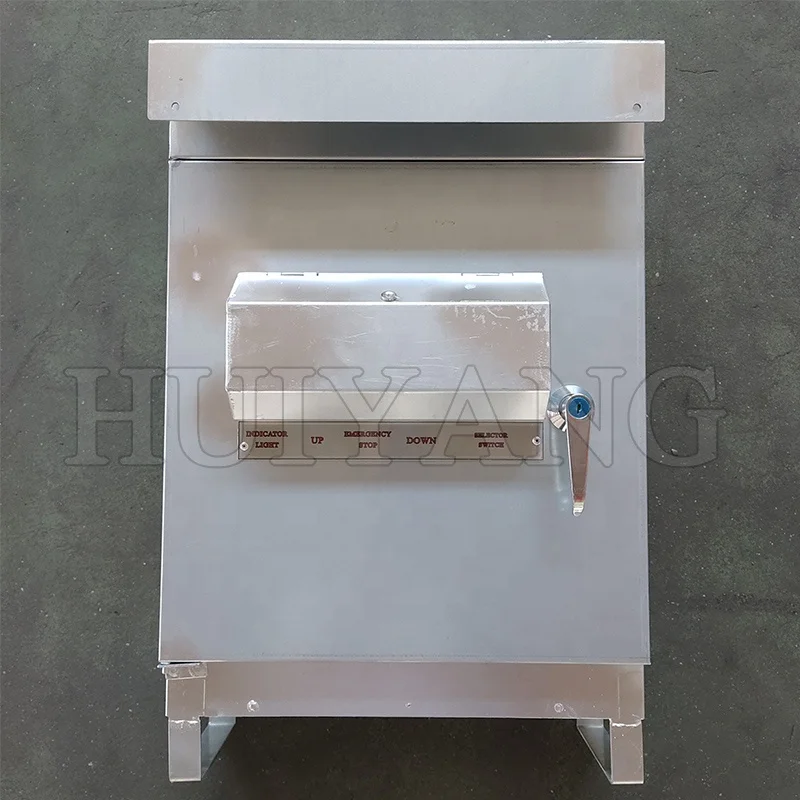

Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=8.3mm;
Electric Cable: 1pcs, 100m/pcs, Rubber, 2.0mm2;
Counterweight (Optional): 40pcs, 25kg/pcs.

Working Principle:
ZLP630 Suspended Platform is manned non-permanent suspended equipment for overhead operation. Suspended Platform is moved up and down driven by electric hoist and steel wire rope, running against the building façade, through the suspension mechanism which was installed on the top of the building.

Usage and Application:
ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.

Above all, HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.

Shandong Huiyang Construction Equipment Co., Ltd, established in 2005, covers 43,000 sauare meters, located at Dezhou City, is an integrative enterprise which specializing in the R&D, production, maintaining and leasing of Suspended Platform Mast Climber and Self-climbing Scaffolding.

Now Huiyang becomes the production base and research centre of exporting Self-climbing Scaffolding in
China. The quality of Huiyang Self-climbing Scaffolding is in the first-class in China and our products have been exported to more than 13 countries, which can be comparable with European famous suspended platforms.

Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 15000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.

No matter what structure needs, everything is easier with Huiyang!
