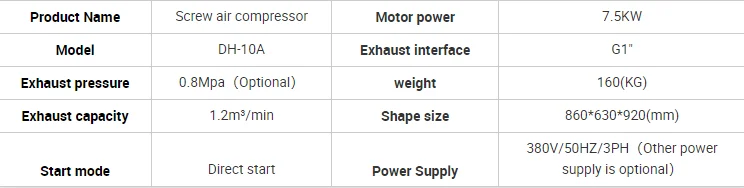

Air compressors 7.5kw/10hp/8bar 220v/380v/440v Industrial Air Compressors Tank Screw Air compressors

Share on (1600210658567):


Price:$1,290.00 - $1,390.00

Quantity:


Product Overview

Description





Products Description

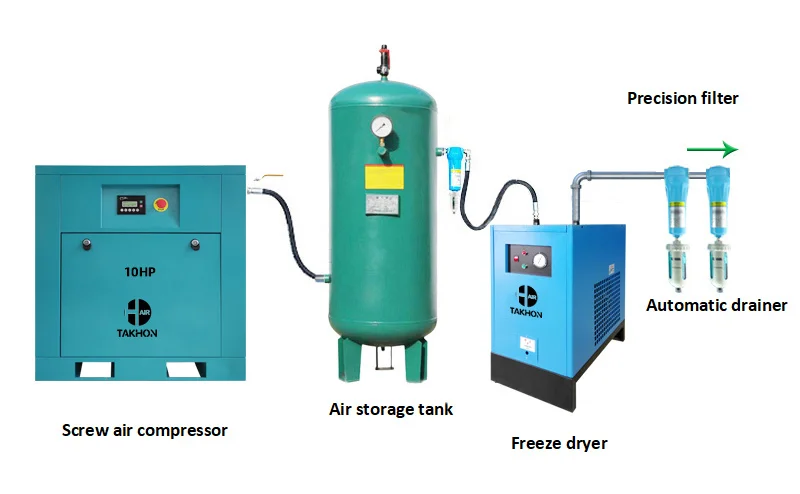

A set of air compressor configuration, professional visible, we care, you are more comfortable!

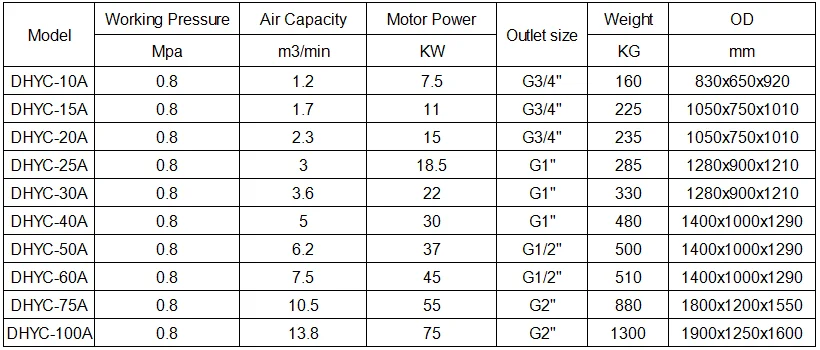

1. Air compressor
Product introduction

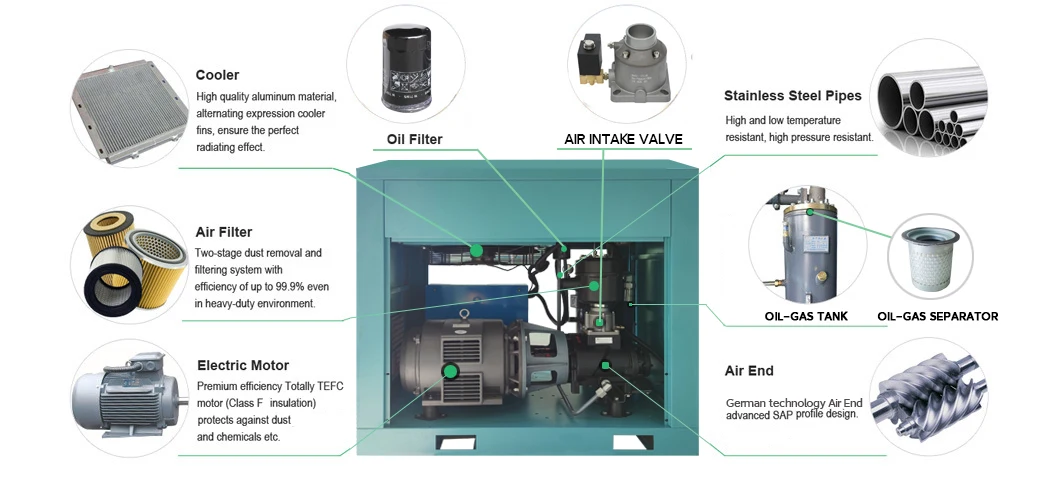

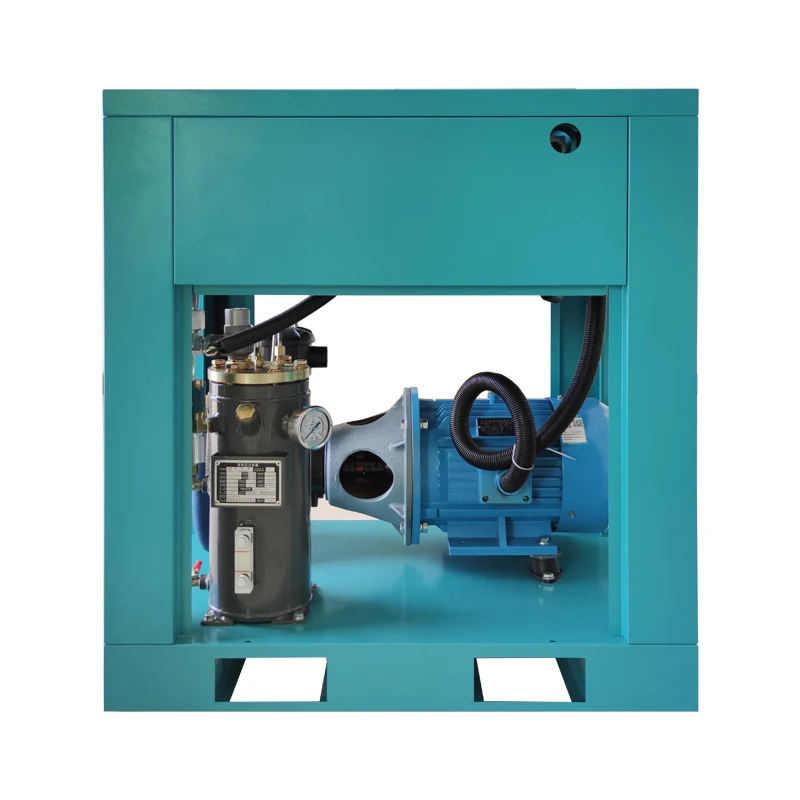

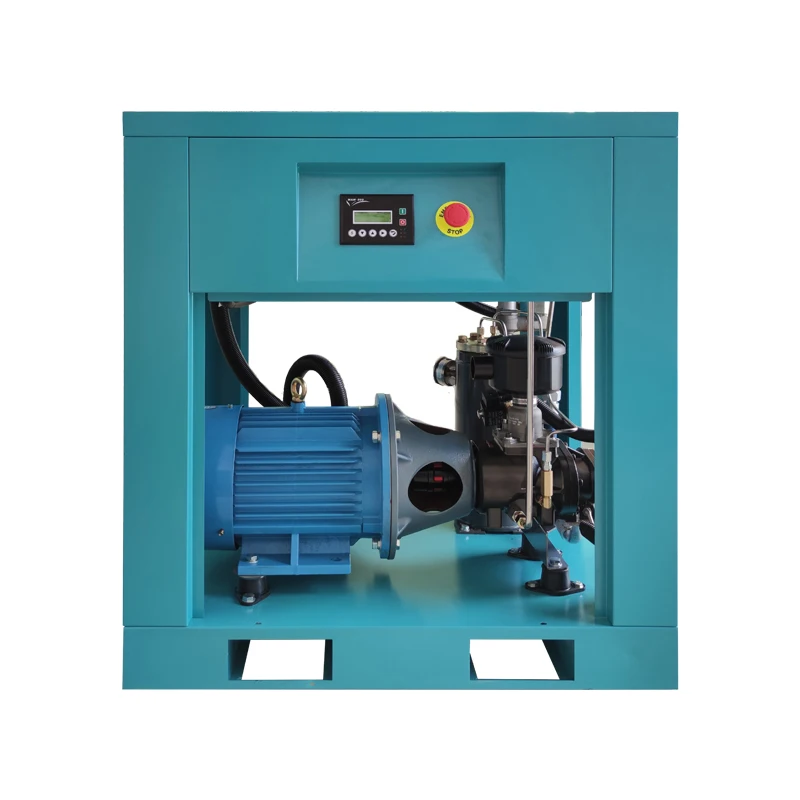

Air end of direct drive screw air compressor:

The screw host with unique design is directly connected with high-quality motor to provide efficient transmission effect and super reliability. The motor is directly driven, and it does not need to consider the wear or replacement of moving parts such as pulley, belt, etc.

Product features:

1. High reliability: screw compressor has few parts, so it runs reliably and has long service life.
2. Simple operation and maintenance: screw compressor has high degree of automation, operators do not have to go through long-term professional training, can realize unattended operation.

3. Good power balance: the screw compressor has no unbalanced inertia force, and the machine can work stably and at high speed.












About maintenance
when the new machine runs for 500 hours for the first time, there will be a warningthat the oil and oil filter need to be replaced. Please timely replace and maintainaccording to the requirements to keep the air compressor in the best condition.


Oil filter
Oil filter For the first 500 hours of operation of the new machine, it is recommended to replace the oil filter with a new one, and then every 2300 hours to ensure the best effect of the filter.
Screw air compressor oil
For screw oil, it is recommended to replace all the oil in the oil and gas tank after the new machine runs for 500 hours, because there are many impurities in the new machine, and the impurities in the oil system will wear all the parts of the main cover. Timely replacement can reduce the wear time of the main engine and prevent greater losses. From the second maintenance, replace every 2300 hours to ensure the cleanliness of the oil system. (Note: drain the oil in the old oil tank before adding new air compressor oil)


Oil gas separator
Each replacement time is 2300 hours. When the machine works in harsh environment, it is recommended to shorten the replacement time, so that the compressor can discharge relatively pure and high-quality compressed air.
Air filter
Each replacement time is 2300 hours. When the machine works in harsh environment, it is recommended to shorten the replacement time to ensure the maximum cleanliness of the inhaled air.

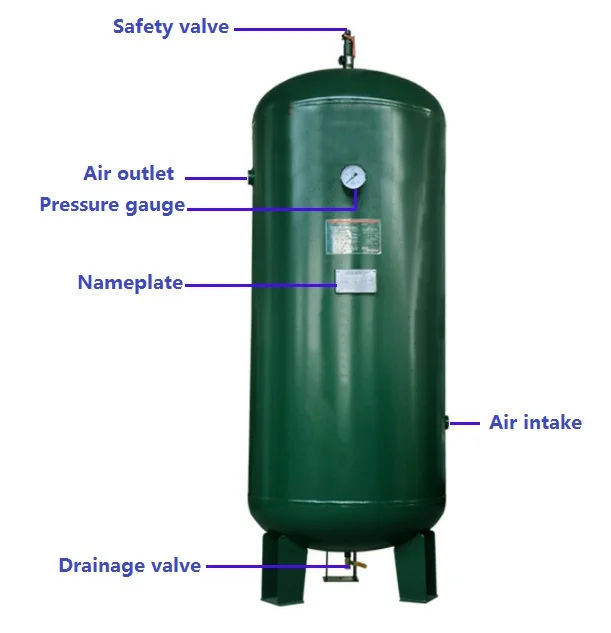

2.Air Storage Tank
The gas storage tank is a kind of equipment specially used for storing gas and stabilizing system pressure (the capacity can be selected according to the use situation)
The air storage tank is the supporting equipment of air compressor, which can be installed outdoors or indoors. The air enters the compressor and is sent to the air storage tank after pressurization, and then it is supplied to various places by the pipeline of the air storage tank. The main function of the air storage tank in the air compression system is to ensure the stability of gas supply. The compressed air precipitates water in the air storage tank to regulate the air pressure fluctuation of the pneumatic equipment due to the imbalance of air consumption, increase the pressure stability of the pneumatic equipment, or reserve part of the compressed air. When the air compressor fails, users can use this part of the compressed air for emergency treatment of the pneumatic equipment or pneumatic control system.

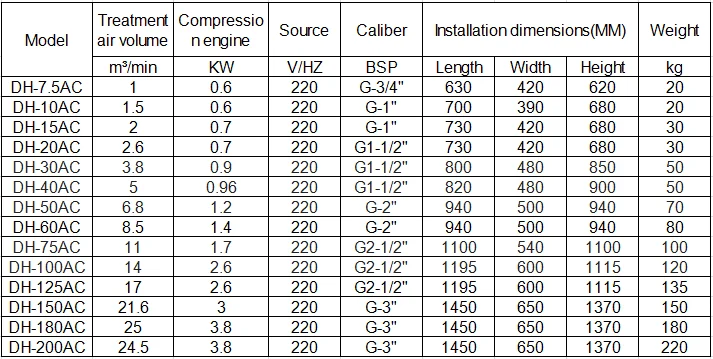

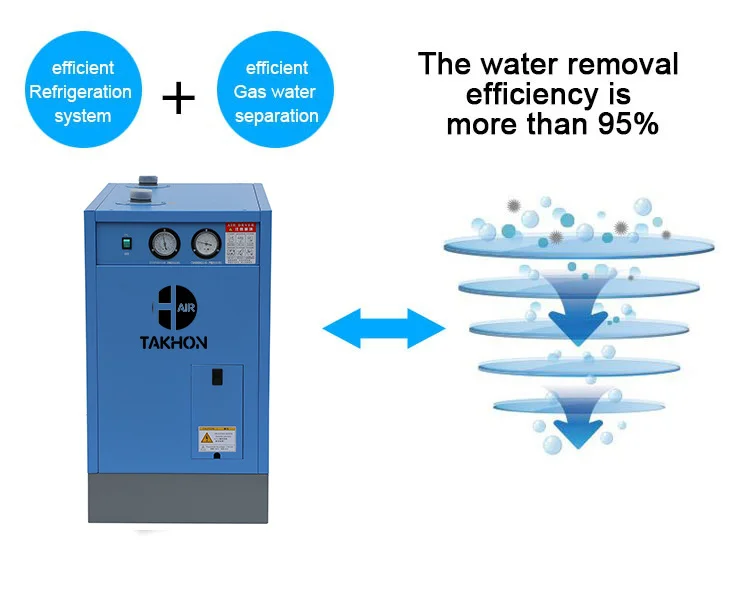

3.Freeze dryer
The freeze dryer freezes the moisture in compressed air below dew point to precipitate it from the air. The dew point temperature of the freeze dryer can theoretically be close to 0 degrees due to the freezing point temperature of water. In fact, the dew point temperature of a good freeze dryer is usually about 5 degrees.

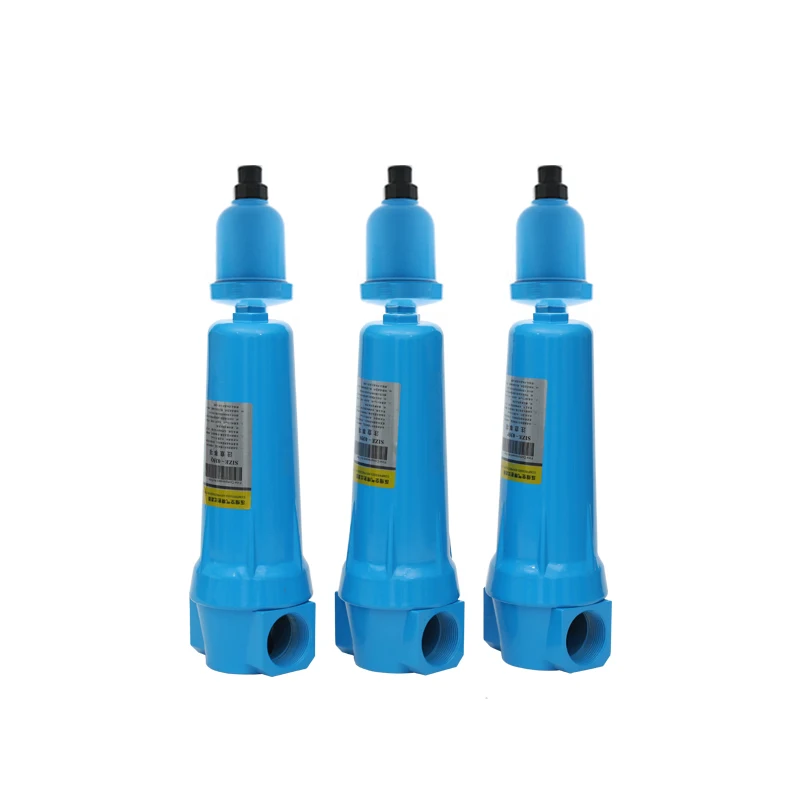

3.Precision filter and automatic drainer
Because the compressed air contains water, oil and other impurities, the filter is to filter out most of the impurities such as water and oil, so as to provide cleaner and better compressed air for enterprises. With automatic drainage, there is no need for manual operation, which is convenient and convenient.

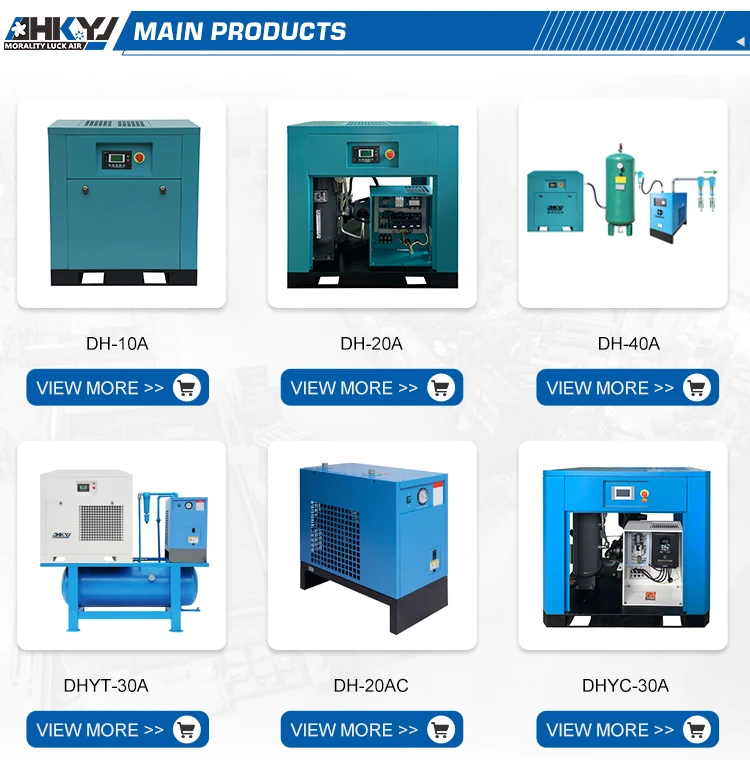

Main Products




Company Profile






Our Advantages






Certificate




Packaging & Shipping




FAQ




Q : How many employees does Dehong Group have?
A : About 500 people.

Q : When was your group established?
A : Dehong was founded in 2000 and has 20 years of production experience and advanced production technology.

Q : What's your factory’s production capacity?
A : About 500 units per month.

Q : What’s The Annual Sales Volume Of Your International Department?
A : About USD 12,000,000.00 In 2019, 39% Of The Group Annual Sales.

Q;How Many Units Does Dehong Export In A Month|?
A: About 80 To 100 Units.

Q: Can you use our brand?
A: Yes, OEM is available.
