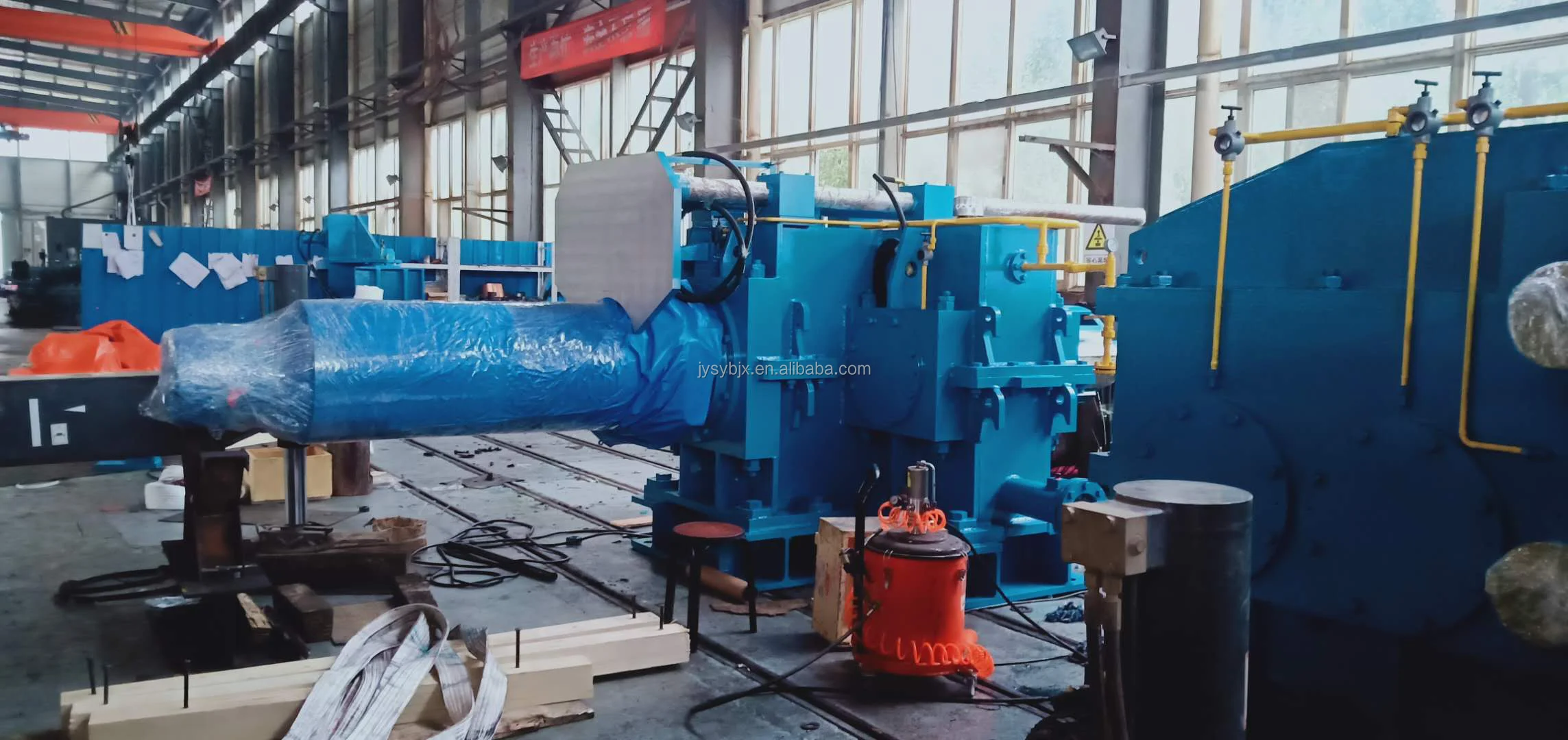

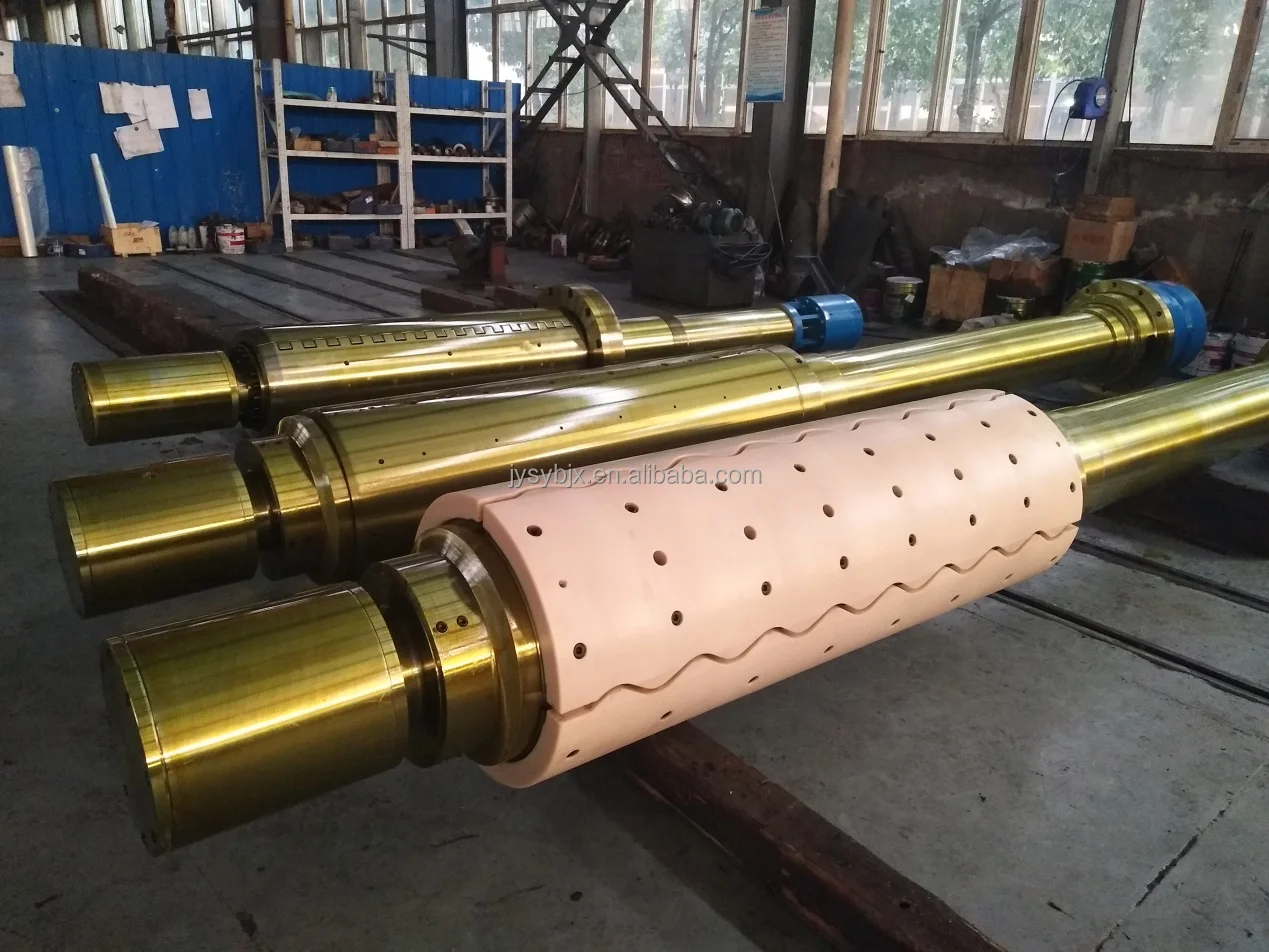

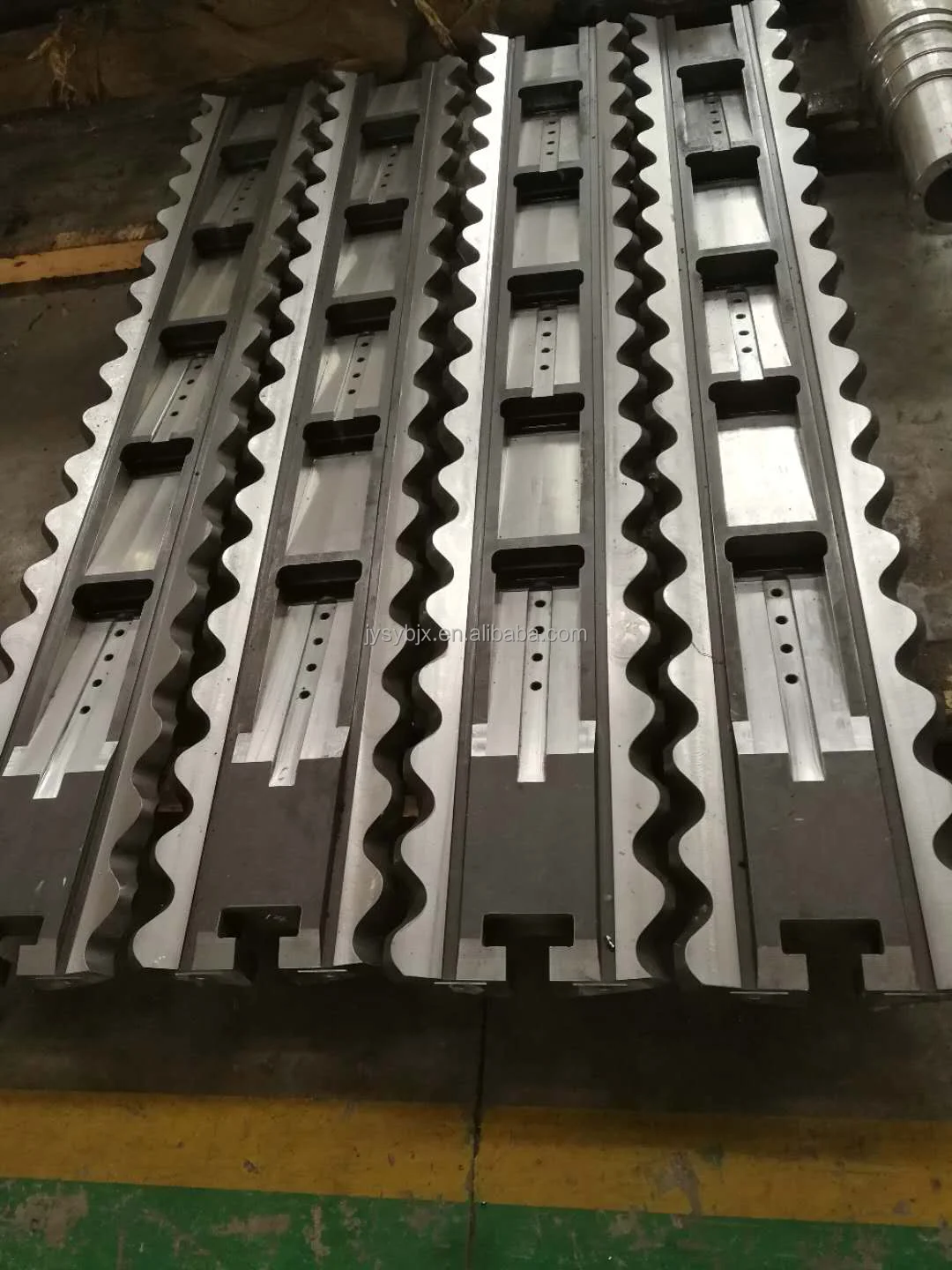

This coiling is a kind of reel (Ø508) of the copper alloy strip rolling production line. In the copper strip processing equipment, the coiler reel is the main equipment of the rolling mill unit, and the rolled strip is wound into a coil. It provides front and back tension during strip rolling, which has a great influence on strip thickness uniformity and physical and mechanical properties, and has the function of reducing strip deviation and reducing rolling force. Because of the copper strip roughing mill rolling, the specifications and materials of the strip vary widely, so the rigidity of the reel is required. The reel can be used in conjunction with a large reel to roll the strip from 16mm to 0.5mm on one rolling mill, and realize the best configuration of a high-precision copper strip roughing mill. It is also the development direction of modern copper strip roughing mill configuration. The coiling is composed of main components such as a main shaft, a sector plate, a loose gear, and a three-lobed slider. Like the three-grab chuck of a lathe, the end is composed of a large disk. The coiling spindle and sector plate are made of 42CrMo high-alloy forgings after quenching and tempering, which have high strength and toughness, high fatigue resistance and impact resistance, so the structure has good coiling rigidity. Ultimately, meet customer needs and use.
Specification
Place Of Origin
China/Henan
Video Inspection
Provided
Mechanical Test Report
Provided
Warranty Period
1 Year
Out-of-warranty Service
Online support
Core Selling Point
Long Service Life
Applicable Industry
Manufacturing Plant
Company Profile

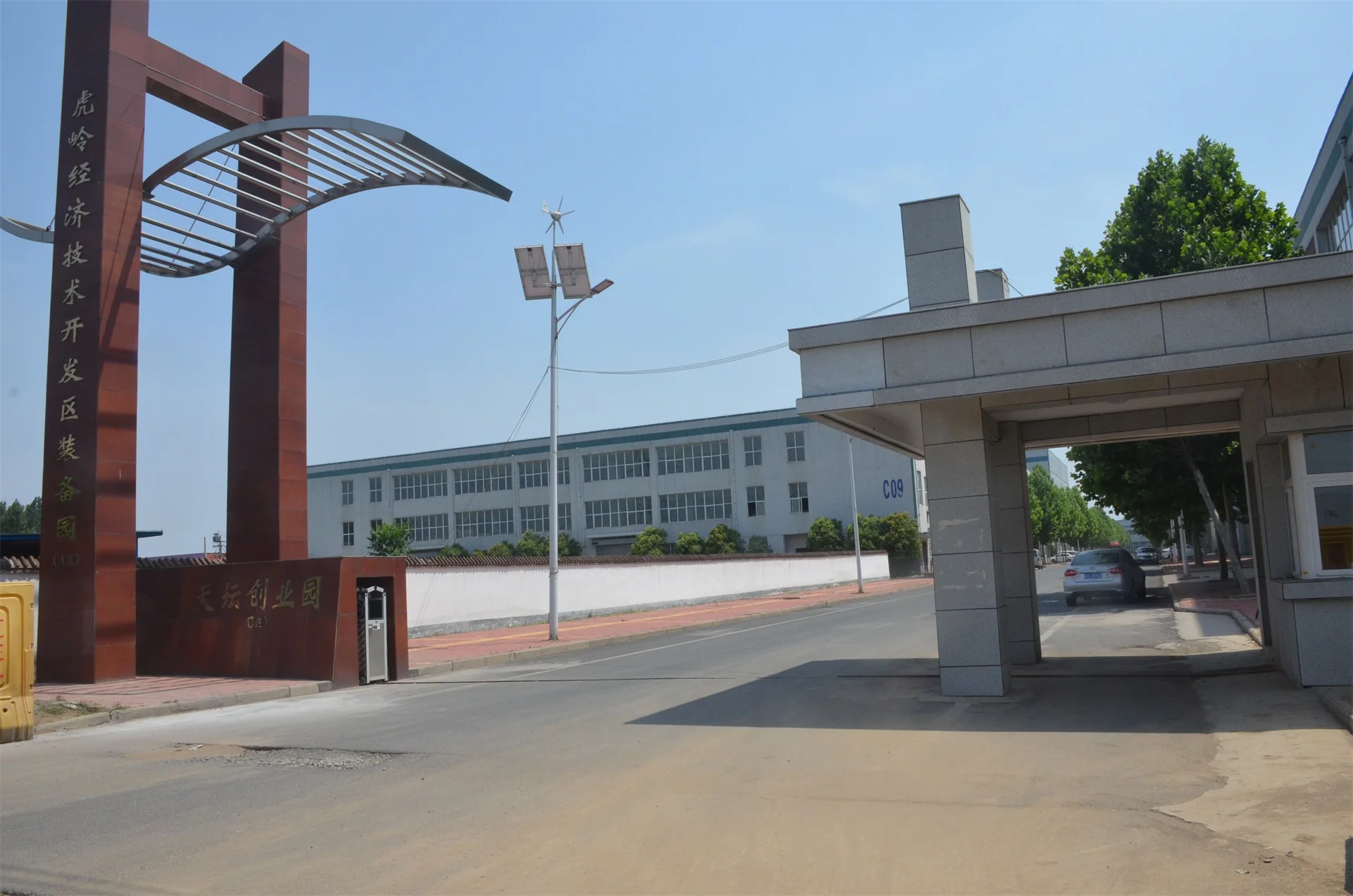

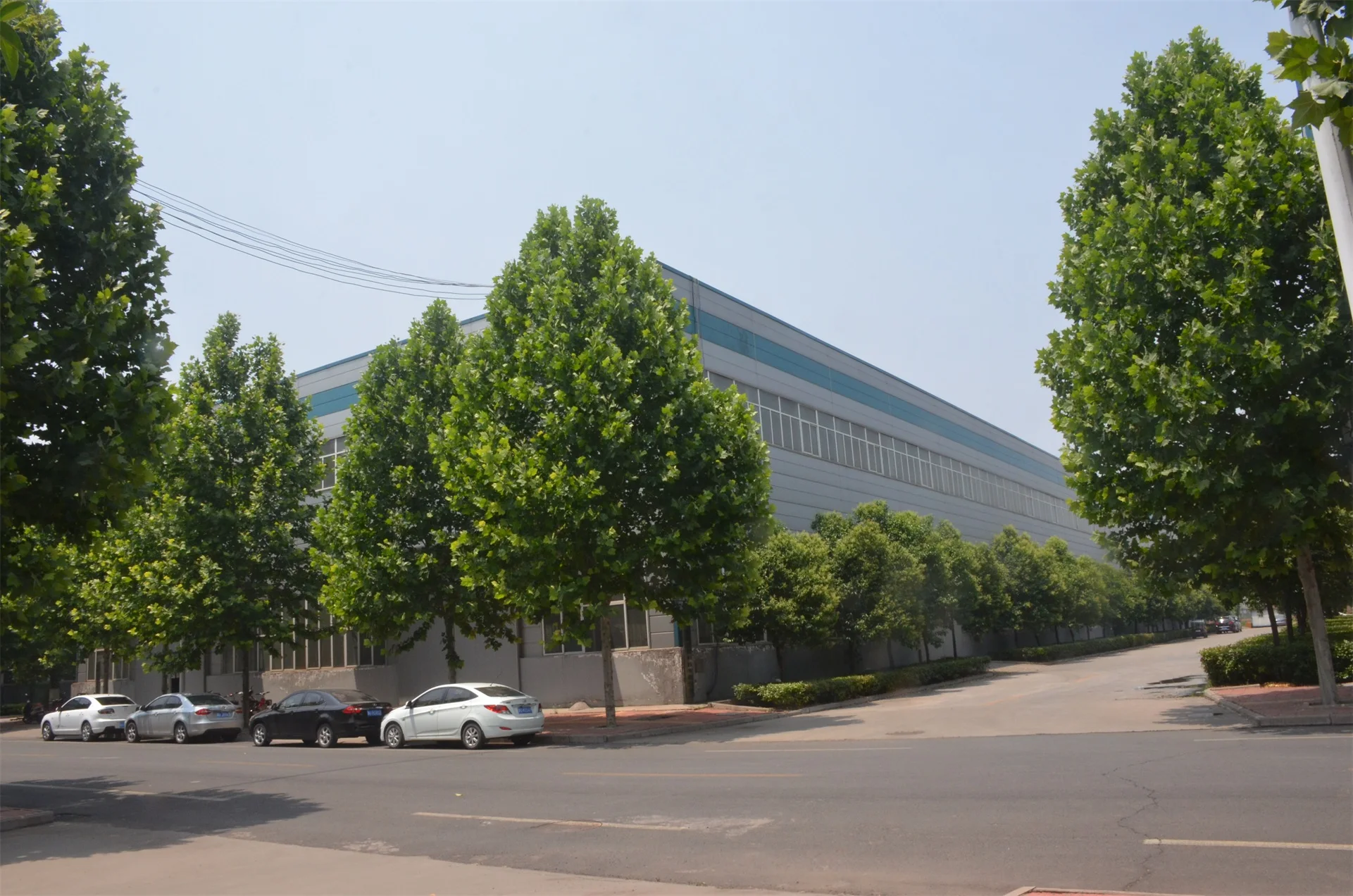

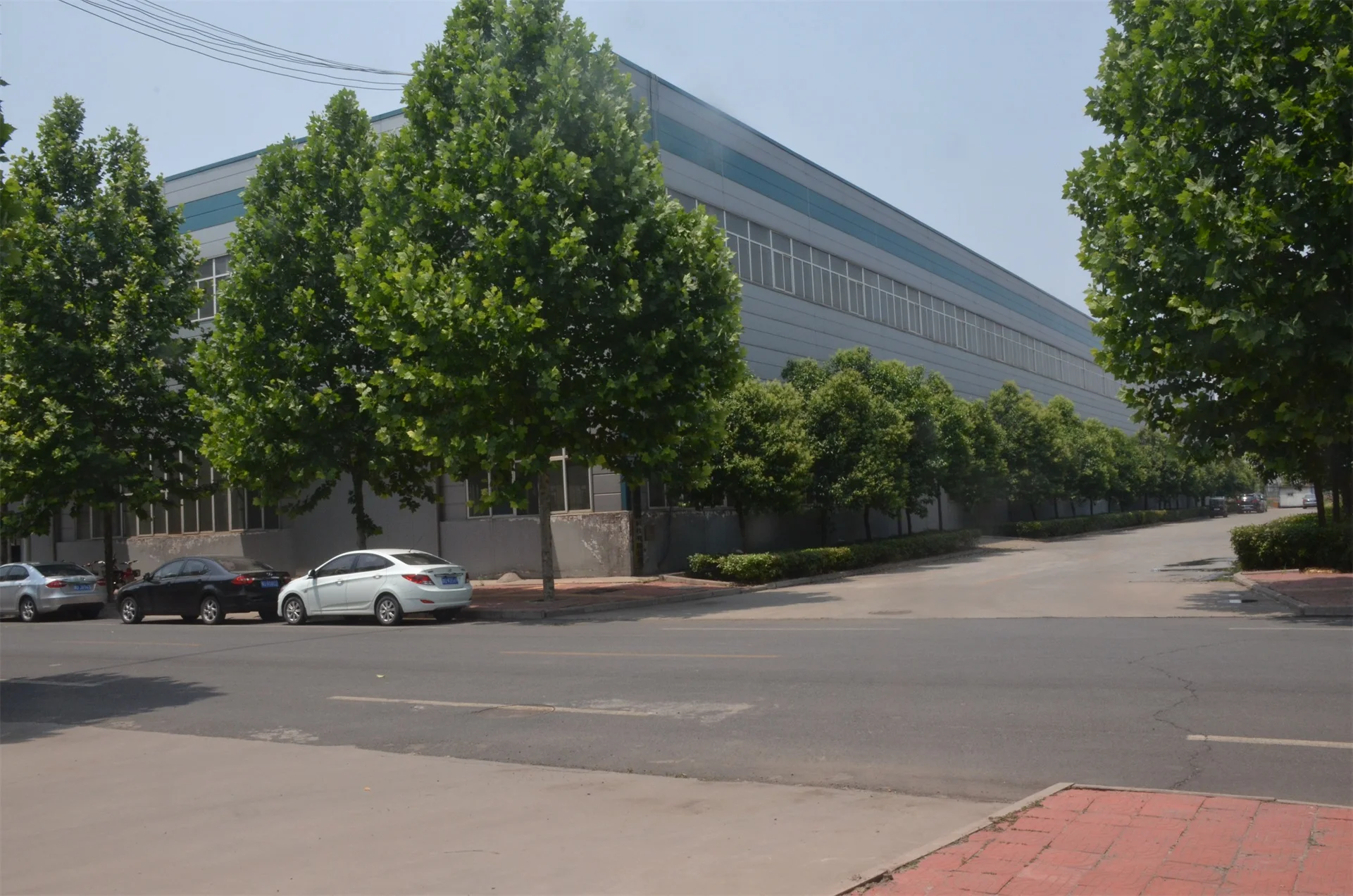

Jiyuan Yubei Machinery Co., Ltd. is located in C09, Tiantan Industrial Cluster District, Jiyuan City, Henan Province, the famous hometown of Yu Gong in the country; It borders Shanxi in the north and Luoyang in the south. The Erguang and Changji highways pass through the territory, with superior geographical conditions, developed road traffic and rich tourism resources.

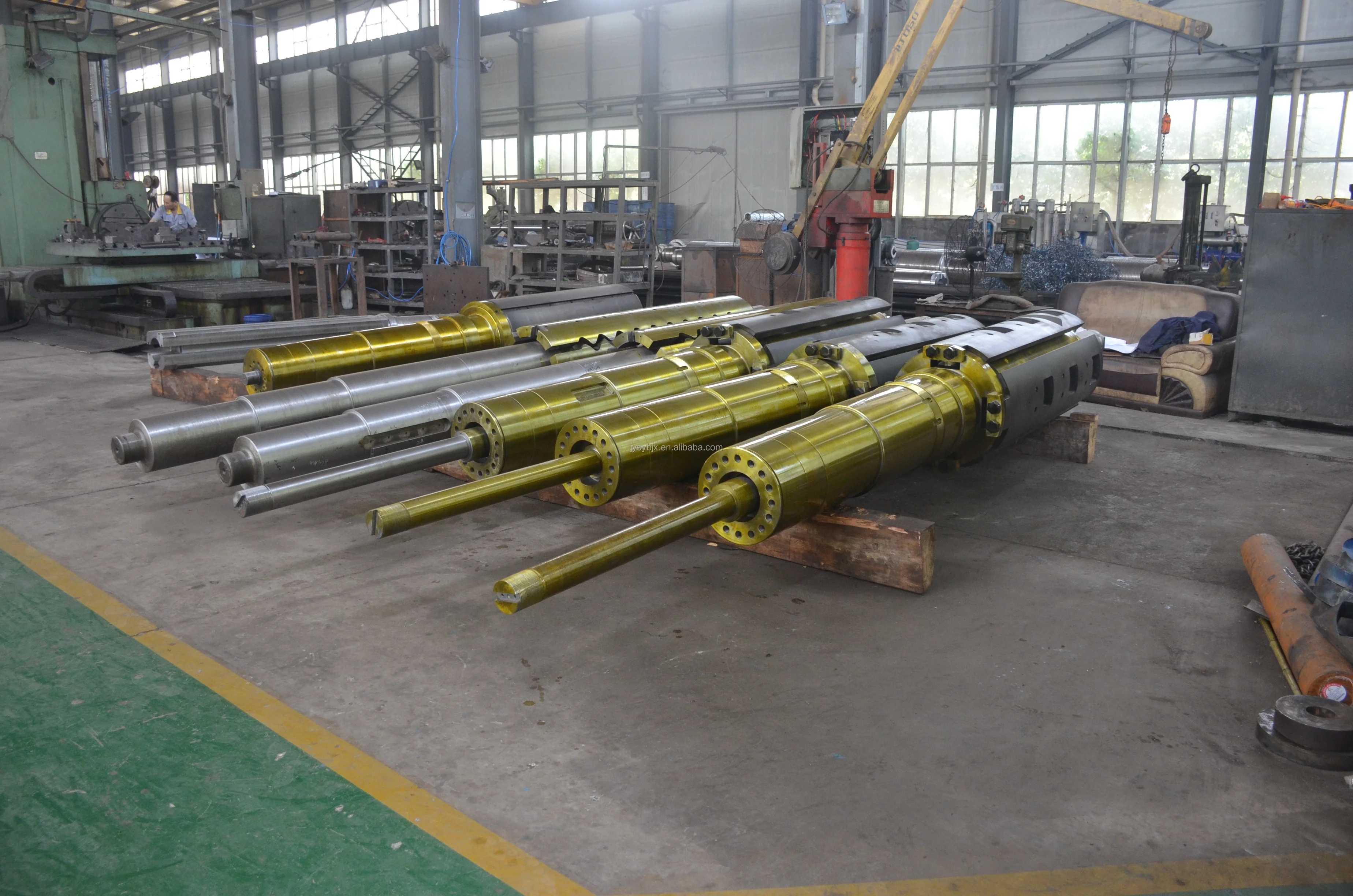

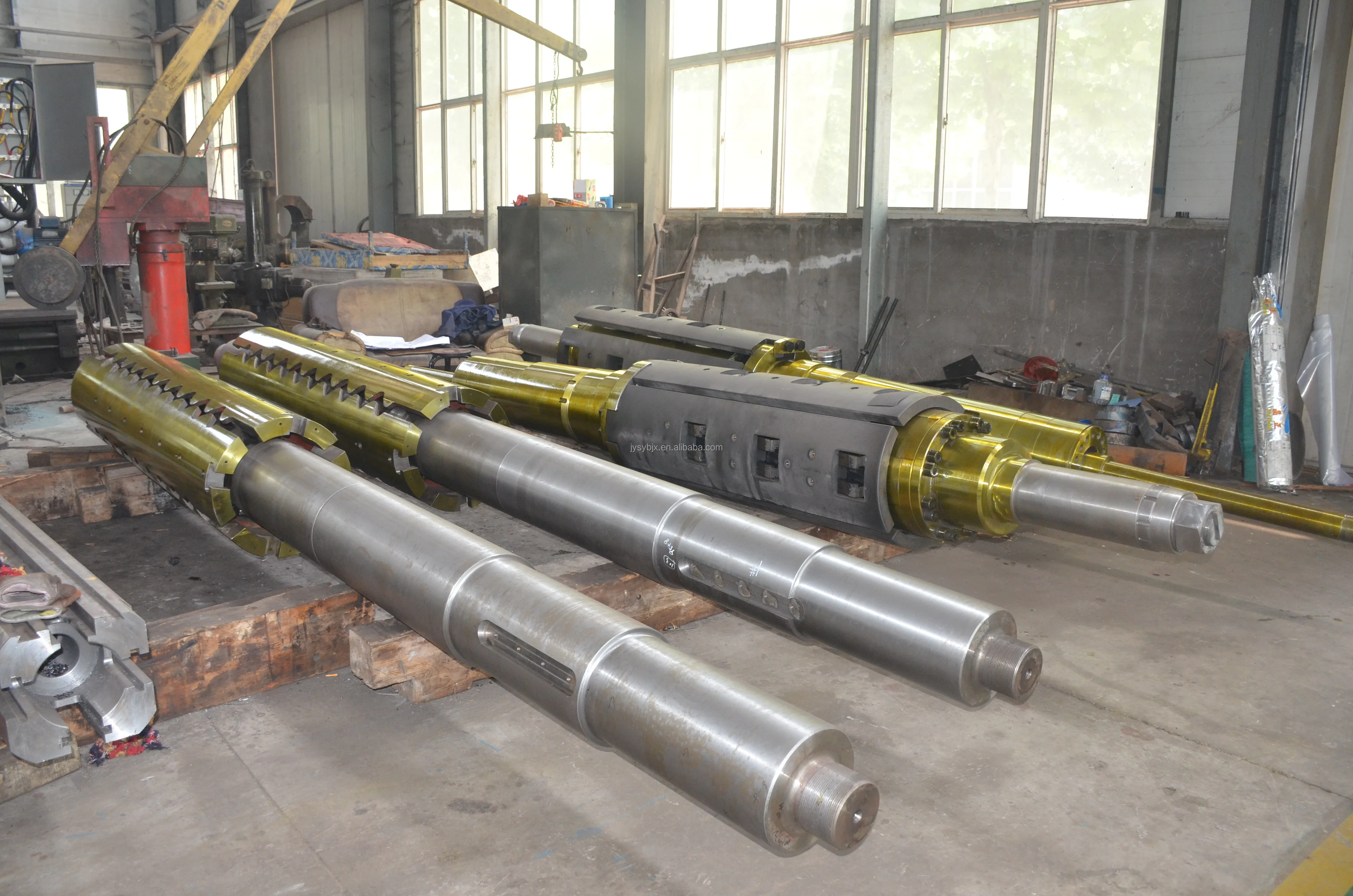

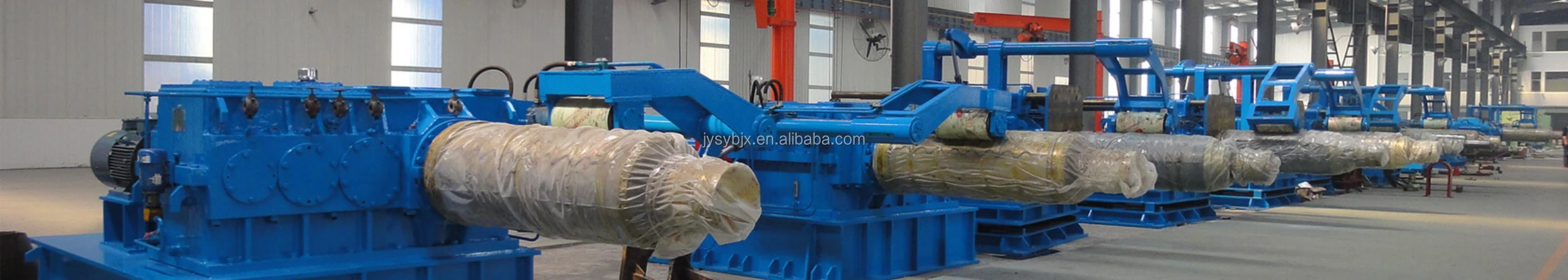

Yubei Machinery currently has 12 million fixed assets, 65 employees, with an average age of 32 years, and 12 management personnel, senior technicians, and engineering technicians with a college degree or above. The company has advanced processing technology, strong technology and equipment strength , and its main products are metallurgical equipment unwinding and rewinding reels. The products are widely used in steel strip, aluminum strip, copper strip rolling mill lines and various auxiliary machine lines (color coating, plating Zinc, stretch bending, rewinding, leveling, vertical and horizontal shearing). The products cover more than a dozen provinces and cities across the country, and some products are exported to Japan, the United States, India, Vietnam, Turkey, Pakistan and other countries. The current annual output has reached more than 150 sets, and it is one of the companies that process the most winding shafts in this industry in China, and the quality has reached the industry standard.

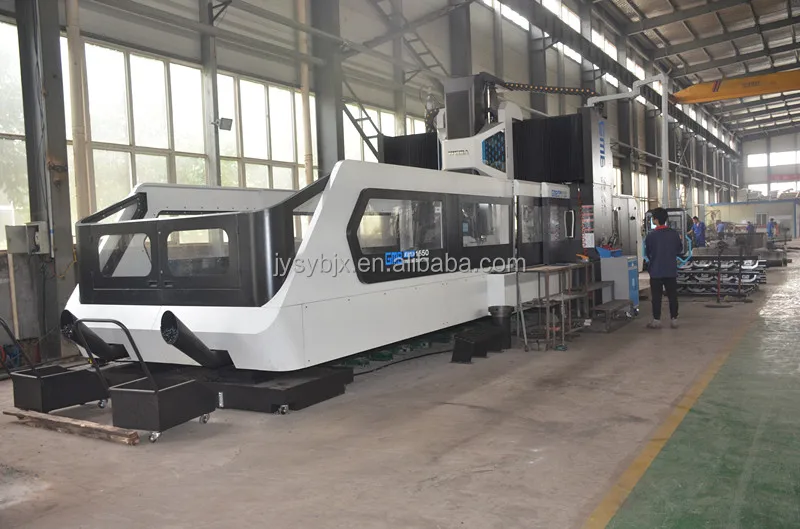

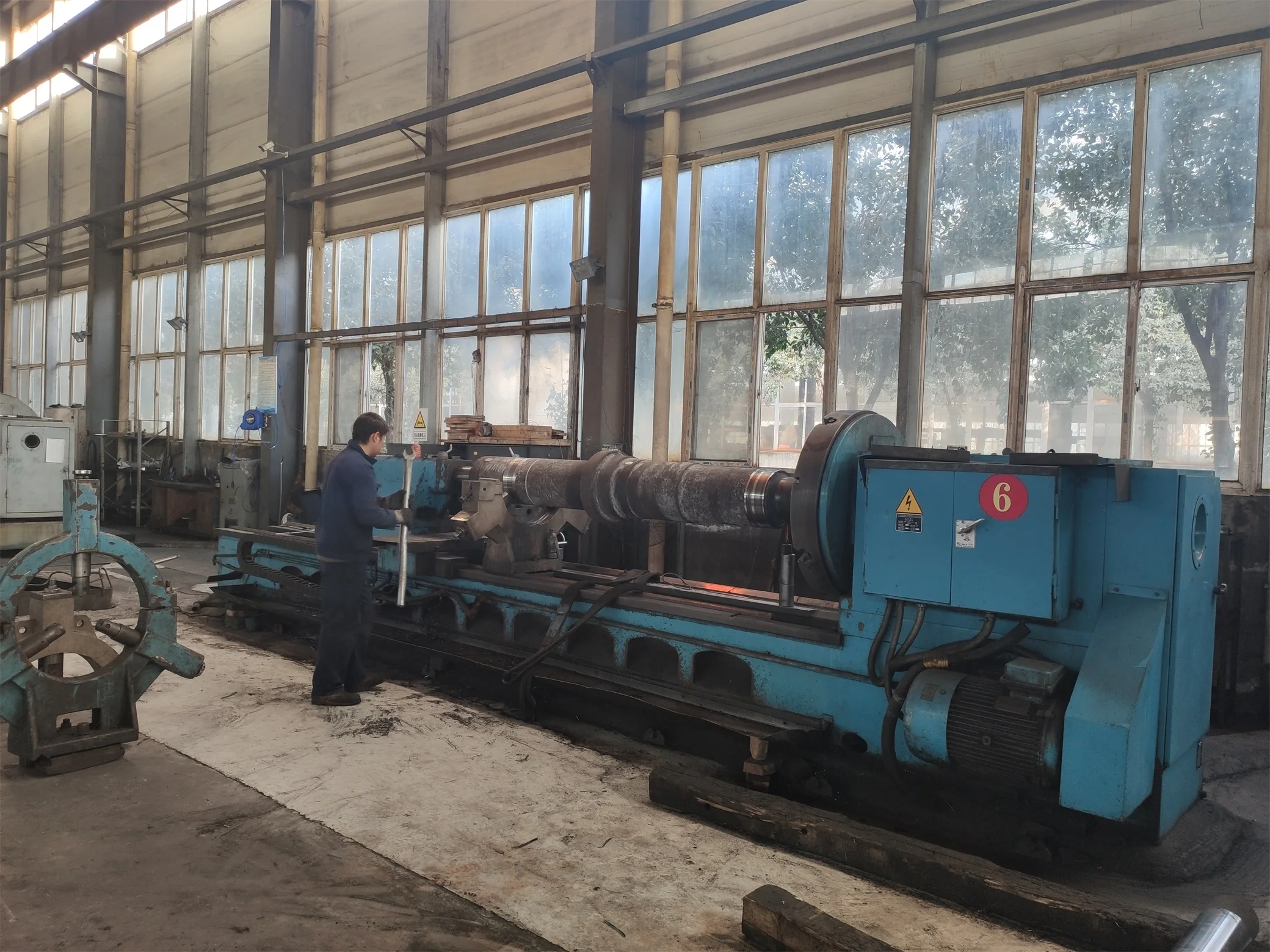

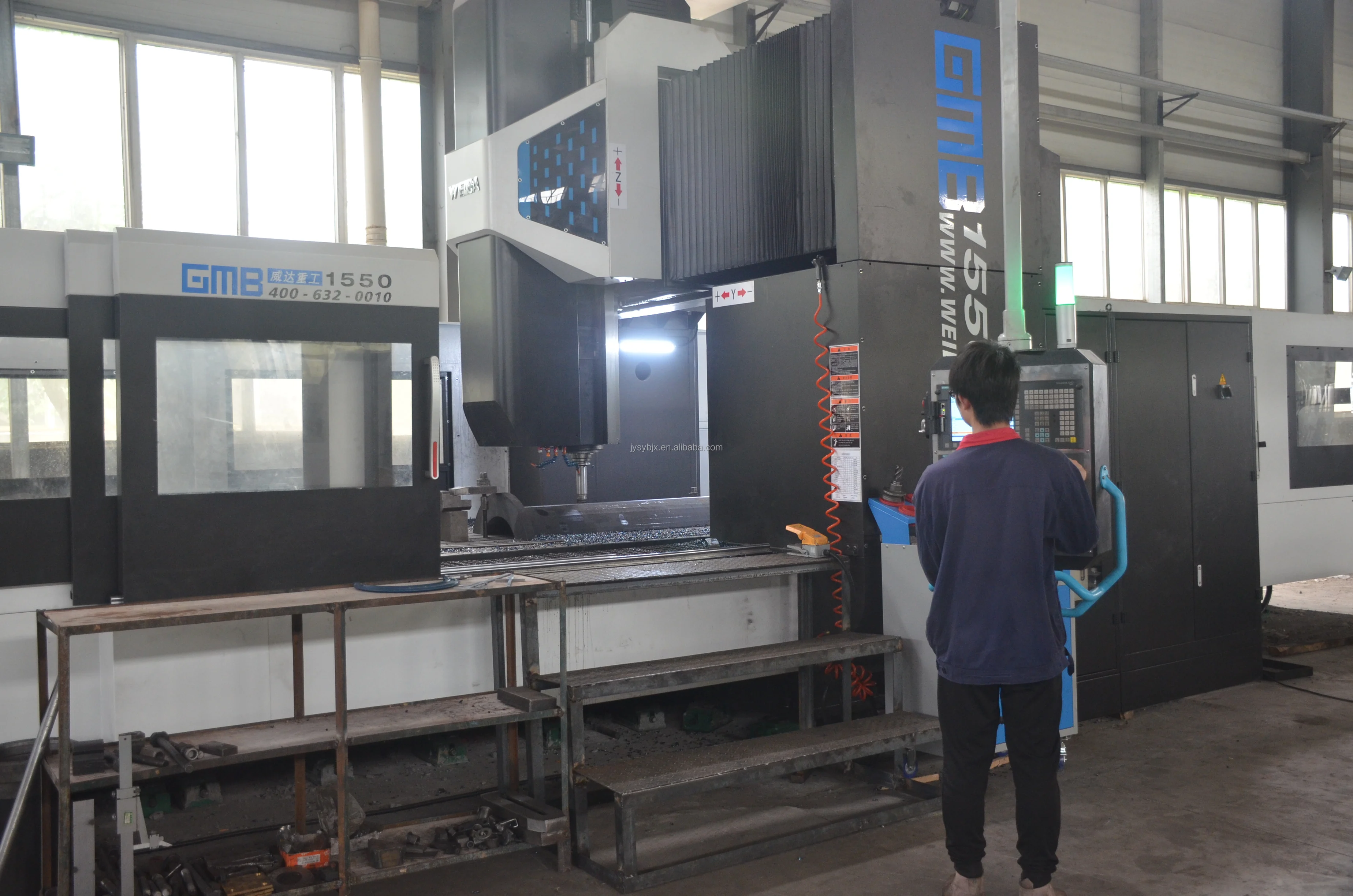

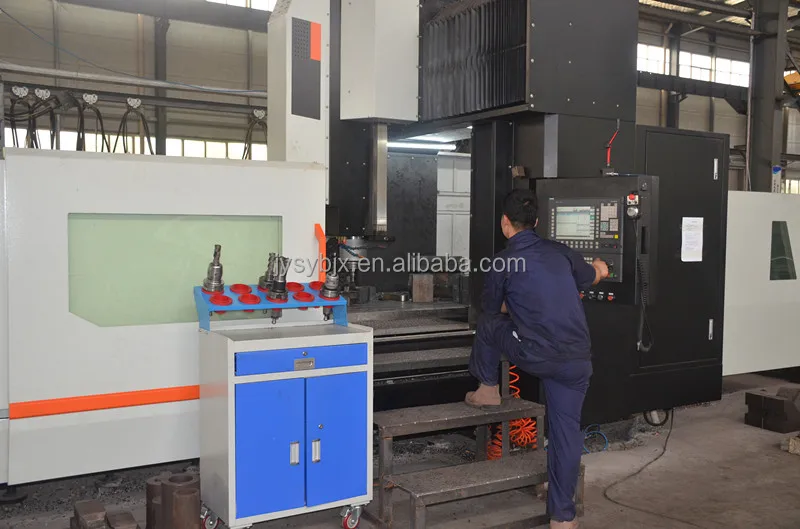

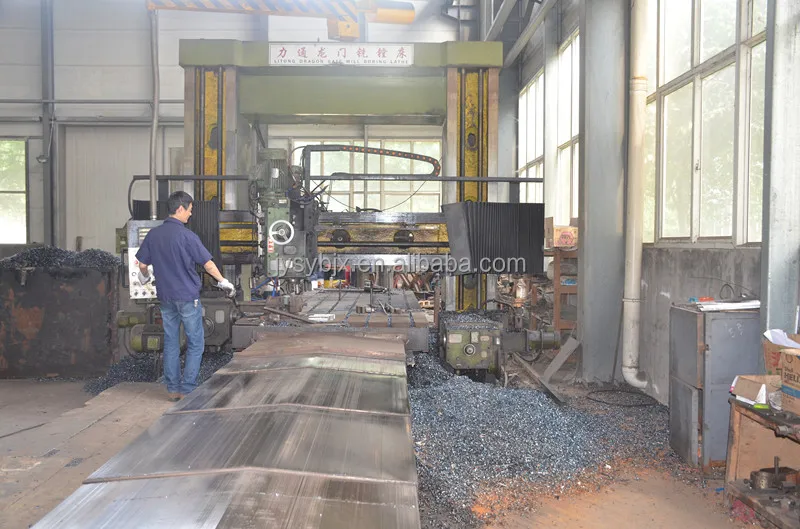

With the further deepening of economic reforms, at the end of 2016, the company invested more than 4 million yuan to update equipment, and newly purchased a 5-meter CNC gantry milling machine, 2 3-meter CNC gantry milling machines, and a 10 -meter 1250 lathe. Strengthen the production and processing capabilities of the company, and bring our product quality to a new level.
For the coiling shaft of the non-ferrous metal casting industry: Yubei Machinery supports more than ten design units such as China National Metal Technology, Shanghai Tianzhong, Zhuoshen Company, Zhengzhou Baoding, etc. Products have been used in Zhongyuan Aluminum, Northwest Aluminum, North China Aluminum, South China Aluminum, Southern Aluminum, China Aluminum Zhengzhou Cold Rolling Plant, China National Color Wanji, China Aluminum Luo Copper, Zhenjiang Dingsheng Aluminum, Gongyi (Mingtai, Xintai, Wanda, Shunyuan, Yongtong, Hengsheng) Aluminum Industry, etc . were put into use.
Based on the principles of honesty and trustworthiness, quality-oriented, and mutual benefit, Yubei Company is willing to conduct extensive and in-depth cooperation with friends in the same industry at home and abroad to create a grand cause!
Steel strip coiling shaft: Our company is a designated manufacturer of China First Heavy Industry, Taiyuan Heavy Industry, Shaanxi Rolling, Antai Technology of Beijing Iron and Steel Research Institute, Beijing Automation Institute, Tianjin Metallurgical Planning and Design Institute, Sinosteel Xizhong and other units .
Why Choose Us
SERVICEEXPANDING MANDREL DESIGN & MANUFACTURE SERVICE

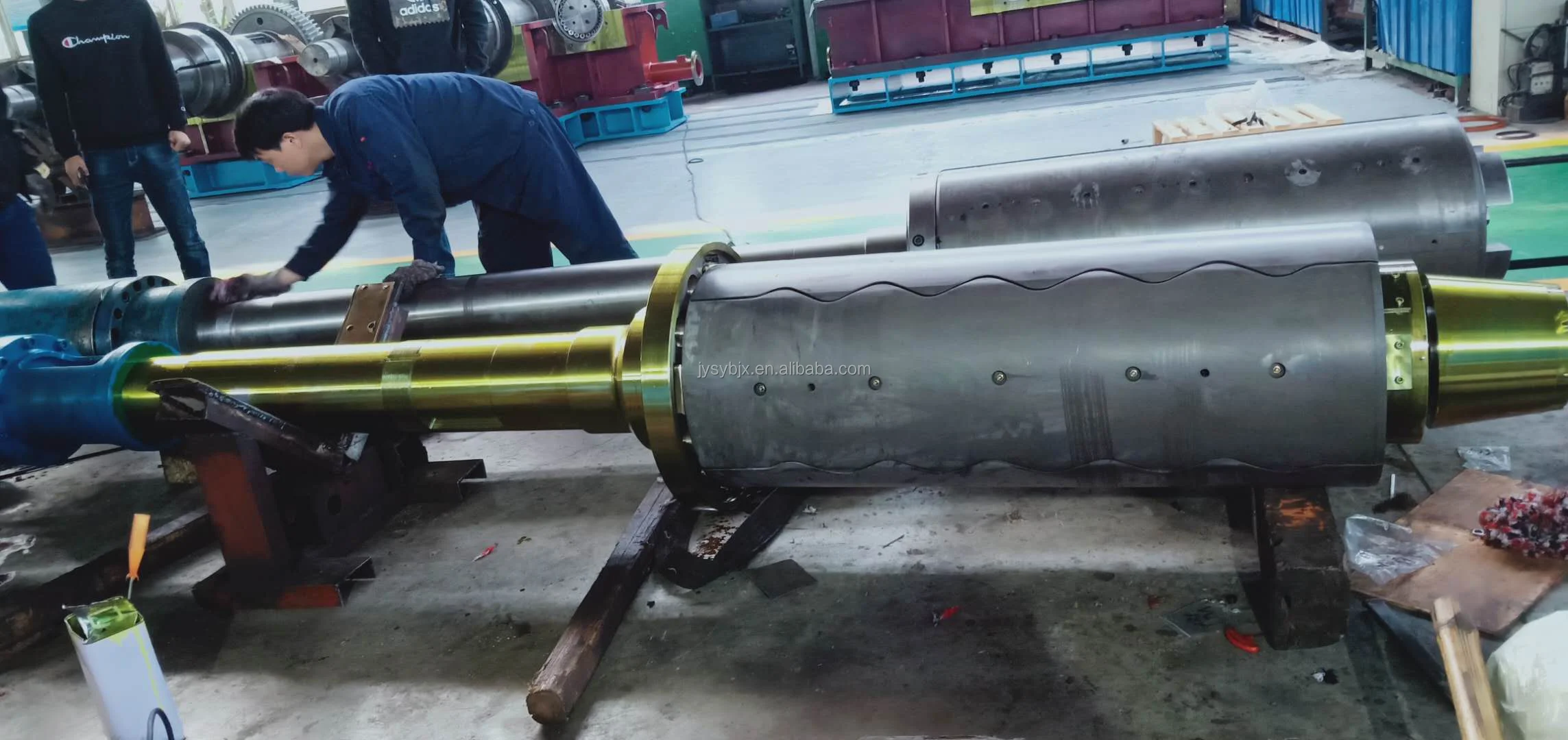

The expanding mandrel is our core and advantageous product. Our engineers are experienced in this area. Whether you are upgrading the production line, or establishing a new line, we could design according to your specific needs, manufacture assembly mandrels to meet you and your customer's needs; Our engineers also could make 3D models;
CUSTOMIZED MACHINING SERVICE
As a machinery manufacturer, our factory also provides customized machining and design and manufacturing services; We have the equipment and capabilities to process parts according to customer drawings;
ENGINEERING SERVICE

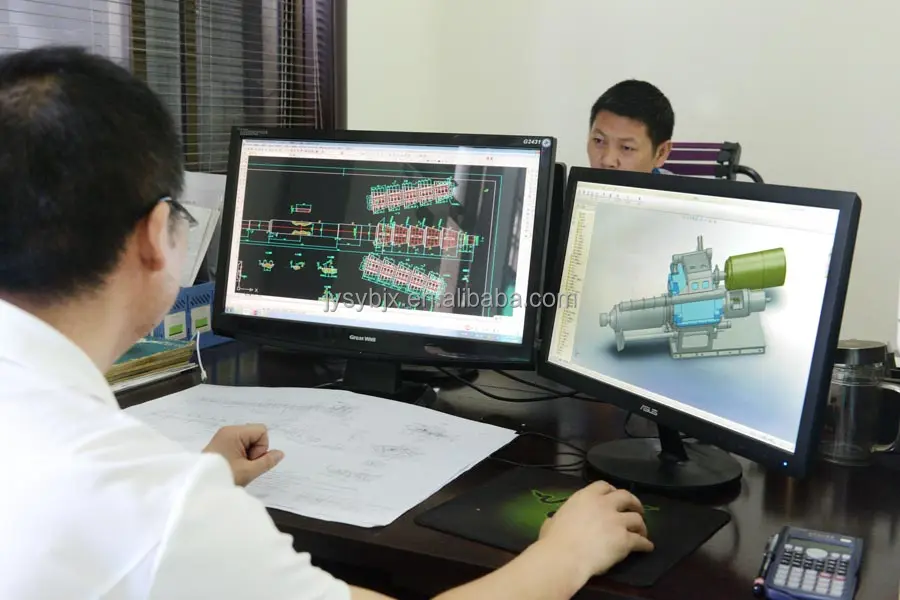

Our engineers have been working in this field for more than 10 years. They can provide professional advice, provide 3D models and CAD drawings, and can also provide online guidance and debugging services through network software.
