LC02 New model OEM brand e bikes mid drive 180w cheap mountain electric bike
- Category: >>>
- Supplier: Ejoysport Technology (suzhou) Co. Ltd.
Share on (1600210779648):
Product Overview
Description
Products Description

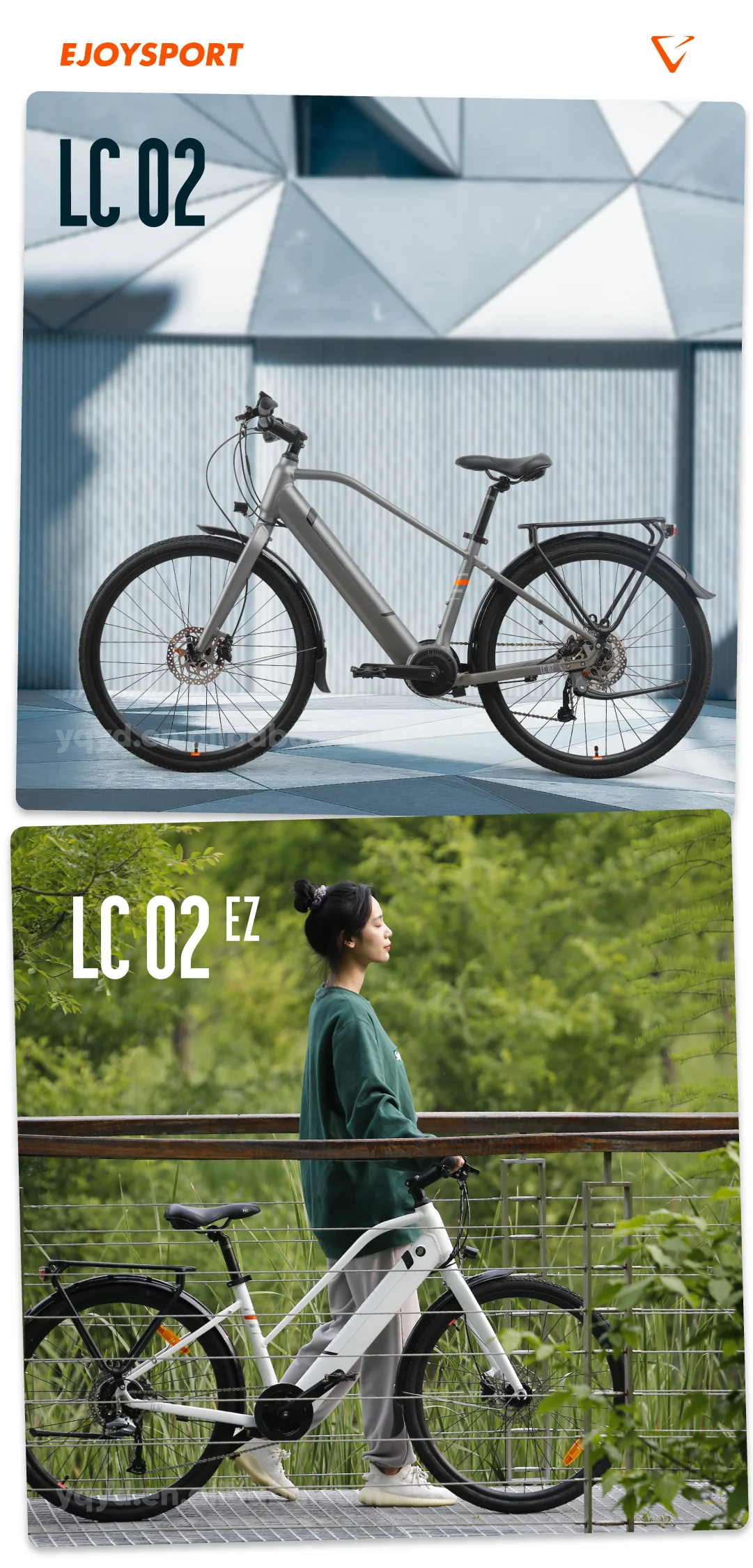

EJOYSPORT LC02
Ebike For Life In city
Quick, comfortable and capable ebikes for everyday transport, fitness and fun.
Quick, comfortable and capable ebikes for everyday transport, fitness and fun.
378Wh SAMSUNG® Battery
180W 50Nm Mid-Motor
5 Shifts Power Assist
26“ Aluminium-Alloy Frame
Shimano® 9-Speed
Hydraulic Disc Brake

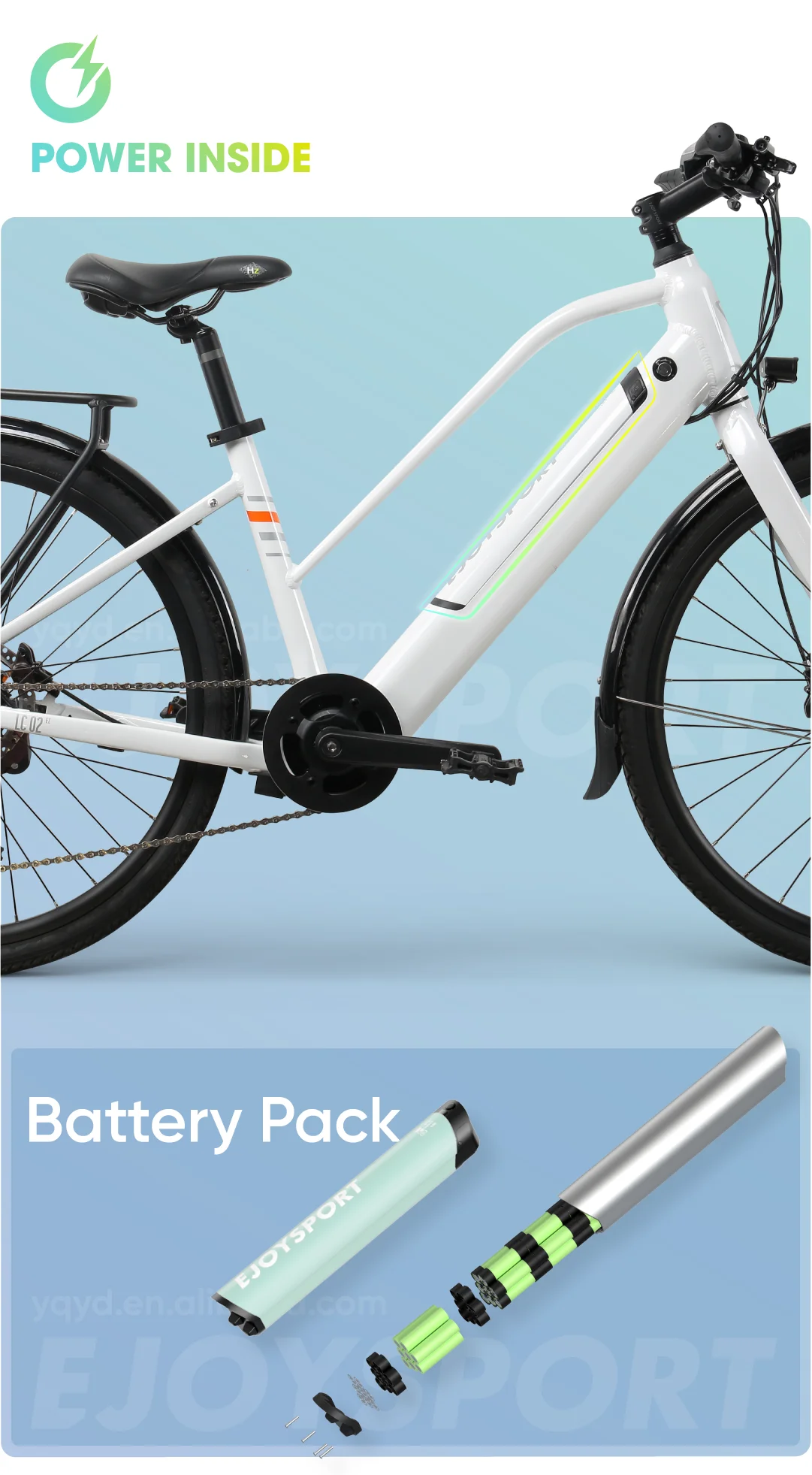

2.2kg Battery, Compact Yet Energetic
SAMSUNG® / Panasonic® 18560 Li-ion Cells
378Wh 36V 10.5Ah
Solid Aluminium-Alloy Packing Case
Smart Battery Management System Safety Guarantee
378Wh 36V 10.5Ah
Solid Aluminium-Alloy Packing Case
Smart Battery Management System Safety Guarantee

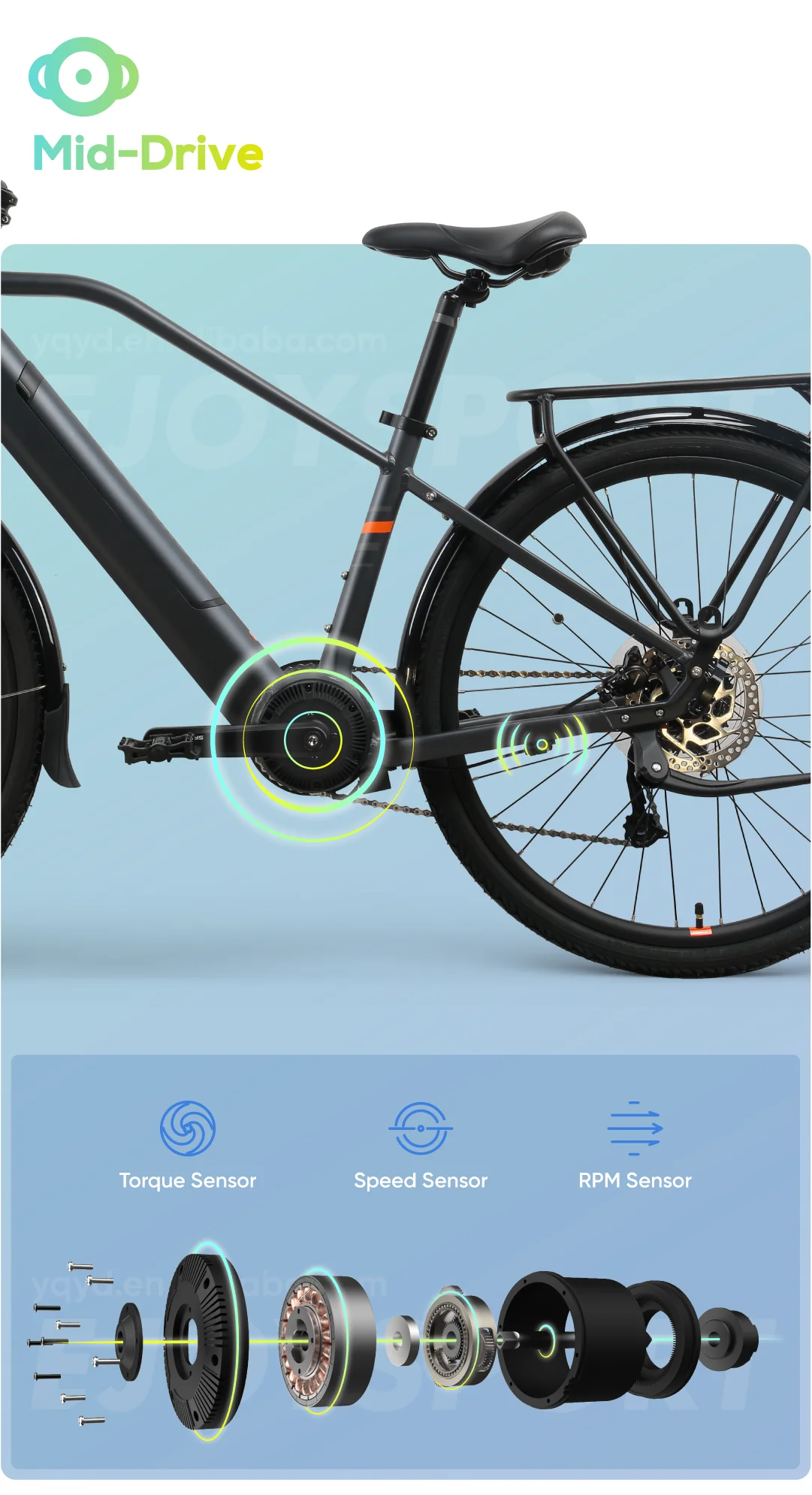

A Very Natural Yet Potent Power Delivery
Compact lightweight mid-motor
50Nm maximum 180W rated power
Torque sensor, speed sensor, RPM sensor
50Nm maximum 180W rated power
Torque sensor, speed sensor, RPM sensor

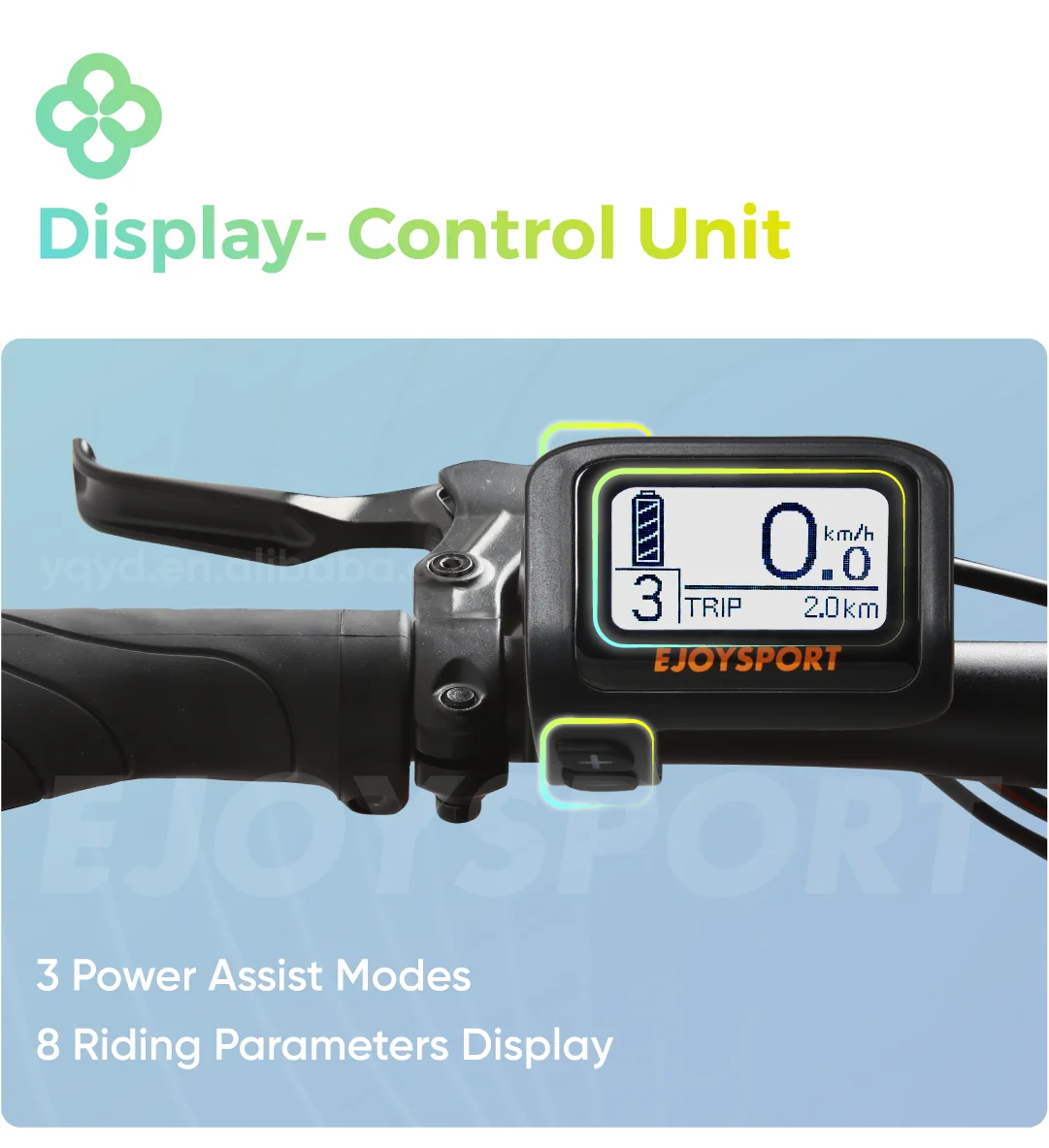

Take a glance to get everything about riding.
3 power assist modes / walk assistance
LCD display with backlight
Trip, ODO, Max/Avg speed, Power, Time, Range and Calorie, 8 rding parameters display.

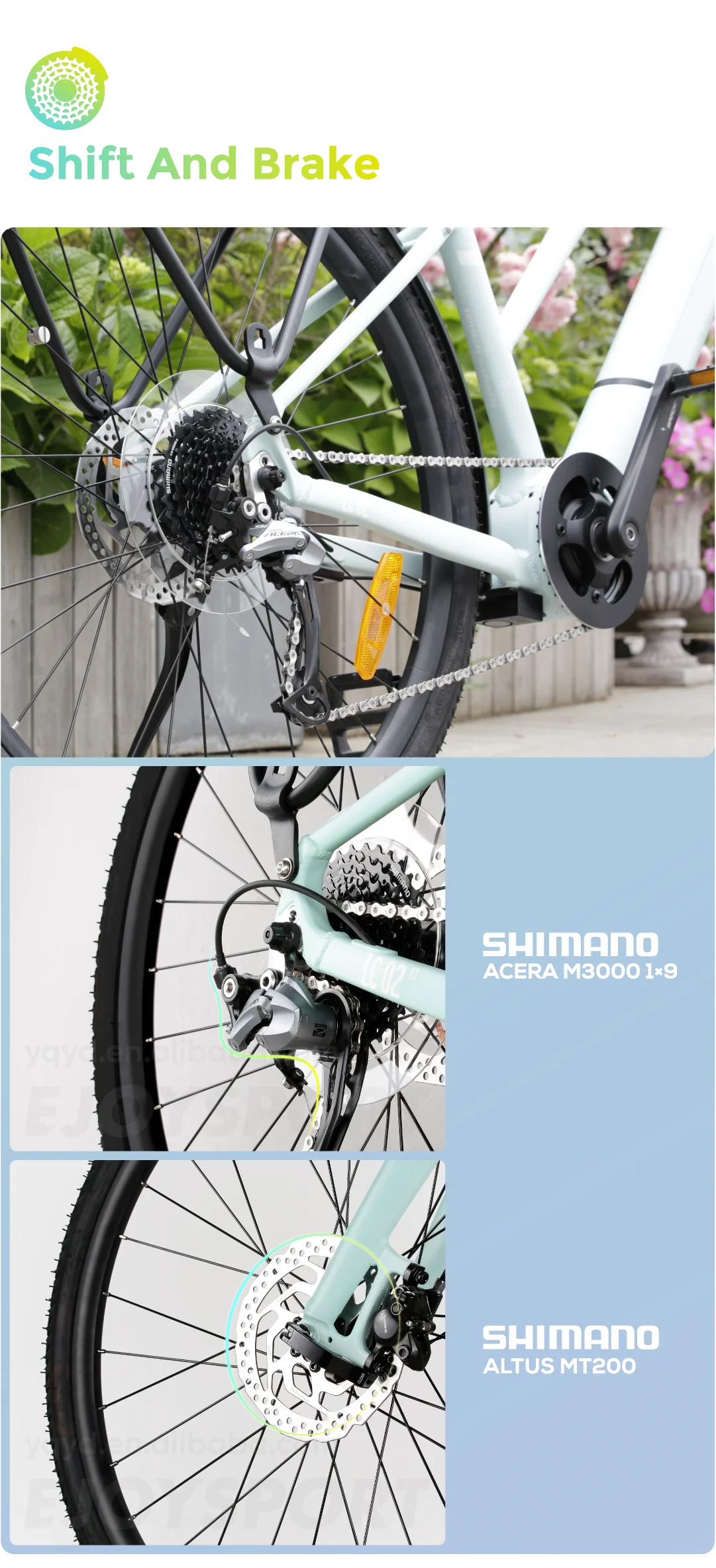

Ease of use, from climbs to cruising, accelerating to stop.
SHIMANO ACERA M3000 9-speed
SHIMANO ALIVIO M3100 hydraulic disc brake

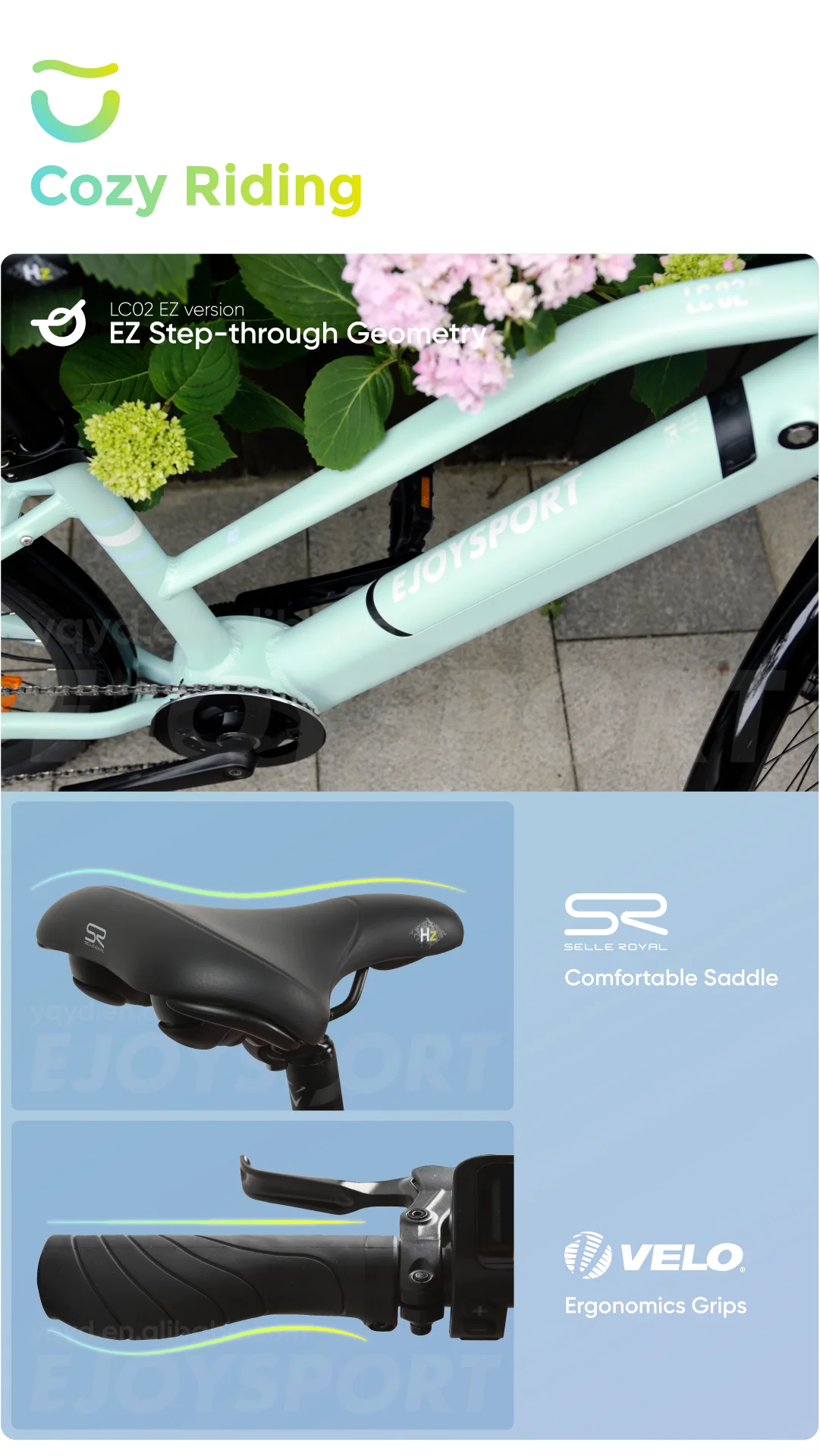

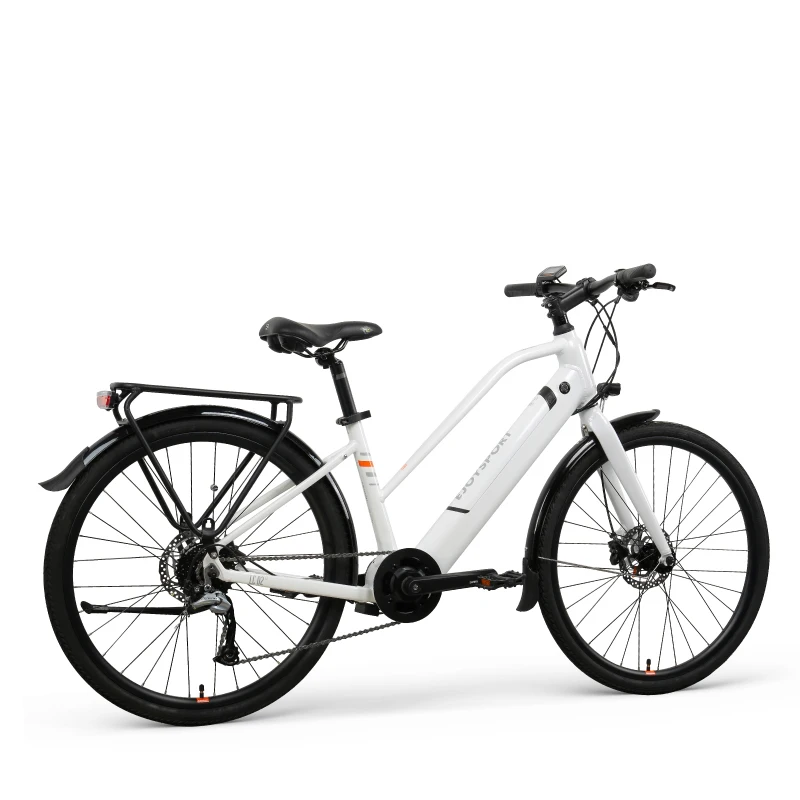

EZ version, Comfortable riding experience.
By redesigning the top tube, the rider can more easily get on and off the bike with the step-through frame. The top-end saddle and grip make it more comfortable for your riding.
All you need for city riding.
No matter it is sunny or rainy, day or night, the well equiped components make it perfect for your every day riding.
SPECIFICATIONS
EJOYSPORT LC 02

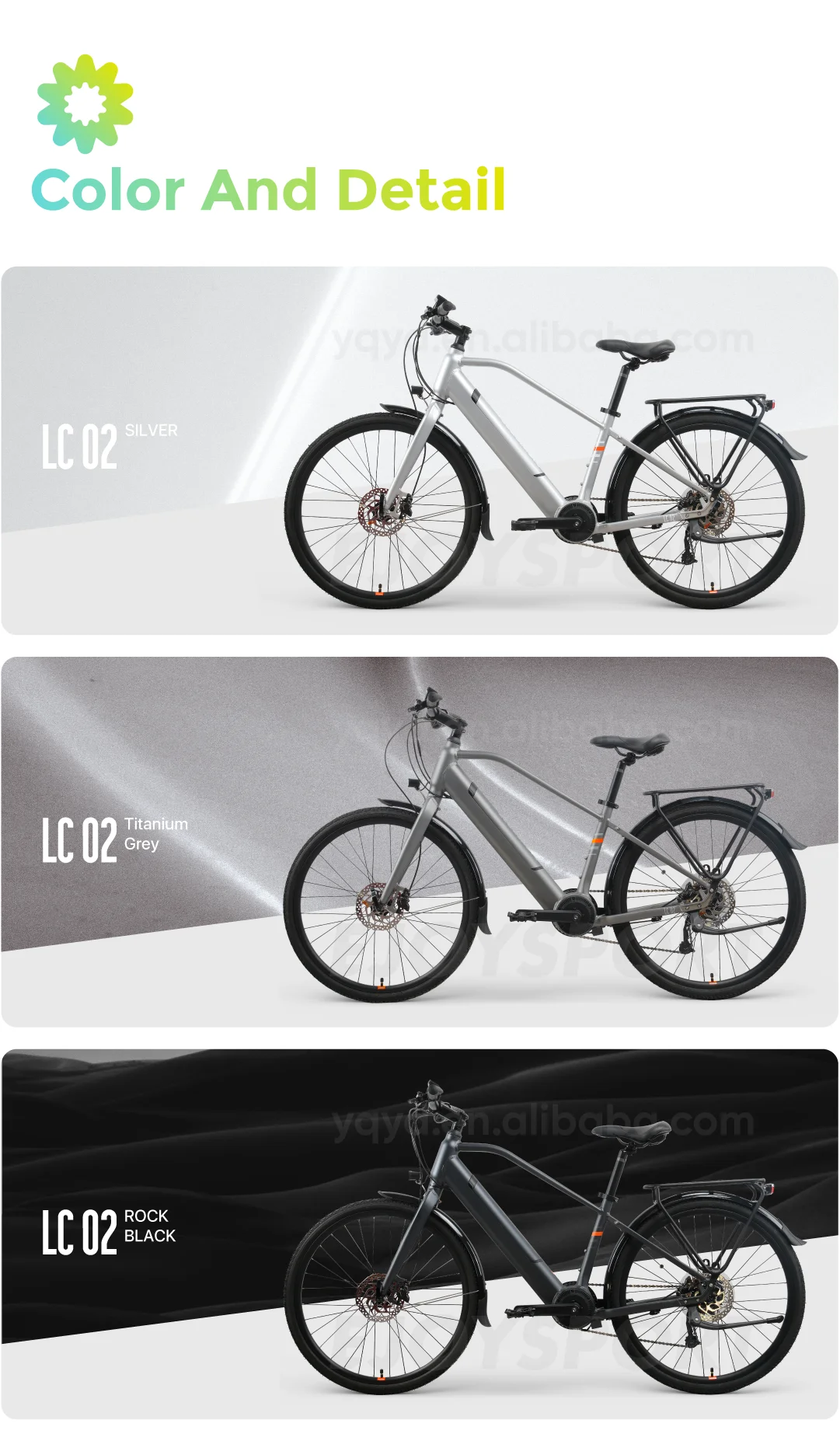

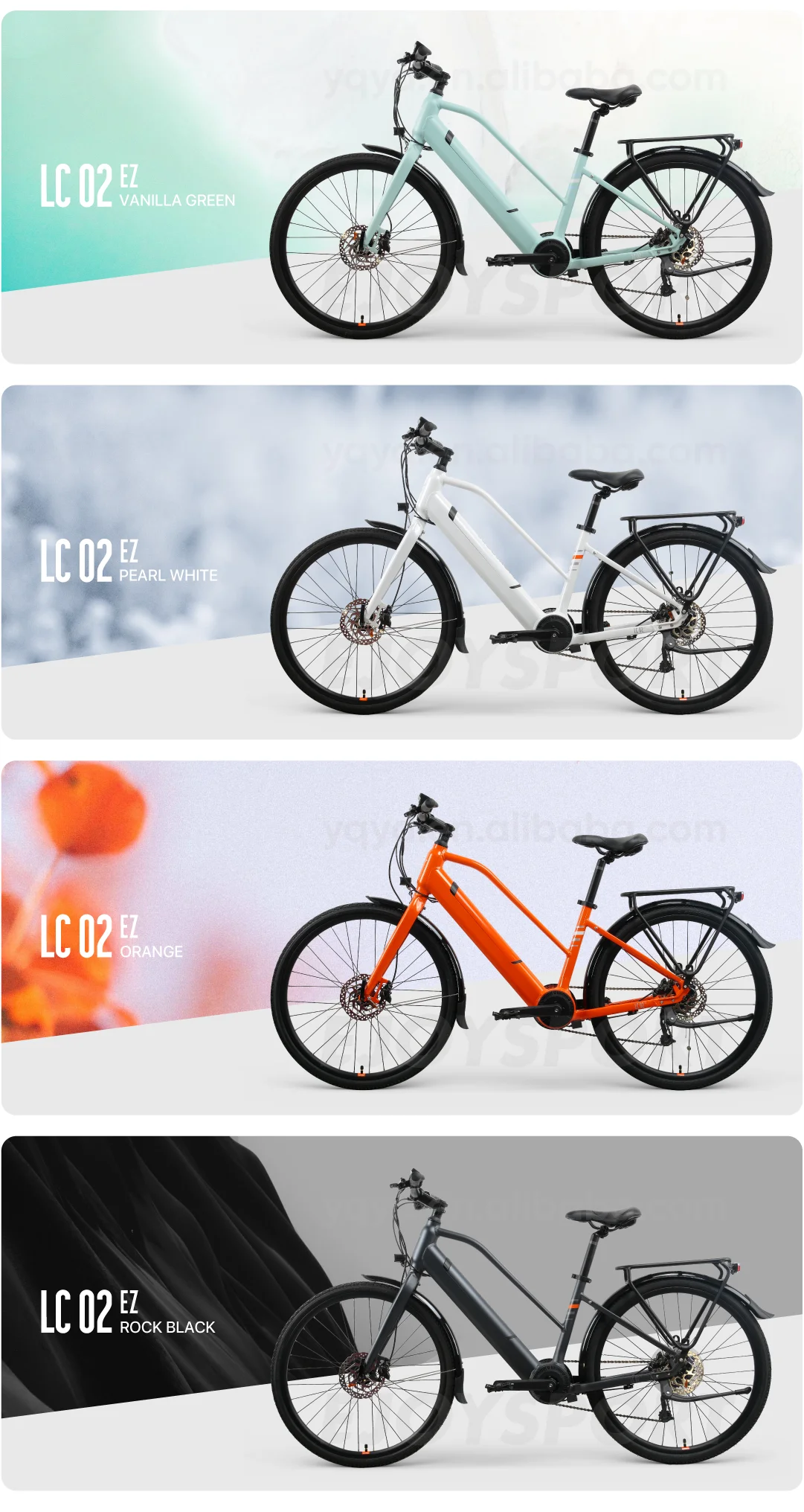

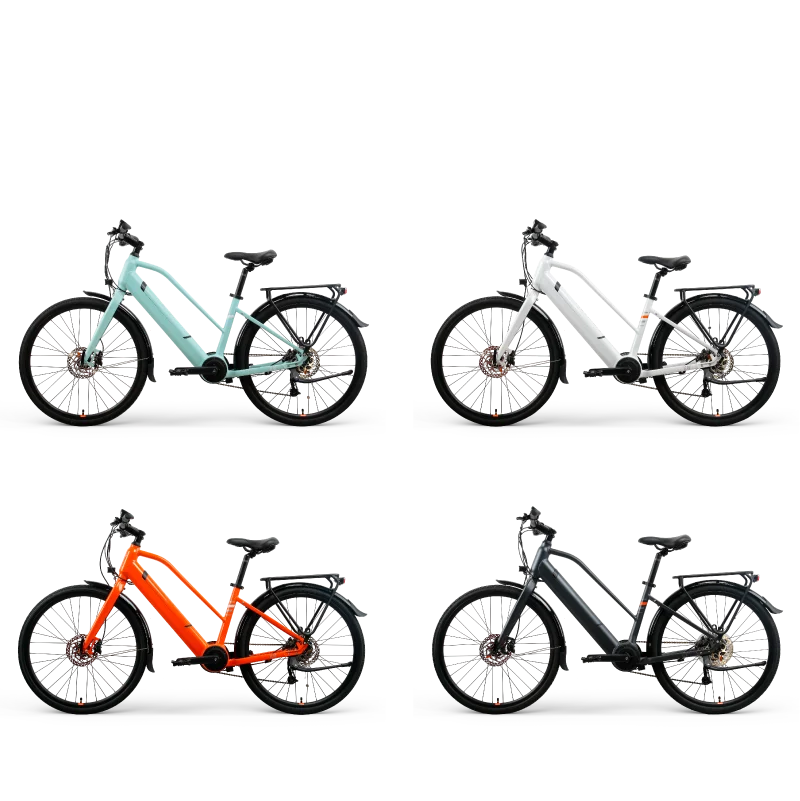

FRAME | EJOYSPORT LC 02 /LC02 EZ Frame | Al-Alloy, LC 02 26×15" / 17", LC 02 EZ 26×15" step-thru, removable integrated battery, straight 1-1/8" head tube, internal routing, postmount, attachment points for rear rack, fenders and bottle cage Colors: LC 02 Titanium Grey / Rock Black / Sliver LC 02 EZ Vanilla Green / Pearl White / Orange / Rock Black | ||||
FORK | Al-Alloy rigid, 100mm hub spacing, post 160mm direct brake mount, quick release | |||||
DRIVETRAIN | Motor | YUEBO T400 mid-motor, 180W, 50N.m | ||||
Battery | EJOYSPORT Power Inside battery pack, 378Wh (36V 10.5Ah) li-ion cells | |||||
Controller And Display | 3 riding assist modes,walk assist, 1.9" LCD display, back light, integrated button ( i, +, - ) | |||||
Shift, Rear Derallleur and Cassette | SHIMANO ACERA M3000 9-speed, SL-M3000-R lever, RD-M3000 rear derallleur, ALIVIO M3100 CS-HG200-9, 9-speed 11-32T cassette | |||||
Chainring, Crank and Chain | SAMOX 36T, al-alloy 170 mm lenght arm, KMC X9 chain | |||||
BRAKES | Disc Brakes and Rotors | SHIMANO ALIVIO M3100, BL-MT200 lever, BR-MT200 2-piston hydraulic disc brake caliper, TOURNEY TX800 SM-RT26 160 mm rotors | ||||
WHEELS | Wheel | Al-Alloy rims, double wall, 26×1.75" (ETRTO 47-571), XERO m9×100×108mm 14G32H QR hub(F), m10×135×145mm 14G32H QR hub (R), | ||||
Tire | INNOVA 26×1.5" (40-590), Schrader valve | |||||
COMPONENTS | Stem, Handlebar and Grips | EJOYSPORT al-alloy 60mm length, ±8° EJOYSPORT al-alloy, 31.8×620mm, 40mm rise, 6° back swept Velo ergonomic shape, rubber, plastic clamp | ||||
Saddle And Seatpost | Sella Royal pressure reduction saddle, 30.9×350mm al-alloy seatpost, quick release collar | |||||
Pedals | Wellgo PP MTB, plastic platform with molded pins, reflectors | |||||
Extra | Spanninga HL5201 white LED (F), RL13G red LED (R) with 2 AAA batteries. Plastic fenders, al-alloy rear kickstand, rear pannier rack (25kg/55lb max weight), flick bell. | |||||
Charger | AC220V-50/60Hz-2.0A input, 42V-2.0A output charger | |||||
DIMENSIONS AND WEIGHT | Bike | L1760×W630×H980mm, 20.5kg (2.2kg battery included) | ||||
Package | L1320×W200×H760mm, 26kg | |||||
